A full adder is a digital circuit that performs the arithmetic operation of addition on three binary digits, producing a sum and a carry output. Unlike a half adder, which adds only two binary digits and produces a sum and carry, a full adder considers an additional carry input from a previous less significant bit addition. The full adder\'s design includes three inputs: A, B, and Cin (carry-in), and two outputs: Sum (sum) and Cout (carry-out). The sum output Sum is derived by XOR-ing the three inputs, while the carry-out Cout is obtained by considering the majority function of the inputs. This means Cout is set when any two or more of the three inputs are high (logical 1). Full adders are fundamental components in the construction of arithmetic logic units (ALUs), binary adders, and other computational circuits in digital systems, enabling the handling of multi-bit binary addition by cascading multiple full adders.
Introduction
I. INTRODUCTION
The recent applications of VLSI(Very Large Scale Integration) such as audio and video processing, microprocessors and digital signal processing etc., using arithmetic operations are becoming more important. In past times VLSI applications are mainly depends on area, reliability and cost rather than power. The power increasing demand and low delay was mainly due to latest growth of electronic products such as portable mobile phones, laptops and other devices needs high speed and low power consumption. The full adder is an important component for controller or processor design like microprocessors, digital signal processors etc. It is also used to do arithmetic and logical operations. In this paper the full adders are designed in various techniques and technologies. The project is aiming to analyse the delay ,power and gain characteristics of 10T full adders in different techniques and technologies. Finally, we conclude that which is the best design for applications.
II. LITERATURE SURVEY
Chandran Venkatesan, Thabsera Sulthana M, Sumithra M.G these authors presented that A 1bit full adder with various design techniques and their area, power delay are calculated using cadence 45nmtool environment with a supply voltage of 1.8V. This project finally concludes that 10T GDI technique is best in all measurements with low power. The circuit used a smaller number of transistors so area and leakage power can be reduced.
Manjunath K M, Abdul Lateef Haroon P S, Amarappa Pagi and Ulaganathan J. proposed that the circuits are designed in the virtuoso platform, using cadence tool with the available GPDK – 45nm kit. The Full-adder circuits with the most 28 transistors to the one with only 6 transistors are successfully designed, simulated and compared for various parameters like power consumption, speed of operation(delay) and area (transistor count), and finally concluded the best designs, that suite for the particular specifications.
Y. Sunil Gavaskar Reddy, V.V.G.S. Rajendra Prasad. Low-power, adiabatic logic, Full adder, CMOS, Pass transistor logic, Positive feedback adiabatic logic, Transmission. They have presented low power full adders by using the different CMOS techniques and adiabatic adder circuits are analysed in terms of power and transistor count in 0.18um technology.
III. AIM, OBJECTIVES AND ADDITIVE CIRCUIT
A. Aim
The main aim of the project is to analyse and compare the design parameters of various 10T full adders.
B. Objectives
The objectives of the project are
Designing and simulation of full adders in 10T various technologies in Cadence Virtuoso tool.
Measurement of parameters of the designed full adders in technology of FINFET.
Measurement of parameters of the designed full adders in technologies of GDI, SERF and CMOS.
Analysis and comparison of results of the measured parameters of designed and simulated full adders.
C. Additive Circuit
The Additive circuit that we are adding to the project is 10T FINFET full adder. FINFET stands for Fin Field-Effect Transistor which is a type of 3D Transistor used in modern semiconductor devices for improved performance and lower power consumption. FINFETs have better control over the channel, reducing short-channel effects that are common in traditional MOSFETs.
IV. SOFTWARE USED
Cadence Virtuoso is a prominent Electronic Design Automation (EDA) solutions provider, offering a comprehensive suite of tools for analog, mixed signal and integrated circuit (IC) design. It provides a suite of tools and features that enable us to process the design from initial schematic capture to final layout and verification.
The Key features of Cadence Virtuoso are Schematic Capture, Layout Editor, Simulation and Analysis, Design and Rue Checking, Physical Verification, Parametric Analysis and Custom Design.
The main Advantages of Cadence Virtuoso over other platforms are:
High precision, Comprehensive toolset and Industry Standard.

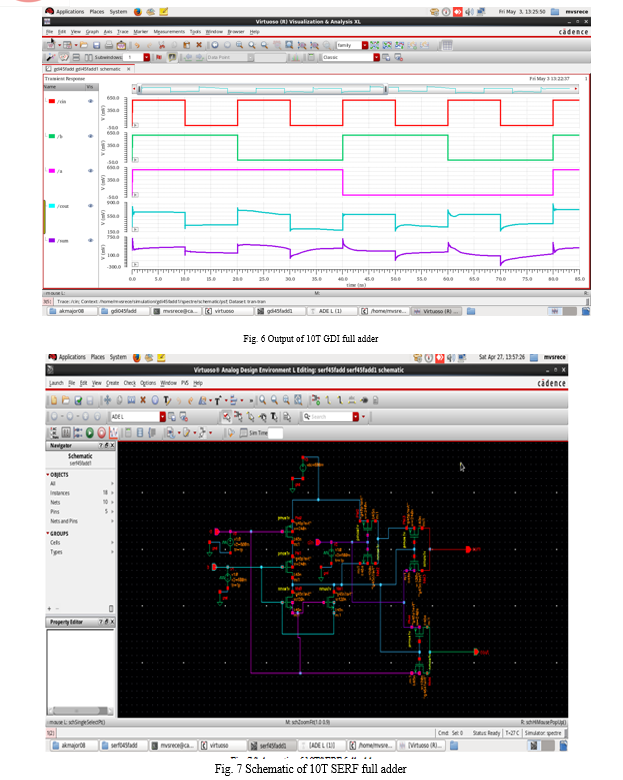

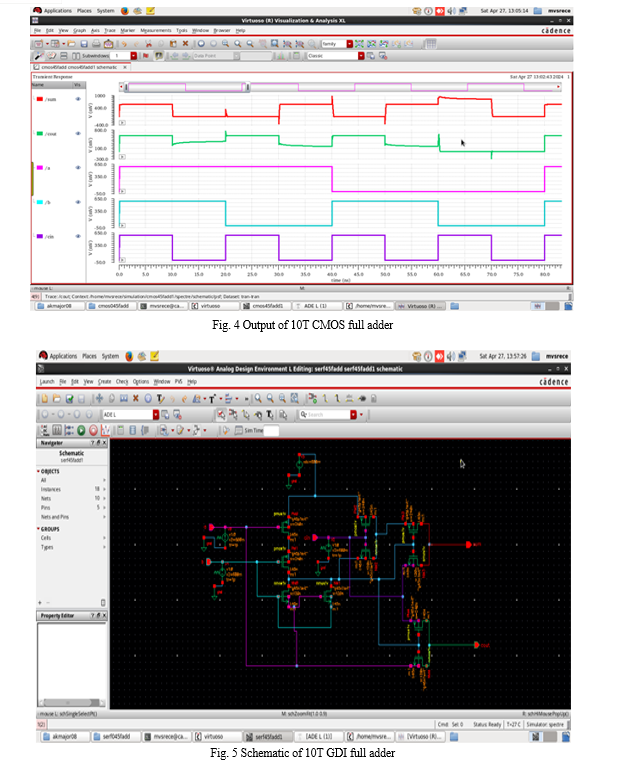

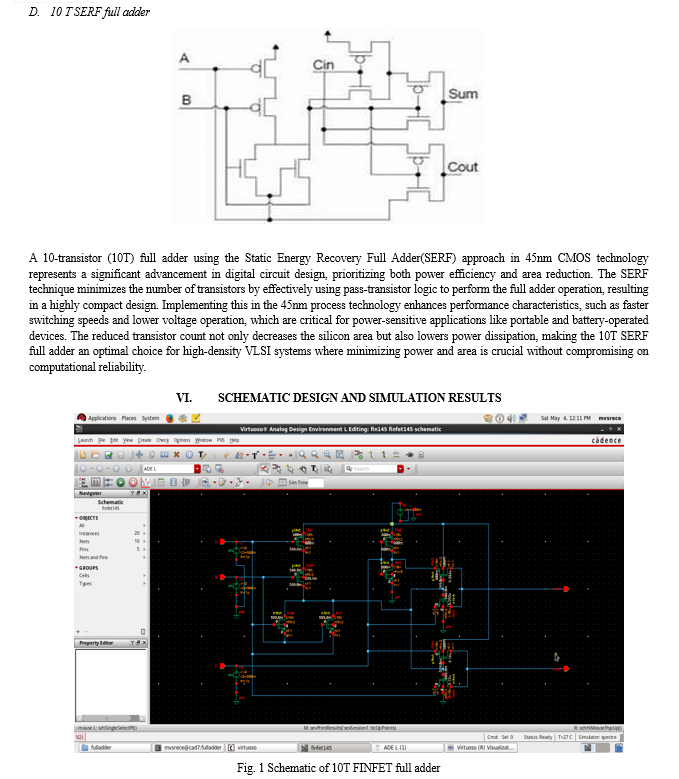

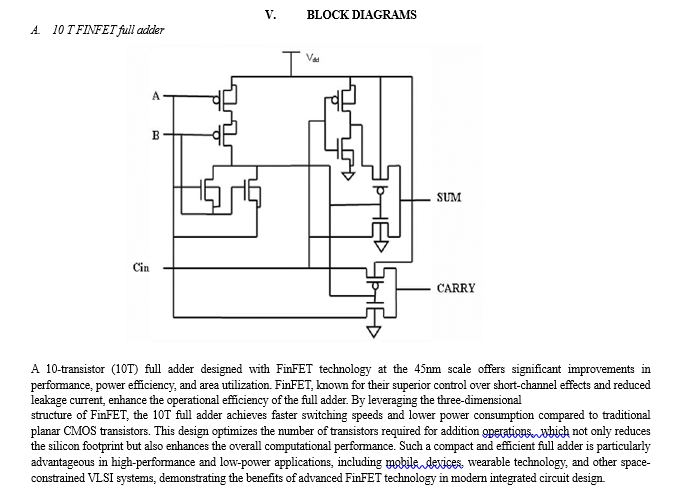

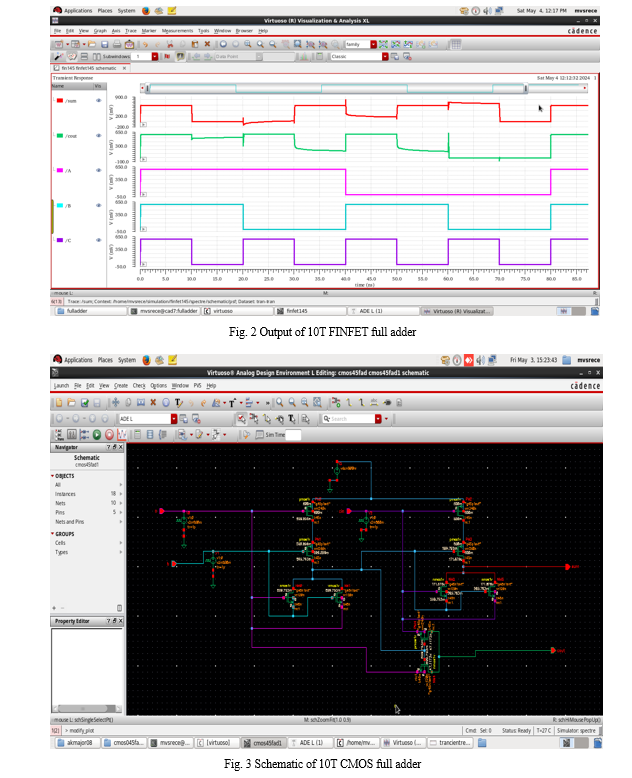

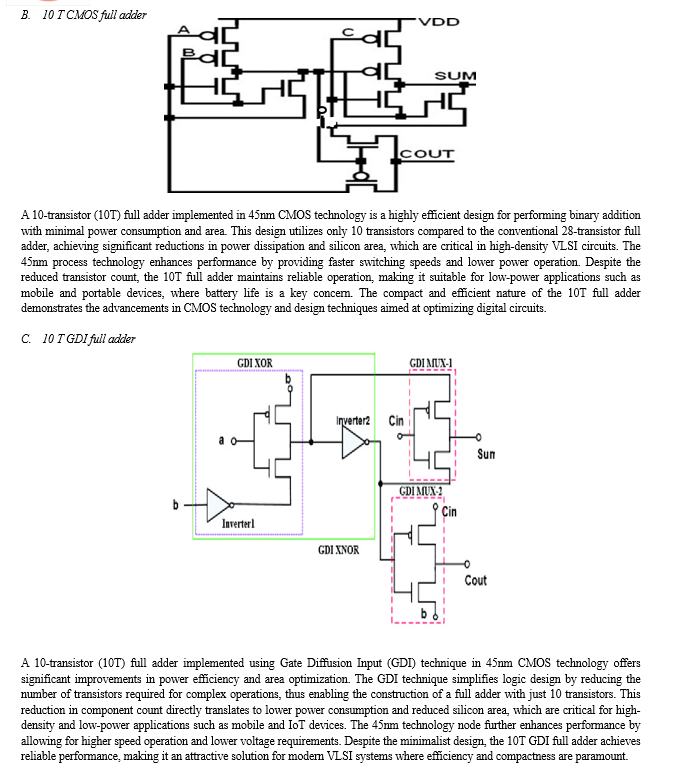

VIII. FUTURE SCOPE
The future scope of full adders, which are fundamental components in digital electronics, is broad and influenced by several emerging technologies and trends in the field of computing and electronics. Here are some key areas where full adders are likely to see significant developments and applications:
Energy-efficient and Low-power Designs
Neuromorphic Computing
Nanoelectronics and Emerging Materials
Internet of Things (IoT)
Reconfigurable Computing and FPGAs
Conclusion

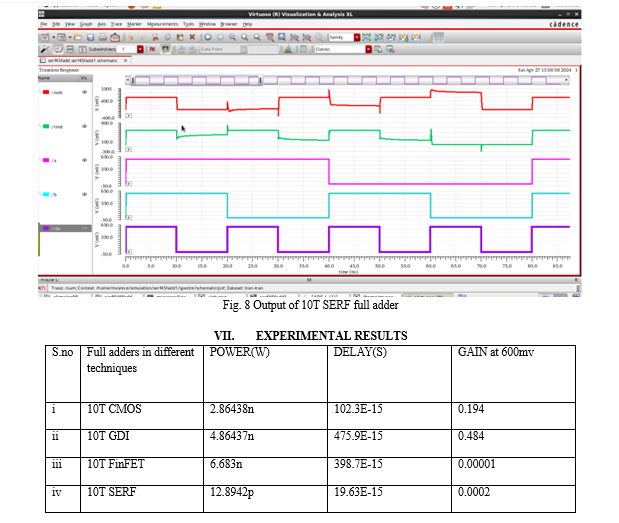

We can see from the experimental results the outputs of design parameters of full adders. 10T SERF full adder have low power consumption and low delay so it is used for low power applications. 10T GDI is a high gain full adder with high delay. 10T CMOS full adder is relatively stable with moderate power consumption and low delay with average gain. 10T fin FET full adder uses high power and relatively less delay than GDI.
