Application Based Bus Tracking System

Abstract

Buses are available to transport people to a variety of locations, although few passengers are aware of their existence. Complete information, such as the verity of buses those travel those the required end of location, bus numbers, bus time to, bus route data, and the time instant it will take for the vehicle to arrive at its end location, will assist passengers with various routes, track the present location of the bus, and provide the correct time for the bus to arrive at its end location. The proposed system is designed to address the concerns listed above. The system is an web app that offers critical bus data for all of Hyderabad. Because the Android Operating System provides a lot of features, it was picked for this type of gadget.It has only lately been released. It has grown to enormous proportions, with about every second person owning a piece of it. Since its launch, an ever-increasing number of Android apps have been created on a massive scale. A vehicle tracking system can be used to track a vehicle\'s location and movement at any time and from any location. A fastest Google locations and GPS_module-based car tracks object are used in this project. These are some examples of similar ideas that have been attempted to be implemented in engineering and technology literature. To create a smartphone application that allows bus riders to track their bus\'s location? Users would be able to look for a specific bus by inputting its number, and the programme would reveal the bus\'s current location.Essentially, this programme provides a brief overview of bus locations, routes, and expected travel time with an online attendance feature, and it is entirely based on Google Maps and its API.

Introduction

I. INTRODUCTION

 The suggested system makes use of a Smartphone application. Buses have GPS systems that allow them to know theres vehicles, and the satellite Maps API is used to show the vehicle’s on a map in the web phone app. It displays the bus's current location on a map and provides the user with current information at various intervals. The projected arrival time is also displayed, allowing the user to predict when the bus will arrive at their stop. In addition, our technology alerts vehicles about traffic congestion. If the motorist's path is clogged, it provides him alternative alternatives. The second most advance is that if the bus is in an urgent situation, it will send out an know.to the person in charge of transportation, an alarm message The app allows the user to plan their route and determine when they should board the bus. The proposed system is simple to operate and provides security and cc footage  at a low cost.Truck monitoring structures had been first used withinside the transport enterprise due to the fact human beings desired to recognize wherein every car become at any given time. Automated car tracking structures are already being utilized in a whole lot of approaches to music and show vehicle positions in actual time, way to speedy technological advancements.A actual-time bus monitoring machine should be designed and applied to deal with those problems and enhance the modern-day bus provider machine. With a actual-time bus monitoring machine, bus role statistics is attached in actual-time and uploaded to a crucial server data for encoding and extracting transit data. The key era used to construct this machine become the Global Positioning System (GPS) . The role of an item may be received the usage of GPS era.

  II. METHODOLOGY

Android is a Google-advanced cellular running system (OS) primarily based totally at the Linux kernel and meant for touchscreen cellular gadgets consisting of smartphones and tablets. On-display items are managed through contact gestures that loosely approximate to real-global motions consisting of swiping, tapping, and pinching, in addition to a digital keyboard for textual content input, in Android's person interface. Android items is for tv’s, Android technology is for automobiles, and Android Wear is for watches, every with its personal person API. Android also can be observed on computers, online game consoles, virtual cameras, and different digital gadgets. We now have telephones with “GPS”, ‘GPRS’, ‘Wi-Fi’, NFC, and a slew of different cool functions. You should in no way cross incorrect with superior features.conceive In this complex mobile market, Android is one of the operating system platforms that has made it easy for manufacturers to create high-end phones. The data is saved and copied to a stream, from whence it is sent. instance to its inherent nature, it execute in the background and waits for a prospective transfer activity.

When the appropriate button is pressed, they are activated. Services fetch values from a static class called lastvalues.java using the intent's information data. They are mostly made up of Final.Values. Android OS and EXTRAS GROUP OWNER ADDRESS

Android, as you may know, is a Google-developed Linux-based operating system. It was created particularly for mobile devices to give the market with simplicity, usefulness, and efficiency. Android is an open source project with a large developer community that creates apps. Developers often create apps in Java (Stephen Shankland, 2007), and the majority of apps are downloaded from Google Play, the official online store. There are already 600,000 apps accessible on Google Play, with 20 billion apps downloaded so far (engaged, 2012).

Android is a Linux-based operating system with C-based libraries. Android, according to Dan Morrill, a Google Android Engineer, is neither a specified  nor a cluster  in the conventional Linux once. It's not a jumble of interchangeable parts. Android  apk is a mobile operating system.

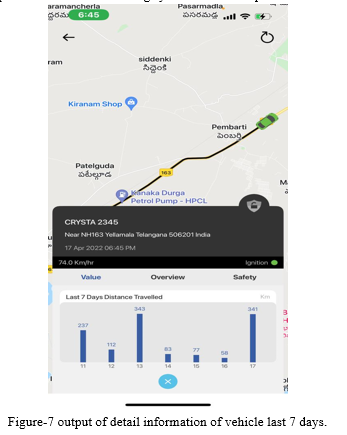

Once the application get in to public then we can add more futures Like instant tickets booking. Our application also reports last few days average speed, top speed,lowest speed.

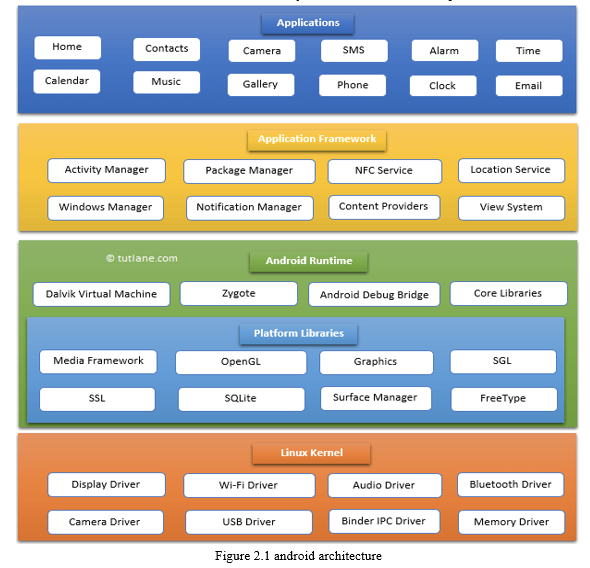

III. ARCHITECTURE

Architecture Under the Dalvik VM, Android runs on Linux. Dalvik has a just-in-time compiler that converts the byte code in memory to machine code. Intermediate level byte coding can be defined as In order to run the programme faster, the JIT compiler examines the byte code in many portions and builds dynamically. Java conducts checks on dependent code segments, so the code is only compiled before it is executed. It is cached and set to be ready for later use after it is compiled once.

For Android app improvement, Studio is the reputable IntelliJ IDEA-primarily based totally IDE. In addition to IntelliJ's effective code editor and improvement tools, Android Studio consists of greater functions that assist you increase Android apps faster, such as: Gradle-primarily based totally construct device with a whole lot of flexibility Create severa APK documents and construct versions You can use code templates that will help you create not unusualplace app functions. A drag-and-drop subject editor with a entire format editor. Performance, usability, model compatibility, and different troubles are stuck with lint tools.

 IV. GPS TRACKING UNIT

A GPS tracking unit is a gadget that uses the Global Positioning System to determine and track its exact location, as well as the location of its carrier, at regular intervals. It's frequently carried by a vehicle or a person in motion. The recorded position data can be retained in the tracking unit or delivered through a cellular (GPRS or SMS), radio, or satellite modem to a central location data base or an Internet-connected computer. This allows the location of the content to be displayed against a map backdrop in real time or later.s when using GPS tracking software to analyse the track. Smartphones with GPS capabilities can use data tracking applications.

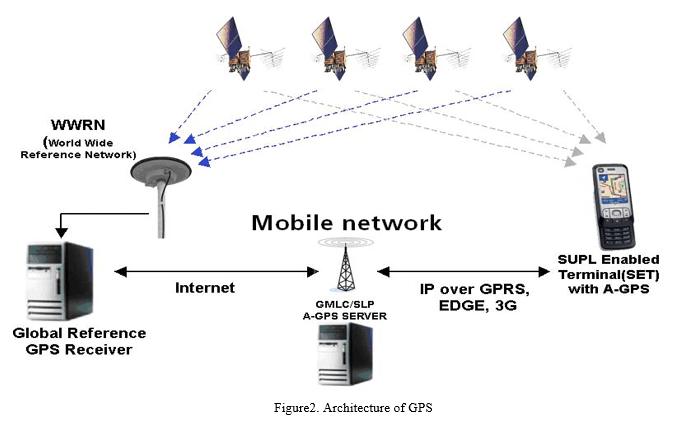

A. GPS Architecture

A GPS tracker consists primarily of a GPS module that receives GPS signals and calculates coordinates. Smart Bus Tracking System Introduction data loggers have a big memory to store the coordinates, while data pushers have a GSM/GPRS modem to send this information to a central computer through SMS or GPRS in the form of IP packets.

 The GPS system is based on time and the known positions of specialised satellites. The satellites are equipped with extremely accurate atomic clocks that are synced with one another and with ground clocks. Any deviation from the ground-based real time is adjusted daily. Similarly, the satellite placements are quite precise. GPS receivers also include clocks, but they are not synchronised with true time and therefore less reliable. GPS satellites communicate their current time and position in real time. A GPS receiver tracks numerous satellites and uses equations to calculate the receiver's accurate position and divergence from actual time. For the receiver to compute four unknown quantities (three position coordinates), at least four satellites must be visible.

B. Mobile Phones with GPS Capability

The bulk of GPS receivers are embedded into mobile phones, with different degrees of coverage and user accessibility, thanks in part to rules supporting mobile phone tracking, such as E911. Most modern smartphones, as well as certain Java-enabled phones, have commercial navigation software that allows them to use an internal or external GPS receiver (in the latter case, connecting via serial or Bluetooth). When out of range of their carrier's mobile towers, certain phones with aided GPS (A-GPS) perform badly. Others can navigate the world using satellite GPS signals just like a dedicated portable GPS receiver, switching to A-GPS mode when in range. Others feature a hybrid positioning system that can use other signals in the event that GPS signals are unavailable.

C. Software Requirement

1. Functional Requirement

• The function that should apply to a method are referred to as functional requirement. The bus track system functional criteria those listed below.
• The system be ables to provide real-time information to the user.
• The system be ables to handle data from the bus position modules, calculates anticipated travel time for the users, and displays the location on map.
• Every bus in every bus stop must have an expected arrival time displayed in the system.
• The system must allow users to obtain data from their mobile devices and computers.
• The system should be able to display traffic data on maps.
• When an emergency occurs, the systems will be able to sent an SMS.

2. User Requirement

• The main target is get location from buses to user in public as students and clerks who regularly uses the buses
• This proposed system's primary users are students and staff, as the major goal of the bus tracking system is to inform students with an expected bus arrival time.
• Every bus stop must have a real-time estimated bus arrival time that the student or staff can retrieve. While waiting for the bus, students can use their mobile device to access the bus tracking system rather than utilising a computer.
• This is the primary reason for the development of a bus track systems in a web application. The system includes a real vehicle track system with mapping capability, which allows students and to examine the bus location on a maps. Using this mapping logic, students may see where a bus is in real time based on the map.
• Pentium P4 is the system processor.
• 1GHz or greater smartphone processor
• Memory: 512 MB RAM is recommended, but 1GB is preferable. Chipset: Genuine Intel
• Android based mobile display: 1024x 1028 or high resolution display with 32 bit colours.

V. SYSTEM DESIGN

A. System Architecture

This chapter provides important information for major components by describing features, fragments, classes, architecture, and the programme itself. The overall information is presented first, followed by the project's components and classes. Following that, the application's architecture is explored in detail.

B. End user Interface Building

Bus information connection  building should be  basic as feasible so that vehicle user may simply obtain data. The app is separated into sections: a map with bus locations, traffic information, and emergencies.

The first phase involves extracting data from the API, followed by traffic navigate using map, and finally, getting the exact location and sending packtes. These two structs, MainActivity.java and Routes.java, are responsible for the system's core operations.

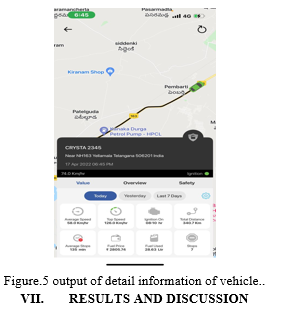

The commuter module is the app's first feature. There are two buttons in the commuter module, one for vehicle 1 and the other for vehicle 2. Users can select the appropriate tokens by clicking on them. By selecting the bus can be found in shape of a red highgate here, along with the estimate time slot (“ETA”). The software also uses a blue circle to highlight the user's location. It also displays the location's name. When the user selects the directions button, the length between the end one and the vehicle is displayed.

These run the code is the second component. There are two buttons on this module that correlate to the two pathways. When the person selects one of the route, he can view disturbance updates for that route. High traffic is indicated either by

color red; medium traffic is indicated by the color orange; and no traffic is indicated by the color blue.

The Rescue module’s is final module. If there is an urgent scenario, such as a bus malfunction or an accident, the user can press the emergency button. When he or she hits the icon, a warning box will appear, asking if he or she requires assistance. By choosing yes, a text message will be sent to the college's transportation coordinator, together with the exact location.

By choosing yes, a push notification with the actual location of the bus would be sent to the college's mobility manager.

A navigation drawer is also included in the app, with 3 different chances: path chart, know your person, and responce. Every one of the stops along the trip is indicated just on journey planner. For this reason, radio broadcast keys are included. If the user wishes to learn more about the driver, he or she can select the Know Your Motorist choice. The destination of the bus.

A navigation drawer is also included in the app, with 3 different chances: route, know your persons, and response. Each of the stops along the trip’s is indicated on the route map. For this purpose, two radio buttons have been included. If the consumer wishes to learn more about the driver, he can select the Know Your Driver option.

C. Xml_Pull_Parser Factory’s

Since it is faster than SAX and Xhtml, Samsung promotes XMLPullParser for interpreting xml files. _xmlPullParserFactory_ = _XmlPullParserFactory_newInstance()_; _new_Instance(): _XmlPullParserFactor_newInstance()_; _newInstance(): _XmlPullParserFactory.newInstance()_; _newInstance(): _XmlPullPar Creates a new instance of the 'PullParserFactory', which may be used to make XML pull ‘parsers’

newInstance(): Creates a new instance of a PullParserFactory that can be used to create XML  pull parsers.

D. Backgrounds assynctask(aasync_task)

web AasyncTask is an abstract_tp module supplied by web that allows ussto conduct large operations in the end while keeping the UI beem lights, resulting in a more responsive application.

When an Android programme is launched, it operates on a single thread. Because of the one thread approach, tasks it took a long time to fetch a response may cause the programme to become unresponsive. To overcome this, we use mobile Able to process to run the heavy tasks on a different topic in the background before providing the results to the UI thread. As a result, when AsyncTask is being used in App, the UI thread is always accessible.

The basic functions in an app AsyncTask class are as follows:

1. doIn_Background() : This function brings the code that must run in the background. The publishProgress() method in this manner allows us to deliver results to the UI thread several times. We only need to utilise return statements to signal that the background processing is complete build and Analysis of a app based Tracking System

onPreExecute() is the second method. This procedure includes the Before the underlying information encoded, there is code that is performed.

3. onPost Execute(): After the doIn Background method has complete processing, this method is called. This procedure takes the result from involvement and interaction.

4. onProgress Update(): This function gets progress updates from the doIn Background function, which are broadcasted or the publishesProgress method, and can utilise them to update the UI thread.

The following are the t generic kinds used in an app Process of performing a task class:

1. Par_ams: The kind of arguments being sent to the function when it is run.

2. Performance: The kind of advance units that are displayed during covert computing. 3. Output: The type of output from the underlying calculation.

VI. IMPLEMENTATION CODE

A. Platform Execution

Web Android_Studio

1. Available for ios application framework (IDE) for Android development, based on JetBrains' Java Ide software. It's for all download on Windows, Mac OS X, and Linux. It replaces the Canvas Android Web Apps (ADT) as the primary IDE for original Android app development.
2. This current stable version includes the following features:
3. Gradle-based builds are allowed.
4. Apk refactoring and quick fixes
5. Fiber tools are used to identify speed, aesthetics, model interoperability, and other concerns. ? ProGuard Wizards that employ templates to produce standard Android designs and components provide integration and app-signing capabilities. In this robust layout tool, users can back-and-push UI components and test layout’s on a variety of display settings.
6. It's now possible to make Android Wear apps.
7. The Google Cloud EngineFirebase Cloud Messaging (previously 'Google Apps Communications') and Google App Engine support is built-in.
8. Use the Android Virtual Device (Emulator) in Android Studio to run and debug apps. Android Studio 3.0 claims to support "Java 7 programming languages and a subset of Java 8 language features that are supported by IntelliJ and PyCharm, including Python and Kotlin," and Android sdk_ 3.0 supports "Java 7 language includes and a subset of Java 8 grammatical structures that are supported by IntelliJ and PyCharm, including Python and Kotlin," and Android sdk 3.0 supports "Java_8 lang features and a subset’s of Java 8.2 linguistic features that are supported by Information processing

B. Programming Language Gist

Java

1. The Java programming language is used to create web applications.
2. The following are some of Java's key features:
3. It's simple to learn and comprehend.
4. It's built with virtual machines to be platform-agnostic and secure.
5. It's an object-oriented system.
6. These Java principles are widely used by Android.
7. Many conventional Java libraries (data structure libraries, math libraries, graphics libraries, networking libraries, and everything else you could want) are included in the Android SDK, as well as specific Android libraries that will help you create fantastic Android apps.

C. Funtion’s Description

 Commuter's Module

The module is divided into 4 phases, one of which is responsible for a particular component. Essentially, the main activity administers the location manager class's constructor methods and pre-configuration process, such this monitoring the past location, exact location, and current checker GPS is on or off.

D. Home Page

In the current condition, the city of Hyderabad is beset by traffic and other issues. One of the primary issues is that students and employees will miss their buses in a fraction of a second, causing problems such as being late for courses, examinations, and other events. To address this issue, an application-based bus tracking system was developed.

Conclusion

In the current condition, the city of Hyderabad is beset by traffic and other issues. One of the primary issues is that students and employees will miss their buses in a fraction of a second, causing problems such as being late for courses, examinations, and other events. The APP Based Tracking System was developed to address this issue. There are three different modules in this system:The first module is the commuter module; when users want to know where their bus is, they can click on this module to acquire information on their bus on Google maps, as well as an estimated time of arrival.If the driver wishes to know about traffic, the second module is the driver module.details along his path He can select the module by clicking on it. The traffic will be visible on Google maps after you click this.

References

[1] Shared S, Bagavathi Sivakumar P, Anantha Narayanan V, ” The Smart Bus for a Smart City - A real-time implementation”, 2016 IEEE International Conference on Advanced Networks and Telecommunications Systems (ANTS). [2] Majd Ghareeb, Athar Ghamlous, Hawraa Hamdan, Ali Bazzi,Samih Abdul-Nabi, “Smart bus: a tracking system for school buses”, 2017 Sensors Networks Smart And Emerging Technologies (SENSET). [3] R.C.Jisha, Aiswarya Jyothindranath, L Sajitha Kumary, “IoT based school bus tracking and arrival time prediction”, 2017 International Conference on Advances in Computing, Communications and Informatics (ICACCI). [4] City - A real-time implementation”, 2016 IEEE International Conference on Advanced Networks and Telecommunications Systems (ANTS). [5] Ajay Shingare, Ankita Pendole, Nikita Chaudhari and Parikshit Deshpande, Prof. Samadhan Sonavane,” GPS Supported City Bus Tracking & Smart Ticketing System”,2015 International Conference on Green Computing and Internet of Things (ICGCIoT). [6] ReshmaRathod, ”Smart assistance for public transport system” 2016 International Conference on Inventive Computation Technologies (ICICT), Volume: 3. [7] Majd Ghareeb, Athar Ghamlous, Hawraa Hamdan, Ali Bazzi,Samih Abdul-Nabi, “Smart bus: a tracking system for school buses”, 2017 Sensors Networks web And Emerged Technology (SENST). [8] R.C.Jisha, Aiswarya Jyothindranath, L Sajitha Kumary, “IoT based school bus tracking and arrival time prediction”, 2017 International Conference on Advances in Computing, Communications and Informatics (ICACCI).
