Campus Parking Availability System

Abstract

In past decades, IoT was not clearly visible to people, but nowadays - IoT has increasingly organizations in a variety of industries are using IoT to operate more efficiently delivered enhanced customer services, improve decision making and increases the value of businesses. It consists of smart devices which are used to collect, send and act on data which is required for the system. Nowadays IoT plays an important role in the parking systems. IoT is a heart of embedded systems due to which every embedded system is more efficient and user-friendly. This IoT application we are using in our project to enhance the nowadays parking systems by using different components such as sensors, scanners, web-services, motors, authentication components etc which will be interfaced with each other by using IoT.

Introduction

I. INTRODUCTION

In the previous years, we have seen that in many college campuses, we have noticed that the parking slots provided by the campus management is not utilized properly which leads to congested parking due to which parking in the campus is more complex. To resolve those problems, we have built this project – Campus Parking Availability System.

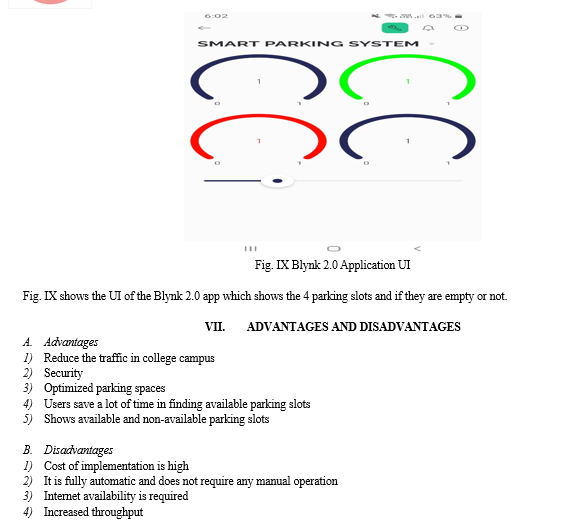

Throughout this project, we have concluded that parking system should be in a constant way, the available parking slots will be displayed throughout the mobile application which should be installed in our mobile devices. Only students from the same college are allowed by scanning the authorized ID card provided by the college.

II. RELATED WORK

The present parking systems in urban areas can be frustrating and time consuming hence we proposed smart parking system which will work efficiently with the help of technological advancement. The evolution of parking systems is from simple sensors to complex data driven solutions. There are many different parking systems which were previously established, so we are concluding all the previous parking systems and improve the pitfalls of the systems.

Alirezahassani et.al has proposed the parking system which was implemented using the mobile application that is connected to the cloud. In this system, the user is able to set the time to allocate the slot. If he didn’t use that the slot, the alarm will be given to the user.

This all functioning is shown by the mobile application which includes the number of used and empty spaces in the parking slots. The disadvantage is that if another user try to use the slot, he’s unable to use that slot. Therefore, that slot is a waste of space if the first user cancels the slot which leads to waste of time and money. [1]

DharminiKanteti et.al has developed a smart parking in which IP cameras were used to capture the vehicle registration number. These components were used for pre-registration of the user for slot booking and the amount will be deducted by the e-wallets. The disadvantage of the system is that if the parking request is more than 80 slots, it couldn’t accommodate more vehicles as parking is full. [2]

Rosario Salpietro et.al implements automatic detection of parking system through smartphone embedded sensor and blue tooth connectivity. In this system once the parking event is completed the detection of adaptive strategy allows the disseminating the information of the user using the combination of remote server and device-to-device connection through wi-fi links. [3]

A. RFID Card Reader

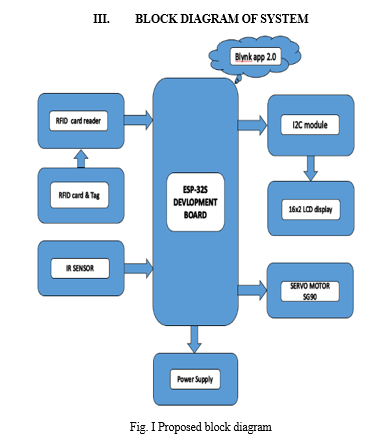

As shown in fig.1 RFID Card reader is connected to the ESP-325 development board. This technology uses radio waves to identify people or objects. It has one or more antennas that emit radio waves and receive signals from the RFID tag.

B. RFID Card and tag

RFID tag uses the radio frequencies for searching, identifying and tracking and also communicate with people and specific components.

C. IR Sensor

The IR sensor is a device that can measure the heat of an object as well as detect the motion. It operates in the infrared spectrum.

D. Servo motor

The servo motor allows precise control of angular position. It is mainly used on angular or linear position and for specific velocity and acceleration.

E. 16x2 LCD Display

The 16x2 Liquid Crystal Display that can show 16 characters in 2 rows. So, total of 32 characters are shown on the display.

F. I2C module

It is a useful module to interface serial connection to parallel data, specially used for LCD display.

Conclusion

The Campus Parking Availability System provides us smart parking in the campus. It shows available and non-available parking slots and identifies students using the RFID card. It reduces traffic and congestion in the college campus. It gives us an organized parking system that allows constant parking method.

References

[1] M.R.M. Veeramanickam, B. Venkatesh, Laxmi A. Bewoor, Yogesh W. Bhowte, Kavita Moholkar, Jyoti L. Bangare, “IoT based smart parking model using Arduino UNO with FCFS priority scheduling”, Measurement: Sensors Volume 24, December 2022 – Elsevier [2] Joseph Jesawanth Singh, Nanthiine Nair Ravi, Prajindra Sankar Krishnan, “Iot based Parking Sensor Network for Smart Campus”, International Journal of Engineering & Technology [3] R.Subhash, M. Praveen, V.Dineshkumar, V.Vijayakumar, R.Ramachandiran, M.Shanmugam, T. Kalaipriyan , RS. Raghav, “IOT BASED SMART PARKING SYSTEM” - International Journal of Pure and Applied Mathematics [4] Muh Anshar, R S Sadjad, Dewiani, M Hanan, R Prayudha and M Abry, “Design and Implementation Monitoring and Booking Systems for Smart Parking at Engineering Faculty Campus” - IOP Conference Series: Materials Science and Engineerin [5] Mohammed Balaqih, Waheb Jabbar Mashael Khayyat, Rosilah Hassan, “Design and Development of Smart Parking System Based on Fog Computing and Internet of Things” - MDPI
