Car Number Plate Detection from Livestream

Abstract

As of late there has been an expansion in the quantity of vehicles and a few methods of transports accessible in the street organizations. Also, consequently need to screen the traffic have become a gigantic issue. Different strategies have been executed on the traffic the executives and its reconnaissance. For this issue the number plate recognition is useful as it is perhaps the main methodologies for managing the traffic utilizing a few advanced procedures. Programmed Number Plate Recognition (ANPR) framework is perhaps the best answer for this issue. In our country regularly number plates with different text styles are being used which add to intricacy of understanding tag as framework should be made for all regions. In this gave work an overview on mechanized. amount plate acknowledgment method is introduced. In this undertaking we do an investigation of the current ANPR frameworks.

Introduction

I. INTRODUCTION

India is an agricultural country where progress means different things to different people. Every Indian's lifestyle has altered dramatically during the last ten years. The effects of this quick and luxurious lifestyle can be seen in several areas, such as parking lots and traffic. Different strategies and the chief's capacities are used to deal with the increasing traffic and the extraordinary traffic. Modified vehicle number plate affirmation is one of them, and it’s requirement for the new vehicle mobility and controlling.

Closed Circuit Television Camera (CCTV) cams are utilized to monitor congestion of automobiles ,which is more efficient than human inspection. The limited resolution of CCTV cameras is a disadvantage[4]. ANPR is a method for overcoming the shortcomings and lack of productive perception of CCTV cameras. — The automatic tag recognition framework comprises extracting a vehicle's tag and using it for various reasons. Automobile image capture, license plate position, chart eristic division, and characteristic identification are all part of the ANPR computations. ANPR is a high-level machine vision invention that allows automobiles to be identified by their licence plates without the need for direct-human participation. ANPR is known as programmed vehicle recognisable proof, vehicle plate acknowledgment, programmed number plate acknowledgment, and vehicle optical character recognition (OCR)[4].The following criteria should be considered while recognising a vehicle number plate: 1.Plate size: in a vehicle photograph, a plate can be of various sizes. 2. Plate locality: license plate is being be found almost at different positions in the vehicle. 3.Plate establishment: Depending on the vehicle type, a plate can have different establishment tones.

II. LITERATURE SURVEY

Ms.Sushama,H.Bailmare, and Prof.A.B.Gadicha demonstrated an approach based on simple and effective morphological procedures, as well as the Sobel edge detection system. They also showed how to segment all the letters & digits on the number plate in a simpler way. We utilise histogram equalisation to try and enhanced disparity of the binarized image after eliminating noise from  input picture. The first is to detect the number plate, and the further is to put all of the numbers and let.

 In 2018,AndrewS.Agbemenu presented an ANPR system based on the plates' characteristics and variances. In this paper, the author proposes an algorithm that is upgraded to function with Ghanaian automobile licence plates. As for discovering edges and matching the template, the designed model used two seeker finding strategies. The device also enforced the character segmentation trend, especially with square plates, to aid in noise reduction, character arrangement, and skewing. Character identification was completed with the help of a tesseract OCR machine in the end. With an average time of 0.185 s and a delicacy of 90.8 percent, point finding was slightly slower but more successful. The optical character recognition technique took an average of 0.031 seconds and correctly linked around 60% of the identified plates.

In 2019,Cheng_Hung_Lin proposed a three stage licence plate identification method based on Mask_RCNN, which is employed for multitudinous oblique pictures & colourful firing angles. In the automobile discovery stage, the author employed YOLO-v2 for the associated car. The next stage was the position of the licence plate, where YOLO-v2 was used to decode the licence plate once more. YOLO-v2 divides the photos of phase I collected cars into 19 × 19 squares throughout this phase. The Cheng employed Mask R-CNN for character identification in the last stage. The findings show that the proposed model was able to recognise vehicle number plates with bevel angles greater than 0-60 degrees & also achieved a chart standing of around 91 percent.

III. METHODS USED

A. Python

Python is a significant level and deciphered programming language. Regardless, its punctuation rules enable engineers to keep the source code of custom programming applications detectable and practical. Furthermore, the extensively helpful programming language grants computer programmers to run comparable code on various stages without recompilation. That is the explanation, many website specialists lean toward Python to other web programming tongues. Notwithstanding, Python misses the mark on the implied web improvement features given by popular specialist side programming dialects like PHP .

B. Python-Tesseract

Python tesseract is an instrument for OCR (optical person acknowledgment). It  "scrutinize" and see the substance implanted in pictures, at the end of the day.

Tesseract Python wraps the Tesseract-OCR Engine from Google. Since it peruse all of the picture types given by the Pillow and Leptonic imaging libraries, including jpeg,png,gif,bmp,fight and others, it can likewise be utilized as an independent tesseract conjuring content. At the point when utilized as a substance, Python tesseract will moreover yield the apparent substance as opposed to making it to a record. The picture is first separated, then the substance and delineations are then gone to a bitmap, which is just a matrix of exceptionally differentiated spots. To work on the accuracy of the cycle, the picture is then pre-handled, with the brilliance and difference changed.

C.  Computer Vision

Computer-vision is a strategy for translating how photos and recordings are put away, as well as changing and extricating data from them. PC vision is the groundwork of man-made reasoning. Computer-Vision vision is utilized generally in self-driving vehicles, advanced mechanics, and photograph altering application.

D. OpenCV

OpenCV(Open-Source-Computer-Vision-Library) is a computer-vision  and man-made reasoning programming library. OpenCV was expected to give a typical premise to computer-vision applications and to speed reception of AI in business applications. Since OpenCV is a BSD-endorsed item, organizations can undoubtedly utilize and change the code.

The library contains over of 2500 refreshed estimations, including the two masterpieces and state of the art computer-vision and AI calculations[6].These estimations can be utilized to recognise and see faces, recognise objects, request Homan exercises in accounts, track cam improvements, track moving articles, remove 3D model of things, produce 3D point fogs from sound framework cams, line pictures combinedly to convey a high-goal image of an entire scene, kill red eyes from pictures took with streak, follow eye improvements, see looks, and find similar pictures from an image informational index[6].

E. NumPy

NumPy, or Numerical Python, is a bundle that incorporates multi-layered cluster objects as well as a bunch of reusing calculations. This bundle permits you to perform fine and consistent procedure on clusters.

NumPy is a Python cluster handling bundle. It furnishes a multi-layered cluster object with extraordinary execution as well as exhibit related instruments. It's an abecedarian bundle for logical registering. Notwithstanding it’s not kidding logical purposes, NumPy could be utilized as a superb multi-layered repository for the general information.

F. Imutils

Imutils is a bundle in light of OpenCV, which can call the OpenCV interface all the more basically. It can without much of a stretch understand a progression of tasks like picture interpretation, pivot, scaling, skeletonization, etc.

G. Pillow

 Python Pillow module is raised on top of PIL(Python Image Library). It's the fundamental modules for picture handling in Python. However, it isn't upheld by Python 3. However, we can involve this module with the Python3.x exhibitions as PIL. It upholds the fluctuation of pictures comparative as jpeg,png,bmp,gif,ppm,and altercation. We can perform anything on the advanced pictures utilizing the cushion module. In the impending segment, we will learn bright procedure on the pictures comparable as separating pictures, Creating outline, consolidating pictures, editing pictures, obscure a picture, resizing a picture, making a water mark and various different tasks.

H. Matplotlib

Matplotlib is a phenomenal Python perception bundle for 2D exhibit graphs. Matplotlib is a multi-stage information representation bundle based-on NumPy exhibits and expected to work with the remainder of the SciPy biological system. John Hunter previously presented it in the year 2002.

IV. EXISTING SYSTEM

Computer-vision and character-recognition, as well as licence plate detection techniques, are crucial in video analysis of license plate pictures. As a result, any ANPR system would be incomplete without them.

The system for independent automotive licence plate-recognition consists of a cam, a frame theft, a basic-computer, and custom-built software for image processing, analysis, and detection. Vehicle identification has been a popular topic of research for a long time. Many studies have been done to establish the type of vehicle, such as an automobile, truck, scooter, or motorcycle.

V. PROPOSED SOLUTION

The proposed system is planned to resolve two central questions: monitoring the number and sorts of vehicles anywhere nearby, and giving proprietors with the specific time their vehicle left the premises in case of robbery. Two significant parts make up the system:

- A video recording source and

- The software application.

The following are the assumptions for the proposed system:

A. Entrance gate

B. Gate of exit

VI. ANALYSIS AND DESIGN

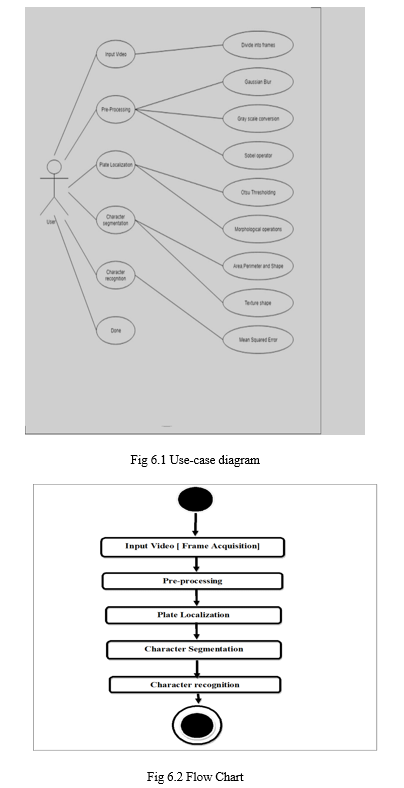

 The Unified Modeling Language(UML), a utilisation case diagram is a sort of friendly figure portrayed by and made from a Use-case disquisition. Its test is to introduce a graphic portrayal of the utility given by an edge with regards to impersonators, their items (alluded to as utilize cases), and any circumstances that exist between those utilization cases.

A. Actor

User                                                    ·

B. UseCase

1. Record video and acquire image
2. confirm Vehicle
3. View Number

  C. Precondition

1. A cam is placed at 4-5m away from the automobile to get the clear view of the number.
2. Videos are captured stored in a repository.

D. Post Condition

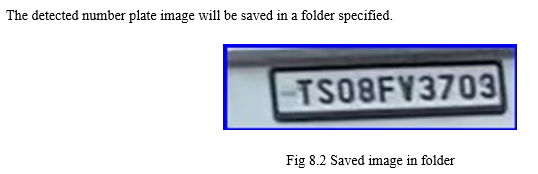

The number plate numbers are recognised and to be displayed terminal.

VII. IMPLEMENTATION

The execution of current endeavour is done with the help of python language. To be explicit, with the ultimate objective of AI Anaconda is being used. Anaconda constructor is one of two or three Python streams. Anaconda constructor is one more allotment of Python. It was once known as Continuum Analytics. Anaconda constructor has in excess of 100 new packages. Anaconda constructor is used for coherent figuring, data science, verifiable assessment, and AI.

A. Image Preprocessing

The pre-processing stage readies the caught picture for the entire plate acknowledgment measure. It includes dwindling the expenditure of figuring the picture data. The hued picture from the camera is dim gauged exercising the Luma strategy employed by OpenCV. Condition 1 relates every attendant dark picture pixel regard, Pray to its comparing shadowing picture RGB esteems RepGen,& Pblue. Pgrey=0299(Pred)+0.587(Preen)+0.114(Pblue)

???????

Conclusion

The proposed ANPR identified a large portion of the number plates tried with a fruitful acknowledgment pace of 60% with a normal handling season of about 0.2s to finish the whole picture catching to character acknowledgment stage. This framework will create more precise outcomes upon additional preparation.

References

[1] Regis C. P. Marques, Fatima N. S. Medeiros, Jilseph Lopes Silva and Cassius M. Laprano, ‘License Vehicle Plates Localization Using Maximum Correlation’, Structural, Syntactic, and Statistical Pattern Recognition Lecture Notes in Computer Science, Springer Berlin, 2004. [2] N. Otsu, ‘A Threshold Selection Method for Gray Level Histogram’, IEEE Transactions on System, Man and Cybernetics, 1979. [3] Erik Bergenudd, ‘Low Cost Real Time License Plate Recognition for a Vehicle PC’, Master’s Degree Project, 2006. [4] Ondrej Martinsky, ‘Algorithmic and Mathematical Principles of Automatic Number Plate Recognition Systems’, B.SC. Thesis, 2007 [5] Badr, Amr, Mohamed Mahmoud Abdelwahab, Ahmed Mohmad Thabet, and Ahmed Mohamed Abdelsadek. “Automatic license plate recognition system.” Annals of the University of Craiova Mathematics and Computer Science Series 38, no.1 (2011):62-71. [6] Sundararaman, Vijayaraghavan, T. G. Vijayalakshmi, G. V.Swathi, and Sambit Mohapatra. \"Automatic License Plate Recognition System Using Raspberry Pi.\" In Proceedings of the International Conference on Recent Cognizance in Wireless Communication & Image Processing, pp. 217- 222. Springer India. [7] Chi-Hung Chuang, Luo-Wei Tsai, Ming-Shan Deng, Jun-Wei Hsieh, Kuo-Chin Fan, “Vehicle Licence Plate Recognition using Super-Resolution Technique”, published in 2014, 11th IEEE International Conference on Advanced video and signal-based surveillance(AVSS). [8] A Literature Survey on Automatic License Plate Recognition System (ALPR) - Harshitta Singh, Mr. Shrwan Ram: IJRECE VOL. 6 ISSUE 3 ( JULY - SEPTEMBER 2018) [9] Automatic Number Plate Recognition (ANPR) With E-challan using Super Resolution Algorithm by Prof Supriya Thombre, Rakshanda Tarekar, Sakshi Ramgirwar,Shivani Zulkanthiwar and Shubhra Dubey.:Biosc.Biotech.Res.Comm. Special Issue Vol 13 No 14 (2020) Pp-231-234. [10] 2009 International Conference on Education Technology and Computer on Automatic Number Plate Recognition System For Vehicle Identification Using Optical Character Recognition. [11] Vehicle Number Plate Recognition System: A Literature Review and Implementation using Template Matching Article in International Journal of Computer Applications · January 2016.
