A Comparative Study on Semantic Segmentation Algorithms for Autonomous Driving Vehicles

Abstract

Semantic segmentation refers to the process of classifying each pixel in an image for better understanding and analysis of image. This is how machines look at the real world and identifies different objects. These are the times when autonomous vehicle industry is blooming and establishing new heights. There are so many research studies going on around semantic segmentation that are advancing to break boundaries in the world of computer vision. Despite of so much of progress made in the field in the recent years, autonomous vehicles needs more improved and efficient models to ride on the roads. In this research paper we compare the currently proved popular choices of models for semantic segmentation with respect to autonomous vehicles on different parameters to create an in-depth analysis on which all models and their variations improve and affect the quality of real time segmentation of the real world. The popular model architecture choices that were assessed and compared in this research were Fully Convolutional Network (FCN), U- Net and DeepLab. The data used for analysis was taken from Lyft Perception Challenge on Lyft Perception Challenge on Udacity.

Introduction

I. INTRODUCTION

During Image Segmentation an image is partitioned into different segments. The main objective of this process is to simplify or transform the image into something that is easy to understand and analyze. In machine vision it also helps machines to identify and understand the relationship between two similar objects located at two different points in an image. The output of this process is an image that has different partitions for each object located in that image. These partitions are differentiated by variation in texture, color, or intensity. Over the past years, image segmentation has found application in many different fields of real world such as in medical imagery to locate tumors, measure tissue volumes, and virtual surgery simulation [1]. Similarly, an autonomous vehicle also uses semantic segmentation and instance segmentation to accomplish different objectives such as pedestrian detection, vehicle detection and road lane detection [2]. Deep learning has revolutionized semantic segmentation and led to better results for more effective and efficient applications. Before Deep learning Networks, machine learning algorithms faced a major challenge of extracting features from an image, but the continuously growing field of deep learning never stumbled upon having a separate step to extract features. Deep learning state of the art algorithms are capable of achieving semantic segmentation faster than the classical approaches and with higher accuracy [7].

II. LITERATURE SURVEY

The first prominent work in this field was fully convolutional networks(FCNs) [1]. FCN was proposed an end-to-end method to learn pixel-wise classification, where transposed convolution was used for upsampling. Skip architecture was used to refine the segmentation output, that utilized higher resolution feature maps. That method paved the road to subsequent advances in the segmentation accuracy. Multi scale approaches [2][3], structured models [4][5], and spatio-temporal architectures [6] introduced different directions for improving accuracy. All of the above approaches focused on accuracy and robustness of segmentation. Well known benchmarks and datasets for semantic segmentation such as Pascal [7], NYU RGBD [8], Cityscapes [9], and Mapillary [10] boosted the competition toward improving accuracy. However, little attention is given to the computational efficiency of these networks. Although, when it comes to applications such as autonomous driving this would have tremendous impact. There exists few work that tries to address the segmentation networks efficiency such as [11][12]. The survey on semantic segmentation [13] presented a comparative study between different segmentation architectures including ENet [12]. An autonomous vehicle uses semantic segmentation and instance segmentation to accomplish different objectives such as pedestrian detection, vehicle detection and road lane detection [13]. An autonomous vehicle in order to deliver a safer drive requires lots of intelligence in a fraction of second. The speed of approaching object, turns, road signs, pedestrians, footpaths and much more needs to detected and assessed instantly for a real world experience.[14][15]. Yet, there is no principled comparison of different networks and meta-architectures. These previous studies compared different networks as a whole, without comparing the effect of different modules. That does not enable researchers and practitioners to pick the best suited design choices for the required task.

III. PROPOSED METHOD

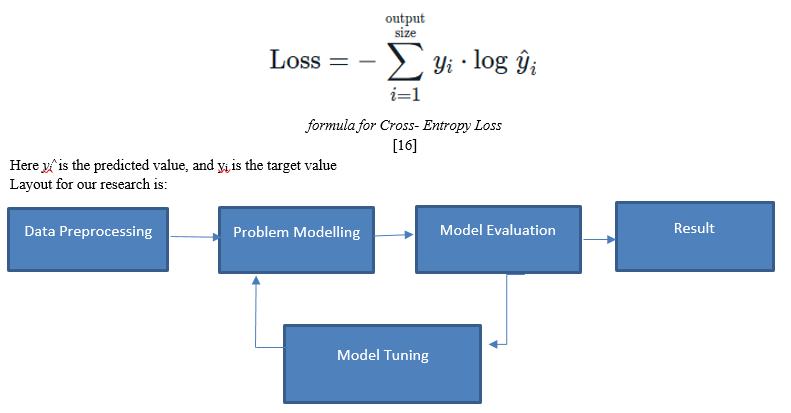

In this research we trained, tested, and compared three popular algorithms that are used widely for the task of image segmentation for autonomous vehicles, namely FCN, U- Net, DeepLabV3. While this is an accuracy sensitive task, we need higher accuracy in less time for real- time application. As sematic segmentation is classification of pixels task, we used Categorial Cross Entropy as the primary metric.

A. Dataset Collection

The dataset is collected from Kaggle.com. Kaggle is a repository for datasets for tasks in machine learning, deep learning, data analytics and visualizations. The dataset is called Semantic Segmentation with CARLA. CARLA is a self- driving car simulator. The dataset was released as a part of Lyft Perception Challenge on Udacity. There are 1000 images. It consists of RGB images and their corresponding semantic segments. Semantic Segments are of road, trees, vegetation, vehicles etc. These RGB images are taken from various trips in ‘town 1’ of CARLA self- driving car simulator. The test dataset is taken from cvlibs.net. it is Kitti semantic segmentation dataset of 208 images. We used these images to evaluate our models.

B. Data Preprocessing

Data preprocessing not only reduces time complexity and space complexity of deep learning algorithm but also has proven to give better results. In order to achieve this at first, we have rescaled our all-training sample images to size of 256 x 256 along with their semantic segmented images. This step was followed by normalizing the images. By normalizing pixel values, we are setting our input values between 0 and 1. Normalizing data helps in speeding up the learning process and get to the convergence point faster.

C.  Problem Modelling

For training we have trained three models Full Convolutional Network, U- Net and DeepLab. All of the three models are trained using transfer learning method. Under transfer learning we have fine tuned weights of the backbones of these architectures namely Vgg16 feature extractor for FCN and ResNet 50 Architecture for U- Net and DeepLab. The weights of these backbone feature extractors are frozen, and the training and tuning is done of the weights of the forward layer. Transfer learning is used to speed up the training process and make use of the learning that was done on greater computing machines and large amount of data. All these models are trained on Google Collab GPU. Also Early Stop is applied while training with respect to validation loss metric and patience parameter set to 40.

D. FCN (Vgg16 backbone)

Vgg16 proves its feature extraction power on imagenet dataset by replacing AlexNet large sized feature kernels with multiple 3 x 3 kernels [17]. This is then used in the Fully Convolution Network. In a FCN multiple convolutional layers are stacked upon as in an upscaling and downscaling fashion. The architecture downscales the image and then upscales. There are skip connections in the architecture that are utilized during upsampling to build proper segments of those features that were lost during downsampling.[18]

E. U- Net (Resnet 50 backbone)

Resnet50 architecture won Imagenet competition in 2015. Residual Networks became the new way of training deeper networks and achieve better accuracy and performance of your deep neural network.[19]

U-Net’s shape is similar to letter U, that’s why the name. There is no fully connected layer, and each layer is complimented by a ReLu activation function non linear layer. This model rose the idea of increasing the output resolution of the segmented image for better results.[20].

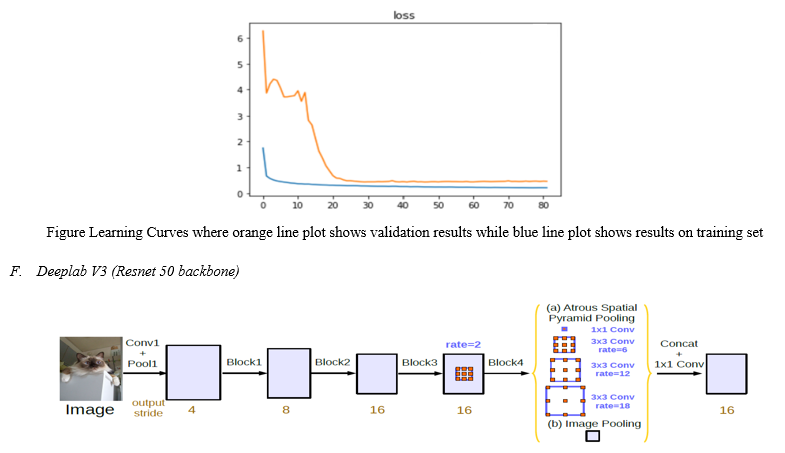

Residual Nets solved the problem of vanishing gradients using skip connections. This is done by allowing the gradients to flow through high level layers.[19]. While DeepLabV3 was the next improvement in DeeplabV2 architecture in order to solve the problem of resolution like in U-Net did, DeepLabV3 brought the idea of atrous spatial pyramid pooling layer, that would upsample the output image to get better resolution of image. Also the CNN is not restricted to accept same sized image.[21]

IV. OBSERVATIONS

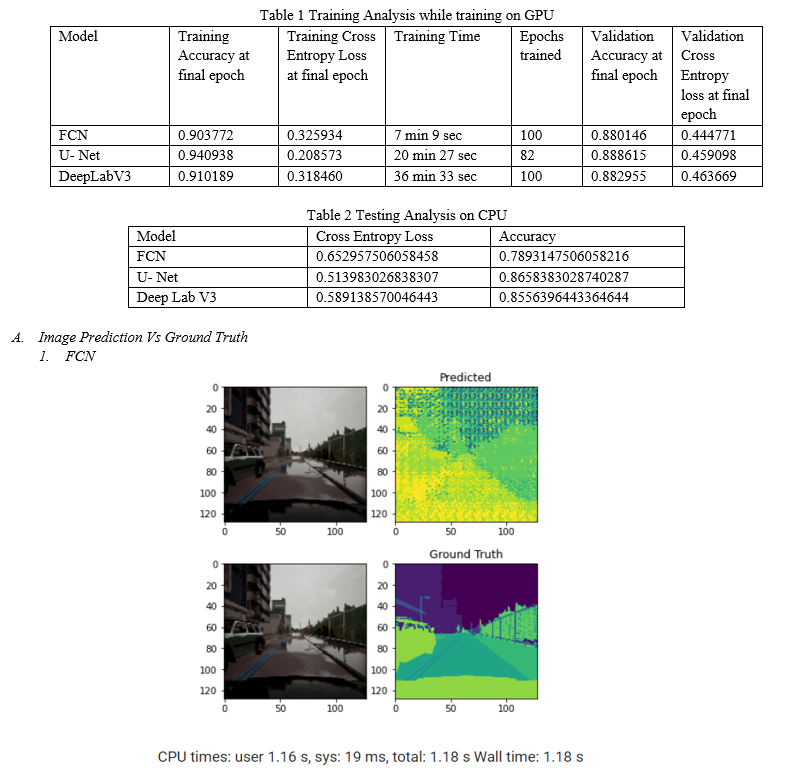

As per the training analysis that is mentioned in table 1, the training done on Google Collab’s GPU turns out to reduce training time effectively. While in terms of metrics U- Net approaches lowest cross entropy loss in 82 epochs, while FCN and DeepLab V3 has 0.32 and 0.31 loss respectively in 100 epochs after applying early stop at validation loss with patience of 40. In terms of validation loss there is not much of a difference however FCN has the lowest validation loss.

Since we are treating image segmentation as a classification task we can observe the test analysis in table 2, which shows that on test set that was run on CPU, U- Net’s performance is better than other models. While the accuracy of DeepLab V3 and U- Net is closer, the loss that we were treating as a metric to measure these algorithms is much better for U- Net.

Conclusion

Autonomous Vehicles are sensitive to accurate performance of model and prediction time as for the real- time system. We used Cross Entropy loss as the primary and Accuracy as the secondary metric to measure the performance of three popular algorithms for the task of image segmentation for Autonomous Vehicles. In the analysis our finding led to the conclusion that the older algorithm FCN is not accurate and fast enough to compete with the other two models. While U- Net and DeepLab V3 have quite competitive results. U- Net’s skip connections and encoder- decoder structure do lead to faster training and better results, while DeepLab takes longer time to achieve the same result. Therefore, although having a close score DeepLabV3 is computationally expensive as compared to U- Net. However, there is still a need for higher accuracy to achieve real- time supremacy. Future work entails to compare the algorithms performance in modular structure not as a whole to find out the best components that can tied together to produce better results. Secondly to combine the high-resolution power of DeepLabV3 with the U- Net’s better performing architecture to propose an algorithm that is capable of achieving the goal of semantic segmentation in real- time system.
