The RAS Paradigm in Mainframe Systems: A Comprehensive Analysis of Design Principles and Operational Benefits

Abstract

This article examines the critical role of Reliability, Availability, and Serviceability (RAS) in mainframe computing systems. We explore how RAS principles have become fundamental design features in modern mainframes, enhancing their ability to meet the demanding requirements of enterprise-level data processing. The article provides an in-depth analysis of each RAS component, detailing how reliability is achieved through robust hardware self-checking and extensive software testing, availability is maintained via seamless component failover and layered error recovery, and serviceability is ensured through advanced diagnostic capabilities and modular replacement units. We argue that the holistic integration of RAS principles in mainframe architecture not only maximizes system uptime and operational continuity but also significantly impacts application design and overall system efficiency. Through a comprehensive review of current mainframe technologies and industry practices, this article highlights the enduring importance of RAS in an era of increasing computational complexity and data-driven decision making. Our findings suggest that RAS principles will continue to evolve, playing a crucial role in shaping the future of high-performance, mission-critical computing systems.

Introduction

I. INTRODUCTION

In the rapidly evolving landscape of enterprise computing, mainframe systems continue to play a crucial role in handling mission-critical operations for many organizations.

At the heart of mainframe computing lies a fundamental triad of principles known as Reliability, Availability, and Serviceability (RAS). These principles form the backbone of mainframe architecture, ensuring continuous operation and minimal downtime in environments where system failures can result in significant financial and operational consequences [1]. As data processing demands grow exponentially in the digital age, the importance of RAS in mainframe design has only increased, driving innovations in both hardware and software components. This article examines the multifaceted implementation of RAS in modern mainframe systems, exploring how these principles have evolved to meet contemporary challenges in data processing and system management. By analyzing the intricate interplay between reliability mechanisms, availability strategies, and serviceability features, we aim to comprehensively understand how RAS contributes to the enduring relevance of mainframe computing in today's technology landscape [2].

II. RELIABILITY

Reliability is a cornerstone of mainframe systems' design. It ensures consistent and error-free operation even under demanding conditions. This reliability is achieved through advanced hardware components and robust software practices.

A. Hardware Components

1. Self-checking capabilities: Modern mainframe hardware incorporates extensive self-checking mechanisms that continuously monitor system components for errors. These include error-correcting code (ECC) memory, parity checking, and cyclic redundancy checks (CRC) for data transmission [3]. For instance, IBM's z15 mainframe utilizes advanced error detection and correction techniques in its processor cache and main memory, which are capable of detecting and correcting multi-bit errors in real-time.
2. Self-recovery mechanisms: Besides error detection, mainframes employ sophisticated self-recovery mechanisms. These include features like processor instruction retry, where failed instructions are automatically re-executed, and dynamic hardware deallocation, which isolates faulty components without system interruption. The concept of Redundant Arrays of Independent Memory (RAIM) exemplifies this approach, providing continuous operation even in the face of multiple DIMM failures [4].

B. Software Reliability

1. Extensive testing procedures: Mainframe software undergoes rigorous testing protocols to ensure reliability. This includes unit testing, integration testing, system testing, and user acceptance testing. Vendors like IBM employ automated testing tools and maintain large-scale test environments that simulate diverse workloads and scenarios. These comprehensive testing procedures help identify and resolve potential issues before software deployment.
2. Rapid update capabilities for problem resolution: The ability to quickly address software issues is crucial for maintaining reliability. Mainframe systems are designed with modular software architectures that facilitate rapid updates and patches. For example, IBM's z/OS operating system supports dynamic system maintenance, allowing many updates to be applied without system restarts. This capability minimizes downtime and ensures that critical systems remain operational while being updated with the latest reliability enhancements.

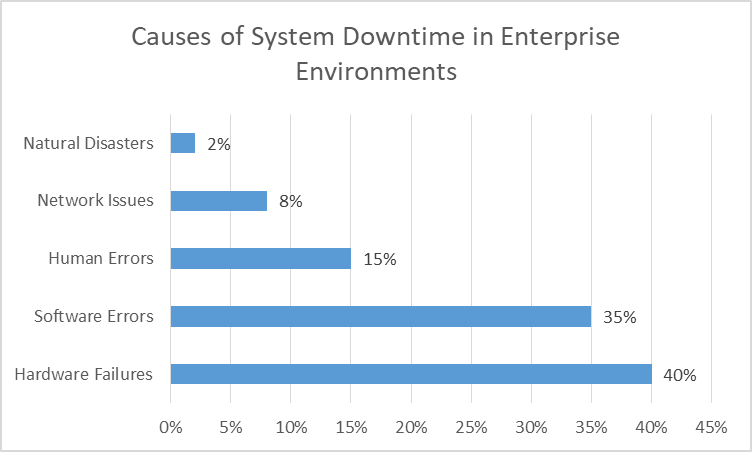

Fig. 1: Causes of System Downtime in Enterprise Environments [5]

III. AVAILABILITY

Availability in mainframe systems refers to the ability to maintain continuous operation despite hardware or software failures. This is achieved through sophisticated hardware and software recovery mechanisms that work in tandem to ensure uninterrupted service.

A. Hardware Recovery

1. Automatic replacement of failed elements: Mainframe systems employ advanced fault detection and isolation techniques that allow for the automatic replacement of failed components without system downtime. For instance, modern mainframes use Processor Sparing technology, where a spare processor can automatically take over the workload of a failing processor [5]. This seamless transition occurs without interruption to running applications, maintaining system availability.
2. Use of spare components: Mainframes are designed with redundant components that can be activated in case of primary component failure. This includes redundant power supplies, cooling systems, and I/O channels. Many modern mainframes incorporate N+1 redundancy in their power and cooling systems, ensuring that the system remains operational even if one unit fails.

B. Software Recovery

1. Error recovery layers in operating systems: Mainframe operating systems, such as z/OS, incorporate multiple layers of error recovery to handle various types of software failures. These layers include:

• First Failure Data Capture (FFDC): Automatically collects diagnostic data when an error first occurs.
• Recovery Termination Manager (RTM): Manages the recovery process for system components and user applications.
• Automatic Restart Manager (ARM): Restarts critical applications and subsystems in case of failures.

These layers work together to detect, isolate, and recover from software errors, often without human intervention.

1. System continuity during component failures: Mainframe software is designed to maintain system continuity even when components fail. This is achieved through features like:

• Dynamic reconfiguration: Allows for the addition or removal of system resources without stopping the system.
• Workload balancing: Automatically redistributes workloads across available resources in case of component failures.
• Transaction integrity: Ensures that in-flight transactions are either completed or rolled back in case of system interruptions.

For example, technologies like Parallel Sysplex allow for multiple mainframes to operate as a single logical system, providing near-continuous availability by allowing workloads to be seamlessly moved between systems in case of failures [6].

Table 1: Key RAS Features in Mainframe Systems [5, 6, 7]

IV. SERVICEABILITY

Serviceability in mainframe systems refers to the ease with which a system can be maintained and repaired. It encompasses the ability to diagnose problems quickly, perform maintenance with minimal disruption, and replace components efficiently.

A. Failure Diagnosis Capabilities

Mainframe systems are equipped with advanced diagnostic tools and techniques that allow for rapid identification and isolation of faults. These include:

1. Built-in hardware sensors that continuously monitor system health
2. Sophisticated error logging and reporting mechanisms
3. Predictive failure analysis that can anticipate potential issues before they cause system failures

Modern mainframes have evolved to incorporate principles similar to those proposed in "Crash-Only Software" [7], where components are designed to recover quickly and automatically from failures, facilitating easier diagnosis and recovery.

B. Minimal Operational Impact During Maintenance

1) Hardware element replacement: Mainframes are designed with hot-swappable components that can be replaced without powering down the system. This includes:

• Processors
• Memory modules
• I/O adapters
• Power supplies and cooling units

The concept of Concurrent Maintenance allows for these components to be replaced while the system continues to operate, significantly reducing downtime.

2) Software element replacement: Mainframe operating systems support dynamic software updates, allowing for many system components to be updated or replaced without requiring a system restart. This includes:

• Operating system patches and updates
• Middleware components
• System management tools

This approach aligns with the fault-tolerant operating system principles described by Denning [8], where system continuity is maintained even during software updates.

C. Well-defined units of replacement

Mainframe systems are designed with a modular architecture that facilitates easy replacement of both hardware and software components. This modularity extends to:

1. Hardware: Field Replaceable Units (FRUs) that can be easily swapped out by service personnel
2. Software: Well-defined software modules and components that can be individually updated or replaced

This modular approach, combined with the fault-tolerant strategies discussed in [8], not only simplifies maintenance but also allows for targeted upgrades and enhancements without requiring a complete system overhaul.

V. RAS INTEGRATION IN MAINFRAME DESIGN

The integration of Reliability, Availability, and Serviceability (RAS) principles into mainframe design is not an afterthought but a fundamental aspect of the system architecture. This holistic approach ensures that RAS considerations permeate every level of the mainframe ecosystem, from hardware to software and applications.

A. Holistic approach to system architecture

Mainframe design takes a comprehensive view of RAS, incorporating these principles at every level:

1) Hardware level

• Redundant and fault-tolerant components
• Error-checking and correction mechanisms
• Hot-swappable units for minimal downtime

2) Firmware level:

• Built-in diagnostics and self-healing capabilities
• Automatic error recovery procedures

3) Operating system level:

• Robust process isolation and resource management
• Advanced error handling and recovery mechanisms

4) Middleware level:

• Transaction management with guaranteed consistency
• Workload balancing and failover capabilities

This integrated approach ensures that RAS features work seamlessly across all system layers, providing a robust and resilient computing environment [9].

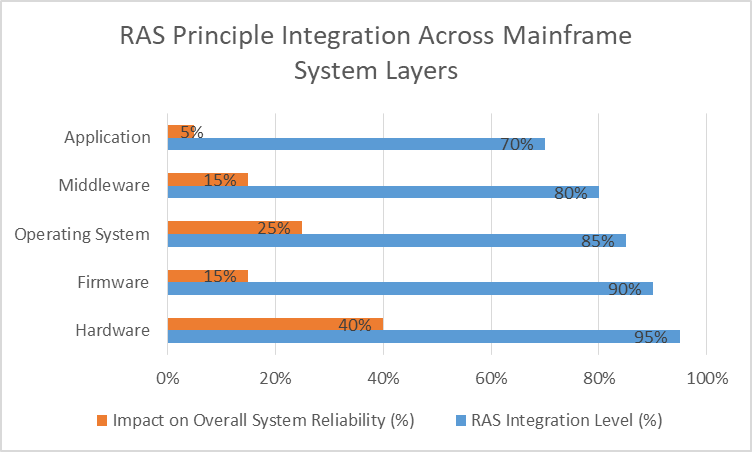

Fig. 2: RAS Principle Integration Across Mainframe System Layers [9, 10]

B. Impact On Application Design And Development

The RAS-centric design of mainframes significantly influences how applications are developed and deployed:

1) Resilience-aware programming:

• Developers are encouraged to build applications with fault tolerance in mind
• Error handling and recovery become integral parts of application logic

2) Transactional integrity:

• Applications leverage the mainframe's robust transaction management capabilities
• Ensures data consistency even in the face of system failures

3) Scalability and performance:

• Applications are designed to take advantage of the mainframe's ability to handle large workloads
• Vertical scaling capabilities allow applications to grow without major redesigns

4) Continuous availability:

• Applications are built with the expectation of minimal downtime
• Support for rolling updates and hot patching

5) Security integration:

• RAS principles extend to security, influencing how applications handle authentication, authorization, and data protection

The impact of RAS on application design is profound, leading to more robust, scalable, and maintainable software systems. This approach aligns with the concept of "design for failure," where applications are built to be resilient in the face of various failure scenarios [10].

VI. BENEFITS OF RAS IN MAINFRAME SYSTEMS

The implementation of Reliability, Availability, and Serviceability (RAS) principles in mainframe systems yields significant benefits that justify the investment in these robust technologies. These benefits directly impact business operations, data integrity, and overall system efficiency.

Table 2: Benefits of RAS in Mainframe Systems [11, 12]

A. Enhanced System Uptime

RAS features contribute to dramatically improved system uptime:

1) Continuous operation:

• Mainframes can operate for extended periods without planned downtime
• Some systems achieve uptimes measured in years rather than days or months

2) Fault tolerance:

• Hardware redundancy and software resilience allow systems to continue functioning despite component failures
• Automatic failover mechanisms ensure seamless operation during hardware or software issues

3) Predictive maintenance:

• Advanced monitoring and analytics predict potential failures before they occur
• Proactive maintenance scheduling minimizes unexpected outages

These factors combine to deliver exceptional uptime, with many mainframe systems achieving availability rates of 99.999% or higher [11].

B. Reduced Data Processing Interruptions

RAS principles significantly minimize disruptions to data processing operations:

1) Transaction integrity:

• Robust transaction management ensures data consistency even during system failures
• Partial failures do not compromise ongoing data processing tasks

2) Workload Management:

• Dynamic workload balancing distributes processing across available resources
• Ensures continued operation even when parts of the system are under maintenance or have failed

3) Data Redundancy:

• Implemented through features like disk mirroring and geographically distributed systems
• Ensures data availability and integrity even in catastrophic failure scenarios

These features allow businesses to maintain continuous data processing capabilities, crucial for operations in industries like finance, healthcare, and telecommunications [12].

C. Improved Maintenance Efficiency

RAS design principles lead to more efficient system maintenance:

1) Hot-swappable components:

• Allow for hardware replacements without system shutdown
• Significantly reduce mean time to repair (MTTR)

2) Online system updates:

• Many software updates can be applied without system restarts
• Reduces the need for planned downtime

3) Advanced diagnostics:

• Built-in diagnostic tools quickly identify issues
• Reduce troubleshooting time and improve problem resolution speed

4) Modular design:

• Facilitates easier upgrades and replacements of specific system components
• Allows for incremental system improvements without full system overhauls

These maintenance efficiencies translate to lower operational costs, reduced administrative overhead, and improved overall system performance.

Conclusion

In conclusion, implementing RAS principles in mainframe systems represents a cornerstone of modern enterprise computing. By integrating reliability, availability, and serviceability at every system design level, mainframes continue to offer unparalleled performance, stability, and efficiency in handling mission-critical workloads. The benefits of enhanced system uptime, reduced data processing interruptions, and improved maintenance efficiency directly translate into tangible business value, supporting continuous operations in industries where downtime is not an option. As we look to the future, the evolution of RAS principles will likely play a crucial role in addressing emerging challenges in cloud computing, edge processing, and increasingly complex distributed systems. While the specific technologies may change, the fundamental RAS concepts pioneered in mainframe systems will continue to influence the development of robust, scalable, and dependable computing infrastructures across the IT landscape. Organizations that understand and leverage these principles will be well-positioned to maintain competitive advantages in an increasingly data-driven world.
