A Deep Learning Approach for ASL Recognition and Text-to-Speech Synthesis using CNN

Abstract

Sign language is a visual language that is used by the deaf and hard-of-hearing community to communicate. However, sign language is not universally understood by non-signers, which can create communication barriers for the deaf and hard-of-hearing individuals. In this paper, we present a novel application for American Sign Language (ASL) to text to speech conversion using deep learning techniques. Our app aims to bridge the communication gap between hearing-impaired individuals who use ASL as their primary mode of communication and individuals who do not understand ASL. The app comprises three main components: a hand gesture recognition module that detects and recognizes ASL signs, a text-to-speech synthesis module that converts recognized ASL signs to text, and a speech synthesis module that converts the text to speech. The hand gesture recognition module uses a convolutional neural network (CNN) to detect and classify the ASL signs.

Introduction

I. INTRODUCTION

American Sign Language (ASL) is a complex and expressive language used by the deaf and hard-of-hearing community to communicate with each other and with hearing individuals. However, the communication barriers that exist between the deaf and hearing communities due to differences in language and communication modalities can lead to feelings of isolation and exclusion. To bridge this gap, innovative technology solutions are needed to enable automatic and real-time translation of ASL to spoken language.

The use of ASL by the deaf community is not only a means of communication, but also a key aspect of their identity and culture. It is a visual language that uses hand gestures, facial expressions, and body language to convey meaning, and therefore, requires a unique approach for translation. The development of technology that can recognize and interpret ASL gestures, and convert them into spoken language using Text-to-Speech (TTS) technology, would be a significant step towards breaking down communication barriers between the deaf and hearing communities.

Implementing automatic and real-time translation of ASL to spoken language would greatly enhance accessibility for the deaf community, allowing them to participate more fully in society.

They would have better access to information and services, and be able to communicate more efficiently and effectively with hearing individuals.

In this paper, we propose the development of an ASL to TTS conversion system using machine learning and computer vision techniques. Our system will involve the use of a camera to capture image of ASL gestures, which will be processed by a machine learning algorithm to recognize and interpret the gestures.

The interpreted gestures will then be converted into spoken language using TTS technology, providing real-time translation of ASL to spoken language.

A. Motivation

Communication is a fundamental human need, and language is a critical aspect of communication. However, for the deaf and hard-of-hearing community, communication can be challenging due to differences in language and communication modalities. American Sign Language (ASL) is a natural language used by the deaf and hard-of-hearing community, but it is not widely understood by hearing individuals. This leads to communication barriers and limits the ability of the deaf community to access information, services, and opportunities. It would be much simpler if the sign language could be converted directly to understandable language. Hence, we came up with this ASL to speech converter that converts Sign Language to understandable speech.

II. LITERATURE SURVEY

TABLE I. Study of exisitng research papers

Most papers have used CNN as the classifier for their model, some of the papers have used SVM as well and a very few have used something other than these two. CNN provides a very high accuracy for detecting the sign languages with numbers above 95% in almost all the papers.

In this study, we aim to develop a deep learning model that can accurately recognize all the letters of the English alphabet (A-Z) in sign language. To address potential challenges such as skin color, lighting, and other factors that may affect prediction accuracy, we plan to generate a comprehensive and diverse dataset and optimize our model accordingly. Moreover, we aim to enhance the usability of our model by incorporating text-to-speech synthesis and speech translation features, which will enable the system to translate recognized signs into spoken Hindi. By doing so, we aim to make our model accessible to a wider audience, including individuals who are deaf or hard-of-hearing and those who do not understand sign language. The results of our study have the potential to contribute to the development of more effective assistive technologies that can facilitate communication and enhance accessibility for individuals with hearing impairments.

III. METHODOLOGY

A. Dataset Preparation

We initially looked for pre-existing datasets that met our needs, but we were unable to locate any datasets that were available as raw photos. Instead, we discovered datasets that were presented as RGB values. So, we made the decision to build our own dataset.

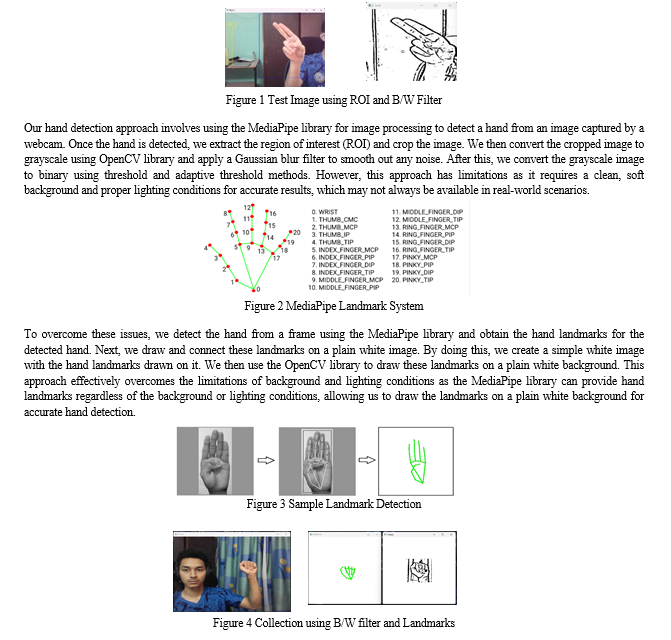

Vision-based methods for hand detection and recognition use a computer webcam as the input device to observe the movements and position of hands and fingers. These methods are cost-effective as they require only a camera, enabling natural interaction between humans and computers without the need for extra devices. However, the main challenge in vision-based hand detection is coping with the wide variability of the human hand's appearance, including hand movements, skin color, and variations in viewpoints, scales, and camera speed. Overcoming these challenges requires advanced computer vision techniques and algorithms.

The arrangement of the neurons in each layer in three dimensions—width, height, and depth—is one of the distinguishing characteristics of CNNs. In contrast to conventional neural networks, just a portion of the neurons in the layer before it are connected to the neurons in the layer below it. The network is able to learn spatial elements in the image because to this local connectedness.

The final output layer of the CNN design has dimensions that match to the number of classes. This is so that the CNN, which is ideal for classification tasks, can condense the entire image into a single vector of class scores.

C. Layers in the CNN

Our CNN's convolution layer applies a collection of trainable filters to the input image, with each filter scanning a tiny window of the image (usually 3x3) and creating an activation map by computing the dot product of the filter entries and the input values at a certain position. The response of the filter at each spatial place in the image is represented by a 2D activation matrix that is obtained by moving the filter over the image with a specific stride (usually 1). By changing the filter weights during training, the network learns to recognise visual elements including edges, corners, and blobs.

The model begins with a series of convolutional layers, represented by conv2d_20, conv2d_21, conv2d_22, and conv2d_23. These layers apply filters to the input image, performing a convolution operation to extract local features and capture spatial patterns. The number of filters determines the depth or number of feature maps generated. In this model, the first convolutional layer generates 32 feature maps, while the subsequent layers produce 32, 16, and 16 feature maps, respectively.

Following each convolutional layer, there is a max pooling layer denoted by max_pooling2d_20, max_pooling2d_21, max_pooling2d_22, and max_pooling2d_23. These layers down sample the feature maps by selecting the maximum value within each pooling region. Max pooling helps reduce the spatial dimensions of the features, making them more manageable and preserving the most salient information. After the final max pooling layer, a flatten layer is introduced. Its purpose is to convert the 3D feature maps into a 1D vector, which serves as input to the subsequent fully connected layers. This flattening process transforms the spatial information into a format suitable for dense layers. Following the flatten layer, a sequence of dense layers is added to learn high-level representations and capture complex relationships between features. The model includes dense_16, dense_17, dense_18, and dense_19 layers. The dense_16 layer consists of 128 neurons, while dense_17 has 96 neurons, and dense_18 has 64 neurons. These layers employ nonlinear activation functions to introduce nonlinearity and model complex mappings. Dropout layers, represented by dropout_8 and dropout_9, are inserted between dense layers to prevent overfitting by randomly disabling a fraction of the neurons during training. The final dense layer, dense_19, serves as the output layer of the model. It comprises 7 neurons, representing the classes or categories in the image classification problem. The output layer applies an appropriate activation function (e.g., softmax for multi-class classification) to generate probability scores for each class, indicating the likelihood of the input image belonging to each category.

Overall, the model contains a total of 69,031 trainable parameters. These parameters are optimized during the training process using techniques like backpropagation and gradient descent to minimize the loss and improve the model's accuracy in predicting the correct class labels for input images. The architecture of this CNN allows it to effectively process image data, extract relevant features, and make accurate predictions based on learned representations.

???????D. Text Generation

For text generation we first try to predict the character for the shown sign gesture, we keep predicting until we have a high match or until the user shows the sign for ‘next’ gesture. Once the character is predicted we add that character to the string, and show the string to the user. The user could clear the string as well. We have also used enchant python library, which helps us correct the spelling of formed strings (or words), and give suggestions to the user.

???????E. Speech  Generation and Translation

For text to speech generation, we have used pyttsx3 library. pyttsx3 is a Python library used for Text-to-Speech (TTS) conversion. It provides a simple way to generate speech from written text in Python. Using pyttsx3 library we generate the speech and provide it to the user in English.

For language translation we have used ‘englisttohindi’ python library. It is built using the Google Translate API and provides a simple interface to translate English text to Hindi. We use this library to convert the generated English text to Hindi, and then we use pyttsx3 library to generate the Hindi speech for the same.

IV. FINDINGS AND RESULTS

We divided the letters into subgroups, which helped us get more accuracy. Through our method we got 97% without clean background and proper lightning conditions. If we make the background clear and we put good lighting conditions, we get around 99% accuracy with our model. The suggestions for words are also working correctly. The speech module is also working correctly, if the string is a well-formed word the system pronounces it correctly. The Translation function is working as well, it correctly translates the generated English text to Hindi and speaks the translated text.

???????

Conclusion

In conclusion, we were able to improve the accuracy of our CNN model for letter recognition by implementing extra data pre-processing techniques using Mediapipe and Gaussian blur. Additionally, we were able to implement text and speech generation, as well as translation functionality. However, we recognize that there is still room for improvement in our model, such as using dynamic frames instead of static images, which can further enhance our letter recognition accuracy. In the future, we plan to explore additional data pre-processing techniques and feature extraction methods, as well as integrating more advanced deep learning architectures to further enhance our model\'s performance.
