Design and Failure Analysis of Piston Using Ansys

Abstract

A piston is a component of reciprocating engines. The purpose of piston is to transfer force from expanding gas in the cylinder to the crankshaft via a piston rod and a connecting rod. It is one of the most complex components of an automobile. In This project we are describes the Thermal analysis by using finite element method (FEM). The specifications used for designing the piston belong to four stroke single cylinder engine of piston. Modeling of piston is done using SOLID EDGE v20. static structural, Thermal and fatigue analysis is performed by using ANSYS WORKBENCH 2022 R1. The parameters used for the simulation are operating gas pressure, material properties of piston. The results predict the maximum stress and strain on pistons using FEA. The best material is selected based on static structural, thermal and fatigue analysis. The analysis results are used to optimize piston geometry of best two Materials.

Introduction

I. INTRODUCTION

A piston is a component of reciprocating engines, reciprocating pumps, gas compressors, hydraulic cylinders and pneumatic cylinders, among other similar mechanisms. It is the moving component that is contained by a cylinder and is made gas-tight by piston rings. In an engine, its purpose is to transfer force from expanding gas in the cylinder to the crankshaft viaa piston rod and/or connecting rod. In a pump, the function is reversed and force is transferred from the crankshaft to the piston for the purpose of compressing or ejecting the fluid in the cylinder. In some engines, the piston also acts as a valve by covering and uncovering ports in the cylinder.

II. LITERATURE REVIEW

The design of the piston is a complex process that involves several factors, such as the engine's operating conditions, performance requirements, material properties, and manufacturing processes. The piston's design must consider the piston's shape, size, weight, and material composition. Several studies have been conducted on the design of piston. "Design and Analysis of an Automotive Piston using Finite Element Method" by Amit Singh Yash Dhamecha and Vaibhav Saptarshi. This paper presents a finite element analysis (FEA) ofan automotive piston to evaluate its strength, stiffness, and deformation under various operating conditions. "A Review of Piston Failure Analysis in Internal Combustion Engines" by Amit Singh Chahar and Ashutosh Kumar. This review paper provides an overview of the causes and mechanisms of piston failures in internal combustion engines. It covers various types of failures, including thermal fatigue, mechanical fatigue, and lubrication-related failures.

Table – 1: Property of Aluminium Alloy

Table – 2: Property of Ti-6A1-4V

III. METHODOLOGY

1. Analytical design of pistons based on design formulae and empirical relations.
2. 3-D piston models are created in SOLIDEDGE V20
3. Meshing and analysis of piston is done in ANSYS Workbench 2022 R1
4. Various stresses are determined by individually performing structural analysis, thermal analysis and thermos-mechanical  analysis.
5. Various zones or regions where chances of damage in piston are possible are analyzed.
6. Comparison is made between the three materials in terms of stresses, deformation, strain, volume, weight, force and factor of  safety.

1) Analysis of Step Head Piston for Aluminum Alloy

Fig-1: 3-D CAD Model of Step Head Piston

2) Material Assignment

For analysis of piston, the 3-D CAD model prepared in Solid edge v20. is converted in to IGES format so that it can be imported in ANSYS 2022R1. After importing the model in ANSYS, material properties are assigned in Engineering data.

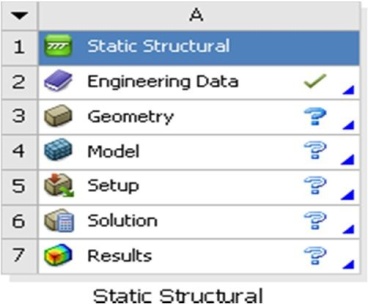

Fig-2: Static Structural Standalone System

3) Meshing of Step Head piston

After assigning material properties, model is opened in mechanical. The whole body of the piston model is selected and meshing is performed. Tetrahedral elements are used and the element size is 1 mm.

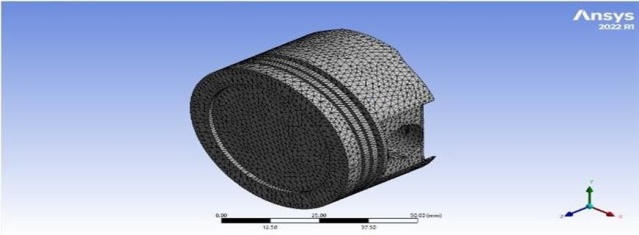

Fig-3: Meshing of Step Head Piston

4) Static Structural Analysis

In static structural analysis, boundary conditions like pressure and supports are applied. (Refer Table 4)

• Pressure at the head of piston: 20 MPa

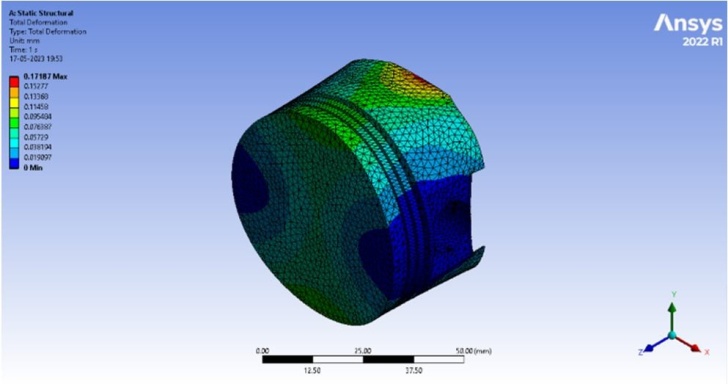

• Fixed supports are applied at edges of piston pinhole.

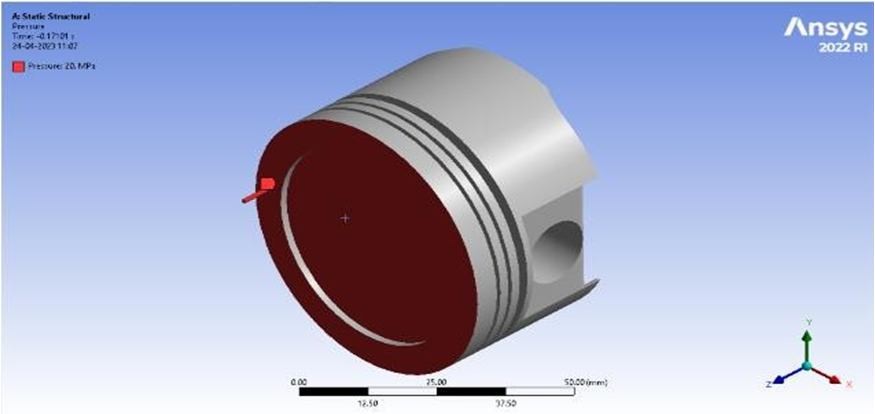

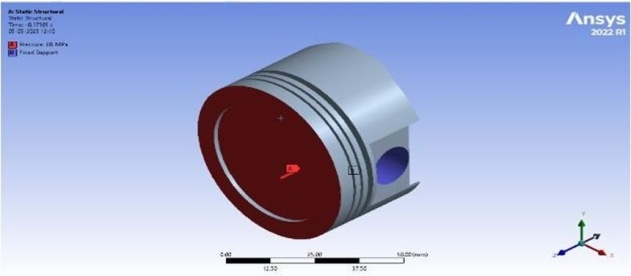

Fig-4: Applying Boundary Conditions

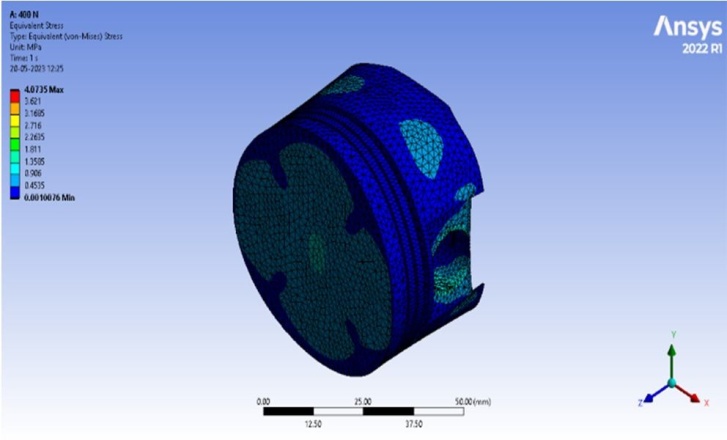

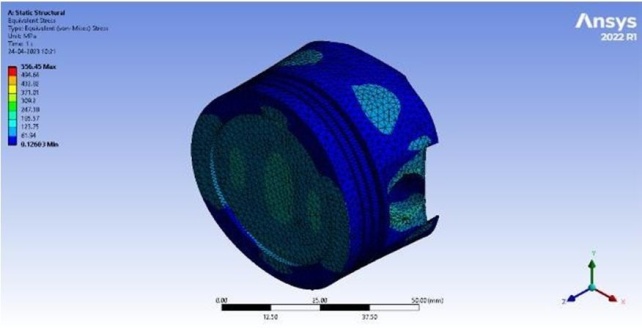

Fig-5: Equivalent Stresses

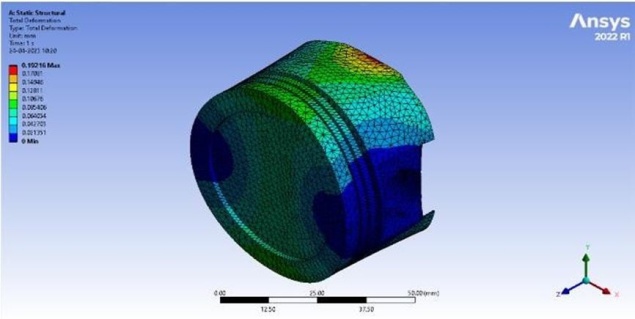

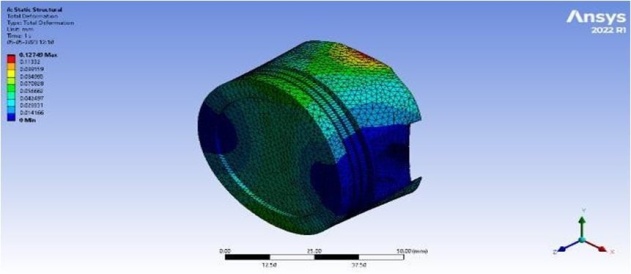

Fig-6: Total Deformation

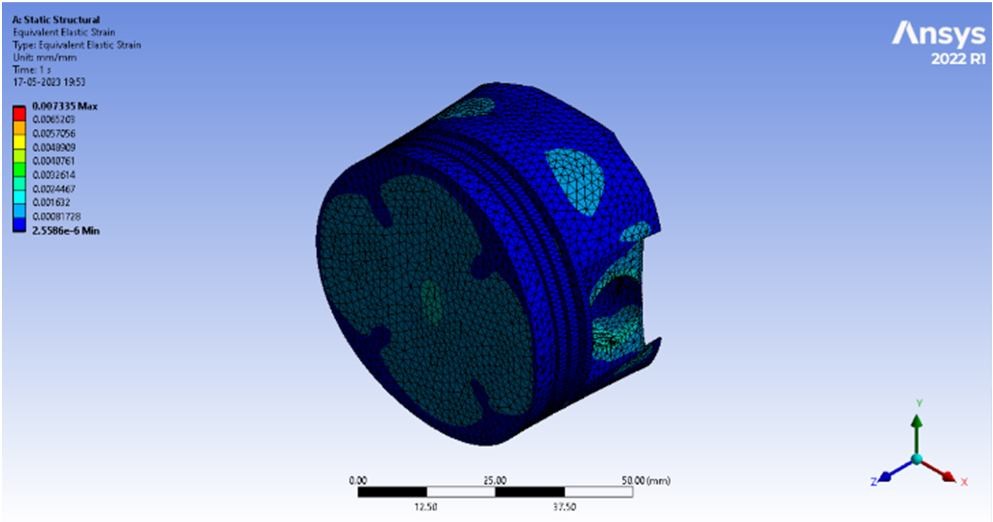

Fig-7: Equivalent Elastic Strain

5) Steady State Thermal Analysis

In steady state thermal analysis, boundary conditions like temperature and convection are applied.

• Temperature at head of piston: 2000°C
• Film coefficients are applied to different regions of piston.

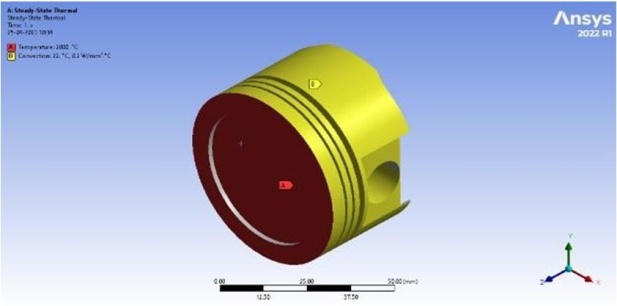

Fig-8: Applying Temperature and Convection Boundary

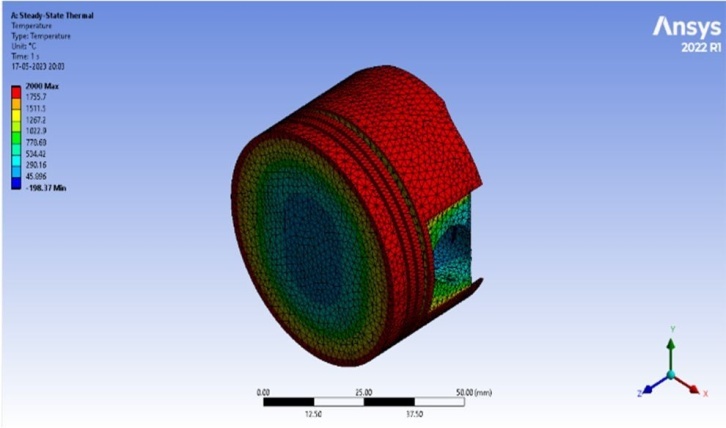

Fig-9: Temperature

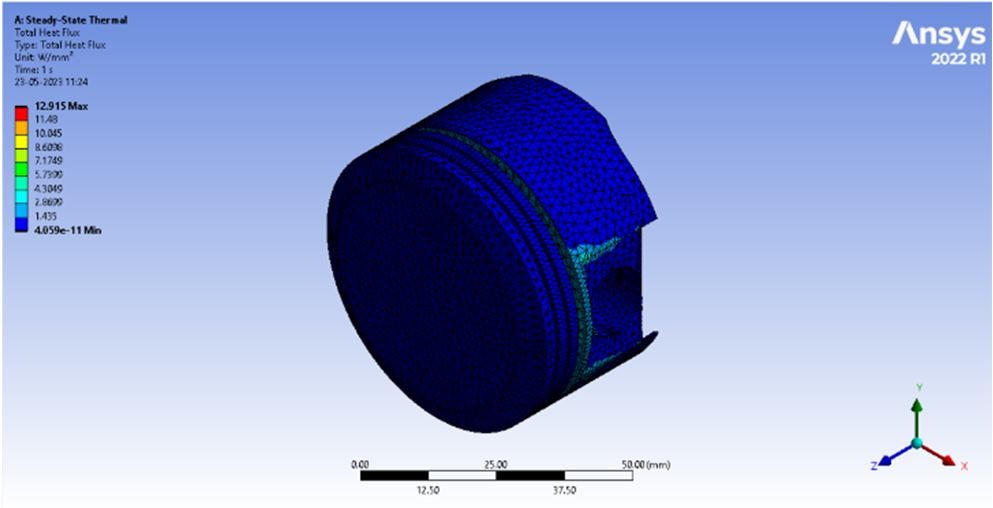

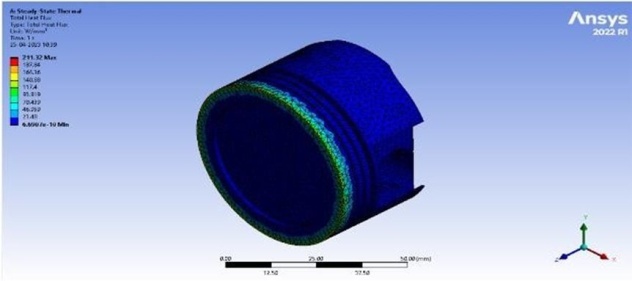

Fig-10: Total Heat Flux

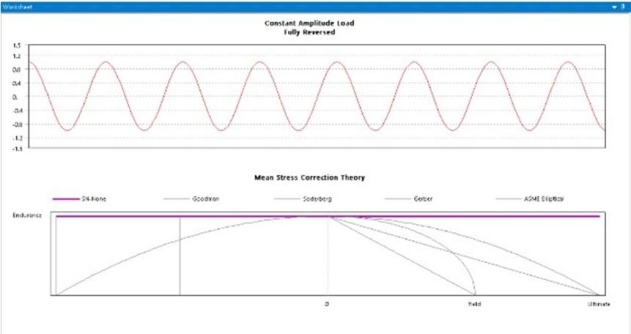

6) Fatigue Analysis

Fatigue analysis is a process used to assess the structural durability and lifespan of components subjected to cyclic loading.

Fig-11: Equivalent Stresses

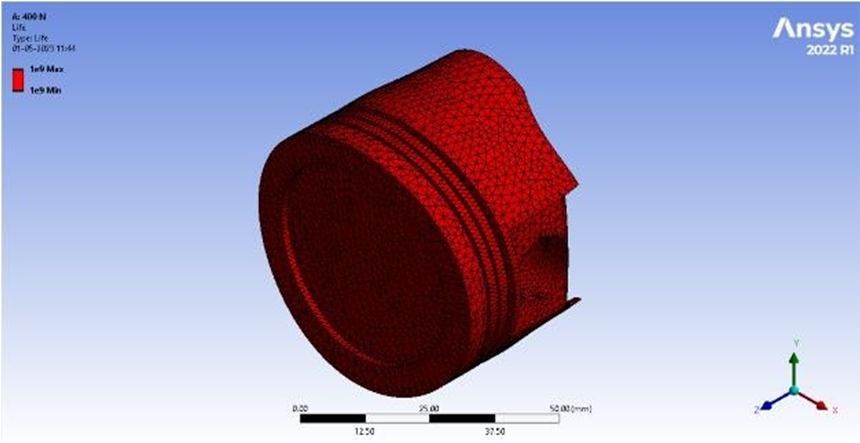

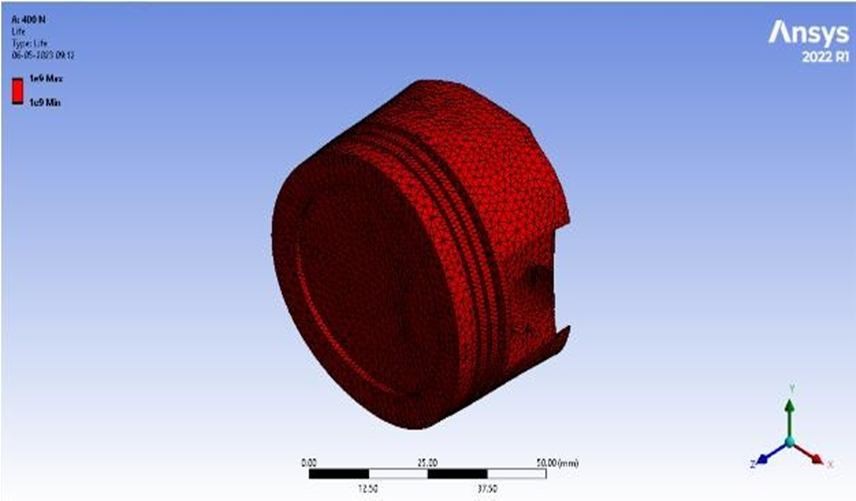

Fig-12: Life

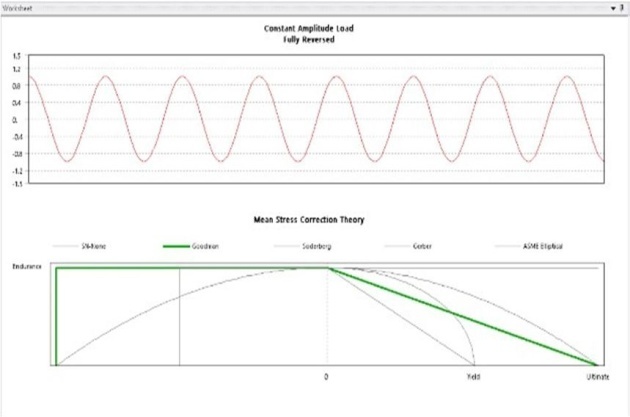

Fig-13: Stress Life

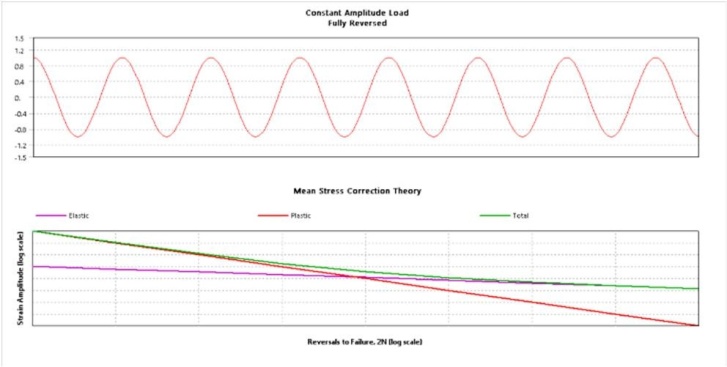

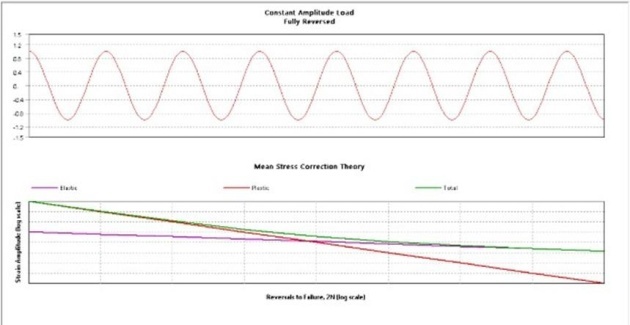

Fig-14: Strain Life

7) Analysis of Flat Head Piston for Ti-6A1-4V

Fig-15: Applying Boundary Conditions

Fig-16: Total Deformation

Fig-17: Equivalent Stresses

Fig-18: Equivalent Elastic Strain

8) Steady State Thermal Analysis

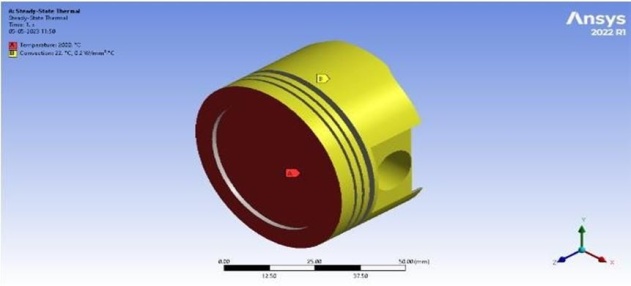

Fig-19: Applying Temperature and Convection Boundary

Fig-20: Temperature

Fig-21: Total Heat Flux

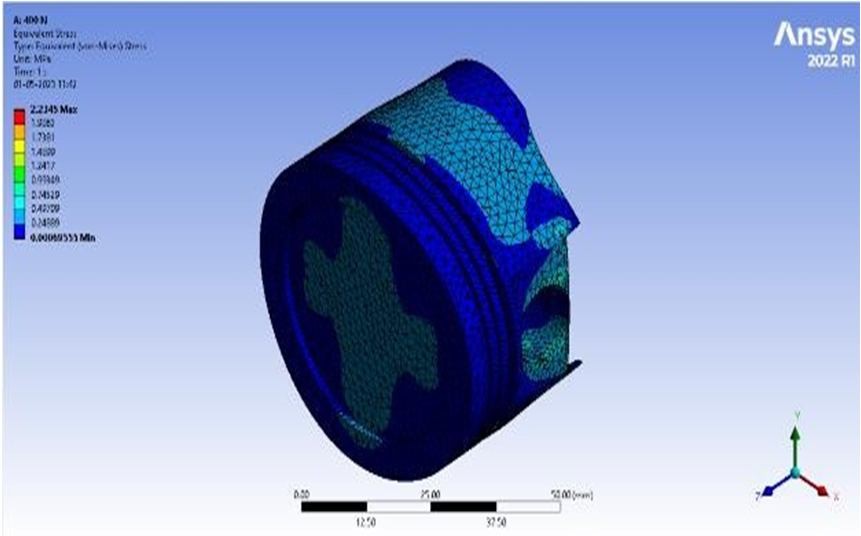

9) Fatigue Analysis

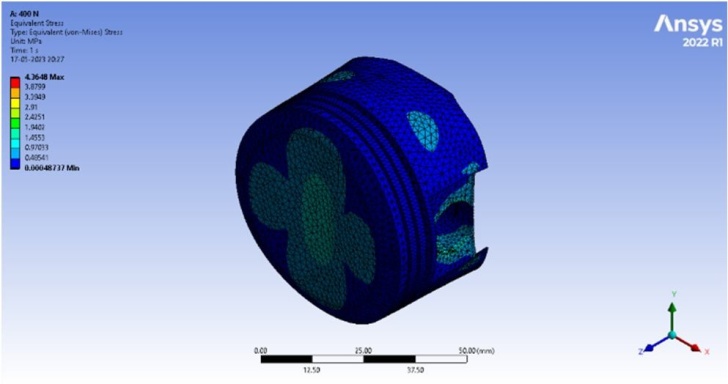

Fig-22: Equivalent Stresses

Fig-23: Life

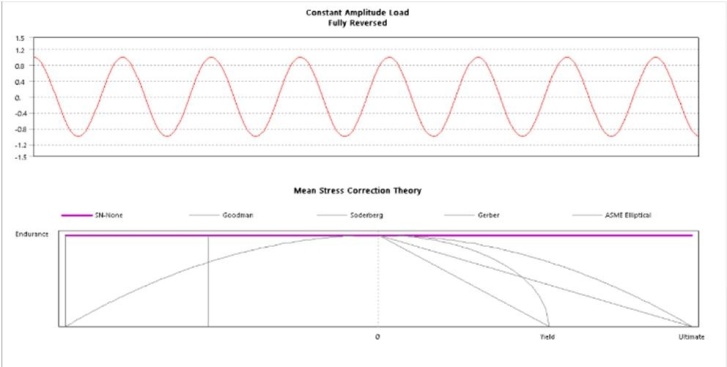

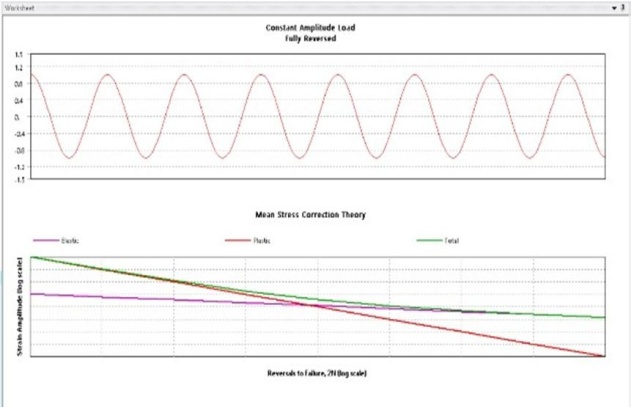

Fig-24: Strain Life

Fig-25: Stress Life

10) Analysis of Flat Head Piston for Aluminum Alloy

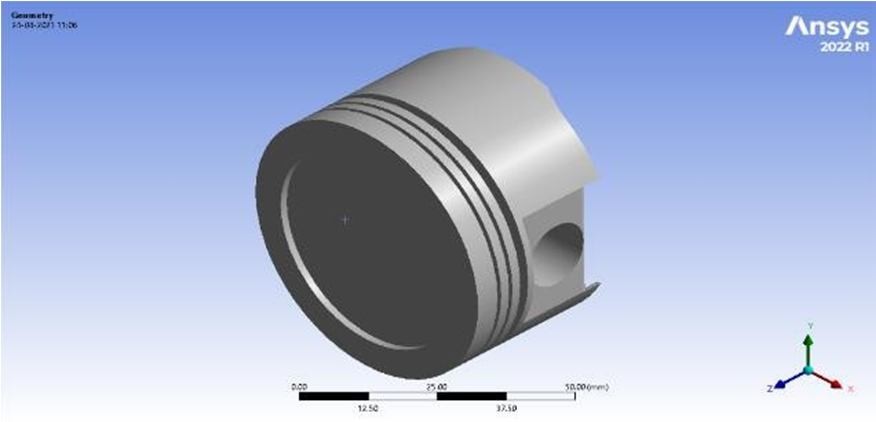

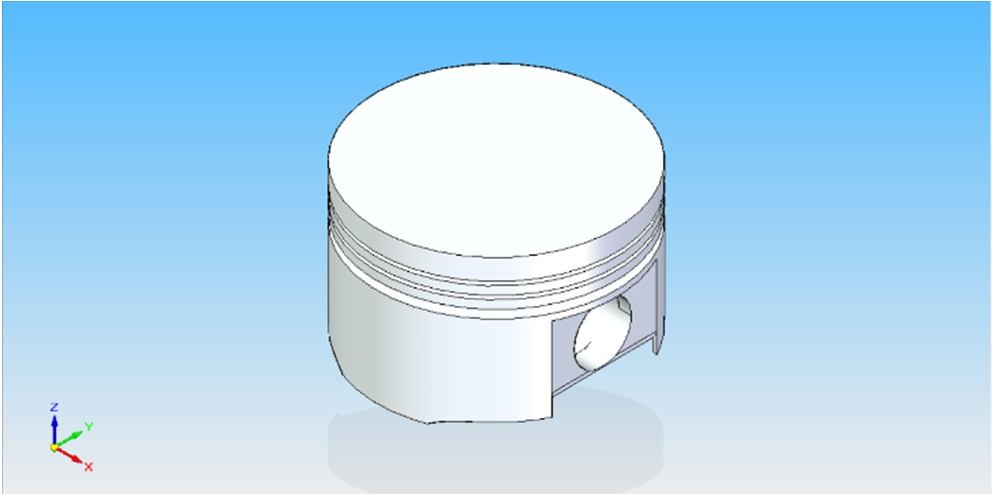

Fig-26: 3-D CAD Model of Flat Head Piston

11) Meshing of Flat Head piston Model

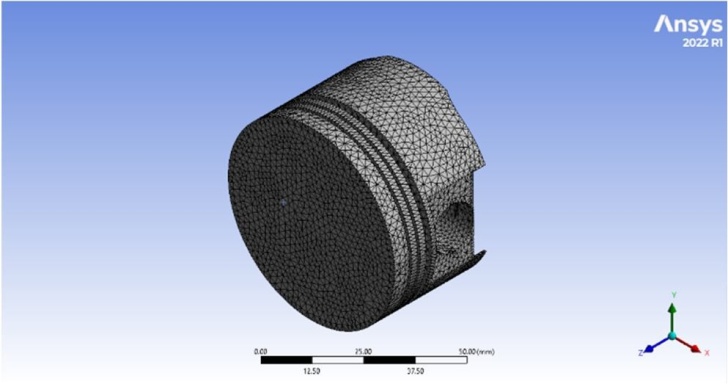

Fig-27: Meshing of Flat Head Piston

12) Static Structural Analysis

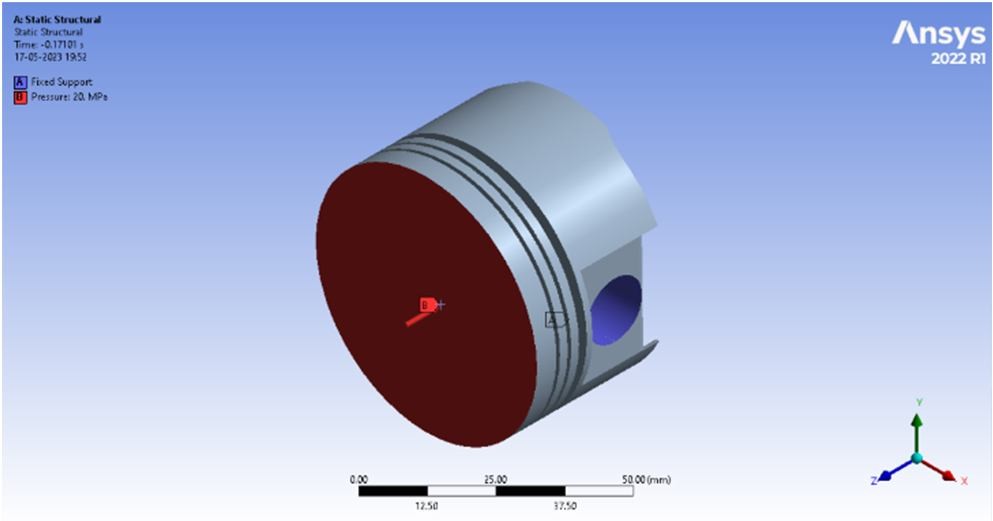

Fig-28: Applying Boundary Conditions

Fig-29: Total Deformation

Fig-30: Equivalent Elastic Strain

Fig-31: Equivalent Stresses

13) Steady State Thermal Analysis

Fig-32: Applying Temperature and Convection Boundary

Fig-33: Temperature

Fig-34: Total Heat Flux

14) Fatigue Analysis

Fig-35: Equivalent Stresses

Fig-36: Life

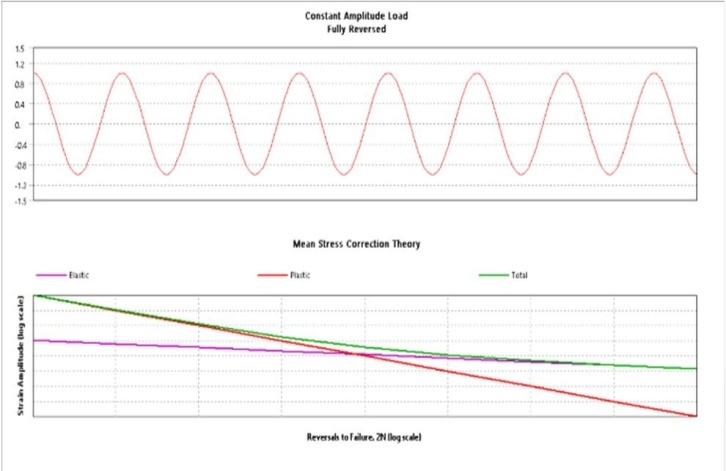

Fig-37: Strain Life

Fig-38: Stress Life

Fig-39: Total Deformation

15) Analysis of Flat Head Piston for Ti-6A1-4V

Fig-40: Equivalent Elastic Strain

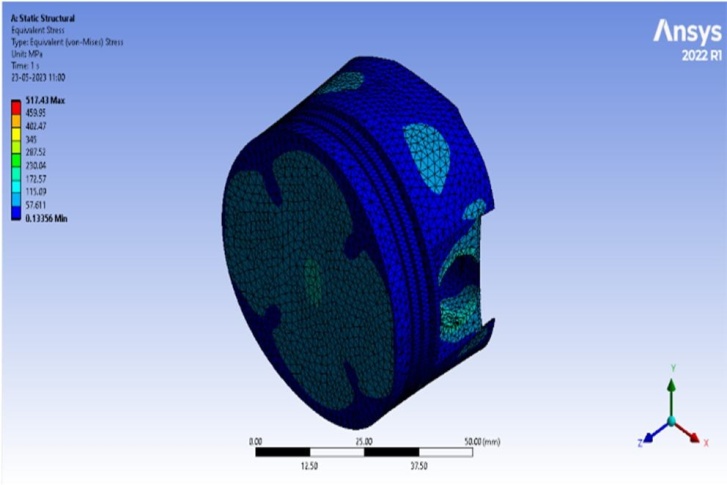

Fig-41: Equivalent Stresses

16) Steady State Thermal Analysis

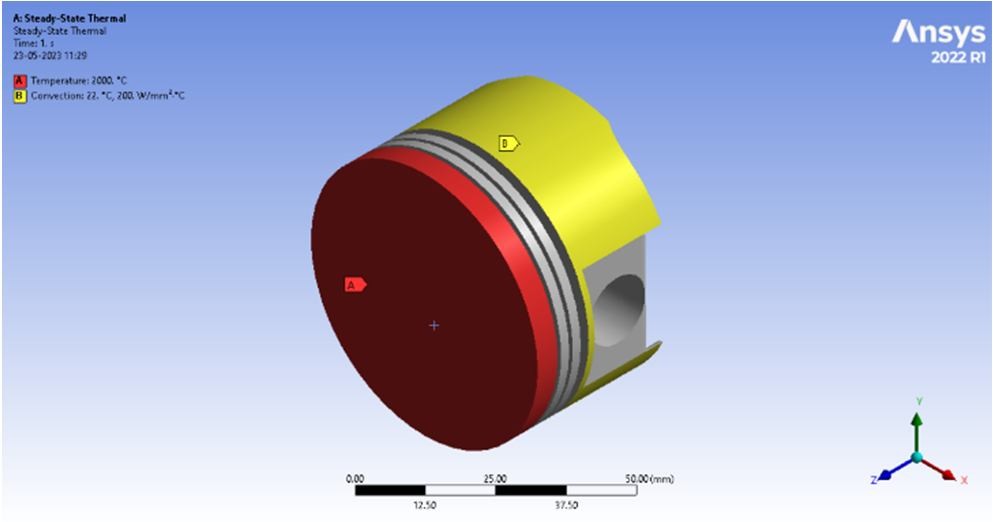

Fig-42: Applying Temperature and Convection Boundary

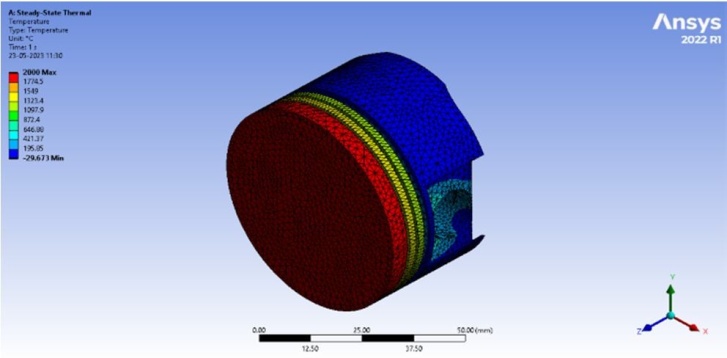

Fig-43: Temperature

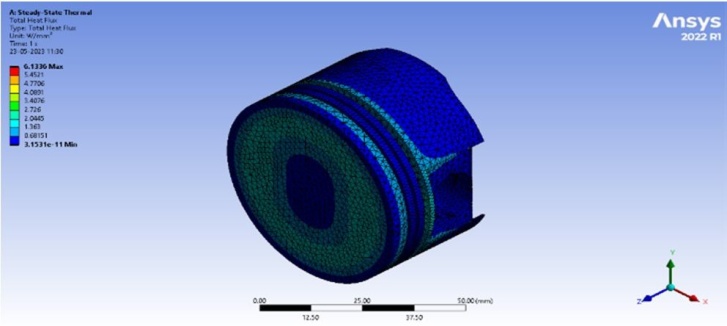

Fig-44: Total Heat Flux

17) Fatigue Analysis

Fig-45: Equivalent Stresses

Fig-46: Life

Fig-47: Strain Life

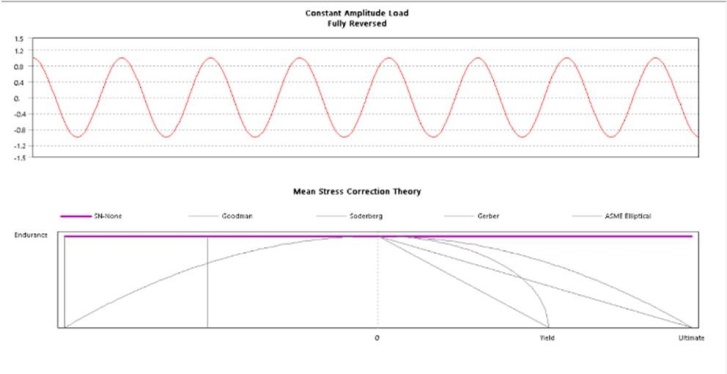

Fig-48: Stress Life

18) Analysis of Dom Head Piston for Aluminum Alloy

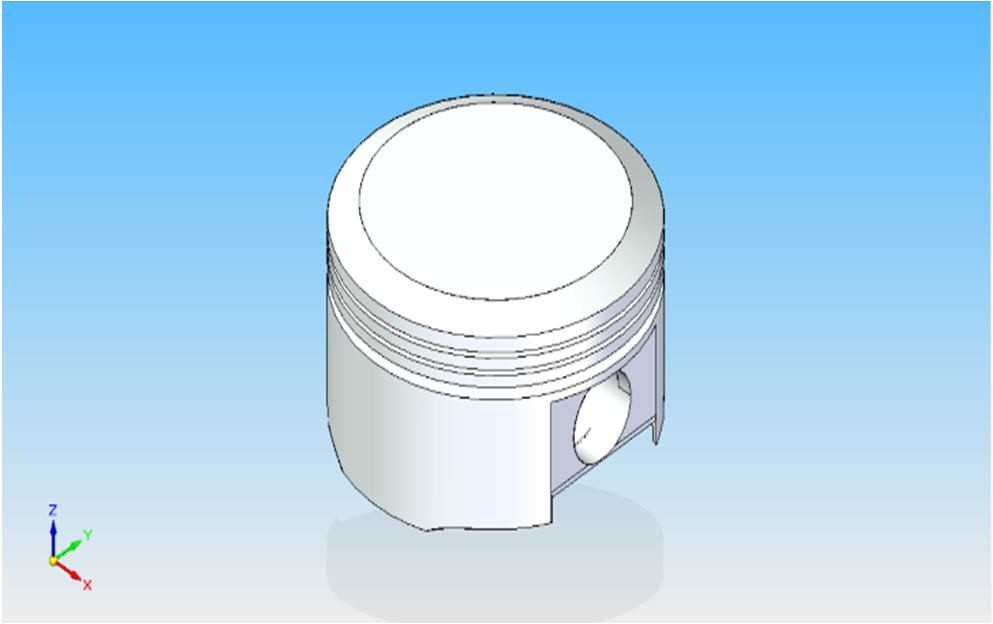

Fig-49: 3-D CAD Model of Dom Piston

19) Meshing of Dom Head piston Model

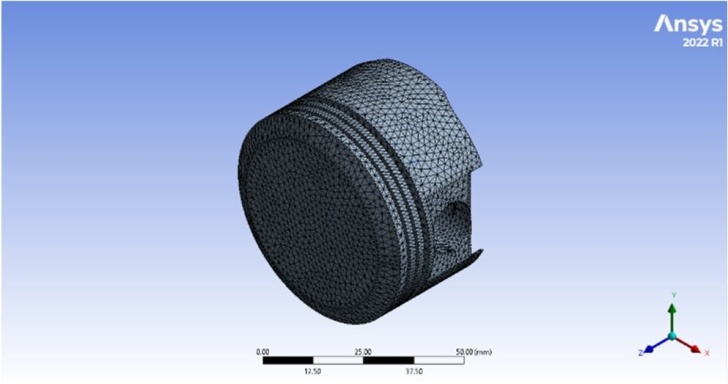

Fig-50: Meshing of Dom Head Piston

20) Static Structural Analysis

Fig-51: Total Deformation

Fig-52: Equivalent Elastic Strain

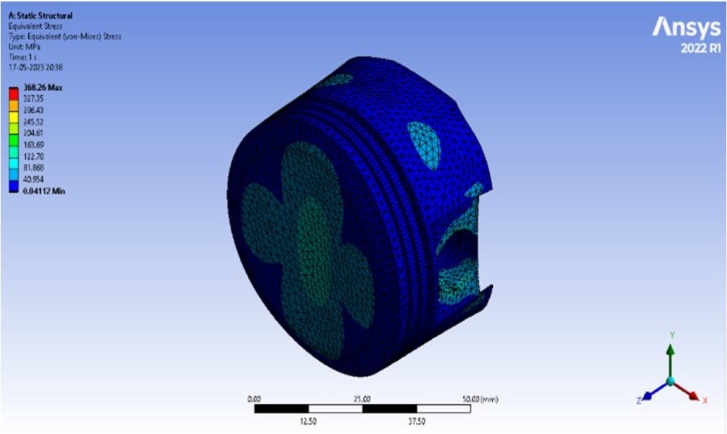

Fig-53: Equivalent Stresses

21) Steady State Thermal Analysis

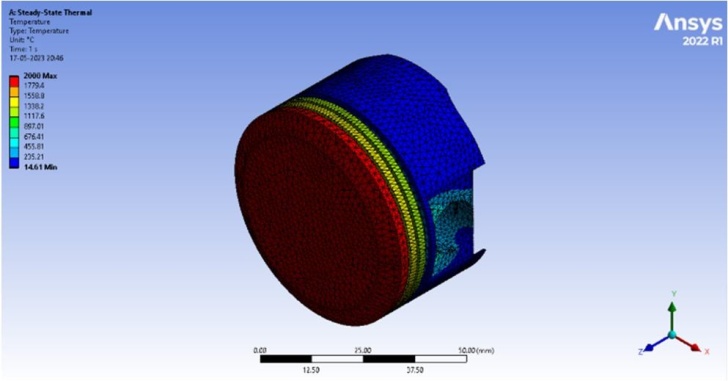

Fig-54: Temperature

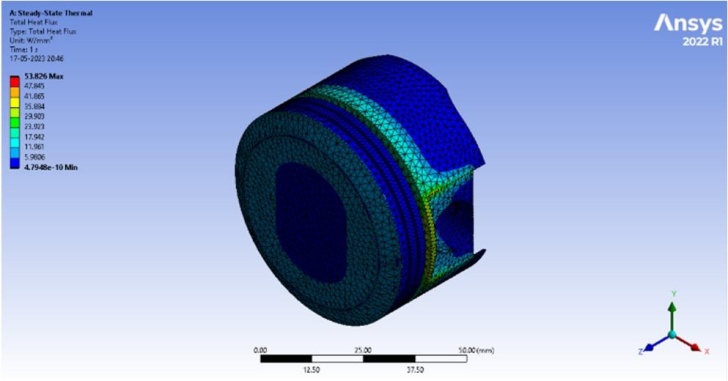

Fig-55: Total Heat Flux

22) Fatigue Analysis

Fig-56: Equivalent Stresses

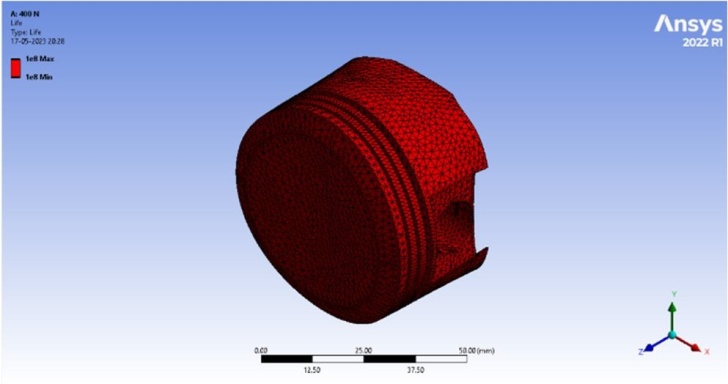

Fig-57: Life

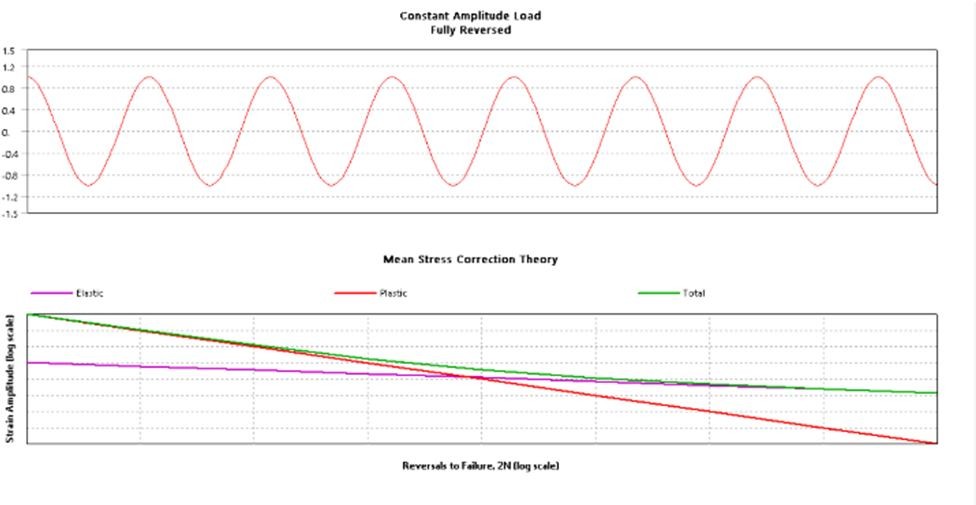

Fig-58: Strain Life

Fig-59: Stress Life

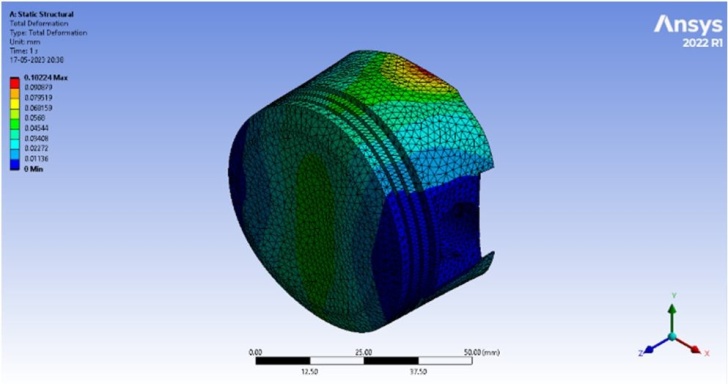

Fig-60: Total Deformation.

23) Analysis of Dom Piston for Ti-6A1-4V

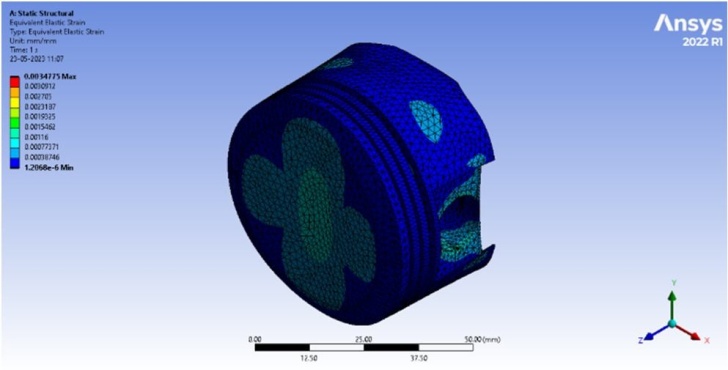

Fig-61: Equivalent Elastic Strain

Fig-62: Equivalent Stresses

24) Steady State Thermal Analysis

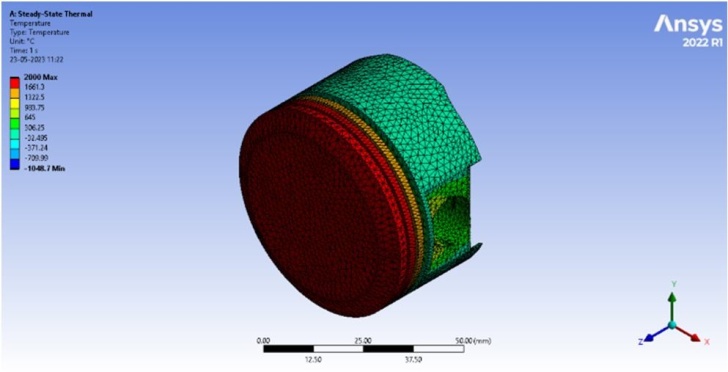

Fig-63: Temperature

Fig-64: Total Heat Flux

25) Fatigue Analysis

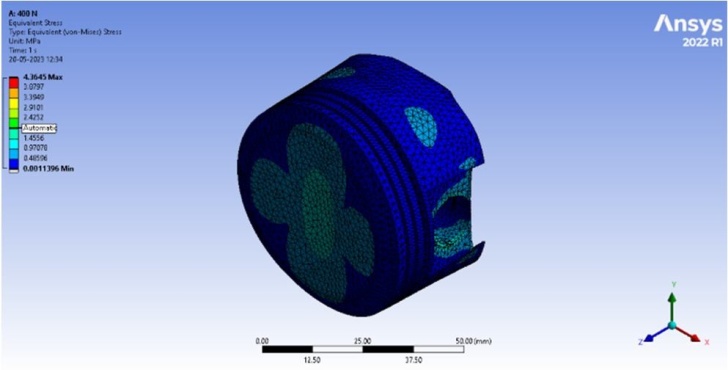

Fig-65: Equivalent Stresses

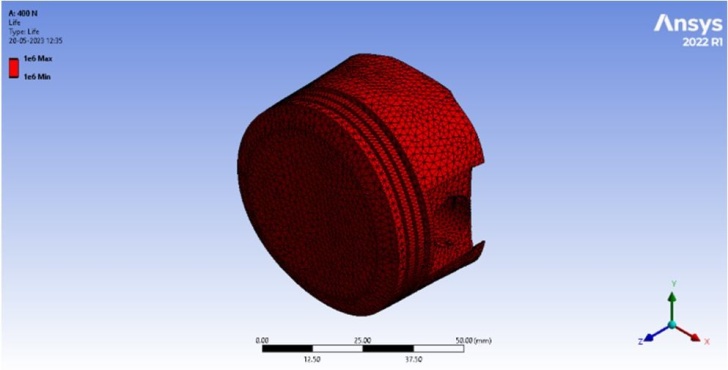

Fig-67: Life

Fig-68: Strain Life

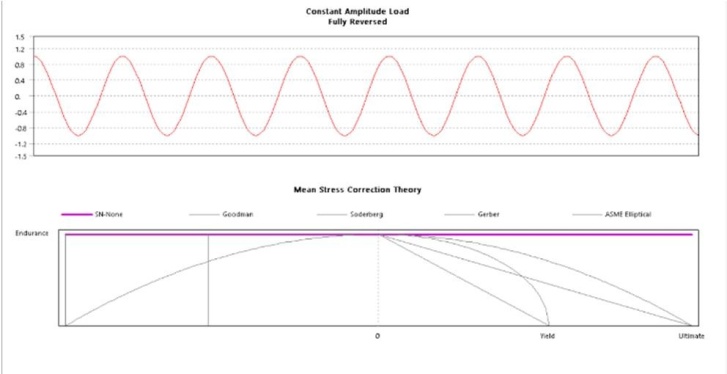

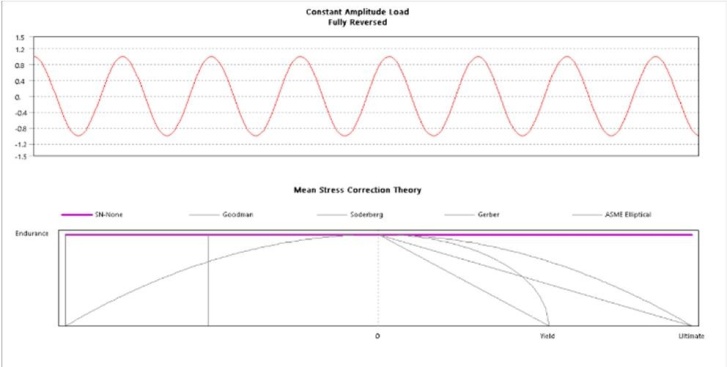

Fig-69: Stress Life

Conclusion

The titanium alloy Ti-6Al-4V is widely used in pistons of supercars and this led us to the assumption that if it is used in such high- performance cars, then it’s possible that it can also be used in motorbikes. The material properties of titanium alloy were also suggesting the same but our analysis clearly demonstrates that it isn’t a feasible option. From our analysis results, it is concluded that Ti-6Al-4V Dom Head Piston is the best material for piston. This is due to the following reasons. 1) Its Factor of Safety (F.O.S.) is maximum amongst the one material. 2) Mass of Aluminum alloy is also least. This result is because of the design of the piston. The piston design of supercars is significantly different from the piston design of motorbikes. To make titanium alloy a feasible option, we need to make a lot of changes in the design of piston which will result in a change in the overall design of the engine which is beyond the scope of this work. Still, there’s a lot that can be done. The same can be done for other motorbikes/vehicles too. Other analyses apart from thermal and structural can also be performed for these materials. Also, these materials can be compared on the basis of cost like cost of manufacturing, cost of machining, etc.
