Design and Implementation of 32 Bit Linear Feedback Shift Register using FPGA

Abstract

Shift register is a common device for generating signals and sequences. Usually register is the combination of flipflops.The shift register is of two types which are: linear and nonlinear. Various sequences including pseudorandom codes are generated by linear and nonlinear feedback shift registers, respectively. Linear feedback shift register (LFSR) is composed of dynamic or static master-slave flip-flop. Its characteristics are usually characterized by a characteristic polynomial. The two-input XOR gate is used to calculate the characteristic polynomial of the maximum or near maximum length of the feedback function without rectifying the register.

Introduction

I. INTRODUCTION

The initial value assigned to the register is called the "seed", because the operation of the linear feedback shift register is deterministic, so the data stream generated by the register is completely determined by the state of the register at that time or before. Moreover, because the state of the register is limited, it will eventually be a repeated cycle. However, with primitive polynomials, linear feedback shift registers can generate sequences that appear random and have very long cycle periods. The shift register has a simple structure and a fast running speed. The theory of shift registers has also become the basis of modern stream cipher systems. A sequential shift register with combinational feedback circuitry surrounding it, the linear feedback shift register pseudo-randomly cycles through a series of binary values. A selection of points in the register chain provides feedback on the shift register of the LFSR, and these points are either XORed or XNORed to provide a point back into the register. In essence, the LFSR repeatedly cycles through pseudorandom value sequences.

II. IMPLEMENTATION OF LFSR ON FPGA TECHNIQUE

1. LFSR ON FPGA IMPLEMENTATION USING XILINX:

 : Although LFSRs are easily constructed and have many applications, designers regrettably frequently overlook them. A basic shift register is used to create one of the more popular types of LFSR. We use XILINX spartan 3e FPGA board (xc3s500e)

The initial values of the two LFSRs are the same, but when clock pulses are supplied, their sequences quickly diverge because of the differing taps. An LFSR may occasionally wind up cycling in a loop with a finite set of values. Nonetheless, because they cycle through every possible value (except from all bits being 0) before going back to their starting values, the two LFSRs seen in Fig. 2 are considered to be of maximal length.

A maximal-length LFSR with "n" register bits will only sequence through (2^n – 1) values, but a binary field with "n" bits can assume 2^n unique values. This is due to the fact that LFSRs with XOR feedback routes will not run through a value in which every bit is zero.

2. 32 BIT LFSR IMPLEMENTATION USING XILINX ISE  14.7 SOFTWARE

Firstly we implemented 8 bit LFSR and simulate it. After getting the simulation results successfully we also determine its IO planning design, chip floor planning design using PLAN AHEAD 14.7 software which is inbuilt feature of XILINX ISE 14.7

Similarly, we implement 16 bit LFSR using VHDL/Verilog and find its all important parameters.

But our main task is to implement and simulate 32 bit LFSR. For this purpose we use VHDL programming with some modifications. Here we are going to show some important parameters and design considerations.

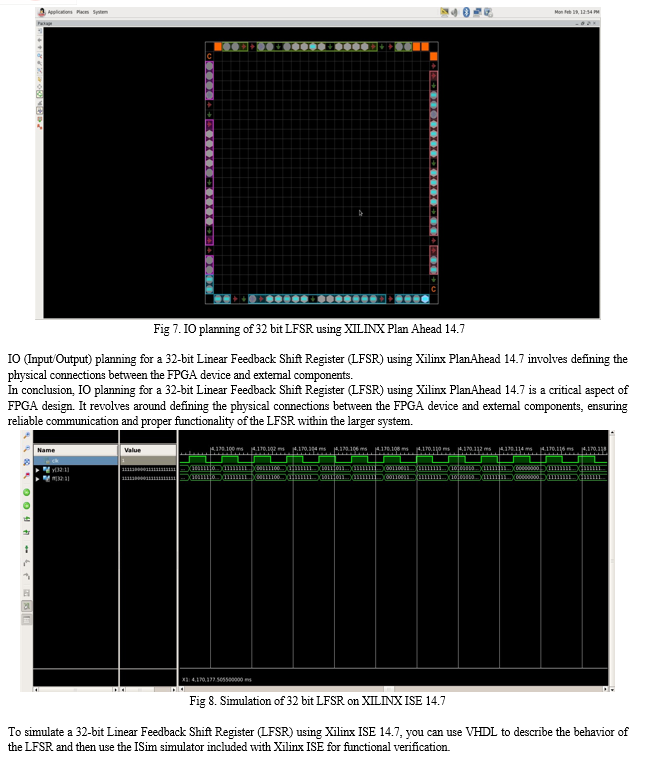

Below are the some important features which we have determine like : simulation, RTL schematic, technological schematic, chip floor planning, IO planning

Although we know that linear feedback shift register(LFSR) is bound to produce psuedo random numbers when the taps are arranged in some specific form.

Conclusion

As we bring our exploration of LFSR to a close, the integration of schematic diagrams, implemented using XILINX ISE 14.7 software, adds a tangible dimension to our comprehensive review. Beyond theoretical discussions, the graphical representations of the respective LFSR 1) Visualizing Complexity: The schematic diagrams, meticulously crafted using XILINX ISE 14.7 allow us to visualise the intricate details of each LFSR implementation. They go beyond the abstractions of theory, offering a tangible representation of the electronical and knowledge of shift registers configurations, its types and arrangements, and wave diagrams that define the functionality of these shift registers. Such visualisations are invaluable for engineers and researchers seeking to grasp the complexities of circuitry in a more advanced manner. 2) A Dynamic Framework for Future Work: The utilisation of XILINX capture in our study serves not only as a means of representation but also as a dynamic framework for future work. The adaptability of XILINX make it conducive to further experimentation and refinement of LFSR design. 3) Collaborative Potential: In the spirit of collaboration, the integration of XILINX ISE 14.7 generated schematic diagrams opens avenues for shared exploration. Engineers and researchers across the globe can leverage the provided visualisations,

References

[1] Debarshi Datta, Bipa Datta (2017). \"Design and Implementation of Multibit LFSR on FPGA to Generate Pseudorandom Sequence Number.\" [2] K. Panda Amit, P. Rajput, B Shukla, “Design of Multi Bit LFSR PNRG and Performance comparison on FPGA using VHDL,” International Journal of Advances in Engineering & Technology (IJAET), Mar 2012, Vol. 3, Issue 1, pp. 566-571 [3] Md. F. Islam, M. A. Mohd. Ali, B. Y. Majilis, “FPGA Implantation of an LFSR based Pseudorandom Pattern Generator for MEMS Testing,\" IJCA, Vol. 75, August 2013 [4] A. K. Panda, P. Rajput and B. Shukla, “FPGA Implementation of 8, 16 and 32 Bit LFSR with Maximum Length Feedback Polynomial using VHDL,” IEEE Int. Conference on Communication Systems and Network Technologies, DOI 10.1109, 20125. integrated circuits and systems, 26(2), February 2007. [5] J. Lee and N. A. Touba, “LFSR Reseeding Scheme Achieving Low Power dissipation during Test”, IEEE transactions on Computer aided design of integrated circuits and systems, 26(2), February 2007.
