Design, Fabrication and Testing of Human Powered Water Purifier

Abstract

Human Powered Water Purifier is the system which provides safe drinking water by running a RO system with the help of only human power and minimal setup. This can prove to be a major cost effective solution to the problem of unsafe drinking water in areas where there is no or little access to modern purifiers or they do not have the power source to run them ( either irregular electricity supply or in emergency situations). This paper explains in detail about the design of an indigenous mechanism which makes use of human pedalling on a bicycle & power is transmitted by sprocket and belt pulley system to obtain required RPM for pump to run a water purification system. It includes a brief picture of the need of this type of system, design of various components and the summary of results obtained during the testing of the system. This mechanism has shown positive results in maintaining the pressure and flow Rate from pump by providing about 1200 RPM with mechanism, required by RO Purifier and TDS (Total Dissolved Solids) in water was considerably reduced from 650 ppm to 150 ppm.

Introduction

I. INTRODUCTION

Today most of the water sources are not safe for drinking due to heavy industrial and environmental pollution. According to a UN Report in 2013 nearly 2000 children around the globe under the age of five die every day from diarrheal diseases linked to unsafe water with 24% of deaths in India alone. So there is much need for effective as well as viable water purification methods. Such methods and related techniques have been in existence since ancient times and with advancement in science and technology techniques have become quite efficient and effective. However these modern water purification methods are beyond reach of backward areas due to lack of resources, awareness, electricity and reluctance to use high technology products. In many parts of India there is no regular electricity supply which makes it almost impossible to use these water purifiers even if people decide to use it. The solution to this problem can be given by replacing the external power source required to run the purifier by independent, effective and easily available source that is Human Power. In this project Human Power is harnessed by an indigenous mechanism to run a RO water Purification system. The mechanism incorporates simple mechanism of sprocket and pulley to obtain required rpm of pump shaft of RO. The efficient Design and Fabrication of this system forms the fundamental objective of this paper and its successful implementation can pave way for using human power for a variety other applications also. Some of the main features which we wish to incorporate in this project are

1. Efficient purification of water
2. No use of external except Human Power
3. Minimal setup
4. Low cost of maintenance and installation

II. DESIGN METHODOLOGY

The basic idea of design is quite simple. A common bicycle is used for pedaling and the RPM of pedaling is transmitted via chain-sprocket and belt-pulley mechanism to get increased RPM at the pump shaft in the end of mechanism. The pump is then used to drive a RO system by supplying pressurized water so that which we can get purified water. Various components of the system are designed by keeping in mind few considerations making them suitable for this application

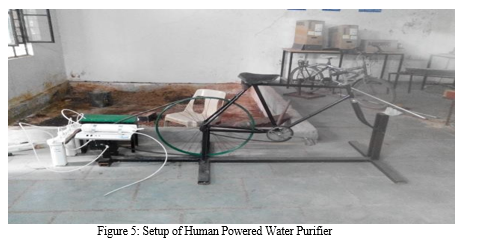

The main power source of our project is the power produced by pedaling which can be used to drive the pump shaft at the rear end. A common bicycle was the best option available for us as it is both easily available and cheap, both factors being crucial to the overall project. We used a bicycle of Hercules Company, which is quite stable and stronger than most of commercial cycles available in the market, commonly used by Adults or may be by children. To suit our need, we removed the wheels of the bicycle as it has to be mounted over the frame.

A. Foundation

The next important part of the structure is the foundation on which the cycle will be mounted and the mechanism incorporated at the rear side of frame. We had two options available for the material to be used, wooden blocks and Rectangular hollow steel sections. Following factors are considered for selection of steel sections:

1. Ease of Availability: The hollow rectangular sections of steel were easily available in the form of scrap steel.
2. Strength: As the whole setup needs to support a weight of almost 120 Kg (cycle weight + human weight), the steel section was the most suitable option of the two for stability and security.
3. Ease of Fabrication: The fabrication process required a number of joints and holes to be made. Such operations on wood were both time consuming and had a risk of wear with time. On other hand, they can be performed easily on steel by drilling and welding operations.

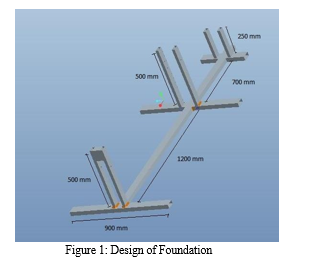

The structural frame is designed in Pro-E wildfire 5.0 to initiate the fabrication work. This has two I – Sections and vertical supports. The vertical supports for supporting the bicycle and rear vertical supports are for supporting pump heads and pulley shaft arrangement.

a. Material: IS 4923:1997 (Rectangular Hollow Steel Section)

b. Dimensions:

• Cross section- (66×33×2.9) mm & Length- 5400 mm
• Cross section- (50×25×1.5) mm

B. The Mechanism

The rear mechanism referred to the power transmission from front sprocket to rear sprocket and from there it transmitted to the pump. It contains following:

1. Chain Drive

The power from front sprocket is transferred to the rear sprocket using a chain drive using a bicycle chain as it is an inexpensive, easy-to-install and highly efficient drive mechanism. There can be two types of bicycle chains which can be used: Single speed and multi- speed.

Single speed chain is mainly used on kids' bikes, BMX bikes, coaster brake cruisers, and heavy cargo bikes. Multi-speed chain is used on standard speed bikes and mountain bikes that are required to change gears. Both types of bicycle chain have a pitch of ½ inch (ANSI standard #40).

We have used the single speed chain used in common bicycles, reference code: (1/2×1/8) inch.

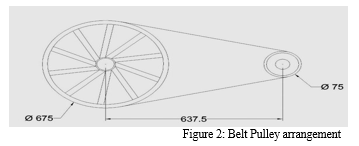

2. Belt Pulley Drive

The rear sprocket carries the bicycle rear wheel which acts as the bigger pulley of belt pulley system.

a. Bigger pulley diameter (Bicycle wheel): 675 mm

b. Smaller Pulley diameter: 75 mm

c. Centre distance between pulleys: 637.5 mm

A V-Belt is used to transmit power between two pulleys. The specification of V-Belt is:

• Emcom B-100
• Length of Belt: 2500 mm (100 inches)

  3. Shaft: Shaft is the component which transmits power from rear pulley to drive the pump.

• Material: Mild steel
• Diameter: 12 mm
• Length: 335 mm

The shaft is step-turned to 8 mm diameters at sprocket and pump side both.

4. Bearings: Bearings are used of NBC bearings. The specification for bearings were

Model: 6001ZZ ID: 12 mm   OD: 28 mm

These bearings are fixed on the shaft by fitting the bearing inner case on shaft with tolerance

5. Pillow blocks

To support the bearings and make them aligned pillow blocks are fabricated using wooden blocks of following dimensions:

Wooden block cross section: (37.5 × 18.75) mm Length of block: 150 mm

6. Pump Selection: The selection of pump for the project proved to be the most formidable task before the team as the pump is the most crucial component of this system and most importantly, it needed to be compatible with the human power as its power source instead of electric motor. The team had two options before them for pump:

7. Centrifugal Pump: It has the inherent advantages of providing the required flow rate as well as being the low cost and simple in installation and maintenance. However it also faces the problem of need of priming as well as the excessive leakage leading to a significant losses of pressure [5].

8. Reciprocating Diaphragm Pump: This pump, commonly used in RO systems is particularly designed for low flow, high pressure applications. But it also required a careful and precise installation as the slight maladjustment of shaft can lead to the failure of system [5].

Now, the RO system needs an optimum pressure to work efficiently (minimum 1.758 - 2.109 kgf/cm2) and one would need a fairly high amount of pedaling to maintain pressure in centrifugal pump. On the other hand, diaphragm pump being particularly designed for RO provided a clear cut advantage of required pressure though it needed an initial head for its working.

C. Water Purification System

The setup of water purification comprising of three filters, viz. Sediment filter, Activated Carbon Filter and Post Filter and the RO filter was bought from market and assembled in our project as per our requirements.

a. Sediment Filter: Sediment filter is the first filter through which the water is passed and usually used to screen out dust, sand, rust and other microscopic particles and are selected based on the particle size removed (for example, 2 microns to 100 microns). For this project we used the sediment filter of 5 micron which is sufficient for a household water supply [7].

b. Activated Carbon Filter: Activated carbon filter removes organics that can affect taste, odor and color reduces chlorine, Trihalomethanes (THM), Pesticides, Industrial solvents (halogenated hydrocarbons), Polychlorinated biphenyls (PCBs), polycyclic aromatic hydrocarbons (PAHs), radon gases. The efficiency of these filters is determined by the length of time the contaminants are in contact with the carbon. The lower the flow rate of the water, the more time the contaminants will be in contact with the carbon and the more adsorption will take place. Removal rates also are affected by the particle size. Activated-carbon filters usually are rated by the size of the particles they are able to remove, measured in microns, and generally range from 50 microns (least effective) to 0.5 micron (most effective) [7].

For this project we used Activated Carbon filter of following specifications:

Particle Size: 5 micron

c. Post Filter: This filter is generally called as second activated carbon filter and is usually placed after it to make water more clear before entering into the RO membrane.

Specifications: Particle Size 5 micron

d. RO Membrane Filter: Osmosis is a natural process in which a liquid from a less concentrated solution flows through a semi-permeable membrane to a more concentrated solution. Reverse osmosis (RO) is just as it sounds, the reverse of osmosis. Pressure is applied on the more highly concentrated solution so that liquid flows from the higher concentrated solution to the lower concentrated solution. Figure 4 shows an illustration of this process. In this case the highly concentrated solution is dirty, undrinkable water. For this system, pressure is applied so that water molecules are forced through a 0.0001 micron semi-permeable membrane. It is the most important unit of whole purification system as it is this filter which reduces the harmful dissolved solids. This consists of very fine pores through which water is passed very slowly and only after the required pressure is build up. The flow rate from this filter is the lowest and this is because of the minute size of pores through which water has to be passed. Higher the time of contact of water with this membrane, the more purification will be achieved [4].

D. Auxiliary Setup For Pumping Waste Water

During the working of RO system, in addition to an outlet of pure water, there is an outlet of waste water also which does not pass through filter and is taken from the system. To use this wastage of water by pumping it from a reservoir, we attached a small auxiliary setup consisting of a reservoir and a household cooler pump on the other side of the pump shaft.

Material for reservoir: Aluminum Sheet metal

Dimensions: (380 × 190 × 190) mm
A common household cooler pump run by the same shaft being used for diaphragm pump is used to pump the waste water from the reservoir. This water can then be used for cleaning or irrigation purposes.

III. TESTING AND RESULTS

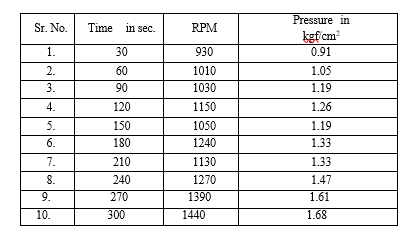

The mechanism is tested by pedaling the bicycle for 5 minutes and recording the data for pressure, RPM and TDS level of water. Following data were obtained during testing:

Average RPM observed throughout cycling period: 1164 RPM

Average RPM required by human pedaling: 57 RPM TDS value before purification: 650 ppm

TDS value after purification: 150 ppm

Thus it is seen that the mechanism is quite successful to provide the required RPM for the RO system to work. The system was able to achieve the TDS level of 150 after supplying initial water at 650 TDS. After 5 minutes of cycling at an average pace of 1200 RPM, the system was able to produce 0.4 liter of water at an average flow rate of 0.08 liter/minute.

Conclusion

The idea of Human Powered water purification system aims at providing safe drinking water with the minimum utilization of resources for promoting the health and overall wellbeing of society as a whole. The project was initiated with the specific objectives of efficient water purification using only Human Power, minimal setup and the affordable cost of installation and maintenance. A mechanism is designed to provide the required RPM using human power to run the pump which supplies pressurized water to the RO filter and pure water is obtained. The system has shown positive results to achieve the desired flow rate and pressure to run a reverse osmosis system successfully and hence it has paved a way for the harnessing of human power for other applications as well. Some of the possible areas of applications where this concept can be extended in future are: 1) People in villages have to travel long distances to collect water from wells. So this system can be modified to be used as a commuting vehicle as well as a portable water collection device in rural areas to take out water from wells. 2) It can be used as multipurpose urban cycling equipment especially in the commercial gyms and health clubs. 3) USB charging equipment can be run by the other end of shaft which can be used to charge cell phones. 4) A small dynamo can be coupled to the shaft which can be used to charge small batteries for use in emergency. 5) The belt-pulley mechanism used in the system may be used to run a wooden lathe, auxiliary pump, etc.
