Design of Can Crusher

Abstract

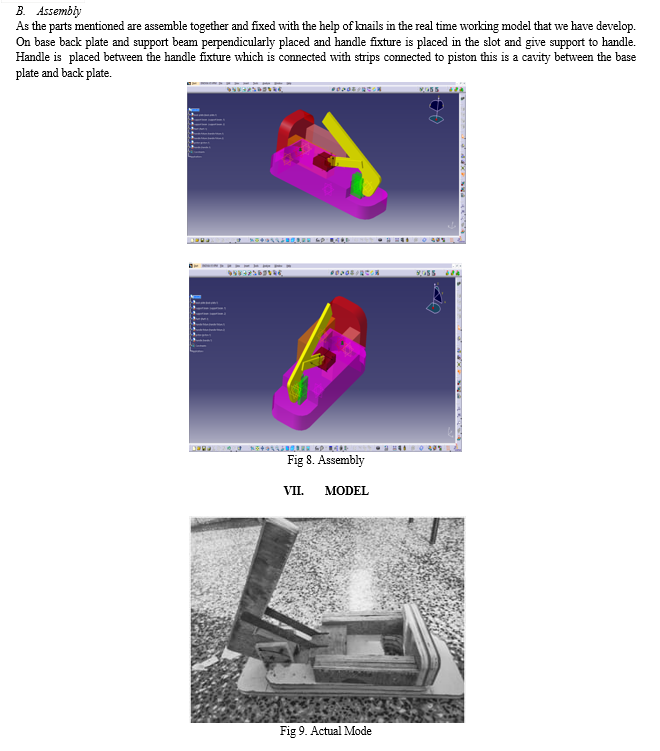

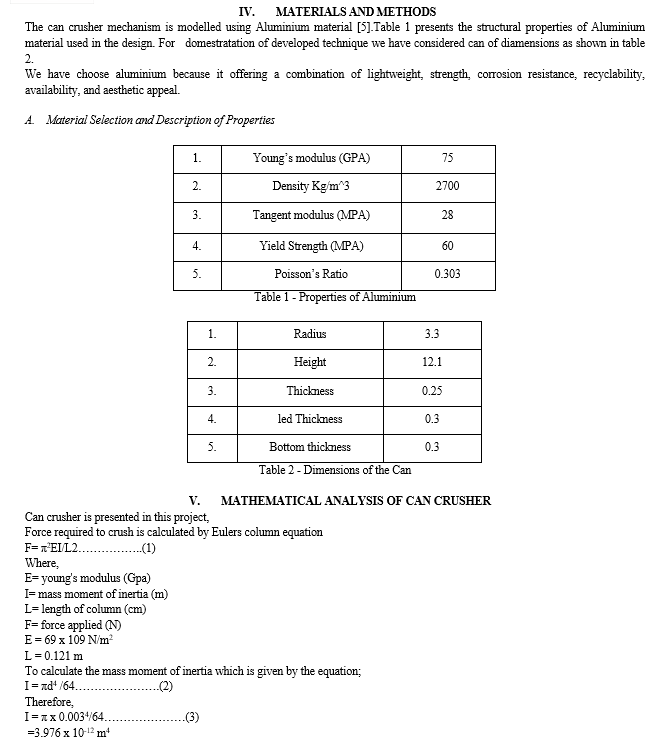

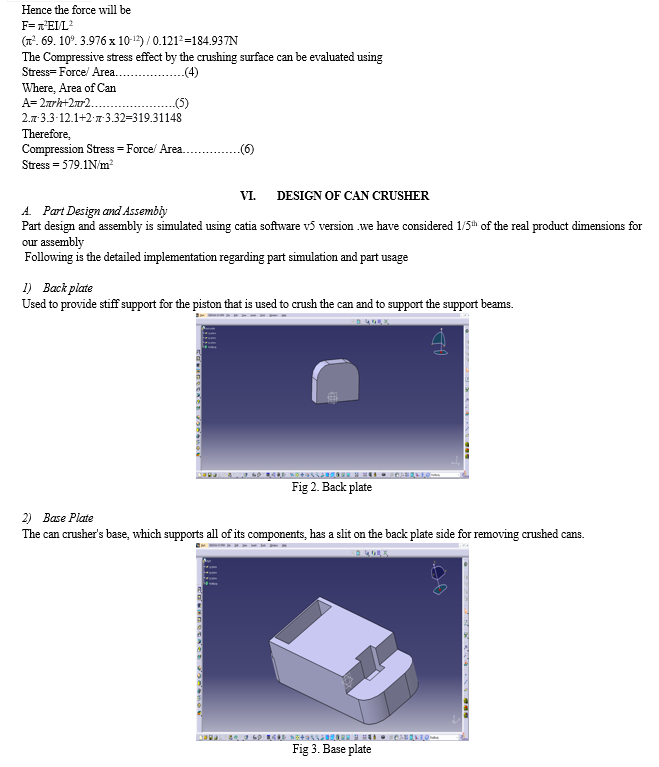

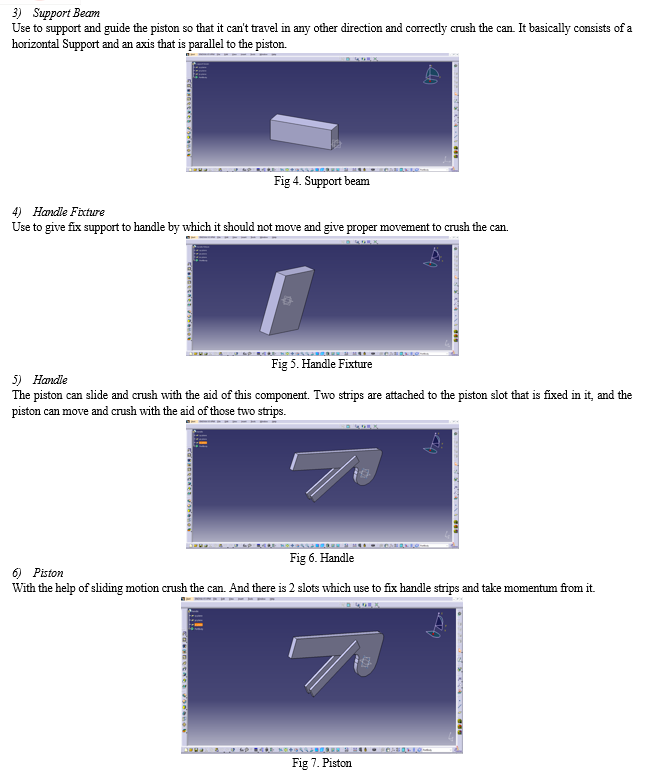

Present study has focused on the design of a domestic aluminum can crusher this will be used to shred empty beverage cans and recycle them back into the industry. It promote sustainability in the beverage production sector. The Young\\\'s modulus, density, yield strength, and Poisson\\\'s ratio of steel and aluminum, among other parameters, were taken into consideration during the design computation of the crusher. Catia was used to model each individual component as well as the entire machine assembly.

Introduction

I. INTRODUCTION

A well-known strategy for sustainable manufacturing is the lean production system. This is demonstrated by the decrease in waste and environmental degradation, particularly when beverage cans are recycled. Production companies for food and drink have struggled to recycle their trash, which has harmed the environment. Despite being used to reinforce and stabilize engineering constructions, crushed beverage cans are still difficult to harvest locally and transform into useful forms due to a lack of the requisite tool.

The size and micro-fracture will be taken into consideration during the design of the crushing machine, which will aid in the crushing process. Additionally, for greater efficiency, the machine's design can appropriately accommodate the impact force needed to crush the beverage. Consequently, the rate of can loss recovery during production will increase, and pollution will be avoided. The productivity, rate of can recovery, and environmental protection are all improved by crushers with sufficient capacity and dependable power. Uncompressed cans take up a lot of room, therefore it takes inventive and imaginative thinking to put parts together into a dependable machine for crushing aluminum cans. Therefore, trying to smash aluminum cans with your bare hands or feet will undoubtedly waste your time and effort.

As a result, crushing aluminum cans relies on compression principles, and designing a crusher requires a thorough understanding of the dynamic forces at play.

However, it is feasible to forecast the stress applied, learn about the machine's operation performance, and calculate the wear of the crusher by simulating the behavior of the crushing process. The variation in crushing behavior as a function of can height during compression is essential for determining the crushing stress. This significantly affects the mechanical characteristics and may deformation shape. Furthermore, the fact that the machine's bulk induces strain hardening as a result of the dynamic reaction to crushing is crucial to engineering design.

This product is easily manufactured and has a straightforward construction. Even a layperson can use the crusher because of the way it was constructed. In comparison to other machines, the cost of production and maintenance is quite low. The garbage may be effectively crushed in this crusher. This crusher is best suited for crushing tiny and straightforward materials like paint cans, soda cans, aluminum tins, machining scrap, sheet metal trash, etc. in small recycling plants, small companies, and shopping malls.

II. LITERATURE REVIEW

We present that literature survey of can crushing techniques and how they are implemented.

The currently available crushers are large and heavy, and they are frequently employed in large companies and manufacturing facilities to crush materials such as vehicles, stones, metal parts, etc. These crushers are also hydraulically and pneumatically controlled, making them practical if a large number of crushing forces are needed to smash a material. These high-end crushers are not required for small recycling operations and are out of reach for the majority of people due to their high operating expenses, which arise from the fact that they require continuous power and maintenance that entails hydraulic fluid or compressor kits, among other things. Because the hydraulic fluid must be replaced regularly and continually, it needs to be well maintained. For operation, it also needs specialized labor.

For our project, we have design of a domestic aluminum can crusher.

Research project by [1] successfully developed  model of a jaw crusher. The objective of the study is to develop a reliable simulation model that can accurately predict the behavior and performance of a jaw crusher in an industrial setting

Further [2] focuses on the energy absorption and in-plane crushing behavior of aluminum reinforced honeycomb structures. The objective of the study is to investigate the mechanical properties and performance of these structures under crushing conditions.It highlight the potential of these structures in various industries where lightweight materials with high energy absorption capabilities are required.

The study utilizes the Discrete Element Method,[3] a numerical technique that enables the simulation of individual particles and their interactions within a system. The authors employ this method to model the behavior of particles in crushers, taking into account factors such as particle shape, size, and mechanical properties.

 The research paper [4] presents a study on the dynamic crushing behavior of multilayer thin-walled aluminum corrugated cores. The findings demonstrate the energy absorption capabilities and deformation mechanisms of these structures, providing insights for their application in impact protection systems.

The models developed through this approach provide valuable insights into crusher behavior, aiding in design optimization and process control. [5] The research contributes to the field of crusher engineering, with potential applications in various industries.

The authors [7] highlight the growing demand for sustainable packaging solutions, particularly in the beverage industry. Self-chilling beverage cans offer the unique feature of cooling the drink without the need for external refrigeration, making them an attractive alternative to traditional cooling methods.

IX. ACKNOWLEDGEMENT

We express or heartiest acknowledgement to all those who supported us and provided guidance whilst  completion of this project. We would like to take this opportunity with great pleasure to express our deep sense of gratitude towards our guide Prof. S. M. Lambor for her valuable guidance and incessant encouragement and cooperation extended to us during this dissertation work.

Conclusion

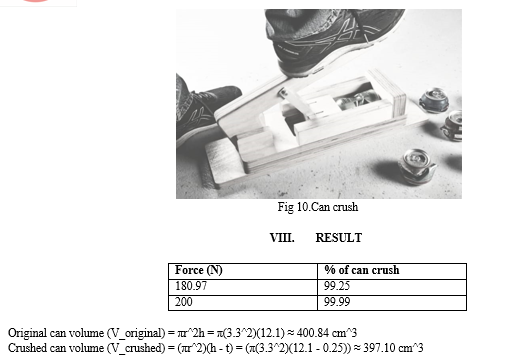

The facts above lead us to the conclusion that the crusher will crush with a force greater than 200 N.

References

[1] Johansson, M., Bengtsson, M., Evertsson, M., & Hulthén, E. (2017). A fundamental model of an industrial-scale jaw crusher.Minerals Engineering. [2] Thomas, T., & Tiwari, G. (2018). Energy absorption and in-plane crushing behavior of Aluminium reinforced honeycomb. Vacuum. [3] Cleary, P. W., & Sinnott, M. D. (2015). Simulation of particle flows and breakage in crushers using DEM. [4] Sar?kaya, M., Ta?demirci, A., & Güden, M. (2018). Dynamic crushing behavior of a multilayer thin-walled aluminum corrugated core. [5] Pang, X., & Du, H. (2017). Dynamic characteristics of Aluminium foams under impact crushing. [6] Sinnott, M. D., & Cleary, P. W. (2015). Simulation of particle flows and breakage in crushers using DEM. [7] Cleary, P. W., & Sinnott, M. D. (2015). Simulation of particle flows and breakage in crushers using DEM. [8] Arena, N., Sinclair, P., Lee, J., & Clift, R. (2017). Life cycle engineering of production use and recovery of self-chilling beverage cans. Journal of cleaner production. [9] Faulkner, W & Badurdeen, F. (2014). Sustainable Value Stream Mapping (Sus-VSM): methodology to visualize and assess manufacturing sustainability performance. Journal of cleaner production.

Copyright

Copyright © 2023 Mayuri Pawar, Prasad Mane, Onkar Wadtile, Manasi Mogal, S. M. Lambor. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
