Designing an Efficient Master Data Management (MDM) using Cloud-based Solution

Abstract

Data is a valuable resource that is utilised as a deciding factor for the operations and demands of the organisation. The information is gathered from a number of different databases, rather than just one, in order to form a single cohesive whole. The occurrence of duplicate data in various forms, even when the data is the same, presents a challenge throughout the process. Issues that can be improved by the use of sound data governance. References and master information is one approach used in the management of data. This procedure may serve as the basis for developing master data management solutions on a cloud-based platform. The analysis and creation of new overall data management architectures are the main goals of this study. Consequently, provide a framework for master managing information tools for free software systems.

Introduction

I. INTRODUCTION

Data is a crucial a resource or element of a business or corporation. Data provides as an example for organisations as the essential to selecting significance choice . An business or firm must be a minimum of split in which every splitting has an application of private that is accustomed to handle data held by the splits. It is conceivable that one splits need information from another splits.

There has been prior research on integrating applications and master data, and one of these studies was conducted at a corporation whose primary businesses are the sales of motor cars, the servicing of motorised vehicles, and the information about  dealers and subdealers. The corporation employs technologies for computers to handle every operations a combination of operating and business. Nevertheless, the innovations in technology utilised has no connection between apps with regard to of master storage data , the technological design is still unable to develop apps collaboration and master storage data between apps . In prior tests done at The financial services industry in Europe, there are obstacles, particularly ineffective marketing assistance causes by redundancy  data for different items because of the several offices locations that had huge software programmes and databases accordingly.

The failure to integrate master information into applications results in every app in the company having its own master information with its own rules and characteristics, which means that at once the data is synchronised there will even when the records is same, there may be duplicate data in various forms. other reasons why customer data entry mistakes happen.

Global Automotive Organisation, which contains three apps, App 1, App 2, and App 3, also had a similar occurrence. Each of the three apps has a unique purpose. Each consumer has the option to register their business. When preparing a final report for all three applications, this presented challenges for the global automotive organisation. The challenge is the appearance of data duplication from the three programmes, even if the data is same and is written in various forms. We required effective to deal with these problems, information management techniques like Master Data Administration can be used. The practise related to information management, which controls how data may be trusted, managed, and of high quality, includes MDM. Data governance also describes who has the authority to make decisions and is in charge of organisational decisions involving the business's information asset.

According to the example study given above, it can be concluded that data of bad quality would have an impact on data governance, which may assist businesses in managing their current data to support their business operations. The ten processes that make up data governance include data construction, model building and concepts, data preservation and activities, data safety, accuracy of information and interconnection, records and material administration, referring and know information, data extraction and analysis, data descriptions, and data excellence. All of these methods help organisations or organisations manage their existing data so they may enhance their current business operations since there is no information that is duplicated or redundant across apps and databases .

To integrate, harmonise, and manage master data in order to offer knowledge to support business choices and increase organisational value, managing master Storage data is a mix of software and innovations [9], [10].

MDM may assist businesses in managing business operations in both the immediate and distant futures, as shown by the instance of European Bank [4]. Generally speaking, the advantages of handling master data include ensuring that the business has information that is logical, real-time, and can be linked across departments and programmes, and lower the high operating expenses imposed by the organization.

The high operating expenses originate from charges needed to cover server costs or rent for an MDM solution. To lower the rich operating expenses, a remedy is offered utilising a platform that is open-source. available intermediary sources are simple to use since there are available to the general public therefore it will cut operating.expenses .

A Master data administration architecture will be formed by the items. According to research by Gartner [12], the MDM architecture looks like the following:

II. RELATED WORKS

A significant number critical component of the corporate universe is master data. Multiple information applications and systems that are present in a business or organisation may exchange and reuse the data in the master file. The data in a master data set must be of high quality, consistency, and management due to the significance of the set. A master system for managing data is required to handle master data effectively. The creation, integration, maintenance, and usage of master data across all corporate divisions are defined and managed by the MDM process . One of the keys to an MDM's success is choosing the appropriate implementation style.

There are three different ways to implement MDM, including registry style, aggregation style, and coexistence style, based on Butler's research. IDC identified four possible MDM deployment strategies, including reorganisation, registration, centralization, and dependency.

Based on Fig. 1, it is clear that the consolidating execution Utilising style to meet enterprise analytics requirements and data storage. In order to minimise the influence of the consolidating style on the real-world aspects framework, the cleansed master data is maintained appropriately & kept in the data storage. When the master information only maintains indexes or data that it deems significant, such as customer numbers, it uses a registry style. Master data is created, disseminated, & separated into several databases throughout the organisation, and data is kept in a variety of operating systems. When master storage data is created, stored and retrieved from the centralised system, a centralised style is employed to ensure that master information will be correctly handled in the centre and will allow for number of golden database records. When important information cannot be centralised and must be spread around the organisation, coexisting styles are employed.

The four MDM deployment types are always used in conjunction with a specific set of components for each MDM system . The architecture for master data management will be made up of these elements. An example of the architecture as per Gartner's study is shown below:

The Master Data Definition, which includes data models, data transformations, redundant data features, semantic and syntactic mappings, metadata sources and targets, is one of the components of the Gartner architecture, according to Fig. 2. Data entry into the master data is not cleared using the Data Value components of processes, which is use to ensure that the data which is stored is  good quality. In addition to being utilised to access business data sources, Creation and Administration Tool and Facilities accustomed to facilitate apps development using master storage data. Service Management is used in the MDM component to specify the technologies utilised for the apps integration processes.MDM Utilities Solutions item is a supplementary items that aids in the operation of the MDM system by providing tools for connecting to master sources of information and destinations. The last component, Managed Communication Infrastructure, connects to Resources for data and goals for converting unstructured data into structured data.The following architectural concepts were created as a result of Oracle's study on the MDM architecture :

According to Figure 4, the MDM architecture consists of six parts, including Master Information Repositories, which facilitate parts for managing storage of data including information about them, the master data, historical information, and reference data. Because Data Quality Management is one of important crucial responsibilities in an MDM system, its Master Data Management System element is an ancillary part that manages the MDM process itself. The next component is the MDM Analytical and Investigation Services, which aids in the being analytical processes for master data access. A service provider for integrating data in businesses is called Section of Enterprises Intelligence Integration (EII). Because it serves as the user's interface for interacting with the MDM system, its Presentation Resources items is the one  is nearest to the individual. The last component is called MDM Integration Services, and it allows users to get to the MDM system via integration services or indirectly through integration platforms like servers, services-oriented architectural (SOA), or buses.

In order to carry out a plan, method, support, and foundational framework for integrating data among programmes and the use of reliable, up-to-date, and consistent master data, stakeholders must adhere to a set of data management practises known as master data management (MDM).

III. LITERATURE SURVEY

A. Akhlaq, R. J. Kauffman, and J. M. Carlson's "Master Data Management: An Exploratory Study of Factors That Influence Adoption" (2016) This research investigates the variables that affect MDM adoption in organisations. Perceived advantages, problems with data quality, and executive support are key variables that influence the adoption of MDM, according to the authors' study of 135 companies. [2]P. De Vries and J. van der Meer's "Master Data Management: An Integrated Framework for Information Quality Management" (2013) A combined structure for MDM along with data quality management is suggested in this study. According to the authors, MDM is crucial for information quality, and the framework offers a methodical way to controlling both. [3] A. Ahmed, A. Ahmed, and R. V. Osei-Bryson (2015), "Master data management in enterprise information systems: A research roadmap." A research road map for MDM in business information systems is presented in this study. The authors point out areas for future study that need to be filled in and provide recommendations, including the need of a thorough MDM model and the significance of determining MDM efficacy. [4] T. Haug and J. H. Holm's "A conceptual framework for master data management" (2014) A theoretical framework for MDM is suggested in this study based on a survey of the literature. Six elements make up the framework, among them managing data, data quality administration, and data architecture. [5] R. C. Lathrop and C. E. McDonough's article "The role of governance in master data management" was published in 2014. In this paper, the function of governance in MDM is examined. Following a study of 200 organisations, the authors discovered that governance is essential for MDM success and that governance maturity has a favourable impact on MDM efficiency. [6] A. Birkmeyer and D. D. Wynn (2015), "Master Data Management and Data Governance: A Framework for Exploring the Relationship" The framework for examining the connection among MDM and data governance is proposed in this study. The authors contend that MDM is a part of data governance and that, for optimum efficiency, the two should be combined. [7]By J. H. Lee, J. Park, and J. H. Lee (2016), "Master data management maturity model: A framework for enterprise architecture" A MDM maturity model is suggested in this research as part of the corporate architecture. The maturity model, according to the authors, may be used to evaluate an organization's MDM skills and provide implementation guidance. [8] N. Elahi and M. Turpin's (2015) "Master Data Management in Healthcare: An Exploratory Study" The application of MDM in healthcare organisations is investigated in this research. MDM is crucial for patient safety, treatment quality, and regulatory compliance, according to the authors' assessment of 89 healthcare organisations. They also noted difficulties such resource shortages, stakeholder pushback, and data integration.

IV. METHODOLOGY

According to Fig. 3, the Oracle architecture can be splits into three main layers, the first of which is the Tier of Hybrid Firmware. This layers offers MDM supporting infrastructures like software integration solutions, company coordination services, quality control and standardisation services, integrated data and handling of metadata delivery, the company rules engines, driven by events design, internet service leadership, login leadership, and analytics service. All MDM hubs, in addition to excellent server information and information governance, are covered by the MDM Application layer. The top layer, known as MDM Management of Data and Industries, is where MDM applications created in the lower two levels are implementedin addition to security client data and data administration, are covered by the MDM Application layer. MDM applications developed in the lower two tiers are implemented in the MDM for managing data and Industries is the top level.

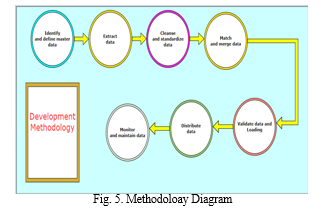

According to Fig. 5, "Identify" entails locating the primary data elements that must be handled as master information and specifying their characteristics, connections, and hierarchies. •Data extraction: Data is taken out of databases, enterprise resource planning (ERP) systems, customer relationship management (CRM) platforms, and other sources. •Clean and standardise data: To guarantee accuracy and consistency, the information gathered is cleaned and standardised. Any flaws, duplication, or discrepancies in the data must be found and fixed. •Match and merge data: To find records that are duplicated and combine them into a single, correct record, the cleaned data is matched and combined. • Enrich data: To make the aggregated record more accurate and comprehensive, more data is included. •Validate data and loading: We load the consolidated and enhanced data into the database software after validating it to make sure it complies with the necessary quality requirements. •Distribute data: The organisation distributes the verified data to all pertinent systems and applications, ensuring that all stakeholders have access to the most precise and current master data. •Data monitoring and maintenance: To guarantee that the master data is correct, comprehensive, and consistent throughout time, it is monitored and maintained. Building up ownership and stewardship procedures is necessary to control data

Modifications and guarantee data quality.

The data collecting phase is the initial step. Based on the study context, the problem's scope is specified at this step. By using analysis of case studies and reviews of literature from other publications connected compared to the principal information system architectural design, problem articulation is established based on these issues.

In the second stage, the examination stage, which served as the the basis for developing a master information management architecture, was completed by monitoring and using apps that examined the firm's operations through its present business procedures. are present in the global automotive organisation, and analysing the databases of each application.

The final phase, known as the design stage for the master information management architecture, entails developing the company's master knowledge management pattern based on the requirements of the application maintained by a global automotive organisation and developing master model data that serve as the standard for business master data for active applications.

V. ANALYSIS AND DESIGN

Determining the precise MDM implementation style to be utilised is the key to successfully executing an MDM architecture [16]. According to literature reviews from the articles reviewed, there are four different MDM implementation strategies, each of which has benefits and drawbacks depending on the criteria listed below:

The opposing table shows that while the consolidation adoption style is used for BI and other systems, it does not have standards that are in accordance with the requirements of the company, but the coexistence adoption style does.. data repositories. Because consumers may register their businesses via these three apps, the needs of the organisation are restricted to ensuring data consistency across all three apps because doing so would result in a significant amount of data duplication when the data from the other applications is combined. Data sources are employed because the primary data used by the MDM system at the organisation originates  all three apps, and each application may also operate as a ownership of the data. This prevents duplication.

The Universal Modelling Language (UML) class diagram is a type of graphical representation used to create and display object-oriented systems. A class diagram is a type of static structural diagram used in a language known as the Unified Modelling Language (UML) to show and describe the inner workings of a system.According to academics, MDM is a part of managing information and should be linked with it for best performance. The blueprint for an item is a Class. Objects and classes cannot coexist. We cannot talk about the first without talking about the other. The whole point of object-oriented layout isn't even about objects since we utilise classes to create them. A class is an outline of what an item will be, not the object itself. In reality, things are. In reality, classes define the essence of objects, but objects are just useful instances of those classes. Every Object has the same individual components (properties and functions), as they were all built from the same set of blueprints. An object is often defined as an image of a class that possesses states and behaviour. Example A dog has traits including colour, breed, label, tail-wagging, barking, and eating. Objects are the instances of a class.

VI. DISCUSSION

According to the findings of the MDM architectural comparison in the preceding topices, the third MDM architectural virtually meets ORG's requirements. Figure 7 depicts the total architectural design.

Based on Fig. 7, it is clear the framework of the MDM architectural often suggested for Organisation is made up of a number of elements, including the App Databases, which used to serves as the database for each Origin of the app. Extract Transform Load (ETL), also known as the procedure of gathering data retrieving data from application databases, processing it, storing it, and then sending it to MDM Services. All of the procedures in the MDM systems are included in MDM Services. Collections of records known as Master Information Databases support the MDM system's operation. The practise of capturing every transaction of data that are sent as metadata to all other apps or systems is known as distribution of data. The synchronisation and integration of info from other programmes or system’s into master information is known as data references. The MDM Presentation Services component, which is the web page that is nearest to the user and is used by users or administrators to gain access to the MDM system services. The MDM architectural design for Organzation is shown in detail below.

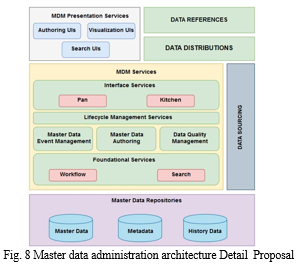

According to Fig. 8, the MDM structure for Organzation comprises a number of components, one of which is the Data Sourcing component, which facilitates the action of obtaining information using the data resource chief, or the Organzation- kept application. A supporting element of the MDM method that includes of user interaction-linked Interface Services, is the MDM Services component. The master data maintenance process is supported by lifecycle management services. Who has the authority to create and alter master data is controlled by a component called master data authoring. The MDM system's operations are governed by the event tracking Master Data in compliance with the given business rules.

Because it includes numerous procedures, including cleansing data and removing duplication, managing data quality is the most crucial element in ensuring that the information that will be handled and sent is of high quality. The Foundational Excellence is a part of the MDM system that helps the search processes by acting as Workflow and Search.

Three data stores— Information from history as well, content, and master information —make up Master Data Repositories, which are components. Data Transfer is a part that helps with data distribution and creates metadata. The final product of the MDM procedure is reference data. Users may Analyse your own main information that  been produced, visualize the MDM process, and utilise aspects of the search MDM Presentations Services component, which is a web-based application.

The Pentaho Data Integration open source platform and Docker virtualization technologies are both used in the proposed MDM architectural, which is in the process of being put into practise. Use the reference in Fig. 9 to evaluate the suggested architecture's functionality.

Conclusion

Considering the components that promote the construction of architecture, it can be inferred from this study that each design that has been evaluated has benefits and drawbacks. Not every element of the architecture, nevertheless, may be used in an organisation. To meet the demands of the organisation, a number of components must be added or eliminated. •Improve Informatica SaaS MDM\'s data validation and cleaning capabilities. To assure the correctness and integrity of master data, this may include installing sophisticated validation criteria, automated data cleaning processes, and continuous data quality monitoring. The improved User Interface focuses on enhancing the Informatica SaaS MDM user interface for data management activities. For verifying, producing, and updating data, this involves giving users an interface that is more logical and user-friendly. User interface and productivity may be improved by using advanced features like bulk data processes, data visualisation, and personalised dashboards. •Informatica SaaS MDM\'s data compliance and oversight functionalities may need to be strengthened in the future. To guarantee compliance with legal obligations and data privacy standards, this involves adding stronger data security safeguards, audit trails, and monitoring tools. Given that technology will continue to advance beyond what it is now and that business procedures for the corporation may alter in response to these advancements, this study may be expanded to include an element of architecture.

References

[1] A. P. Borena and S. D. Schneider, \"Master Data Management: A Systematic Literature Review,\" 2017 IEEE 19th Conference on Business Informatics (CBI), Thessaloniki, Greece, 2017, pp. 85-94. [2] C. Hu, Y. Du, D. Liu and Q. Huang, \"Master Data Management in Enterprise Information Integration,\" 2019 IEEE International Conference on Industrial Cyber Physical Systems (ICPS), Taipei, Taiwan, 2019, pp. 33-37. [3] S. S. Kamble, P. U. Lahane and M. M. Shelke, \"Design of Master Data Management System for Pharmaceutical Industry,\" 2020 International Conference on Emerging Trends in Information Technology and Engineering (ic-ETITE), Mumbai, India, 2020, pp. 1-6. [4] A. Del-Río-Ortega, I. M. Del-Aguila-Obra, A. D. Villar-López and A. A. Hidalgo-Delgado, \"Integrating Master Data Management and Data Warehousing: A Systematic Review,\" 2017 IEEE 41st Annual Computer Software and Applications Conference (COMPSAC), Turin, Italy, 2017, pp. 274-283. [5] K. Wang, X. Shen, C. C. Aggarwal and Y. Qi, \"Master Data Management and Data Quality,\" in IEEE Transactions on Knowledge and Data Engineering, vol. 29, no. 1, pp. 9-21, Jan. 2017. [6] M. Muhammed and N. Agrawal, \"A Survey on Master Data Management Approaches and Technologies,\" 2017 IEEE International Conference on Big Data (Big Data), Boston, MA, 2017, pp. 280-285. [7] [7] H. Wang, Y. Zhang, Y. Li and J. Yao, \"Master Data Management for Sharing Construction Equipment in the Cloud Environment,\" 2017 IEEE International Conference on Industrial Engineering and Engineering Management (IEEM), Singapore, 2017, pp. 959-963. [8] A. Strohbach, M. Bartsch, A. Zeier and G. Feuerlicht, \"Towards a Generic Master Data Management Reference Architecture,\" 2018 IEEE International Conference on Big Data (Big Data), Seattle, WA, USA, 2018, pp. 1510-1519. [9] N. Kumar and H. J. Wu, \"A Model for Integration of Customer Relationship Management and Master Data Management,\" 2019 IEEE International Conference on Engineering, Technology and Innovation (ICE/ITMC), Valbonne, France, 2019, pp. 1-6. [10] S. R. Reddy, D. Paul and R. K. Reddy, \"An Efficient Approach for Master Data Management in Cloud Environment,\" 2018 IEEE International Conference on Data Science and Advanced Analytics (DSAA), Turin, Italy, 2018, pp. 647-654. [11] M. K. Habib, T. Ahmed and F. Hussain, \"A Systematic Literature Review on Master Data Management,\" 2020 IEEE International Conference on Informatics, IoT, and Enabling Technologies (ICIoT), Lahore, Pakistan, 2020, pp. 1-6. [12] Jiang, J., Wang, J., & Wang, H. (2015). An Overview of Master Data Management. In 2015 International Conference on Intelligent Transportation, Big Data & Smart City (ICITBS) (pp. 1-4). IEEE. [13] Abdel-Basset, M., Chang, V., & Banawan, M. (2020). A hybrid multi-criteria decision-making framework for sustainable supplier selection with Big Data Analytics in automotive supply chain. Journal of Cleaner Production, 271, 122558. [14] Zhang, Y., Li, L., & Chen, H. (2019). The Impact of Big Data on Master Data Management. In 2019 3rd International Conference on Cloud Computing and Big Data Analysis (ICCCBDA) (pp. 290-294). IEEE. [15] Alahmari, M. A., Alqahtani, S., & Alhindi, S. (2020). A systematic literature review of master data management. International Journal of Advanced Computer Science and Applications, 11(9), 586-597. [16] Li, C., & Yan, X. (2017). Research on Data Governance Based on MDM. In 2017 3rd IEEE International Conference on Computer and Communications (ICCC) (pp. 1471-1475). IEEE. [17] Malakuti, M., & Hoseini, M. (2016). Master data management (MDM) and its challenges: a survey. Journal of Enterprise Architecture, 12(3), 23-30. [18] Zhang, Y., Li, X., & Liu, Y. (2017). Research on the Application of MDM in the Smart Grid. In 2017 IEEE International Conference on Cybernetics and Intelligent Systems (CIS) and IEEE Conference on Robotics, Automation and Mechatronics (RAM) (pp. 223-227). IEEE. [19] O\'Connor, M. (2019). The Role of MDM in Data Governance. In 2019 IEEE 4th International Conference on Big Data Analytics (ICBDA) (pp. 7-11). IEEE.
