Design and Development of Eco-Friendly Road Sweeper Machine

Abstract

This project is related to design and development of most effective machine that is manually operated mechanical pollution free road cleaner. The Road cleaner is used to keep our mother earth clean. So that we feel fresh while walking on streets. Generally, in era of modern technology, different devices such as electric motors, diesel engines and robots are being used to clean floor, road. These methods make much pollution, maintenance and very tough to carry out. The main objective of this paper is to spread this idea of our prototype road cleaner to each one which aims to. Hence, the present work is aimed to design and develop a manually operated road cleaning machine which is eco-friendly, cost effective, portable and less maintenance. Cleaning has become a basic need for all human beings and it is unavoidable in our daily routine process. The conventional floor/road cleaning machine is most widely used in railway stations, airports, hospitals, Bus stands, colleges etc. also this machine needs electrical energy for its operation. It is not user friendly as well as ecofriendly. In summer time there is power crisis and most of the floor/roads cleaning machines are not used effectively due to this problem particularly. In our project we are using easily available materials with low cost. It is the better alternative for conventional machine. Hence this project is very useful in our day to day life.

Introduction

I. INTRODUCTION

Cleaning is a necessary factor of daily routine process. Directly and indirectly, good cleaning and sanitizing promote and safeguard human health. To maintain the area around us clean, we utilize the road cleaner. so that we can roam the streets feeling revitalized. Robots, diesel engines, electric motors, and other technologies are frequently employed to clean the ground and roads in the age of contemporary technology. But these procedures are difficult to carry out, produce a lot of pollution, and require a lot of upkeep. Therefore, user-friendly road and floor cleaning equipment must be developed in order to conserve energy and protect the environment. A machine that must be manually operated in order to replace the standard electric cleaning machine. A set of wheels that are fixed to the dust-cleaning machine system and connected by a shaft. The shaft connects the wheels to each other. With the use of manual force that can manage it, the wheels are shifted to the proper position. At either side, a chain drive connects the wheels and gear. The wheel and gear determine how the chain is moved. The brush sweeps up any debris on the road and deposits it in the waste-collection box while travelling in the opposite direction of the wheels. To dispose of the waste where you want it to go, remove the waste collection box. We used such type of materials for manufacturing of road cleaning machine finally. We have observed that all the components are with in safe limit in the manually operated road cleaning machine.

Cleaning machine is very much useful in cleaning around us like road and ground and our colleges campus and outside ground and public place etc. In modern days interior as well as outside cleaning are becoming an important role in our life. Cleaning of waste is a very important one for our health and reduces the man power requirement. Many of road cleaning machines are available but we developed machine is very simple in construction and easy to operate. Anybody can operate this machine easily. Hence it is very useful in cleaning the cricket ground, any large area space. The time taken for cleaning is very less and the cost is also very less. Maintenance cost is less. Much type of machines is widely used for this purpose. In our project we have made the machine to operate in a fully mechanical way with a little amount of electrical components. The Floor cleaner is of very simple construction and is very easy to operate; anyone can operate it without any prior training of any sorts with safety. Cleaning is essential need of this generation. Basically in colleges ground cricket ground and road for cleaning regularly different...rotary motion on the floor which cleans the dirt or dust. The remaining water on the floor is wiping by the wiper present in end of the cleaning machine.

Road cleaning machines or floor cleaning machines are used in private as well as commercial area such as hospitals, bus stand, malls, lawns, floors etc.

Many of these devices required high amount of electricity or fuel like petrol diesel for their operation. They produce enough pollution to pollute environment. So in order to save energy and save nature, it is need to develop low cost, user friendly road cleaning machine. Our focus is to develop a machine which should be operated manually so that it can be alternative for conventional electric road cleaning machine. In this work we have done modeling and analysis of the road cleaning machine. We used such type of materials for manufacturing of road cleaning machine finally. We have observed that all the components are with in safe limit in the manually operated road cleaning machine.

II. PROBLEM DEFINITION

1. The conventional road sweeper machines used for cleaning streets and public areas contribute to environmental pollution and resource depletion due to their reliance on fossil fuels, emission of harmful pollutants, and inefficient waste management practices.
2. In light of increasing environmental concerns and regulatory pressures, there is a pressing need to develop eco-friendly road sweeper machines that minimize environmental impact, reduce energy consumption, and promote sustainable cleaning practices.
3. In response to these challenges, the development of an eco-friendly road sweeper machine presents an opportunity to mitigate environmental harm while improving cleaning efficiency and operational effectiveness.
4. The proposed road sweeper machine aims to incorporate sustainable technologies such as electric propulsion systems, renewable energy sources, advanced waste management systems, and efficient cleaning methods to achieve.

VI. RESULTS AND DISCUSSION

For superior industrial/professional cleaning and sweeping needs, use a mechanical sweeper. The dust and debris are propelled to a great extent by the brooms' motion. hefty machinery. Machine with High Pressure.

Cleaning machines come in quite handy when it comes to cleaning floors and outdoor areas in public spaces such as bus stops, stores, auditoriums, and hospitals. Although there are several floor cleaning machines on the market, the one we designed is really straightforward to assemble and use.

Anyone may simply run this equipment. For this reason, it is highly helpful in hospitals and other vast spaces. Both the time and the cost of cleaning are quite low. There are lower maintenance costs.

We built the machine in our project such that it functions entirely mechanically.

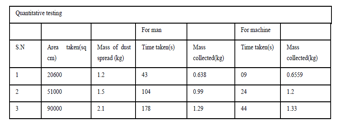

A. Testing Output

After conducting an examination and observation, it was evident that a machine-cleaned area yielded a significantly cleaner and dust-free surface compared to an area cleaned manually with a basic broom. However, it was noted that the machine's fast brush speed might lead to the forceful dispersion of dust particles.

In situations where there is a power outage, the manual eco-friendly road cleaner serves as an ideal substitute for automatic road cleaning machines, especially considering that traditional road cleaning equipment typically relies on fuel or diesel, contributing to pollution and noise. Moreover, manual cleaning exposes individuals directly to dust, potentially causing health issues such as shoulder strain.

To address these concerns, an environmentally friendly road cleaner operated manually offers a viable solution. Despite its manual operation, this cleaner can cover a significant area efficiently, saving both time and cost compared to existing machinery. Additionally, it proves to be cost-effective and provides employment opportunities, particularly for unskilled individuals who require such jobs.

During testing, it was observed that the manually operated eco-friendly road cleaner may face challenges in effectively cleaning severely broken or bumpy roads. However, the manual labor required for operating the machine ensures job opportunities for individuals who may lack formal education or specialized skills.

VII. ADVANTAGES

Manual effort is reduced.

1. Effective cleaning
2. Power consumption is less.
3. Design is very simple.
4. Easy fabrication.
5. Brush occupies large cleaning area.
6. Net weight is less.
7. Maintenance cost less.
8. It can be used in various floors.
9. Smoother operation.
10. By further modification the drive or movement can be made automatic.

Conclusion

The manual eco-friendly road cleaner has been successfully conceptualized, analyzed, and constructed, presenting an effective solution for road cleaning that reduces costs, human labor, and time. Particularly useful during power outages, this manually operated cleaner serves as a viable alternative to automated machines, which often rely on petrol or diesel, contributing to pollution and noise. Unlike traditional cleaning methods that pose health risks due to direct contact with dust and can lead to shoulder strain from continuous sweeping, the manual eco-friendly road cleaner prioritizes operator safety and comfort. Its ergonomic design and efficient cleaning mechanisms ensure a comfortable and effective cleaning experience. In summary, the development of this manual road cleaning machine represents a significant step forward in maintaining cleanliness across various environments. By addressing key issues such as pollution, noise, and operator health, this innovative solution offers a practical, efficient, and cost-effective approach to road maintenance.

References

[1] Sandeep. J. Meshram, Dr. G.D. Mehta - ?Design and Development of Tricycle Operated Street Cleaning Machine? - Journal of Information, Knowledge And Research In Mechanical Engineering ISSN 0975 – 668X| Nov 15 To Oct 16 Volume– 04, Issue- 01. [2] M. Ranjit Kumar1 M. Tech Student, Mechanical Engineering, Nagarjuna College of Engineering and Technology, Bangalore, India. ISSN: 2278-0181 Vol. 4 Issue 04, April-2015 [3] Liu, Kuotsan, Wang Chulun, A Technical Analysis of Autonomous Floor Cleaning Robots Based on US Granted Patents, European International Journal ofScience and Technology Vol. 2 No. 7September 2013, 199-216. [4] Imaekhai Lawrence – ?Evaluating Single Disc Floor Cleaners? – An Engineering Evaluation, Innovative Systems Design and Engineering, Vol 3, No 4, 2012, 41-44. [5] Mohsen Azadbakht, Ali Kiapey, Ali Jafari- ?Design and Fabrication of a tractor powered leaves collectorb equipped with suction blower system? - September, 2014 AgricEngInt: CIGR Journal Open access at http://www.cigrjournal.org Vol. 16, No.3. [6] AbhishekChakraborty, AshutoshBansal – ?Design of Dust Collector for Rear Wheel of Four-Wheeler? - International Journal of Emerging Technology and Advanced Engineering, Volume 3, Issue 7, July 2013, 199-216. [7] Prof. Dr. A. Muniaraj Professor, Department of Mechanical Engineering, Kings Engineering College, Chennai, Tamilnadu, India ISSN 2394-3777 (Print) ISSN 2394-3785. Organized By Siddhivinayak Technical Campus, School of Polytechnic & Research Technology, Shegaon. 8International Journal of Advance Engineering and Research Development (IJAERD) NCSOSET-2018, Volume 5, Special Issue 06, April-2018 [8] Haslam, R.A. and Williams, H.J, ?Ergonomics considerations in the design and use of single disc floor cleaning machines?, Applied Ergonomics, 30,391- 399.2010. [9] SAHIL BHARTI, ?DESIGN AND DEVELOPMENT OF CLEANING SYSTEM?. B.E.Production Technology Anna University, 5Head of Mechatronics Department, Anna University, MIT International Journal of Soft Computing and Artificial Intelligence, ISSN: 2321-404X Volume- 1, Issue- 1. [10] Ajay P John-?Implementation of an Automated Smart Robotic Floor Cleaner?. B. Tech Student, Dept. of E.C.E., HKCET, Pampakuda, Ernakulam, India. [11] Organized By Siddhivinayak Technical Campus, School of Polytechnic & Research Technology, Shegaon. 2 International Journal of Advance Engineering and Research Development (IJAERD) NCSOSET-2018, Volume 5, Special Issue 06, April-2018 [12] Ashish Patil, Pranav Patil, Jaywant Patil, Rohit Ingawale, Sanket Nalawade ,Amar Patil (2018). “Design & Development of Road Side Cleaning Machine”, International research journal of engineering and technology, ISSN: 2395-0056, Volume 05, Issue 4. [13] Meshram, S., & Mehta, G. (2016). “Design and development of tricycle operated street cleaning machine”, Journal of information, knowledge and research in mechanical engineering, 4(1), 702-706. [14] Akshay nighot, Yogesh jadhav, Pritam jagadale, Ishwar jadhav, Avinas hbharate (2019). “Design & Development of Low Cost Manually Operated Sweeping Machine”, International research journal of engineering and technology, ISSN: 2395-0056, Volume 06, Issue 6. [15] Shuzaib kalam, Jatin Sekhri, Twinkle Bauddh, Shivam Kumar, Sarthak Jha (2018). “Road Side Dust Collector Machine”, International research journal of engineering and technology, ISSN: 2395-0056, Volume 05, Issue 3. [16] Muhammad I. Taiwo. Mohammed A. Namadi. and James, B. Mokwa( 16).”Design and analysis of cyclone dust separator”, American Journal of Engineering Research (AJER),ISSN: 2320-0847, Volume-5, Issue-4. [17] Muhammad Kashishaikh Ghaffar, M.Aadril Arshad, Nanadkishor S. Kale, Prof. D.M. Ugle (IJAERD, April 2018), Design & development floor cleaning machine. [18] V.Kaliaselavn, P.Jagadeseswaran, M.Gopi, B. Rahulraj (Nexgen Technologies, jan 2018), Fabrication of modern road cleaning vehicle. 32.
