Development of Methods and Techniques for Soil Stabilization Using Fly Ash and Plastic-Waste

Abstract

In this study, it was tried to stabilize the soil by using fly ash and plastic waste. Because these two materials are becoming a big problem for the environment. If we use these materials for construction, it will be a win-win situation. Additionally, some areas have large enough soil with high enough shrinkage to indirectly produce most of the montmorillonite creating unsuitable conditions for construction, so construction must first be made of solid soil to prevent settlement, which will cause serious damage. building and cause damage. situation. Liming is a popular method of chemical stabilization as it reduces the activity of montmorillonite, and compaction is a popular stabilization method. In this article, we use fly ash and plastic waste, which are environmentally friendly, inexpensive, and easy to use. Here we run different tests. Try to find ways to use fly ash and plastic waste.

Introduction

I. INTRODUCTION

Soil stabilization is the process of improving and stabilizing the properties of the soil. It is used to improve shear performance and reduce soil imperfections such as permeability and consolidation. These machines are mainly used in the construction of highways and airports. Compaction and pre-consolidation are often used to improve existing soils. On the other hand, ground stabilization is not only done to soften the ground and reduce the soft ground cost.

In addition to examining the composition of the soil mass, the chemical transformation of the material in the soil is also an important part of the process. Soil improvement is sometimes used to make urban and suburban roads more permeable.

Fly ash is a burning product in power plants and must be buried. But many governments encourage the reuse of some waste materials for sustainable construction.

Since plastic is not a vital material, it cannot degrade. Strategies used to promote the recycling of plastic waste have an impact on the environment. Bacteria are at risk of plastic leaching due to the acidic soil environment. Therefore, the new system should remove the plastic. Plastic has many properties such as strength, brittleness and corrosion resistance. Antibiotic, line failure, abrasion resistance, insulation and heat resistance.

We can use plastic waste to strengthen the soil as a way to deal with plastic waste. In this new technology, plastic is used as a soil stabilizer to reduce pollution and improve soil quality. Strategies used to promote the recycling of plastic waste have an impact on the environment. Bacteria are at risk of plastic leaching due to the acidic soil environment. Therefore, the new system should remove the plastic. Plastic has many properties such as strength, brittleness and corrosion resistance. Antibiotic, line failure, abrasion resistance, insulation and heat resistance.

We can use plastic waste to strengthen the soil as a way to deal with plastic waste. In this new technology, plastic is used as a soil stabilizer to reduce pollution and improve soil quality.

II. MATERIALS

A.  Soil Sample

Soil samples collected for testing from the Khadawasla dam site were analyzed for their electrical and mechanical properties. Only expanding soil, locally referred to as black cotton soil, was used in this experiment. Black cotton soil is an inorganic clay with plasticity and medium to high compressibility.

It is an important soil type in India. The structure and color of black cotton montmorillonite is black or dark gray. Land geotechnical and road engineers have problems because their soil, which is mostly clay and has strong swelling and shrinkage strength, is just cotton soil.

TABLE I. Properties of soil

B. Fly Ash

Fly ash has a good gelling effect, but in the presence of moisture it reacts chemically and forms gelling compounds. The resulting gelling compound increases the strength and compressibility of the soil. It is a cloudy gray fine powder. It is mostly made of silica, which is formed when finely ground coal is burned in boilers to generate electricity. At the MIDC power station in Pune, fly ash is collected from local cement companies.

C. Plastic Waste

Plastic is a non-biodegradable waste. Therefore, the disposal of environmentally damaging plastic waste has become a major problem. Therefore, the use of plastic waste to stabilize and help reduce pollution is less dangerous, economical, and beneficial for embankments.

Today, the increasing use of plastic in consumer goods has led to an increase in the amount of plastic materials left in the city, which are used and thrown away a short time ago and eventually turn into waste products. Therefore, there is a growing need to develop alternative ways of using plastic bags to extend the life of plastic materials and thus prevent environmental damage.

Plastics are widely used, plastics have good properties such as molding into anything easily, good insulation and not rust, which helps to increase the effect. Plastic is obtained after proper washing of waste plastic bags (milk and dairy products, pet bottles, chocolate packaging, polyethylene bags).

TABLE III. Properties of Plastic Wastes

III. METHODS

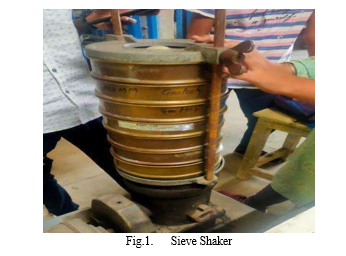

A. Sieve Analysis

A set of sieves has been used of sieves to remove dirt. Covers are usually made of spun brass, phosphor bronze, or stainless steel.

According to IS: 1498-1970, sieves are classified according to the square aperture size in millimeters or microns. The sieves are available in sizes from 80 mm to 75 microns.

B. Liquid limit

The height of the water at which the soil turns from liquid to plastic is called the liquid limit. The compressibility index used in sedimentation analysis can be determined using the liquid limit test. Clay is almost liquid at the liquid limit, but has low shear strength. At this level, shear strength is the smallest value that can be measured in the laboratory.

C. Plastic limit

The water concentration at which the soil no longer behaves like plastic is called the plastic limit. It began to crumble when covered with earth with a diameter of 3 mm. At this humidity, the ground loses its elasticity and becomes semi-solid.

D. Direct Shear Test

This test is performed to determine the cohesion and internal friction of soil samples.

E. UCS Test

The undetermined Compression Test is a functional test by which we can obtain the Unverified Compressive Strength (UCS) of concrete samples. This test is often associated with saturated and cohesive soils and is generally not recommended. Because the material does not support the lateral volume of the soil. UCS refers to or represents the true maximum uniaxial compression force that the structure can withstand without deformation (failure).

F. Standard Proctor Compression Test

The Compression Test is used to determine the amount of compression and water on the surface. This test establishes a relationship between the amount of water in a sample and its density. Calculate the moisture content of the maximum drying temperature using this relationship test.

G. Bearing Capacity of Soil

The soil’s bearing carrying capacity is influenced by soil properties like cohesion, in-situ density soil, voids ratio, and angle of internal friction. Because compacted & dense soil has more unit weight correspondingly more bearing capacity. If the loading is moderate and the bearing capacity is sufficient to take load then a shallow foundation is used. If the soil strata are weak and the intensity of loading is high then a deep foundation like a pile, well, or pier foundation is preferred. So, for the construction of any civil engineering structure bearing capacity plays an important role. Instead of changing the design of the foundation we can change the bearing capacity of soil. And if we use waste material like fly ash and plastic waste for improving bearing capacity then there is a win-win situation. As we are improving bearing capacity as well as saving the environment. We have used the following instruments to determine bearing capacity, which consists of the following.

\

In the loading frame, we have filled soil in a box of size .5 x 0. 5 x 0.5 in three layers. Each layer is compacted to 60 Nmblows required to achieve maximum dry density at optimum moisture content. Then bearing capacity of the soil is calculated in the loading frame as per stander procedure. The test is reputed for the different combinations of fly ash and plastic waste. The different combinations are mentioned in Table 12 and the bearing capacity of each combination is calculated. It is observed that maximum bearing capacity is achieved for flay ash at 24 % and plastic waste at 8 %. There may be some more perpetual combinations to achieve the same.

Conclusion

1) The inclusion of fly ash and plastic to expensive soil increases bearing capacity of soil. The combination of 24 % of fly ash and 8% of plastic waste gives maximum bearing capacity. 2) The Atterberg limit is slightly influenced by the incorporation of fly ash (which is freely available). The liquid limit is reduced by roughly 25% when 15% fly ash ash is added. According to our observations, when 30 percent fly ash is applied, the liquid limit reduces by roughly 46 percent. 3) At 25% water content, the compressive strength increases by 22.88 percent. 4) Based on the aforementioned, waste material, and test results, it can be determined that raising soil shear strength while decreasing permeability improves soil stability. Compressive strength has also increased as a result of the use of fly ash and plastic. 5) It\'s also worth noting that when the amount of fly ash in the mixture grew, the ideal moisture content increased as well. f. Smaller strip size and content have seen a significant increase in UCS.

References

[1] Anas A., (2011) \"Soil Stabilization Using Raw Plastic Bottles\" Proceedings of Indian Geotechnical Conference December [2] Arora K. R., (2004) \"Soil Mechanics and Foundation Engineering\". Publishers Distributors). (Standard [3] Chamberlin K.S.,2014 \"Stabilization of Soilby Using Plastic Wastes\" IJETED [4] ASTM D698-12 (2012) Standard Test Methods for Laboratory Compaction of Soil Standard Effort. ASTM International, West Conshohocken. [5] Behavior of soil by mixing of plastic strips - Tarun Kumar, Suryaketan, JoyantaMaity Department of Civil Engg., Kolkata (IRJET) May 2018 [6] IS: 2720 (Part 2) -1973, for moisture content [7] IS: 2720 (Part 7) - 1980, for light compaction. [8] IS: 2720 (Part 16) 1987 (Re-affirmed 2002), for UCS. [9] ASTM D4318-17 (2017) Standard Test Methods for Liquid Limit, Plastic Limit, and Plasticity Index of Soils. ASTM International, West Conshohocken. [10] Manuel M and Joseph S.,2014 \"Stability Analysis of Kuttanad Clay Reinforced with PET Bottle Fibers\", (IJERT) [11] Nagle R., Jain. R., 2014 \"Comparative study of UCS of soil, reinforced with natural waste plastic material\" IJESR: Vol- 4: Issue-6, pg304-308. Geotech. Geol. Eng. 36(5), 2907-2920 (2018) [12] Peddaiah, S., Burman, A., Sreedeep, S.: Experimental study on effect of waste plastic bottle strips in soil improvement. [13] Sai, M., Srinivas, V.: Soil stabilisation by using plastic waste granules materials. J. Comput. Eng. (IOSR-JCE). 21(4), 42-51 (2019) [14] Sayli D. Madavi, Divya Patel, Mamta Burike, - Soil stabilization using plastic waste, Department of Civil Engineering, SRPCE, Nagpur (IJRISE JOURNAL) April 2017 [15] Raut, J., Khadeshwar, S., Bajad, S. and Kadu, M. 2014. \"Simplified design method for piled raft foundations\", Advances in Soil Dynamics and Foundation Engineering, ASCE, (eds. R. Y. Linag, J. Qian, and J. Tao), 462-471
