Authors: Najmul Islam Usmani, Rajaram Panigrahi, Susanta Kumar Mishra, Achinta Kumar Dalal, Rakesh Juyal, Dhiraj Meshram, Kumar Gaurav, Ravi Prakash
DOI Link: https://doi.org/10.22214/ijraset.2022.40719
Certificate: View Certificate
An attempt has been made to develop Virtual Training Platform for Pickling Line Tandem Cold Mill (PLTCM) intended to deliver faster and enhanced learning experience of the process operator by leveraging Advanced Data Modelling, Data Science and Digital Twin Technology. Virtual Training Platform has modules for virtual tour of the plant, setup simulation, real-time rolling simulation, performance evaluation. Rolling Simulation has ANN based Automatic gauge control model and DNN based shape prediction model. Platform also comprises of a Natural Language Processing based chatbot for online query related to process line.
I. INTRODUCTION
In the age of agility and fast changing business scenario there is fast movement of people both in terms of location and job profile. People will need to know the requisite knowledge and develop the required skill set to maintain the existing level of operational efficiency. Classroom training is limited to theoretical aspects. Therefore, it’s imperative to develop a simulator which will enable new operator/person to see what the impact are of changing various process parameter on rolling and give a feeling of the rolling environment. For the first time, Virtual Training Platform for Pickling Line Tandem Cold Mill (PLTCM), Tata Steel, Jamshedpur is developed for enhanced training experience. The objective is to enable virtual training platform for process operator for faster learning on process, controls checkout, plant start-up, rolling practice etc. by leveraging Advanced Modelling, Data Science and Digital Twin technology. PLTCM is five stands six high universal crown pickling line tandem cold mill. The process flow of PLTCM is shown in Fig. 1 below. The PLTCM receive coils produced by the Hot strip mill. The hot coils are brought into the Walking beam (WB) conveyor by the crane. The coils are moved from one support station to another support station of the WB conveyor Then the coils are moved to the Payoff reel by using the Coil car. The head portion of the new coil is brought into the Welder and welded to the previous coil. During welding operation, the entry section of the pickling line is stopped, while the middle section of the Pickling Line is kept running by wasting the accumulated coil for the Entry looper. The strip is then guided by various rolls into the Tension Leveler, which levels the tension in the strip by maintaining a preset elongation. Strip is then guided into the pickling tasks. In this section, the strip is submerged in acid. The strip is then accumulated at the #1 delivery looper to keep the running condition of Notcher and trimmer. The strip is then notched by the Notcher and trimmed at the sides by the Side trimmer. The strip is then accumulated at the #2 delivery looper to keep the running condition of Tandem cold mill. After center section, the coil enters the Tandem cold mill section to reduce the strip thickness to the desired preset value. The strip at the delivery side of the Tandem cold mill is then wound in any one of the Tension reels. The strip is then cut to desired length by the rotary shear at the delivery side of the Tandem cold mill. The cut coil is called the “CR coil”.
PLTCM is fully automated line. Coil rolling schedule is downloaded to Level 2 from Manufacturing Execution System (MES). Coil rolling schedule in addition to rolling sequence contains coil data called Primary Data Input (PDI). PDI has information about input and output dimensions of the coil and other important information. Setup like welder setup, trimmer setup, tension setup, Mill setup is calculated in Level 2 and downloaded to Level 1 based on tracking events. Level 1 or PLC has Automatic gauge control (AGC) for achieving desired output thickness and automatic shape control for achieving target shape. From control desk Operator can change stop/start line, change mill speed. For shape control Operator can also change work roll bending, IMR bending, IMR shifting and mill levelling. Based on present training requirement for operator in PLTCM modules of Virtual training platform (VTP) is developed. Present work is specific to training of operators in Mill pulpit.
II. MODULES OF VIRTUAL TRAINING PLATFORM

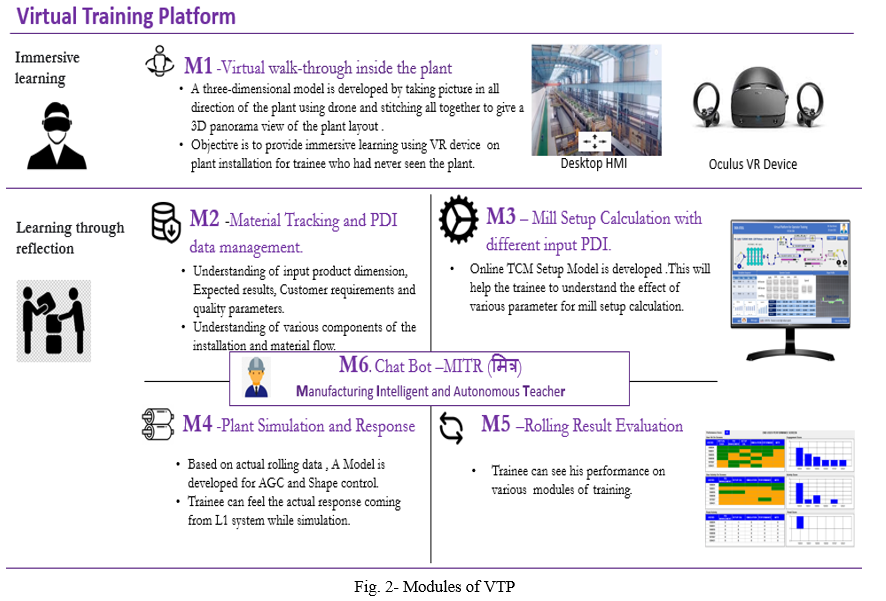

The VTP has five modules shown in Fig. 2 covering important aspects of training -
A. Immersive Learning
M1: Virtual walk-through inside the plant
. B. Learning Through Reflection
M2: Material Tracking and PDI Data Management
M3: Setup Simulation with different input PDI
M4: Plant Simulation and Response
M5: Rolling Result Evaluation
M6: Chat Bot MITR- Manufacturing Intelligent and Autonomous Teacher
III. TECHNOLOGIES USED
Virtual training platform is multiuser training platform. User application is packaged as one click installation on user laptop or PC from URL. User client application is developed in .net windows application. It is server client architecture, database and backgrounds model are running on centralised server. User can login application through authorised username & password.
Virtual training platform leverages Advanced Modelling, Data Science and Digital Twin technology. Technologies used in modules M1- M6 is shown in Fig .3 below.
A. M1: Virtual Tour of Plant
The purpose of this module is to give a virtual walk-through tour of the plant to trainee before going to the plant. Trainee can have 360 view of the plant layout, equipment, and process flow on his desktop or Virtual Reality (VR) device. In virtual walk through, trainee can navigate through each component of the process line. The labels and description are provided wherever applicable. Video files are also attached to get details understanding of the rolling process. Virtual tour is developed by capturing image of plant through drone imaging and stitching image together in 3D Vista package. Stitched image is then published in web URL and embedded to client user application. Virtual tour is embedded with voice over explaining various sections of plant, videos showing working of equipment, visual SOP’s, and safety instruction. Virtual tour can also be done using Virtual Reality (VR) devices for enhanced experience. Fig. 4 shows snapshot of Virtual tour of plant.
B. M2: Material Tracking and PDI Data Management

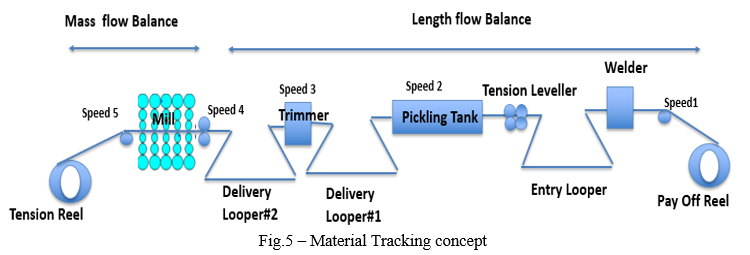

The Objective of tracking module is to simulate material flow in line. It is most important module for integrated working of rolling simulator. Based on material tracking, target thickness and shape are passed to AGC model and shape prediction model. Material tracking model works on the principle of length balance and mass balance as shown in Fig. 5.
The PDI data management module objective is to make user understand rules of making rolling schedule which is part of their job. There is restriction on thickness jump, width jump and grade jump which trainee need to keep in mind before making rolling schedule. The Primary Data Input (PDI) of coil contains important information like coil dimensions, customer information etc. This module helps trainees in understanding of input product dimension, Expected results, Customer requirements and quality parameters. Fig. 6 shows Schedule making Screen.
C. M3: Setup Simulation with Different Input PDI
In setup simulation module trainee can see mill setup before rolling the coil. Trainee can also change coil PDI and see its effect on mill setup. Mill setup parameters [1,2] like roll force, tension, draft, max mill speed, roll gap change etc. are important and required for rolling. Mill setup parameters calculation is done with the coil specification, mill status information such as roll diameters etc. The basic purpose is to calculate the optimum reduction distribution among the five stands which will facilitate attaining the maximum rolling speed subject to the following constraints-
A schedule calculated in this manner ensures maximum utilization of power and smooth rolling operation. Following figure shows the flow chart for set up calculation. Algorithm of setup optimisation is shown in flow chart in Fig 7.
In mill setup model commonly used equation in cold rolling like Hill’s Equation is used for roll force calculation, Blank and Ford for forward slip calculation. Ford’s equation is used for calculation of torque arm coefficient. Motor Power is calculated using equation 1. given below
The mill setup calculation is iterative process till condition for stable rolling and giving maximum throughput is satisfied. Fig. 8 shows setup simulation screen. Cyan colour highlights change in setup values between current/previous values.
D. M4: Plant Simulation and Response
This module contains Automatic Gauge Control (AGC) Model and shape prediction model. AGC model is used for achieving the desired output thickness without any Operator intervention. However, for shape control operator can give input like work roll bender, IMR Bender, IMR shift from control panel to get the desired coil output shape.
IV. AUTOMATIC GAUGE CONTROL
The AGC model is based ref [3]. The Gauge equation [4] of rolling can be represented as given in Fig 9. below.

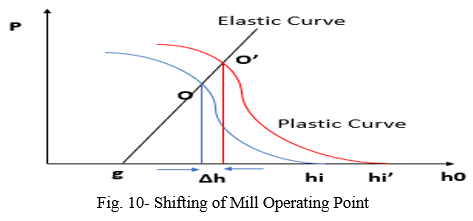

Any change in input thickness, friction, front tension, back tension, roll gap, material property can lead to variation in output thickness of coil as shown in Fig. 10 below. Operating point of rolling mill shifted from O to O’ on change in input thickness (hi to hi’) leading variation in output thickness(?h). AGC changes roll gap, front tension & back tension to minimise this variation of output thickness.
Two Artifical Neural Network models are trained-
Actual rolling data is collected for around 5000 coils covering all grades and dimensions. A single layer ANN model is trained with input as Yield Stress(Y), friction coefficient(µ), Output thickness(ho), back tension(tb), front tension ( tf) and output as Rolling Load(P) and rolling torque (Tq). Sensitivity factor[5] of inputs with respect to Rolling load(P) around operating point is found. In present work python jacobian function of autograd library is used for finding sensitivity factor. Equation 2 from ref [3] is directly used to find change output thickness due to change in roll gap, input thickness, front and back tension, friction, and Yield Stress. In this work, an ANN with a hidden layer is used. The ANN has 6: inputs, 2: outputs and 24: neurons in the hidden layer.
Following steps are followed in Thickness Prediction model -
B. Thickness Control Model
Actual rolling data is collected for around 5000 coils covering all grades and dimensions. A single layer ANN model is trained with input as Yield Stress(Y), friction coefficient(µ), roll gap(g), input thickness (hi), back tension(tb), front tension ( tf) and output as output thickness and Rolling Load(Pb).Sensitivity factor of inputs with respect to output thickness around operating point is found. In present work python jacobian function of autograd library is used for finding sensitivity factor. Equation 3,4,5 from ref [3] is directly used to find new control parameter value to minimize output thickness variation to zero. Parameter for control one out of (roll gap, back tension, front tension) is chosen which has minimum percentage change. . In this work, an ANN [6,7] with a hidden layer is used. The ANN has 6: inputs, 2: outputs and 28: neurons in the hidden layer.
The above models are developed for all five stands and integrated together.
V. SHAPE PREDICTION MODEL
Actual rolling shape data is collected for around 500 coils covering all grades, dimensions, and shape pattern. In PLTCM shape is measured through shape meter having 32 channels (each channel of 52 mm width). Shape in 6 high tandem cold mills is controlled through IMR shift, work roll bending, IMR bending. Along with 32 channel output shape data, input parameters like IMR shift, work roll, IMR bending, roll force, reduction, mill levelling, tensions of all five stands are collected for training Deep Neural Network [8,9]. DNN is having 40 inputs, 32 outputs, 4 hidden layers with 100 neurons each.
A. Working of Rolling Simulation Screen
The Fig.11 shown below shows the snapshot of Rolling Simulation Screen. The trainee can start/stop the line with button given on top left corner of screen. The background material tracking model moves the coil in line based on line running speed. Line speed can be changed from Operator console. Mill sound is recorded and embedded in system, which increases /decreases with mill speed. Next to be rolled coil is welded in line when POR remaining length becomes zero. When next coil weld point reaches entry of mill stand#1, mill speed is automatically decreased and mill setup data for that coil is provided as input to AGC model and Shape model. AGC starts with initial values of mill setup like roll force, friction, tension, roll gap and tries to achieve target thickness by changing roll gap, front tension, back tension. Random small variation in input thickness, friction etc. is given to AGC model to get dynamic response. Similarly shape prediction model predicts shape based on initial setup data. Operator inputs from Operator console is passed to shape model to predict the output. System workflow is shown in figure below Fig 12.
B. M5: Rolling Performance Evaluation
The objective of this module is to evaluated training performance. The output thickness, tension, roll force, roll gap etc. of the coil rolled are stored in database of VTP. System also records modules covered by trainee and points are awarded accordingly. In case of wrong input by trainee is awarded negative points. Cumulative training score is calculated.
C. M6: Chatbot MITR- Manufacturing Intelligent and Autonomous Teacher
Virtual Training Platform is having Chat-Bot named MITR to provide online information to trainee. Trainee can query any information related to PLTCM line. Chatbot is designed to simulate conversation with human users of the desired subjects. There are different categories of chatbots such as Rule based, Independent and NLP based chatbot[10,11]. We are using NLP(Contextual) Chatbot. These are most advance chatbots, and combination of best of rule based and independent chatbots. These bots use NLP (Natural Language Processing) to understand the context and intent in users request and then acts accordingly. MITR uses following approach as shown in Fig 14.
VI. ACKNOWLEDGEMENT
The authors acknowledge the help extended by Mr. Abhishek kumar of Tata Steel for drone imaging of PLTCM Line. We would like to thank the management of Tata Steel for their kind permission.
An effort has been made to develop the virtual training platform leveraging both the classical and machine learning based techniques to deliver a unique experience to the user. The simulator can give a feeling of the actual rolling environment with learning regards to model behaviour and operator intervention and see the impact first-hand. This can be used to train people virtually without coming to plant through the virtual tour and with the help of information boxes, a user can interactively gain a first-hand experience of the shop floor. This can be used as a tool to reduce cycle time for effective learning and training.
[1] W.H. Lee, Mathematical model for cold rolling and temper rolling process of thin steel strip, Journal of Mechanical Science and Technology,16,10,2002, 1296-1302. http://dx.doi.org/10.1007/BF02983836. [2] J.H Hitchcock, (1935), Roll Neck Bearings, ASME Research Publication. [3] Luis E. Zárate, Predictive Model for the Cold Rolling Process through Sensitivity Factors via Neural Networks. Technical Papers • J. Braz. Soc. Mech. Sci. & Eng. 28 (1) • Mar 2006 • https://doi.org/10.1590/S1678-58782006000100013 [4] Fei Zhang et.al. (2014). Research and Application of Thickness Control Strategies in Steel Plate Rolling. The Open Automation and Control Systems Journal. 6. 1638-1644. 10.2174/1874444301406011638. [5] B. Mrzyg?ód et. al. Sensitivity analysis of the artificial neural networks in a system for durability prediction of forging tools to forgings made of C45 steel. Int J Adv Manuf Technol 109, 1385–1395 (2020). https://doi.org/10.1007/s00170-020-05641-y [6] M. Mishra and M. Srivastava, A view of Artificial Neural Network, 2014 International Conference on Advances in Engineering & Technology Research (ICAETR - 2014), 2014, pp. 1-3, doi: 10.1109/ICAETR.2014.7012785. [7] Mitali S Mhatre, A Review paper on Artificial Neural Network: A Prediction Technique. International Journal of Scientific & Engineering Research, Volume 6, Issue 12, December-2015 [8] Sarvepalli, Sarat Kumar. (2015), Deep Learning in Neural Networks: The science behind an Artificial Brain. 10.13140/RG.2.2.22512.71682. [9] J. Schmidhuber, 2015. Deep learning in neural networks: An overview. Neural Networks, 61, pp.85-117. http://arxiv.org/pdf/1404.7828 [10] A. Gelbukh, Natural language processing, Fifth International Conference on Hybrid Intelligent Systems (HIS\'05), 2005, pp. 1 pp.-, doi: 10.1109/ICHIS.2005.79. [11] Munira Ansari, Saalim Shaikh, Mohammed Saad Parbulkar, Talha Khan, Anupam Singh, 2021, Intelligent Chatbot, International Journal Of Engineering Research & Technology (Ijert) Nrest – 2021 (Volume 09 – Issue 04
