Different Night Vision Technologies

Abstract

This research paper presents different ways of seeing at night. \"Night Vision\" is referred to as a new phenomenon that gives us a supernatural experience of seeing in the dark and a change of vision in low light conditions. This initiative is a combination of a few unique strategies each with its own focus points and challenges. Well-known techniques shown here are Lowlight Imaging, Thermal Imaging, and Lighting. This research paper also provides a brief overview of the various night vision gadgets (NVD) that enable images to be created by levels of light approaching the rising of the dark and specifies different programs in which night vision renaming is used to accommodate different objects. problems due to low light conditions.

Introduction

I. OBJECTIVES

A. To study what is night vision technology.

B. To study basics about the light and categories of infrared light.

C. To study thermal imaging and image enhancement and active illumination

D. To compare different properties and use cases of night vision technologies.

E. Characteristics

II. INTRODUCTION

A. What is Night Vision Technology?

The US Defense Department developed night vision technology primarily for defense purposes, but as technology advances, night vision gadgets are increasingly being employed in everyday life. Since its invention, we have come a long way in developing night vision technology in the twenty-first century. It is mostly utilized for defense objectives, as the law frequently restricts its usage in scientific or civilian settings.

Since before World War II, scientists have been working on night vision technologies. However, after WWII, in the early 1950s, a distinct shape emerged. This is when Night Vision Generation-0 was created. The devices that were released during this generation were large and costly. The primary premise was to use light from the infrared area for viewing purposes. Rather of providing sharp and enhanced images, these early technologies focused on image coverage. Because the disadvantages were greater, the need for a more advanced system was quickly recognized, and within a decade, the first generation of night vision technology was introduced.

Depending on the technology utilized, night vision can work in two ways.

1. Image Intensification: This method entails amplification of ambient light. It functions by detecting low quantities of light and amplifying it. When photons (small energy packets that constitute up light) enter an image enhancer, they first hit a photo cathode layer, which releases electrons. These electrons strike a second layer called a micro channel plate, which multiplies the electrons before they touch the phosphor screen, which turns them back into light due to the increased number of electrons. However, if there isn't enough light for the thermal enhancers to see at all, this model fails.
2. Thermal Imaging: Instead of being reflected as light, the upper portion of the infrared light spectrum released as heat energy by objects must be captured. Temperature is measured by recording various quantities of infrared radiation. Even if humans cannot see light in the dark, it can be felt as heat if the intensity is sufficient. Thermal imaging, on the other hand, has a number of drawbacks: it is prohibitively expensive, the image created is of low quality, and we are unable to see the target objects if there are transparent impediments in our field of view.
3. Active Illumination: Imaging intensification technology is combined with an active source of illumination in the near infrared (NIR) or shortwave infrared (SWIR) band by active illumination. Low-light cameras are an example of such technology. Infrared illumination is combined with CCD cameras sensitive to this light in the spectral range 700–1,000 nm to create active infrared night vision (slightly above the visible spectrum of the human eye). On a conventional display device, the resulting scene, which appears dark to a human observer, appears as a monochromatic image.

III. LITERATURE REVIEW

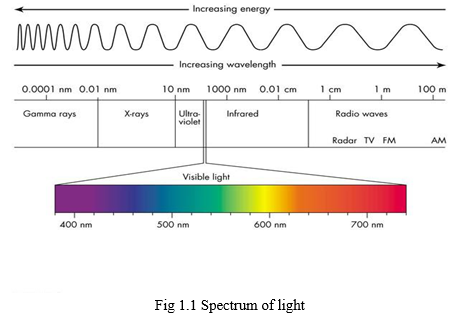

It is necessary to have a basic understanding of light in order to comprehend night vision. The wavelength of a light wave determines how much energy it contains. The energy of shorter wavelengths is higher. Violet has the highest energy of all visible light, while red has the least. The infrared spectrum is located next to the visible light spectrum. Infrared light is divided into three types.

1. Near-Infrared: Near-infrared (near-IR) light has wavelengths ranging from 0.7 to 1.3 m, or 700 to 1300 billionths of a meter, and is the closest to visible light.
2. Mid-Infrared: Mid-infrared (mid-IR) — Wavelengths between 1.3 and 3 m. A variety of electrical equipment, including remote controls, utilize both near- and mid-IR.
3. Thermal-Infrared: Thermal-IR — With wavelengths ranging from 3 to over 30 m, thermal-IR makes up the majority of the IR spectrum.

IV.  IMAGE INTENSIFICATION

The image intensifier (photomultiplier tube) is a vacuum-tube-based device that can generate an image from a very small number of photons (such as light from stars in the sky) so that a dimly illuminated scene can be examined with the naked eye in real time via visual output, or recorded as data for later analysis. The light is not "amplified," as many people believe. Electrons are emitted through a vacuum tube and strike the microchannel plate when light strikes a charged photocathode plate. This works similarly to a CRT television, however instead of colour guns, a photocathode emits light.

Because the output visible light is brighter than the incoming light, the image is said to become "intensified," and this effect is directly related to the difference between passive and active night vision goggles. The drop-in ANVIS module is currently the most popular image intensifier, though there are many other models and sizes on the market. The US Navy has revealed plans to purchase a dual-colour ANVIS for use in the cockpits of aerial systems.

1) Image Intensifier: An image intensifier, also known as an image intensifier tube, is a vacuum tube device that increases the intensity of available light in an optical system to allow use in low-light conditions, such as at night, to facilitate visual imaging of low-light processes, such as fluorescence of materials in X-rays or gamma rays (X-ray image intensifier), or to convert non-visible light sources, such as near-infrared or short wave infrared, to visible light. They work by transforming light photons into electrons, amplifying the electrons (typically via a microchannel plate), and then transferring the amplified electrons back into photons for viewing. They're found in things like night-vision goggles.

Low-level light photons are converted into electrons, which are then amplified and converted back into photons of light by image intensifiers. Photons from a low-light source are focused into a photocathode using an objective lens.

As incoming photons strike the photocathode, the photoelectric effect releases electrons. The electrons are accelerated into a microchannel plate by a high-voltage potential (MCP). In a mechanism known as secondary cascaded emission, each high-energy electron that impacts the MCP promotes the release of numerous electrons from the MCP.

The MCP is made up of hundreds of tiny conductive channels that are tilted away from normal to induce more electron collisions and hence increase secondary electron emission in a controlled Electron avalanche.

V.  THERMAL IMAGING

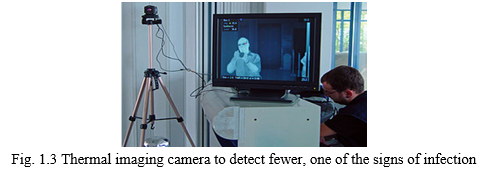

The technique of turning infrared (IR) radiation (heat) into visual images depicting the spatial distribution of temperature differences in a scene observed by a thermal camera is known as thermal imaging.

Thermal imaging is a great remote sensing technology for a variety of reasons, but it's especially useful for elucidating animal ecology field investigations. Thermal imaging data is taken in real time from a number of platforms, including land, marine, and air-based vehicles, at the speed of light. Because thermal radiation penetrates smokes, aerosols, dust, and mists more effectively than visible radiation, it is superior to visible imaging systems at detecting animals in a wide variety of ordinarily challenging atmospheric circumstances. It is a completely passive imaging technology that may be used in both day and night-time situations. During data collecting, this reduces disruptions and stressful disturbances to wildlife. Because it does not measure temperatures but rather the emissivity of the animal against its background, it can detect animals that are colder, warmer, or the same as their background temperature. Thermal imaging cameras are fantastic night vision tools. They do not require illumination to detect thermal radiation. They can see through light fog, rain, and smoke and produce an image even in the darkest of nights (to a certain extent). Small temperature changes are observable using thermal imaging cameras. They're frequently used to supplement new or existing security networks, as well as for night vision aboard aircraft (where they're known as "FLIR") (for "forward-looking infrared").

There are two types of thermographic cameras: those with cooled infrared image detectors and those with uncooled detectors.

A. Cooled infrared Image Detectors

Cryogenically cooled detectors are often enclosed in a vacuum-sealed box or Dewar.

The cooling is required for the semiconductor materials to function properly. Depending on the detector technology, typical operating temperatures range from 4 K (269 °C) to just below ambient temperature. Depending on the type and performance level, most current cooled detectors operate in the 60 Kelvin (K) to 100 Kelvin (K) range (-213 to -173 °C). These sensors (which detect and convert light in a similar manner to common digital cameras but are made of different materials) would be 'blinded' or flooded by their own radiation if they were not kept cool. Cooled infrared cameras have the disadvantage of being expensive to manufacture and operate. Cooling consumes a lot of energy and takes a long time.

Before the camera can start working, it may need to cool down for several minutes. Peltier coolers are the most commonly used cooling systems, and while inefficient and limited in cooling capacity, they are relatively simple and compact. Stirling engine cryocoolers are required to improve image quality or to image low-temperature objects. Although the cooling gear is big and expensive, cooled infrared cameras provide significantly better image quality than uncooled infrared cameras, especially for objects close or below room temperature. Furthermore, the increased sensitivity of cooled cameras allows for the employment of higher F-number lenses, resulting in smaller and less expensive high-performance long focal length lenses for cooled detectors.

???????B.  Uncooled Infrared Image Detectors

Thermal cameras that are not cooled employ a sensor that operates at room temperature or one that is stabilised at a temperature close to room temperature using modest temperature control devices. Sensors in modern uncooled detectors work by changing resistance, voltage, or current when heated by infrared radiation. These changes are then measured and compared to values obtained at the sensor's operating temperature.

Uncooled infrared sensors can be stabilised to an operational temperature to reduce picture noise, but they do not need to be cooled to low temperatures and do not require large, expensive, and energy-intensive cryogenic coolers. As a result, infrared cameras are smaller and less expensive. However, they have inferior resolution and image quality than cooled detectors. This is owing to variances in their fabrication techniques, which are constrained by present technological capabilities. A thermal camera that is not cooled must additionally cope with its own heat signature. Pyroelectric and ferroelectric materials, as well as microbolometer technology, are commonly used in uncooled detectors. The material is utilised to create pixels with extremely temperature-dependent characteristics that are thermally isolated and read electronically.

The pixel temperature is read as the extremely temperature-dependent polarisation charge in ferroelectric detectors, which operate near to the sensor material's phase transition temperature. Ferroelectric detectors with f/1 optics and 320x240 sensors have a NETD of 70-80 mK. A potential sensor assembly comprises of a polyimide thermally insulated connection bump-bonded to barium strontium titanate. Silicon microbolometers have a NETD of less than 20 mK. Above the silicon-based scanning electronics is a layer of amorphous silicon or a thin film vanadium(V) oxide sensing element hung on a silicon nitride bridge. The sensor element's electric resistance is measured once each frame.

VI. ACTIVE ILLUMINATION

1. Active form of night vision illumination: Active illumination is also one of the most cost-effective forms of night vision technology, which is why it has so many applications. The low-light camera is one of the best examples of active illumination. The spectral range used by active lighting is 700 nm to 1000 nm, which is just below the light spectrum visible to human eyes, which is why it cannot be seen with bare and unsupported eyes alone. Night vision devices for household, governmental, and commercial applications frequently use active illumination.
2. Usage: Since the most popular night vision devices with active lighting are low-light cameras or night vision cameras, the most typical application for this sort of night vision technology is surveillance and security cameras. Security cameras and surveillance cameras are commonly observed in homes, supermarkets and shops, and government buildings such as schools and city halls, as you are aware. Active illumination is mostly used for home, governmental, and commercial reasons, as previously stated. Even when used in extremely dark situations, devices using this type of night vision technology are quite reliable in generating crisp and brilliant images. These active illumination devices include night vision capabilities, allowing them to capture photos and video footage at night. Active illumination is mostly used for home, governmental, and commercial reasons, as previously stated. Even when used in extremely dark situations, devices using this type of night vision technology are quite reliable in generating crisp and brilliant images. These active illumination devices include night vision capabilities, allowing them to capture photos and video footage at night.
3. Speciality: The ability to provide a wide range of high visibility even when utilised in places with heavy snowfall, foggy situations, Smokey areas, heavy rainfall, and even misty regions is the most prevalent and perhaps the main specialty of active illumination night vision technology. Active lighting is a very beneficial sort of night vision technology for a lot of people because of all the instances where it may be used. Active illumination can also be utilized to capture video footage of fast-moving autos, in addition to the applications listed above. This is a useful feature since it allows active illumination to be employed as road surveillance cameras.

VII. COMPARISON NIGHT VISION TECHNIQUES

VIII.  CHARACTERISTICS OF NIGHT VISION

It's not the same as using conventional binoculars and/or your own eyes when utilising amplified night vision.

When using an image intensified night vision system, you should be aware of some of the elements of night vision listed below.

1) Light and Dark Textures: Through the night vision unit, objects that appear light during the day but have a dull surface may appear darker than those that appear dark during the day but have a highly reflecting surface. A dark coloured jacket with a shiny surface, for example, may appear brighter than a light coloured jacket with a dull surface.

2) Depth Perception: Normal depth perception is not present in night vision.

3) Fog and Rain: Because night vision is sensitive to reflective ambient light, light reflected off of fog or heavy rain causes significantly more light to be directed toward the night vision device, thereby degrading its function.

4) Blooming: When the intensifier tube is overloaded by a powerful light source, the entire night vision image, sections of it, or small pieces of it are lost. When the spectator notices a "halo" effect around visible light sources, this is referred to as a "halo" effect. When a strong light source enters the field of view of a night vision equipment, the entire picture, or parts of it, becomes significantly brighter, "whiting out" items inside the area of view. Blooming is a common occurrence in devices from Generations 0 and 1. The lights in the right-hand image would be considered "blooming."

Conclusion

We have described various night vision technologies that are available and how they work in order to avoid various low light problems in this paper. This paper shows how efficiently a soldier can work at night, as well as how wildlife observers can work in the dark, and how surveillance can be maintained in low light conditions. The oldest electro-optical surveillance technology is night vision, which is based on image intensifier tube technology. Despite stiff competition from thermal imagers, visible/NIR cameras, and digital night vision, this mature technology is still in its early stages of development. There are no indications that traditional optical NVDs will be phased out in the foreseeable future. Night vision is a mature technology with widespread uses in the military, security, and defence industries. On the international market, NVDs are available in a wide range of design configurations, image intensifier tube types, night vision optics types, and performance. Understanding and evaluating NVDs is a difficult undertaking because numerous details must be considered.
