Drone: Firefighter

Abstract

This paper introduces the drone: a firefighting device that makes use of low-fee photodiode sensors to discover fires. The layout reduced size, energy consumption and value financial savings even as preserving performance. We speak the machine layout, take a look at strategies, and outcomes, focusing on the effectiveness of infrared radiation detection. The paper concludes with limitation and destiny developments, paving the way for similarity development of drone firefighting generation.

Introduction

I. INTRODUCTION

A. Motivation

It will remain (one of) the main world's risks, a fire hazard almost permanently threatening public safety and property. It therefore leads to both expensive and humanitarian losses yearly. The fire cavity should be detected at an early stage and intervention done immediately in order to lessen fire threats and salvage lives as the most priority.Conventional firefighting methods may be restrained by way of different factors which incorporates Conventional firefighting methods may be restrained by way of different factors which incorporates:

1. Accessibility: Ensuring rescue in both hard to reach spaces like the edge of the ditch that firefighters could not get to and where traditional devices especially the ladder cannot reach.
2. Risk to employees: The high level of risk to firefighters when they respond to scenarios involving burning flames, thick smoke, and hazardous gases.
3. Limited situational consciousness: It can cause a problem to come up at critical moments of the combat, since the characters might not have whole awareness of the fireplace situation in most cases.
4. Response time: Complexities of being on time for the fireplace shot for the reasons such as delays caused by the tourists or the weather.
5. The outlined restrictions illustrate the importance of modern ways of fighting fires in order to upgrade the firefighters’ skill sets.

B. Existing Solutions

Existing firefighting answers make use of numerous strategies, together with Existing firefighting answers make use of numerous strategies, together with:

1. Ground automobiles: We must, however, understand that the Fire truck is the hero of the day since this vehicle comes loaded with water cannon and hose pipes as the main resistance against the fire. On the other hand, location limits their accessibility when facing certain areas due to land types or infrastructure.
2. Helicopters: While it has a point as delivery pulpit, they are expensive to deploy and require qualified pilots which therefore limits their application considerably.
3. Ground robots: Robots that are operated through long-distance commands can do the inspection of the hard to access areas, while their movement and load capacity are limited.

While putting into use these high-tech solutions is a very critical thing for firefighting, there are their limitations that may call for researching on alternative procedures. [1]

C. Proposed Approach

This paper proposes the development of a Drone: Orienting to the fact of Burning House As a new deal the way out the problem of traditional approaches. This drone relies on photon detectors rather than cameras for the fire detection. This approach offers several advantages:

1. Cost-effectiveness: Unlike cameras, photodiodes have a significant price reduction; this makes the drone's economic viability as widespread adoption to be viable.
2. Reduced size and weight: As opposed to cameras, photo diodes are smaller and lighter, improving the drone's aerodynamics to make it less bulky and more stable in the air.
3. Lower power consumption: As opposed to cameras, photodiodes need low power consumption hence the drone could stay in the air for long periods of time.
4. Effective fire detection: Of course, diodes whose link to fire is only a side job are still effective at picking out fire due to these diodes’ capability to sense the infrared radiation from the flames.

D. Paper Contribution

This paper presents the design, development, and testing of the Drone: An Outfire/prevention Flyer. The paper system architecture evaluations section emphasizes the integration of photodiode sensors as a fire detection system. Equal time is dedicated to the examination of the calibration and testing methods used to certify the precision and dependability of the equipment. Moreover, this paper looks into the future of this technology, by pointing out its shortcomings and looking for the potential routes on improvement that could be followed in future research.

II. LITERATURE REVIEW

Firefighting remains a complex and hazardous undertaking. Traditional methods rely on human firefighters venturing into dangerous environments, exposing them to extreme heat, smoke inhalation, and structural collapse risks. Technological advancements, particularly in the field of Unmanned Aerial Vehicles (UAVs) or drones, offer a promising solution. Multipurpose firefighting drones have the potential to revolutionize fire response by providing:

Enhanced Situational Awareness: Drones can access areas inaccessible to firefighters, offering a real-time view of the fire location, spread, and intensity. [2]

Improved Safety: By removing firefighters from immediate danger zones, drones minimize personnel risk and enable more strategic response planning.

Increased Effectiveness: Firefighting drones can deliver extinguishing agents or perform reconnaissance missions, leading to faster containment and reduced property damage. [3]

This review explores the potential of multipurpose firefighting drones, focusing on the key components that enable their functionalities and the current state of research within this evolving field.

Components and Functionalities

The effectiveness of a multipurpose firefighting drone hinges on a robust and integrated system of electronic components. Here's an analysis of the core components typically employed:

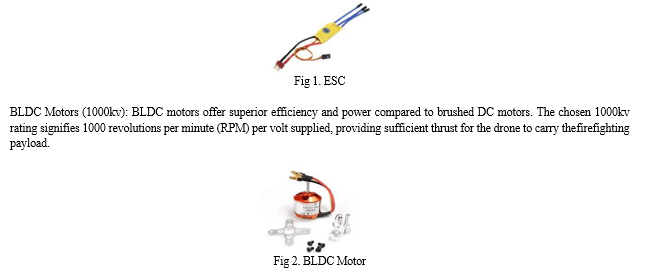

Electronic Speed Controllers (ESCs): These intelligent circuit boards regulate the speed and direction of the Brushless DC (BLDC) motors. Each motor in the quadcopter frame requires a dedicated ESC, ensuring precise control over flight dynamics.

Firefighting Specific Components

In addition to the core components mentioned above, a multipurpose firefighting drone requires specialized elements for its firefighting capabilities:

Submersible Motor 5v DC: A water pump driven by a submersible motor forms the heart of the firefighting functionality. This motor draws water from a designated tank and delivers it through a nozzle, allowing for targeted extinguishing agent application. The choice between a 5v or 9v DC motor depends on the chosen water tank size and desired water flow rate.

Nord MCU: While the specific functionality of the Nord MCU is unclear, it is likely a Single-Board Computer (SBC) responsible for processing sensor data related to the firefighting system. This may include water tank level sensors, pressure sensors, and potentially controlling the water pump operation. [4]

Integration and Challenges

The successful integration of these components is crucial for a functional and effective firefighting drone. Research by highlights the importance of developing robust communication protocols between the flight control system and the firefighting components.

III. DESIGN AND METHODOLOGY

This section details the design and methodology employed in developing the Drone: The firefighting craft equipped with photodiode to accurately spot the fire.

A. System Design

This section details the design and methodology employed in developing the Drone: The firefighting craft equipped with photodiode to accurately spot the fire. [5]

Drone Platform:

Adoption of a multirotor drone form factor which meets specified payload capacities and flight time requirements. Considerations include factors like:

1. Size and weight: The system will be clutter free and manageable in small parts. It will help movement in tight corners, hallways or stairs.
2. Flight time: Sustaining the operation requires enough flight time not only for firefighting but also to gather intel.
3. Payload capacity: The platform has adequate sensors, communication tools, and energy resources that are power generating.
4. Fire Detection Module: Integration of flame effect sensors including photodiode modules that are being developed to measure the level of flow and flame wavelengths transmitted in narrow band of infrared radiation.
5. Design considerations: Sensor selection: Picking photosensitive diodes that are featured with the right sensitivity and spectral range as fire detecting agents.
6. Sensor placement: Sensor positioning so as to provide the best coverage of the area affected by the fire while providing sufficient views on the blaze.
7. Signal processing and filtering: Implementation of circuitry to improve the gain and filter of the detector's signals, which is aimed at the removal of noise and brought to the desired data accuracy.
8. Data Acquisition and Communication System: Data collection system integration with the addition of a sensor data acquisition system and a communication module capable of transmitting data to the ground control station.
9. Data acquisition system: Sensor data rate handling system is to be selected that is able to support high sensor data rate and data storage system unless it is unnecessary.
10. Communication module: Decision making on communication protocol to ensure its range is adequate for real time processing and that data transmission is reliable. [6]

B. Methodology

1. System Assembly and Integration: Connect and implement the preferred drone platform and analog sensor, data acquisition system, communication module and GCS software. The diagnostics will have to account for accurate tuning and testing of individual components and the distributing performance overall.[7]
2. Sensor Calibration and Testing: Configuration of the photodiode sensors with precision to ensure the appropriate fire detection from distinct locations and variable natural situations. An organized testing is conducted in such a way that it has a control measure and can determine how the system will be able to find out different fire scenarios. [8]
3. Flight Testing and Evaluation: Conducting controlled experiment in air an open area but in a safe and controlled environment to check the system functioning well in real world conditions. [9]
4. Evaluating factors like: Fire detection accuracy: Verification of System in will the detect unwanted fire under different circumstances of the system. Flight stability and control: Achievements and defects of the drone system will be discussed with a special focus on stability and maneuverability. [10]
5. Communication range and reliability: Of course, the quality and strength of the data transmission between the drone and the GCS is one of the issues in the operation.
6. Data Analysis and Improvement: Evaluating the data obtained from these tests to identify the shortcomings and areas for enhancement so that subsequent tests will be more robust and accurate. System design revised, sensor calibrations are refined, operational procedures are revised as we develop the knowledge from this data.

Table 1: Overall Specification and features of the Drone

IV. ACKNOWLEDGMENT

The development of this multifunctional drone for firefighting would not have been achievable without the essential support and guidance provided by numerous individuals and organizations.

First and foremost, we want to thank the academic and administrative staff at the VES Polytechnic, Automation and Robotics Department, for time, effort, and energy they put into our education. Their round the clock encouragement, our project look had a transparent view by their insightful feedback, and tech know-how was a big driver of our journey in the navigation of the rough waters and the eventual attainment of our goal

In the same way, we would like to shoulder a debt of gratitude to Parallax Company. The journey and their dedication of creativity towards the UAV revolutionizing this industry makes their story truly inspiring.

Lastly, we are greatly appreciative to our colleagues and fellow students who with their willingness to cooperate with us and great support can face every hardship.

It was their dispositions of being able to volunteer information, coin ideas and solve the problem the team might be encountering the major reason for us to succeed in the project.

Conclusion

This research presented the design, development, and testing of the Drone: We propose to offer Firefighting Drone, a novel firefighting approach with photo detective sensors for fire detection. The system offers several advantages compared to traditional methods: 1) Cost-effectiveness: Instead of camera, drones used photodiodes, which is a much cheaper alternative for broad spectrum usage. 2) Compactness and lightweight design: The photodiodes are light in reach and smaller size that translates it to an agile and maneuverable drone platform. 3) Lower power consumption: The camera drones need even less power than photodiodes thus making the drone able to fly more extended times. 4) Effective fire detection: While photodiodes are not always complex, just the fact that they can successfully detect fire due to infrared light with exclusive wavelengths which flames radiate is the reason for their popularity.The examination of use of photodiode sensors as fire detectors of a drone-based system was feasible by means of the tests that were conducted and controlled. While further research and development are required for complete optimization, the findings suggest the potential of this approach for: 5) Early fire detection: Firefighters can utilize these vehicles in order to meet immediate fire emergencies, hence preventing extensive property loss and most importantly saving lives. 6) Improved situational awareness: Initially, firefighters should be supplied with the current information about the fire place, assisting them in making right choices. 7) Reduced risk to personnel: Taking firefighters out of harm’s way during perilous circumstances makes possible collecting data and reconnoitering by air. 8) The research comes to unravel the most important fact that it can be a turning point for affordable and effective firefighting drone technology development. Future advancements could involve: 9) Sensor optimization and integration: Experimenting with improved photosensor tech or increasing their use in conjunction with other sensing methods to detect a more accurate fire reaction. 10) Autonomous operation: Creating sound algorithms for unmanned vehicle navigation, obstacle avoidance, and fire question analysis so to dispense human interference. 11) Field testing and deployment: The process will involve extensive field trials in real existing situations that make it possible to derive general pain components and accuracy needed for real operational application.
