Eco Vision: Advanced Technology for Plastic Inspection Using Deep Learning

Abstract

The biggest cause of global warming comes from land Plastic waste. The impact of plastics on humans is inevitable. Although most practices are effective, they have some shortcomings in testing and evaluating plastic products. That\'s why it\'s important to have technology that helps us find and eliminate plastic easily. In this article, we learn about the body\'s aqueous layer contains plastics, which may be found and identified using the YOLO v5 deep learning detection tool. The document was made using plastic photos that were obtained from the internet. We looked at the YOLO v5 average accuracy and used the results to explain the algorithm\'s performance.

Introduction

I. INTRODUCTION

Research shows that the main cause of pollution is the type of plastic waste. It is extracted from land that is floating or submerged in different soils. Through ingestion or entanglement, plastics in the soil have the direct ability to kill living things and damage their metabolism. Ecosystem imbalances brought on by plastic pollution can have an impact not just on wildlife but also on humans and the local economy in coastal areas. Because plastic contains tiny particles that are prevalent in aquatic animals, eating can be impacted by bacteria in plastic disease. Therefore, it is necessary to make plastics that can float well on the soil surface because these are areas where bacteria can absorb oxygen and sunlight.

II. LITERATURE REVIEW

Digitization will help us identify areas of concern in the world's oceans and eliminate plastic. RAJKHISHORE S MUKESH S SIVARAM C Plastic book classification is a time-consuming and costly process. Therefore, authors need to use automatic classification tools to increase the return value, process images and classify them using artificial intelligence, especially deep learning. Currently, there is no specific description of the characteristics of the waste products that deep learning models use as the basis for the decision.

The YOLO v4 and YOLO v5 deep learning object detection algorithms are being developed by Bhanumathi Ma,1, DhanyaSb, Gugan Rc, and KirthikaKGd to recognize and identify saltwater objects in the body's water layer. Images of ocean plastics available online were used to generate the data. Image enhancement helps increase the number of images in the document. The main difference between YOLO v4 and YOLO v5 is examined, the performance of the study is explained and the results are summarized. This research is only a small part of the mission, and the algorithms could be used in conjunction with other technologies to remove plastic from oceans around the world.

Reviews and ratings of the most popular plastic machines, although effective, have some disadvantages. That's why it's important to have another technology that uses technology that allows us to easily identify and remove plastic. In this study, we analyzed YOLO v5's deep knowledge of product recognition to find and classify plastic products. This document was prepared using graphics available online. Image enhancement can increase the number of images in the file. Check the effectiveness of the algorithm, plot the results and interpret the true average of YOLO v5. Evaluating the proposed modification learning to modify YOLOv5 models trained to recognize plastic products in various contexts such as marine environments could be another context investigation.

III. METHODOLOGY

A. Data Collection

Collection of different data consisting of images with and without plastic objects. Make sure the background, lighting, and orientation of the product change. Annotate images with bounding boxes around plastic objects to create accurate background information.

B. Dataset

This dataset contains 5,592 JPG images capturing water pollution in Bangladesh, Bosnia, India, Indonesia, Nepal, Pakistan, and Sudan. On average, there are 5.6 plastic bottles in each image. More than 34 clips were collected, mostly from side views of the river. This file follows the Pascal tag format and is available under Public Domain license. It provides important information about the extent of plastic pollution in aquatic ecosystems. EcoVision collects comprehensive data, including images and sensor data, from landfills. These data are pre-processed to remove noise, normalize features, and expand the dataset to improve model generalization. The split accounts for 80% of the training set of photos and 20% for testing. Figure 1 displays a few photos from the plastic dataset.

C. Selection Model

Select deep learning suitable for search objects such as Faster R-CNN, YOLO (You Only Look).  or SSD (Single Shot Multi-Box Capture). Consider using pre-training models to take advantage of adaptive learning, which can augment training and improve performance, especially when data is limited.

D. Training Model

Shows the selected model of the training process while monitoring its performance in the validation process. Fine-tune the model by adjusting hyperparameters. Install the correct location.

E. Evaluation

Another training model used to evaluate performance metrics such as precision, recall, and F1 score of the test set. Look at the predictive model of the invisible image to evaluate its overall capabilities. Perform error analysis to identify fault conditions and areas for improvement.

F. Post processing

Do not apply maximum pressure to eliminate findings and cure the vessel. Filter out results with low confidence to improve the overall accuracy of the system.

G. Deployment

Integrate a trained model into an application or system process process. Display instantly or in bulk.

Optimize the resolution speed and memory footprint of the model, especially when used by devices or platforms.

Audit the model's performance in the design product and regularly retrain with new information, adapt to changes and improve accuracy over time.

H. Continuous Improvement

Collect new data and constantly rebuild models to maintain your results according to the situation and changing needs.

IV. MODELING AND ANALYSIS

For advanced plastic analysis using deep learning, we use state-of-the-art models and make sure all analyzes are done well. Below is detailed information about modeling and analysis: [1]

A. Modeling

1. Model selection: YOLO (one-time view) Prefer to watch the indicator as it is a single pass in its design. Look at the pros and cons of each design based on your specific needs, such as speed, accuracy, and computing power.
2. Data Enhancement:Use enhancement techniques such as rotation, measurement, translation, and translation to diversify training data. Try advanced enhancement techniques such as shear blending, blending or shearing to increase the robustness of your model. [2]
3. Loss Function: Select appropriate loss for the object detection task, for example Smooth L1 loss for bounding box regression. Cross entropy loss for class prediction (Optional) Engage the class in losing focus to resolve inconsistencies and demonstrate challenging examples.
4. Hyperparameter Tuning: Use techniques such as grid search or random search to optimize hyperparameters such as learning, batch size, power, and weight. Dynamically adjust the speed during training using techniques such as rate planning (e.g. cosine annealing, step decay). [2]
5. Failure Analysis: Report failure cases to understand weak patterns and areas for improvement. Identify incorrect or irregular patterns (e.g. occlusions, complex backgrounds) and adjust training strategies accordingly.
6. Interpreting Models: Using techniques such as Category Action Maps (CAM), Grad-CAM or tracking techniques See which part of the image benefits best from predictive models. Show the model's decision-making process, understand and clarify its behavior.
7. Generalization and Robustness: Evaluate the model's performance on missing data or out-of-distribution data to assess generalization ability. Test the model's performance in various environments (such as different lighting, weather) and interference (such as noise, occlusion).
8. Model Distribution: Measuring to ensure that a trained model meets inference speed and resource requirements using distribution limit. Deploy models in a real-world environment and monitor their performance in production, iteratively improving as needed.

V. RESULTS AND DISCUSSION

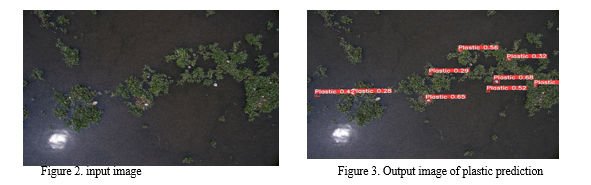

YOLOv5 algorithms are trained on some other data but they need to be retrained on plasticity images of the land surface. Since there were not enough photos, the document was created using drone photography. To improve algorithm, the data set must be fine-tuned on hyperparameters and reprocessed with a weighted parameter. [4] The weight is stored each 1000 times and contrasted with YOLOv5's ideal weight. Plastic photos were used to test the system initially. This helps determine weight and improve measurement accuracy. Measure your model in real time by creating a pelagic system. Images taken from drone cameras are fed into the system and plastic estimation can be made with a minimum of 40% and up to 80% accuracy at most. By adding more plastic photographs to the data—which includes all environmental factors and plastic goods that impact image sharpness—the algorithm's real-time prediction can become more accurate. YOLOv4 and YOLO v5 comparison [4] The YOLOv4 paradigm is on the verge of achieving an accuracy of 80-82%. The algorithm is accurate and fast for image input and can detect almost any type of plastic in the camera input.

Conclusion

This article attempts to use the YOLOv5 algorithm to identify and diagnose plastic in the soil layer Experimental results show that the latest version of the YOLO algorithm can quickly and accurately predict plastic quality as a host octal when fed a picture, in contrast to previous algorithms. The YOLOv5 algorithm produced comparable, fast, and accurate results. By adding datasets and fixing mistakes, an algorithm\'s real-time performance can be enhanced throughout training. The YOLOv5 method may be used in the future in deep learning applications to gauge effectiveness and integrate cars or robots submerged to assist in the detection and removal of plastic. This study represents merely a tiny portion of the goal, and ad hoc methods could be used along with other strategies to remove plastic from the world\'s oceans.

References

[1] Owen Tamin 1 Ervin Gubin Moung Jamal Ahmad Dargham Farashazillah Yahya Ali Farzamnia Florence Sia Nur Faraha Mohd Naim 1 and Lorita Angeline, Coastal Plastic Waste Detection YOLOv5 and RGB Near Infrared Fusion : The ultimate solution for real, sustainable environmental care-2023. [2] Andrey Pimenov, Anton Stepanov, Nadezhda Mikhailova, Visual inspection of plastic waste with computer vision, February 2024. [3] Lan Zhenhao, Shen Haiping, Wang Youqing, Tuo Jianyong, Shi Yukun, ResNet and hyperspectral based plastic content detection, IEEE Research Paper, 2023. [4] Xiaodong Zhang; Deguo Yang; Jingyu Jia, “A Method for Identifying Domestic Waste Based on YOLOv5”,2023. [5] Rajkhishore S Mukesh S Sivaram C Using Plastic Analysis and Classification Research Interactive Learning Using Consumer Learning for Waste Classification: karur [6] Bhanumathi M a,1, DhanyaSb, Gugan Rc and KirthikaKGd “Marine Plastic Detection Using Deep Learning” 2022 The authors and IOS Press. [7] Dr. K.Soumya, Kadiyala Kushala, Kanuri Yogambika Varshini, Karella Baby Jahnavi, Kayala Lakshmi Swetha, “Plastic Waste Detection using YOLOv5 Deep Learning Object Detection Algorithm” © 2023 IJNRD
