Effect of Setbacks on Lateral Displacement in G+6 Multistorey Structure Using STAAD Pro

Abstract

The multistorey structures/ buildings solve the population\'s living problems increasing daily. Many clients require more area for commercial purposes such as parties or other celebrations. Therefore, structures are designed with floating columns and setbacks. These elements generate the geometrical irregularity in the structures. Therefore, the present research work has determined the impact of setbacks on the lateral displacement of the structure. The A/L ratios of setbacks are 0.1, 0.125, 0.133, 0.167, 0.2 and 0.233 considered in the design and analysis of structure. The lateral displacement results of irregular structures (with setbacks) have been compared with regular structures (without setbacks) and provisions given in the code.

Introduction

I. INTRODUCTION

A. General

A three-dimensional structure with multiple stories and vertical move mentutilizing stairsand lifts are known as a multistorey building. The multistorey building is generally designed to serve as a commercial mall, residential apartment, commercial apartment, hospital,etc. The construction speed of multistorey buildings is faster than other conventional buildings due to the high level of pre-fabrication material, accuracy in design, riskless construction, and best quality checks with the help of consulting agencies. Figure 1.1 shown below is a typical 3D multistoried building designed on software.

II. MODELLING AND ANALYSIS OF STRUCTURES

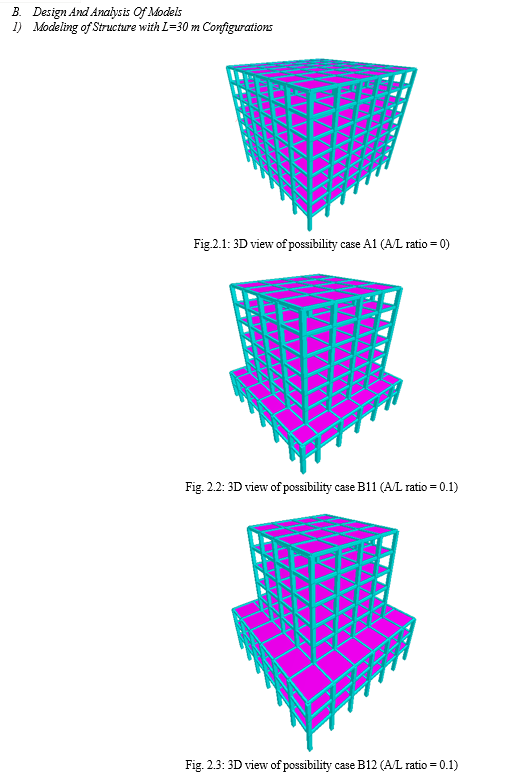

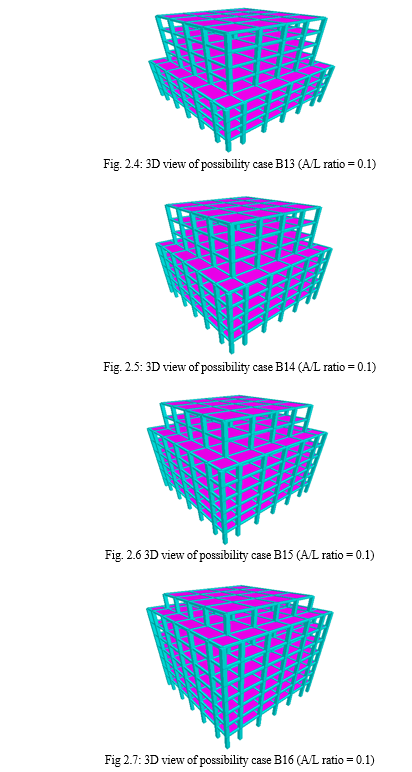

In the present research work, for determining the effect of setbacks, two types of G+6 storey structures having the length of 30m and 40m have been designed and analyzed using STAAD Pro. The structures are designed for aspect ratio (A/L) of 0.1, 0.125, 0.133, 0.167, 0.200, and 0.233. Six structures with setbacks at 1st, 2nd, 3rd, 4th, 5th, and 6th storey have been designed and analyzed for each A/L ratio, and displacement results have been obtained.

In addition, two bare frame G+6 storey structures have been developed and analyzed to map the comparison with structures having setbacks. However, the displacement of G+6 bare frame structures has been calculated using IS code 1893:2016 formula of 0.004*height of storey*number of the storey (i.e., 0.004*3500*7 = 98mm). Furthermore, the displacement obtained from IScodal formula, bare frame structure, and structures having setbacks has been compared. The comparison is mapped as –

1. Comparison of results of lateral displacement for Constant A/L ratio.

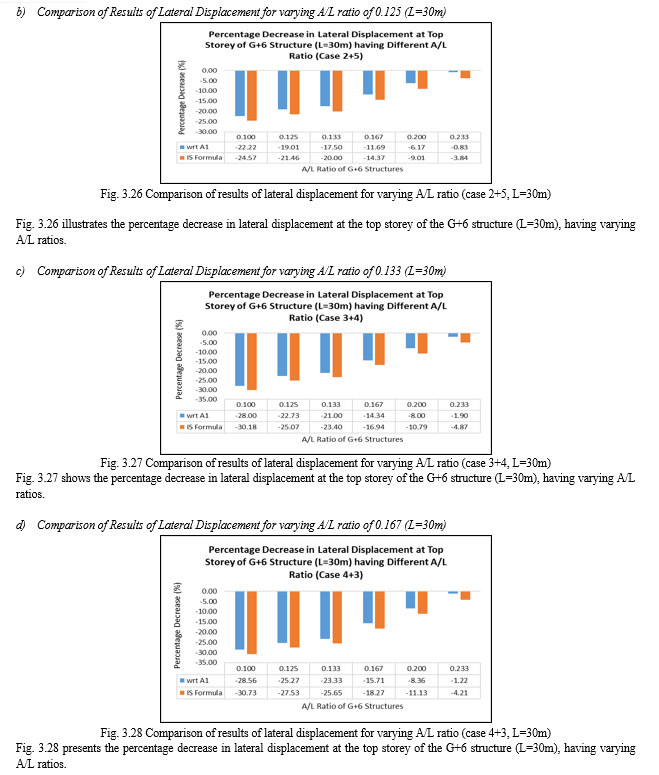

2. Comparison of results of lateral displacement for varying A/L ratio.

Conclusion

The following conclusions are mapped from the comparative study of lateral displacement results. 1) The lateral displacement results of the G+6 storey structure having an A/L ratio of 0.1 to 0.167 (L=30m) show that the lateral displacement increases if the setbacks are provided up to the fifth and sixth storey. These kinds of structures are having lateral displacements within permissible limits as per IS code and hence, safe. Furthermore, the G+6 storey structure having an A/L ratio of 0.2 and 0.233 (L=30m) achieves more lateral displacement than the regular structure and the Indian standards, which makes the structure unsafe. G+6 storey structures having an A/L ratio of 0.2 and 0.233 are unsafe if the setbacks are provided at the sixth and fifth storey, respectively. 2) On the other hand, lateral displacement results of the G+6 storey structure having an A/L ratio of 0.1 to 0.133 (L=40m) show that the lateral displacement increases if the setbacks are provided up to the fifth and sixth storey. These kinds of structures are having lateral displacement within permissible limits as per IS code and hence, safe. Furthermore, the G+6 storey structure with an A/L ratio of 0.2 and 0.233 (L=40m) achieves more lateral displacement than the regular structure and the Indian standards, representing the structure as unsafe. The G+6 storey structure having an A/L ratio of 0.233 is identified as a critical structure because the lateral displacement is found more than regular structure and codal provisions, i.e., 98.01mm (case 1+6), 100.16mm (case 2+5), 101.36mm (case 3+4), 103.97mm (case 4+3), 110.26mm (case 5+2), 121.38mm (case 6+1). 3) The comparison of G+6 storey structure having L=30m and L=40m shows that if the length of the structure increases, the A/L ratio decreases for safe design and structure. In other words, the G+6 storey structure (L=30m) is safe for A/L ratios of 0.1, 0.125, 0.133, and 0.167, but the G+6 storey structure (L=40m) is only safe for A/L ratios of 0.1, 0.125, and 0.133. 4) The comparison of results of lateral displacement for G+6 storey structure with varying A/L ratios shows that lateral displacement increases with A/L ratio in both L=30 and L=40m structures. 5) Finally, the present study has concluded that the A/L ratio of setbacks affects the lateral displacement of the structure. The G+6 storey structure having an A/L ratio of less than 0.167 (for L=30m) and 0.133 (for L=40m) are safe as per the Indian provisions and may be constructed.

References

[1] Billore, N. and Singi, M., 2020 Analysis of Selection of Load Transferring Porch Location Over Hospital Building under Seismic Loading. pp. 136-143 [2] Chandran, L., 2016. Effect of Floating Columns in Multi-Storey Building of Regular and Irregular Plan. International Journal of Engineering Research & Technology, ISSN, pp.1-4 [3] Chaudhary, K.P. and Mahajan, A., 2021, November. Response spectrum analysis of irregular shaped high rise buildings under combined effect of plan and vertical irregularity using csi etabs. In IOP Conference Series: Earth and Environmental Science (Vol. 889, No. 1, p. 012055). IOP Publishing, pp. 1-11 [4] Darshan, D. and Shruthi, H.K., 2016. Study on Mas Irregularity of High-Rise Buildings. International Research Journal of Engineering and Technology, 3(8), pp.1123-1131 [5] Goud, R., 2017. Study of Floating and Non-Floating Columns with and Without Earthquake. IJSTE-International Journal of Science Technology & Engineering, 4(1), pp. 152-157 [6] Hiwase, P., Taywade, V.V. and Siddh, S.P., 2021, November. Comparative analysis of vertical irregularities on high rise structure considering various parameters. In IOP Conference Series: Materials Science and Engineering (Vol. 1197, No. 1, p. 012024). IOP Publishing, pp. 1-6 [7] IS 1893 (PART 1)-2016 “Criteria For Earthquake Design Of Structures: General provisions and buildings”(Sixth revision), Bureau of Indian Standards , New Delhi. [8] IS 875 (Part1-3) : 1987 Code of Practice For Design Loads (Other Than Earthquake) For Buildings and Structures Part Dead Loads , Imposed Loads. [9] Jyothi, P. and BABU, B.B., 2017. Design and analysis of highrise building with floating Columns, pp. 6959-6961 [10] Karami, A., Shahbazi, S. and Kioumarsi, M., 2020. A study on the effects of vertical mass irregularity on seismic behavior of BRBFs and CBFs. Applied Sciences, 10(23), p.8314, pp. 1-15 [11] Kumar Shiva V., Kumar Manoj .M, 2019, A Study On Response Of Multi-Storeyed Buildings. Having Vertical Irregularities Using ETABS International Journal Of Innovative Technology And Exploring Engineering (IJITEE) ISSN: 2278-3075, Volume-8 Issue-12, October 2019, pp. 536-540. [12] Poonam, A.K. and Gupta, A.K., 2012. Study of response of structurally irregular building frames to seismic excitations. International Journal of Civil, Structural, Environmental and Infrastructure Engineering Research and Development, 2(2), pp. 25-31. [13] Pratyush Malaviya, S., 2014. comparative study of effect of floating columns on the cost analysis of a structure designed on staad pro V8i, pp. 22-34 [14] Rahman, S.S. and Shimpale, P.M., 2021. Analysis of effect of structural irregularity inmultistorey building under seismic loading. International Journal of Scientific Development Research, 6(2), pp. 275-282 [18] IS 456:2000, Plane and Reinforce Concrete-Code of Practice, Bureau of Indian Standard, New Delhi [15] Rana, D. and Raheem, J., 2015. Seismic Analysis of Regular & Vertical Geometric Irregular RCC Framed Building. International Research Journal of Engineering and Technology, 2(04), pp.1396-1401. [16] S. B. M. Waykule, Pise, C.P., Deshmukh, M.C., Pawar, M.Y., Kadam, M.S., Mohite, M.D. and Lale, M.S., 2017. Comparative Study of floating column of multi storey building by using software. International Journal of Engineering Research and Application, ISSN, pp.2248-9622, pp. 31-38 [17] Shiwli Roy , Gargi Danda de, 2015, A study on Behavioural Studies Of Floating Column On Framed Structure Ijret: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308, pp. 435-440 [18] T.M.Prakash 1 , B.G. Naresh Kumar 2 , Punith N 3 , Mallamma 2017, A study on Seismic Analysis of Multi-Storeyed Building Having Vertical Irregularities Using Pushover Analysis International Journal of Innovative Research in Science, Engineering and Technology (An ISO 3297: 2007 Certified Organization) Website: www.ijirset.com Vol. 6, Issue 5, May 2017, pp. 9340-9347
