Abstract

: In friction stir welding (FSW), a rotating spherical leg tool is forced to plunge into the plates to be welded and moved along their contact line. The tool penetrates into the work pieces. During this operation, frictional heat that’s generated by contact friction between the tool and work piece. The plasticized material is stirred by the tool and forced to “flow’’ to the side and the reverse of the tool advantage as the temperature cools down, a solid nonstop joint between the two plates is than formed. In this project work, DEFORM -3D is used to perform the finite element analysis and experimental investigation on the FSW in order to predict residual stresses, temperatures, normal stresses and distortion of the welded structures, that are induced during FSW of the given airframe structures made up of AA 2024 and AA 2519. The weld quality characteristics like hardness, and tensile strength properties of the joints are analyzed.

Introduction

I. INTRODUCTION

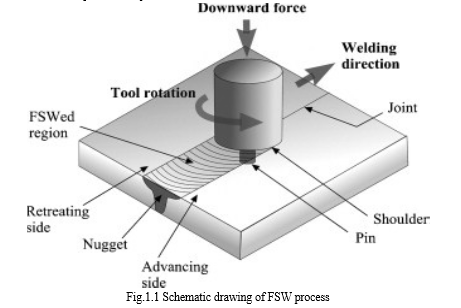

Friction Stir Welding is a solid state joining technique, invented at “The Welding Institute”, United Kingdom, in 1991. The Friction Stir Welding is an effective tool used for Joining Difficult-to-weld metals such as aluminium alloys, magnesium alloys, titanium alloys etc, joining plates with different materials and joining plates with different thickness. In the Friction Stir Welding process, a nonconsumable rotating tool is inserted into the abutting edges of the work-piece. The tool is then transverse along the line of joint. The tool is specially designed with a pin and shoulder. The tool serves two primary functions: firstly heating of work piece, secondly, movement of material to produce the joint.

A. Friction Stir Welding Parameters

1. Tool Design: Tool design is a very important factor in improving the quality of the work piece. To achieve a good finish in job the tool material should be sufficiently strong, tough and hard-wearing at the welding temperature. The tool should conduct less heat to decrease heat losses and  minimizes the damage to the machine’s parts caused by the heat produced. The tool should be highly resistive to oxidation so that there are no traces of rust.
2. Tool Speeds: As we know the friction stir welding process is a slower welding process, this is because the cylindrical tool turns on the joint to generate heat, and then moving along the length of the joint transmitting that heat. The probe tool with the cylindrical part rotates within the range of 200 to 2000 rotations per minute (rpm). The traverse rate of the tool along the joint line is  between 10 to 500 millimeter per minute (mm/min).
3. Tool Tilt: Tool tilt is also an important aspect to get a good quality of weld. It welds the joint in a slightly lean position or tilt position which is about 2 to 4 degrees. The forces applied downwards can affect the joint, so to prevent this condition a tilt is given.
4. Plunge Depth: The plunge depth is the total depth till which the shoulder of the tool gets inserted into the metal sheet while the pin penetrates further than the shoulder. It is very important factor to determine the quality of job as the plunge depth needs to be correctly set because it ensures the necessary downward pressure is achieved and also ensure that the tool fully penetrates the weld because if the tool is not inserted to correct depth machine may deflect  from  its  position  and on giving excessive plunge depth the job may have pin rubbing  marks on it.

II. LITERATURE REVIEW

The flow of metal during FSW is investigated using a faying surface tracer and a pin frozen in place during welding. It is shown that the material is transported by two processes [1].

The first is a wiping of material from the advancing front side of the pin onto a zone of material that rotates and advances with the pin. The material undergoes a helical motion within the rotational zone that both rotates, advances, and descends in the wash of the threads on the pin and rises on the outer part of the rotational zone.

After one or more rotations, this material is sloughed off in its wake of the pin, primarily on the advancing side. The second process is an entrainment of material from the front retreating side of the pin that fills in between the sloughed off pieces from the advancing side.

The accurate 3D finite element simulation of the Friction Stir Welding (FSW) process requires a proper knowledge of both material and interface behaviors but friction the key phenomenon of this process, is quite difficult to model and identify. The recent development of more accurate 3D simulation software, which allows modeling the entire complexity of the FSW process, makes it possible to follow a much more rigorous inverse analysis (or calibration) approach. The numerical simulations are based on an Arbitrary Lagrangian Eulerian (ALE) formulation that has been implemented in the Forge-3 F.E. software [2].

The aircraft aluminium alloys generally present low weldability by traditional fusion welding  process. The development of the friction stir welding has provided an alternative improved way of satisfactorily producing aluminium joints in a faster and reliable manner.

The influence of process and tool parameters on tensile strength properties of AA7075-T6 joints produced by friction stir welding was analyzed [6].Strength properties of the joints were evaluated and correlated with the micro structure, micro hardness of weld nugget.

III. MATERIAL DESCRIPTION

A. Input Parameters

The objective of this thesis is to predict the Temperature distributions, stresses on an Aluminium Alloys – AA2024 and AA 2519 work piece during the friction stir welding process using a specified threaded tool by numerical simulation.

The different welding parameters used in this project are

• Rotational speed of 760,1130 & 1340 rpm at welding speed 11 & 25 mm/min for AA 2024
• Rotational speed of 760,1130 & 1340 rpm at welding speed 11 & 25 mm/min for  AA 2519

IV. WORK PIECE GEOMETRY

In this thesis, 6mm thick aluminium 2519 alloy and aluminium 2024 alloy plates are butt welded using Friction Stir    welding using the Finite element simulation software DEFORM-3D.

Length of each plate = 150 mm

Width of each plate      = 120 mm

Thickness of each plate = 6 mm

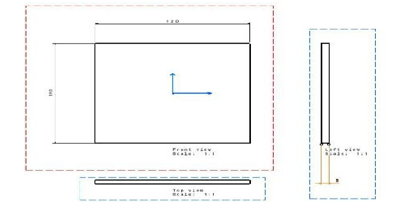

For the numerical analysis, as single block approach is used for Friction Stir Welding, the modelling  of work piece is done as a single work piece whose configuration is shown in the fig. below

      A. FSW Tool

The selection of tool material and tool geometry plays a vital role in the Friction Stir Welding. In this thesis, for Friction Stir Welding of aluminium 2024, 2519 plates, H-13 Steel is used as the tool material. H-13 Steel is chromium, molybdenum, vanadium hot work tool steel which is characterized by high hardenability and excellent toughness. The molybdenum and vanadium act as strengthening agents. The chromium content assists H-13 to resist softening when used at high temperatures. H-13 offers an excellent combination of shock and abrasion resistance, and possesses good red hardness. It is capable of withstanding rapid cooling and resists premature heat checking. H-13 have good  machinability, good weldability, good ductility, and can be formed by conventional means.

B. Properties of H-13 Steel

The most commonly used material, easy availability and machinability, thermal fatigue resistance, wear resistance, especially for  aluminium and copper.

Table 4.6 Composition of H-13 Steel                                Table 4.5 Properties of H-13 Steel

V. SOLUTION METHODOLOGY

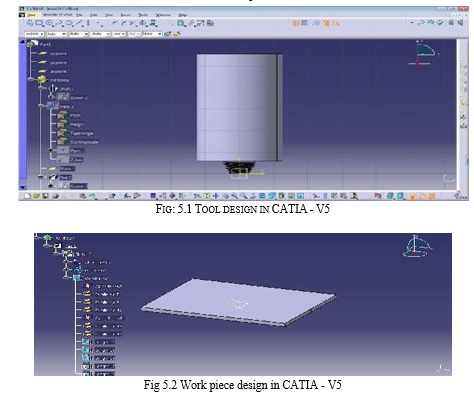

The continuous model proposed assumes the sheets to be welded as a single block. This FE model takes into account the actual interaction between the tool and the work piece allow to get a description of the process closer to reality. In particular asymmetric distributions of temperature, strain and strain rate are calculated by such models. CATIA - V5 is one of the modeling software which is used in this thesis to model the tool and work piece

A. Introduction To Deform - 3D

DEFORM-3D is a commercial FEA software which uses Lagrangian implicit code designed for metal forming processes, was used to model the FSW process. The use of an implicit code versus an explicit one is a sort of inescapable choice being the latter better suited in order to correctly predict temperature evolutions and stress states.

DEFORM is a finite element method (FEM) based process simulation system designed to analyze various forming and heat treatment processes used by metal forming and related industries. By simulating manufacturing processes on a computer, this advanced tool allows designers and engineers to:

1. Reduce the need for costly shop floor trials and redesign of tooling and processes
2. Improve tool and die design to reduce production and material cost
3. Shorten lead time in bringing a new product to market

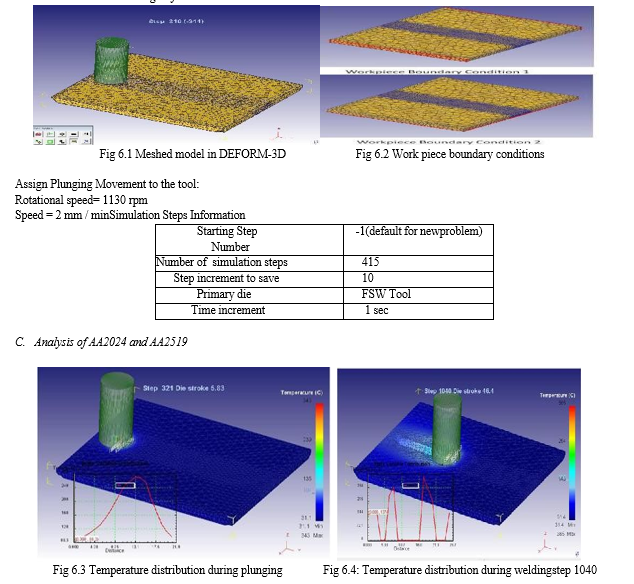

B. Simulation OF FSW Using Deform - 3D

VII.  FUTURE SCOPE

Future research will continue to advance the science of FSW, depending the understanding of the complex    physical interactions which underlie a process that emerged first as a technology like.

Expanding the applicability of FSW to a wider range of engineering materials, advancing control techniques for continuous welding and spot welding, and developing novel FSW variants. Further investigations on the forces generated during single and multiple passes for different alloys at different conditions and for different process parameters might be very beneficial.

Further studies may be done, considering most of the welding parameters, on a wider range of values. Fatigue analysis, shear tests can be conducted.

Higher thickness aluminium plates can be welded by employing double sided FSW. One can try to use tools made of different materials to improve the quality of the joints.

As the present weld is of butt joint, there is a scope of extending this work to the lap joints and comparison can be done between these two joints.

Conclusion

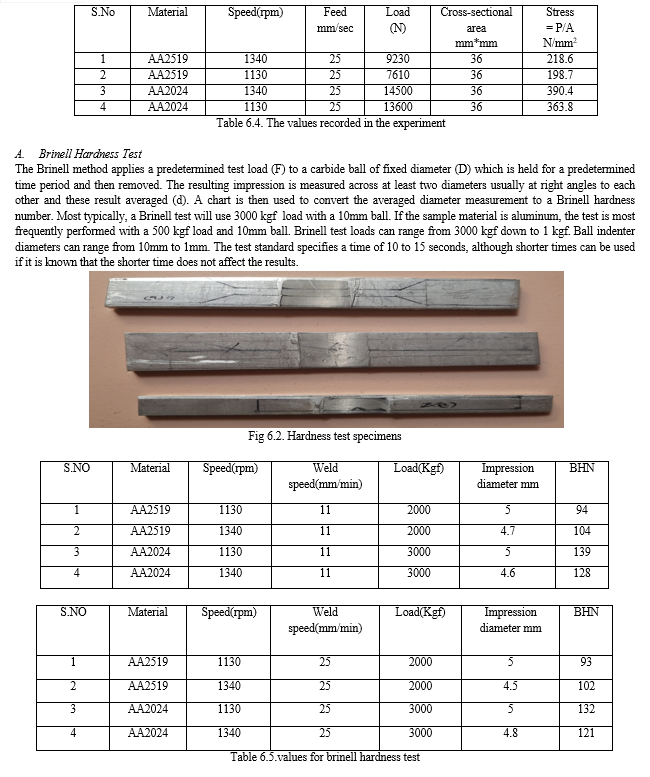

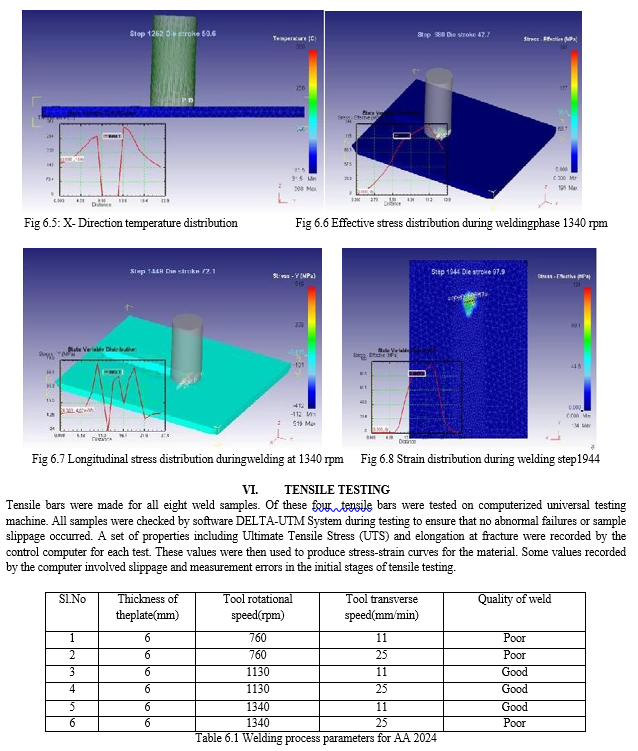

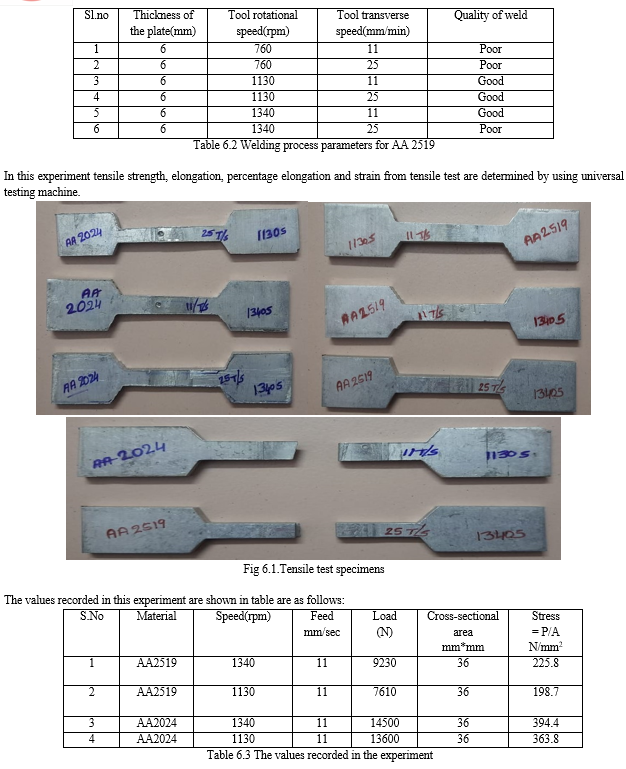

The process simulation is done for friction stir welding for various welding parameters namely tool rotational and transverse speeds. The temperatures in the work piece are increasing with the increase in tool rotational speed whereas the temperatures are decreasing with increase in tool traverse or welding speed. The maximum temperatures are recorded at the locations close to the stirred zone and the temperatures go on decreasing with increase in distance from the stirred zone The longitudinal residual stress increased with increasing tool traverse speed, whereas transverse residual stresses did not exhibit evident dependence on the traverse speed. It is noteworthy that residual stress in FSW is low due to lower heat input and Recrystallisation accommodation of stress. Several test samples were welded with various combinations of tool rpm and welding speed for both the tool geometries. However, it was observed that low tool rpm resulted in consistently poor quality of welding. Whereas, best results were obtained with tool rpm of 1340 in conjunction with 11mm/min low weld speed. This happened because of high tool rpm with low weld speed caused severe mechanical stirring of the metal causing reduction in grain size leading to higher strength of the welded joints.

References

[1] J.C. McClure L.E. Murr A.C. Nunes M. Guerra, C. Schmidt. flow patterns during friction stir welding\". Materials Characterization, 49, 2008. [2] Simon Guerdoux Tracy Nelson Mohamed Assidi, Lionel Fourment. friction model for friction stir welding process simulation: Calibrations from welding experiments \". International Journal of Machine Tools Manufacture, 50, 2010. [3] R. Kovacevic C.M. Chen. \"finite element modeling of friction stir welding – thermal and thermomechanical analysis\". ELSEVIER, 43, 2003. [4] Yuang-Cherng Chiou Hung-Hsiou Hsu Yeong-Maw Hwang, Zong-Wei Kang. experimental study on temperature distributions within the workpiece during friction stir welding of aluminum alloys \". ELSEVIER, 48, 2008. [5] C. Desrayaud J.H. Driver F. Montheillet-D. Allehaux P. Heurtier, M.J. Jones mechanical and thermal modelling of friction stir welding \". ELSEVIER, 171, 2006.Bibliography 75 [6] V. Balasubramanian S. Rajakumar, C. Muralidharan. influence of friction stir welding process and tool parameters on strength properties of aa7075-t6 aluminium alloy joints\". ELSEVIER, 32, 2011. [7] F.W. Panella A. Squillace P. Cavaliere, R. Nobile. _mechanical and microstructural behaviour of 2014&7075 aluminium alloy sheets joined by friction stir welding \". ELSEVIER, 46, 2006. [8] Jun Ni Xun Liu, Shuhuai Lan. _analysis of process parameters effects on friction stir welding of dissimilar aluminum alloy to advanced high strength steel \". Materials and Design, 59, 2014 [9] C.N. Sun G. Bi Z. Sun-J. Wei J.F. Guo, H.C. Chen. _friction stir welding of dissimilar materials between aa6061 and aa7075 al alloys effects of process parameters\". Elsevier, 56, 2014.
