Image Steganography

Abstract

The behavior of posting pictures on social network structures is befell everywhere and every single 2nd. for this reason, the conversation channels supplied through various social networks have a remarkable potential for covert verbal exchange. however, photos transmitted through such channels will typically be JPEG compressed, which fails most of the prevailing steganographic schemes. in this paper, we advise a singular photograph steganography framework this is robust to such channels. specifically, we first reap the channel compressed version (i.e., the channel output) of the unique picture. secret data is embedded into the channel compressed original photo by the use of any of the prevailing JPEG steganographic schemes, which produces the stego-image after the channel transmission. To generate the corresponding image earlier than the channel transmission (termed as the intermediate photograph), we recommend a coefficient adjustment scheme to barely regulate the authentic image based totally at the stego- image. The adjustment is carried out such that the channel compressed version of the intermediate photo is precisely similar to the stego-picture. therefore, after the channel transmission, the secret facts may be extracted from the stego-photo with 100Various experiments are conducted to reveal the effectiveness of the proposed framework for image steganography sturdy to JPEG compression.

Introduction

I. INTRODUCTION

DATA hiding is a fashion of embedding secrets into the digital media gradually, which can be distributed into watermarking and steganography according to different operations. Watermarking is the process of marking the digital media for copyright protection [1]–[3], while steganog- raphy is substantially developed for covert communication [4]–[10]. Different types of media data are considered in the literature for steganography including text [5], image [6], [7], audio [8] and video [9], where the image steganography is the most popular. The task of image steganography is to make tiny changes on the pixels either in the spatial domain or the transformed domain to carry sufficient secret information. In the meantime, the statistical and visual features of the unique photograph are preserved.

Image steganography is a subset of steganography where dispatches are hidden in image lines. The original image, before any communication is hidden in it, is appertained to as the cover image. After hiding the communication in it, it's referred to as the stego image. For mortal eye, these two images must be identical (in appearance at least). Image steganography is a subset of steganography where dispatches are hidden in image lines. The original image, before any communication is hidden in it, is appertained to as the cover image. After hiding the communication in it, it's appertained to as the stego image. For mortal eye, these two images must be identical (in appearance at least).

Steganography can be used anytime you need to hide data. There are numerous reasons to hide data but they all boil down to the desire to help unauthorized persons from getting apprehensive of the actuality of a communication. With these new ways, a retired communication is indistinguishable from white noise. Indeed if the communication is suspected, there's no evidence of its actuality. In the business world steganography can be used to hide a backstairs chemical formula or arrangements for a new creation. Steganography can also be used for commercial spying by transferring out trade secrets without anyone at the company being any the wiser.

Terrorists can also use steganography to keep their dispatches secret and to coordinate attacks. All of this sounds fairly unrighteous, and in fact the egregious uses of steganography are for effects like spying. But there are a number of peaceful operations. The simplest and oldest are used in chart timber, where cartographers occasionally add a bitsy fictional road to their charts, allowing them to make dupe- pussycats. A analogous trick is to add fictional names to mailing lists as a check against unauthorized resellers. Utmost of the newer operations use steganography like a watermark, to cover a brand on information. Print collections, vended on CD, frequently have hidden dispatches in the prints which allow discovery of unauthorized use. The same fashion applied to DVDs is indeed more effective, since the assiduity builds DVD reporters to descry and disallow copying of defended DVDs.

II. LITERATURE SURVEY

Hiding data is the process of bedding information into digital content without causing perceptual declination [16]. In data caching, three notorious ways can be used. They're watermarking, steganography and cryptography. Steganography is defined as covering jotting in Greek. It includes any process that deals with data or data within other data. According to Lou etal. [17], steganography is hiding the actuality of a communication by hiding information into colorful carriers. The major intent is to help the discovery of retired information. Exploration in steganography fashion has been done back in ancient Greek where during that time the ancient Greek practice of tattooing a secret communication on the shaved head of a runner, and letting his hair grow back before transferring him through adversary home where the quiescence of this dispatches system was measured in months . Still, the maturity of the development and use of motorized steganography only passed in time 2000 [23]. The main advantage of steganography algorithm is because of its simple security medium. Because the steganographic communication is integrated invisibly and covered inside other inoffensive sources.

Steganography hides the very actuality of a communication so that if successful it generally attracts no dubitation at all. Using steganography, information can be hidden in carriers similar as images, audio lines, textbook lines, vids and data transmissions. In ultramodern times steganographic technologies have been an important part of the future of security and sequestration on open systems similar as internet. Stegnaography is one further information security tool like cryptography and watermarking. In steganography, for hiding secret communication in a pixel, the physical position of a pixel is considered and also the double format of that pixels value is used to hide the secret communication.

In (3) fW. Zhang,Z. Zhang,L. Zhang,H. Li, andN. Yu proposed Recent advances on adaptive steganography indicate that the security of steganography can be bettered by exploiting the collective impact of variations between conterminous cover elementssuch as pixels of images, which is callednon-additive deformation model. In this paper, they propose a frame fornon-additive deformation steganography by defining common deformation on pixel blocks. To reduce the complexity for minimizing common deformation, we design an coding system to putrefy the common deformation ( shortened to DeJoin) into deformation on individual pixels and therefore the communication can be efficiently bedded with pattern kiosk canons (STCs). We prove that DeJoin can approach the lower bound of common deformation.
In (5)Y. Zhang,X. Luo,C. Yang,D. Ye, andF. Liu proposed Current typical adaptive steganography algorithms take the discovery resistant capability into account adequately but generally can not prize the bedded secret dispatches rightly when stego images suffer from contraction attack. In order to break this problem, a frame of adaptive steganography defying JPEG contraction and discovery is
proposed. Exercising the relationship between Discrete Cosine Transformation (DCT) portions, the sphere of dispatches bedding is determined.

Image steganography techniques can be divided into following domains.

A. Spatial Domain Methods

There are numerous performances of spatial steganography, all directly change some bits in the image pixel worths in hiding data. Least significant bit (LSB)- grounded steganography is one of the simplest ways that hides a secret communication in the LSBs of pixel values without introducing numerous distinguishable deformations. Changes in the value of the LSB are inappreciable for mortal eyes.

Spatial domain techniques are openly classified into:

1. Least significant bit (LSB)
2. Pixel value differencing (PVD)
3. Edges based data embedding method (EBE)
4. Random pixel embedding method (RPE)
5. Mapping pixel to hidden data method
6. Labeling or connectivity method
7. Pixel intensity based method
8. Texture based method
9. Histogram shifting methods

B. Transform Domain Technique

This is a more complex way of hiding data in an picture. Colorful algorithms and metamorphoses are used on the image to hide information in it. Transfigure sphere embedding can be nominated as a sphere of embedding ways for which a number of algorithms have been suggested . The process of embedding data in the frequence sphere of a signal is much stronger than bedding principles that operate in the time sphere. Utmost of the strong steganographic systems moment operate within the transfigure sphere Transfigure sphere ways have an advantage over spatial sphere ways as they hide information in areas of the image that are less exposed to contraction, cropping, and image processing. Some transfigure sphere ways don't feel dependent on the image format and they may overrun lossless and lossy format transformations.

Transform domain techniques are broadly classified into:

1. Discrete Fourier transformation technique (DFT).
2. Discrete cosine transformation technique (DCT).
3. Discrete Wavelet transformation technique (DWT).
4. Lossless or reversible method (DCT)
5. Embedding in coefficient bits

C. Distortion Techniques

Deformation ways need knowledge of the original cover image during the decoding process where the decoder functions to check for differences between the original cover image and the distorted cover image in order to restore the secret communication. The encoder adds a aftermath of changes to the cover image. So, information is described as being stored by signal deformation . Using this fashion, a stego object is created by applying a sequence of variations to the coverimage.This sequence of variations is use to match the secret communication needed to transmit.

The communication is decoded atpseudo-randomly chosenpixels. However, the communication bit is a “ 1, If the stego- image is different from the cover image at the given communication pixel.” else, the communication bit is a “ 0.” The encoder can modify the “ 1” value pixels in such a manner that the statistical parcels of the image aren't affected. Still, the need for transferring the cover image limits the benefits of this fashion. In any steganographic fashion, the cover image should noway be used further thanonce.However, scaling or rotating, the receiver can fluently descry it, If an bushwhacker tampers with the stego- image by cropping. In some cases, if the communication is decoded with error correcting information, the change can indeed be reversed and the original communication can be recovered .

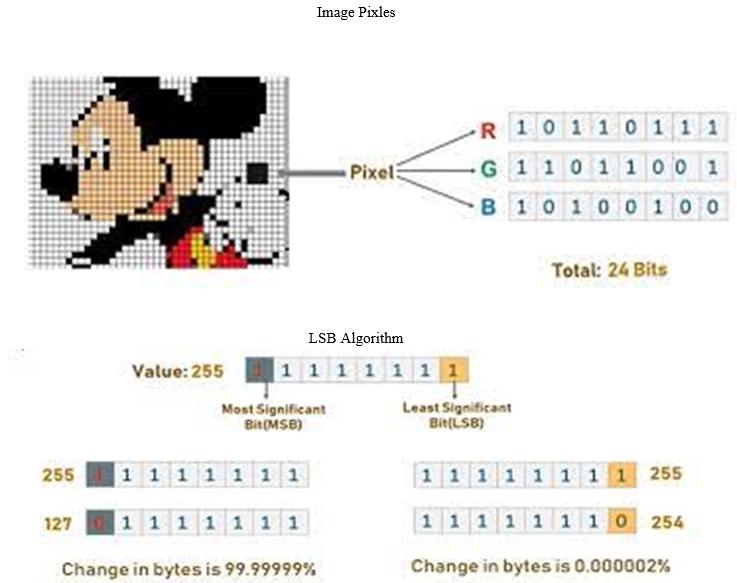

The most common system for steganography in image is LSB insertion system. LSB system comes under negotiation ways of steganography. In this fashion of steganography, least significant bit or bits of pixel are eplaced by the bits of secret communication to be hidden. Further than one LSB ways can be modified for hiding maximum information.i.e. 4 LSB negotiation system which modifies last four bits of a pixel.

The LSB negotiation is a protean fashion for steganography and can be used for colorful train formats. The simplest approach for hiding secret communication in an image is least significant bit negotiation system. We're using 24- bit true color image which makes lower changes in the image and mortal can't identify the changes just by looking through prying eyes. Suppose we've three pixels which are conterminous to each other or we can say nine bytes with the following RGB garbling. Now suppose we want to hide the following 8 bits secret communication 110010011.

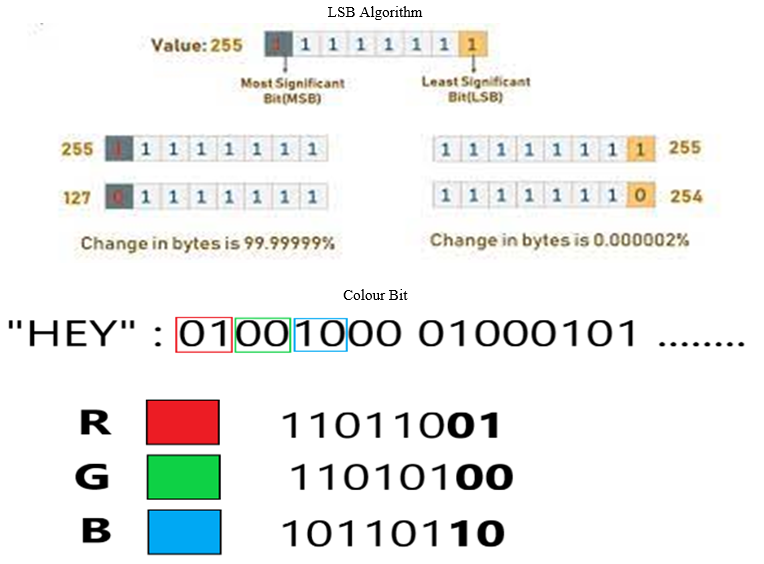

If we change the least significant bits of 24- bit true color image pixels with the 9 bits of secret communication also we get the following pixels. Then, bits in bold indicates that bits have been changed. We can see that there are veritably lower pixel position changed after fitting 8 bit communication. Below formula shows a veritably general description of the process of steganography fashion.

Hidden information + Cover image = Stego image

In this perspective, cap image is our direct part of this process which is an image to hide our secret information. Our secret information is bed into this cover image which results as a stego image (which will be the looking like same type of image as the cover image, just by changing small color which can not separate by mortal).

III. PROPOSED SYSTEM

A. Encoding Steps

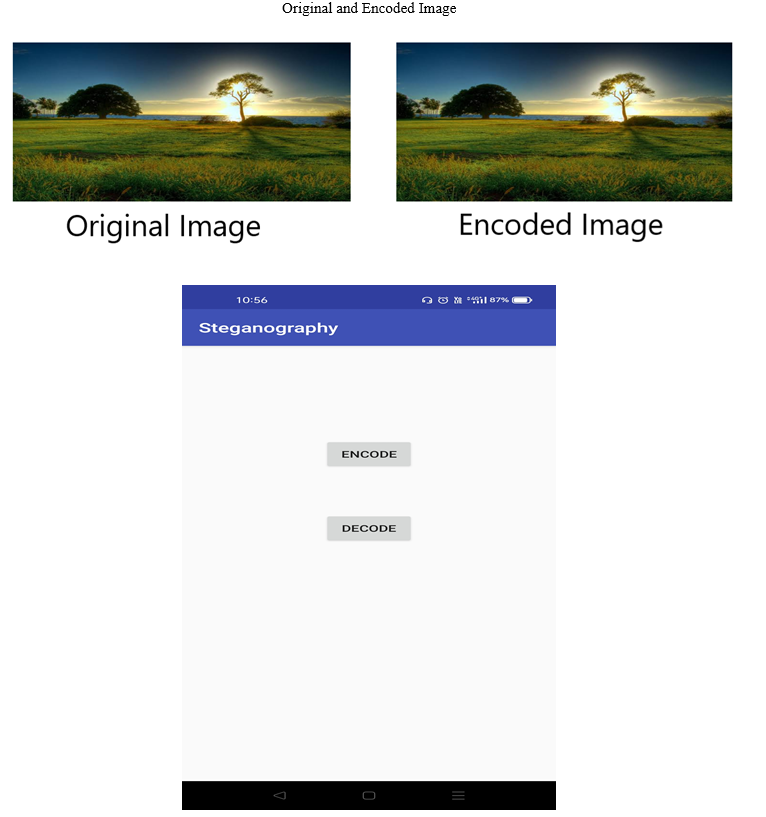

1. First Click on the Choose Image Button to choose the Image From the device.
2. After Choosing the Image Enter The Secret or Confidential Message
3. Enter the Secret Key you want to Set.

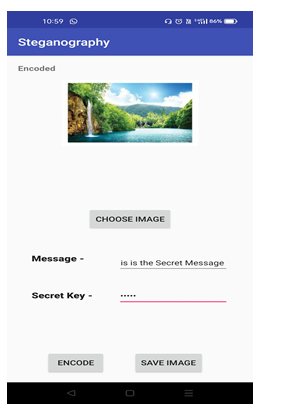

4. Now Click on Encode Button to start the Encoding, In this Procedure it tkes the cover image message and secret key embes the message with the secret key, after successfully completion of the process we get a message Encoded as shown in the picture.
5. After Successfully Encoding click on the save button the to save the stego image created into your device

B. Decoding Steps

1. First click on the choose image button to select the stego image created during the encoding process
2. Enter the Secret key
3. Click on Decode button to decode the message

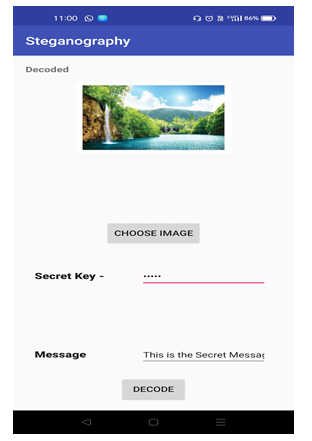

4. If the Image And the Secret key are Correct then Decoding Process occur Succeffuly and Secret Message Appears in the Message line with popup message Decoded.

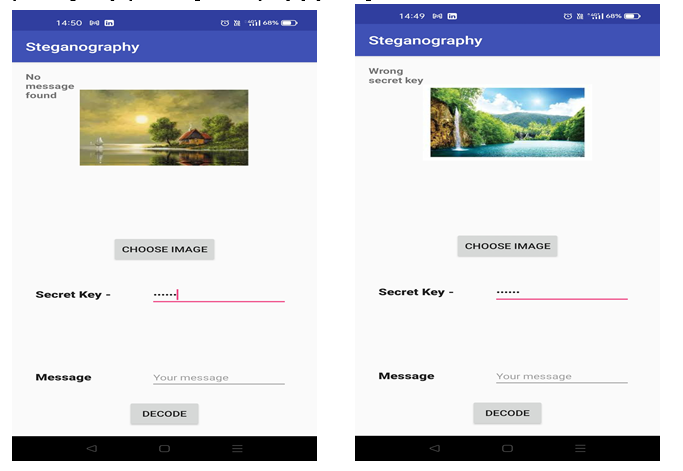

Suppose the Image selected is not correct then it will show a popup message as the No message found and if the image is correct and secret key is wrong it displays as wrong secret key as popup message.

Conclusion

Grounded on the testing and analysis conducted in this study, it can be concluded that the operation made in this study successfully enforced the Image Steganography to render and crack images with the textbook data. That way, of course, transferring nonpublic data through images will be more defended. Our proposed approach showing that how we\'re hiding our secret textbook in some cover image without significant deformation. This process makes delicate for the unauthorized druggies to identify the changes in stego image or if any one find the changes they ca n’t get the secret communication from stego image as without the secretkey no bone suitable to know which pixel have hidden information and which have not.

References

[1] Jinyuan Tao, Sheng Li, Xinpeng Zhang, and Zichi Wang, “Towards Robust Image Steganography” , IEEE Trans. Circuits Syst. Video Technol. 2018 [2] S. Li and X. Zhang, “Towards construction based data hiding: From secrets to fingerprint images,” IEEE Transactions on Image Processing, doi:10.1109/TIP.2018.2878290 [3] fW. Zhang, Z. Zhang, L. Zhang, H. Li, and N. Yu, “Decomposing joint sdistortion for adaptive steganography,” IEEE Trans. Circuits Syst. Video Technol., vol. 27, no.10, pp. 2274–2280, 2017 [4] Y. Zhang, X. Zhu, C. Qin, C. Yang, and X. Luo, “Dither modulation based adaptive steganography resisting JPEG compression and statistic detection,” Multimedia Tools Appl., no. 3, pp. 1–23, 2017 [5] Y. Zhang, X. Luo, C. Yang, D. Ye, and F. Liu, “A framework of adaptive steganography resisting jpeg compression and detection,” Security Commun. Networks, vol. 9, no. 15, pp. 2957–2971, 2016 [6] L. Guo, J. Ni, W. Su, C. Tang, and Y.-Q. Shi, “Using statistical image model for JPEG steganography: uniform embedding revisited,” IEEE Trans. Inf. Forensics Security, vol. 10, no. 12, pp. 2669–2680, 2015 [7] V. Holub, J. Fridrich, and T. Denemark, “Universal distortion function for steganography in an arbitrary domain,” EURASIP J. Inf. Security,vol. 2014, no. 1, p. 1, 2014 [8] B. Li, S. Tan, M. Wang, and J. Huang, “Investigation on cost assignment in spatial image steganography,” IEEE Trans. Inf. Forensics Security, vol. 9, no. 8, pp.1264–1277, 2014. [9] C. Qin, C. C. Chang, Y. H. Huang, and L. T. Liao, “An inpainting-assisted reversible steganographic scheme using a histogram shifting mechanism,” IEEE Trans. Circuits Syst. Video Technol., vol. 23, no. 7, pp. 1109–1118, 2013. [10] Y. Huang, C. Liu, S. Tang, and S. Bai, “Steganography integration into a low-bit rate speech codec,” IEEE Trans. Inf. Forensics Security, vol. 7,no. 6, pp. 1865–1875, 2012. [11] J. Fridrich and J. Kodovsk, “Rich models for steganalysis of digital images,” IEEE Trans. Inf. Forensics Security, vol. 7, no. 3, pp. 868–882, 2012. [12] T. Filler, J. Judas, and J. Fridrich, “Minimizing additive distortion in steganography using syndrome-trellis codes,” IEEE Trans. Inf. Forensics Security, vol. 6, no. 3, pp. 920–935, 2011. [13] P. Bas, T. Filler, and T. Pevn, “Break our steganographic system: The ins and outs of organizing BOSS,” J. Amer. Statis. Assoc., vol. 96, no.454, pp. 488–499, 2011. [14] H. Wu and J. Huang, “Secure JPEG steganography by LSB+ matching and multiband embedding,” in Proc. IEEE Int. Conf. Image Process.,2011, pp. 2737–2740. [15] J. Fridrich, Steganography in digital media: principles, algorithms, and applications. Cambridge University Press, 2009 [16] M. Chen, N. Memon, E.K. Wong, Data hiding in document images, in: H. Nemati (Ed.). Premier Reference Source–Information Security and Ethics: Concepts, Methodologies, Tools and Applications, New York: Information Science Reference, 2008, pp. 438-450 [17] D.C. Lou, J.L. Liu, H.K. Tso, Evolution of information – hiding technology, in H. Nemati (Ed.), Premier Reference Source–Information Security and Ethics: Concepts, Methodologies, Tools and Applications, New York: Information Science Reference, 2008, pp. 438-450. [18] T. Jahnke, J. Seitz, (2008). An introduction in digita watermarking applications, principles and problems, in: H.Nemati (Ed), Premier Reference Source–Information Security and Ethics: Concepts, Methodologies, Tools and Applications, New York: Information Science Reference, 2008, pp. 554-569. [19] A. D. Ker, “A capacity result for batch steganography,” IEEE Signal Process. Lett., vol. 14, no. 8, pp. 525–528, 2007 [20] T.-Y. Liu and W.-H. Tsai, “A new steganographic method for data hiding in microsoft word documents by a change tracking technique,” IEEE Trans. Inf. Forensics Security, vol. 2, no. 1, pp. 24–30, 2007. [21] X. Zhang and S. Wang, “Efficient steganographic embedding by ex-ploiting modification direction,” IEEE Commun. Lett., vol. 10, no. 11,200 [22] P. Sallee, “Model-based steganography,” in Proc. Int. Workshop Digital Watermarking. Springer, 2003, pp. 154–167 [23] E. Cole, Hiding in Plain Sight: Steganography and the Art of Covert Communication, Indianapolis: Wiley Publishing, 2003. [24] A. Westfeld, “F5-a steganographic algorithm,” in Proc. Int. Workshop Inf. hiding. Springer, 2001, pp. 289– 302
