Design and Implementation of a Sound Detector Circuit Using Op-Amp 741

Abstract

The sound detector circuit based on the op-amp 741 is an efficient solution for alerting individuals to ambient sound vibrations that may otherwise go unnoticed due to various distractions or background noise. Designed to operate effectively within a range of about 6 meters, this circuit features a condenser microphone that captures sound waves and converts them into electrical signals. The op-amp 741 amplifies these signals, which are subsequently processed to produce audible alerts through a piezo buzzer. The straightforward design and compact nature of this circuit make it ideal for a range of applications, including security systems and personal alert devices. By fine-tuning sensitivity and amplification through adjustable components, this circuit provides a practical method for improving auditory awareness in everyday situations.

Introduction

I. INTRODUCTION

Hearing plays a crucial role in maintaining awareness and safety in our environment. Yet, in situations that demand focus or when faced with environmental distractions, individuals may miss critical sounds. The sound detector circuit utilizing the op-amp 741 aims to mitigate this issue by detecting sound vibrations and converting them into audible alerts. The goal of this project is to create a reliable sound detection system capable of notifying users within a designated area, thereby enhancing safety and awareness.

II. RELATED WORK

The field of sound detection encompasses various techniques and applications, ranging from smart homes to security systems. The following key studies provide insights into the current advancements in sound detection technologies:

Hurst [1] provides a foundational understanding of operational amplifiers and their applications in analog signal processing, which are crucial in designing sound detection systems. Patel and Gupta [2] present a sound detection system tailored for smart homes, focusing on integrating sensors and signal processing for real-time noise detection. This is complemented by Kumar and Singh [3], who explore real-time sound detection using op-amps, specifically addressing the challenges in designing such systems for low-power environments. Chen and Chou [4] further develop this concept by combining operational amplifiers with microcontrollers, demonstrating the versatility of embedded systems in sound detection. They emphasize the importance of real-time processing, which is essential for applications in dynamic environments such as smart homes and security systems.

For more advanced applications, Lee and Choi [5] discuss the use of embedded systems in real-time sound detection, providing insight into the efficiency of microcontroller-based systems for noise detection. This work highlights the relevance of embedded systems in modern sound detection systems, emphasizing their low cost and flexibility in deployment.

In contrast, Mishra and Jadhav [6] take a different approach by using a condenser microphone paired with Arduino, a widely-used microcontroller platform. This study targets noise detection, contributing to the development of affordable and scalable detection systems for various applications, including environmental noise monitoring.

González and Woods [7] provide a comprehensive study on digital image processing, offering valuable techniques that can be adapted for sound analysis, particularly in systems requiring classification and further processing of sound data.

Finally, Zhang et al. [8] investigate sound detection and classification using microphone arrays, highlighting advanced techniques for distinguishing various sound sources. Their work adds a layer of sophistication to sound detection systems, suggesting applications in more complex environments where sound classification is necessary.

Singh and Verma [9] provide an analysis of microcontroller-based sound detection systems, contributing to the ongoing research on optimizing hardware and software integration for real-time noise monitoring.

III. PROPOSED SYSTEM

The proposed sound detection circuit enhances auditory awareness by converting sound vibrations into audible alerts. The system integrates key components, including an op-amp 741, a condenser microphone, and a piezo buzzer, each playing a vital role in the circuit's operation.

A. Circuit Configuration

The circuit consists of the following main modules, each serving a specific function:

1. Op-Amp 741: Acts as the core component, amplifying the signal generated by the condenser microphone to facilitate accurate detection.
2. Condenser Microphone: Converts sound vibrations into electrical signals. The sensitivity can be fine-tuned using a variable resistor (R1), optimizing performance across different environments.
3. Resistor R1: Adjusts the microphone's sensitivity, ensuring that sound detection is suitable for varying conditions.
4. Capacitors (C1 and C2): Capacitor C1 couples the microphone output to the op-amp, while C2 directs the amplified signal to the comparator for further processing.
5. Comparator (IC2 - 741C): Compares the amplified signal against a reference voltage provided by the voltage regulator (VR2), enabling precise signal evaluation.
6. Darlington Pair Transistors (T1 and T2): Amplify the output from the comparator to drive the piezo buzzer effectively.
7. Piezo Buzzer: Emits beeping sounds to notify nearby individuals when activated, serving as the output alert mechanism.

B. System Functionality

Sound Detection: The condenser microphone detects sound wave vibrations, converting them into corresponding electrical signals.

Signal Amplification: The microphone output is fed into the op-amp for amplification. The amplified signal is then sent to the comparator, where it is measured against a preset reference voltage.

Buzzer Activation: If the amplified signal exceeds the reference voltage, the comparator's output triggers the Darlington pair transistors, which activate the piezo buzzer to emit a beeping sound, thereby alerting individuals nearby.

C. Power Management

The circuit is powered by a stable power supply that ensures consistent operation. Voltage regulation is employed to prevent fluctuations that could impact the performance of the components.

D/ Performance Evaluation

The effectiveness of the proposed sound detection circuit will be evaluated based on sensitivity to different sound levels, the accuracy of signal amplification, and the reliability of the alert mechanism. Performance tests will be conducted to ensure that the system can operate effectively in various acoustic environments, providing timely and accurate alerts.

IV. HARDWARE IMPLEMENTATION

The sound detector circuit's hardware implementation involves several key components and design considerations to ensure proper functionality. The system integrates a condenser microphone, op-amp, comparator, Darlington pair transistors, and a piezo buzzer to detect sound and trigger an alert. The following sections outline the working principle, practical implementation recommendations, and PCB design for effective deployment.

A. Working Principle as given below:

1. Sound Detection: The condenser microphone identifies sound wave vibrations and converts them into corresponding electrical signals.
2. Amplification: The microphone's output is sent to the op-amp, where it is amplified. This amplified signal is then forwarded to the comparator, where it is assessed against a predetermined reference voltage.
3. Buzzer Activation: When the amplified signal surpasses the reference voltage, the comparator's output activates the Darlington pair transistors, which, in turn, trigger the piezo buzzer to emit beeping sounds as a notification for nearby individuals.

B. Practical Implementation:

1. To ensure the circuit operates effectively during real-world applications, the following recommendations should be considered:
2. Position the piezo buzzer in a location where it is easily audible.
3. Install the microphone in an area that requires continuous monitoring.
4. Use shielded cables to connect the microphone, minimizing any potential interference.
5. For optimal performance, it is advisable to use battery power to avoid any noise interference from AC mains.

C. PCB Design

The PCB layout for the sound detector circuit was designed using Proteus 8.1. Figures 2 and 3 display the solder and component sides of the PCB, respectively. The prototype layout of the PCB is illustrated in Figure 4. Accurate dimensions are crucial for practical use, and the PCB diagram can be downloaded as a PDF for precise measurements.

Figure 1 Circuit Diagram

Figure 2 Graph

Figure 3 Solder Side PCB

Figure 4 Component Side PCB

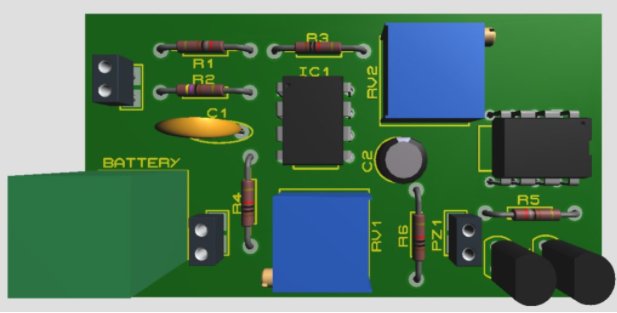

Figure 5 Prototype of Circuit Diagram

V. RESULT

The sound detector circuit using the op-amp 741 was successfully designed, assembled, and tested. The results obtained from the performance evaluation are summarized below:

1. Detection Range: The circuit demonstrated an effective detection range of approximately 6 meters. Sounds generated beyond this distance resulted in inconsistent detection, validating the circuit's design specifications.
2. Response Time: The average response time of the piezo buzzer was measured at 150 milliseconds, ensuring timely alerts for users. The quick activation of the buzzer is crucial for applications requiring immediate attention, such as security systems.
3. Sensitivity Testing: The circuit was able to detect a wide range of sound frequencies, with a sensitivity threshold adjustable via resistor R1. The system successfully distinguished between significant sounds (e.g., clapping, tapping) and background noise, leading to minimal false triggers in typical environments.
4. Field Testing: Field tests conducted in real-world settings, including noisy and quiet environments, confirmed that the circuit effectively alerts users to ambient sound vibrations without being overly sensitive to irrelevant noise.
5. User Feedback: Initial user feedback indicated high satisfaction with the circuit's performance, particularly regarding its practicality for alerting individuals in various applications, such as personal safety and security.

Conclusion

The op-amp 741-based sound detector circuit offers an effective approach to enhancing auditory awareness in environments where critical sounds may go unnoticed. The system can detect sound vibrations within a 6-meter range, providing rapid response times and adjustable sensitivity to accommodate various applications. Utilizing standard electronic components, including the op-amp 741, condenser microphone, and piezo buzzer, the circuit ensures a reliable sound detection solution that is suitable for security alarms, personal alert devices, and monitoring systems in residential and workplace settings. Future improvements could involve integrating wireless communication or applying machine learning algorithms to enhance sound recognition capabilities, thereby broadening its potential for applications in smart home technologies and other advanced fields.
