Design and Implementation of Advanced Extensible Interface using Verilog

Abstract

Advanced eXtensible Interface, is an interface protocol defined by ARM as part of the AMBA standard. They comprise of AXI4, AXI4 Lite, AXI4 Stream. The AXI specification describes a point-to-point protocol between two interfaces, a master and a slave. The AXI protocol uses 5 channels, 2 for read transactions and 3 for write transactions. One of the key features of AXI4 is its support for burst transactions, which allows for efficient transfer of multiple data items in a single transaction, enhancing data throughput. AXI4-Lite is designed to provide a lightweight and efficient interface for communication between a master device and simpler peripheral devices or memory-mapped registers in a digital system. AXI4-Stream is developed for high-throughput, unidirectional data transfer between different components in a digital system. The design is done in Verilog.

Introduction

I. INTRODUCTION

Protocols in VLSI refer to standardized communication and data exchange mechanisms that facilitate interactions between different components, modules, or IP blocks within an integrated circuit or System-on-Chip. These protocols play a vital role in ensuring efficient, reliable, and standardized data transfer within digital systems. The AXI protocol is a fundamental communication standard in the VLSI and semiconductor industries. Developed by ARM, the AXI protocol plays a crucial role in facilitating efficient data transfer and communication between [1] various on-chip components within modern digital systems.

AXI, which means Advanced eXtensible Interface, is an interface protocol defined by ARM as part of the AMBA standard. There are 3 types of AXI4-Interfaces.

• AXI4 (Full AXI4): For high-performance memory-mapped [2] requirements.
• AXI4-Lite: For simple, low-throughput memory-mapped communication.
• AXI4-Stream: For high-speed streaming data.

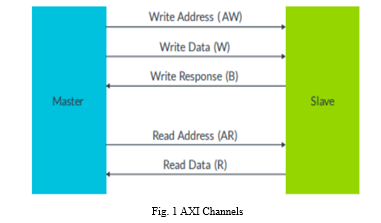

The AXI protocol defines 5 channels. 2 are used for Read transactions (read address, read data) and 3 are used for Write transactions (write address, write data, write response). The AXI specification describes a point-to-point protocol [3] between two interfaces: a master and a slave. The following Figure. 1 shows the five main channels that each AXI interface uses for communication.

II. DESIGN AND IMPLEMENTATION

The AXI protocol is transactions-based and defines five independent channels.

1. Write request, which has signal names beginning with AW.
2. Write data, which has signal names beginning with W.
3. Write response, which has signal names beginning with B.
4. Read request, which has signal names beginning with AR.
5. Read data, which has signal names beginning with R.

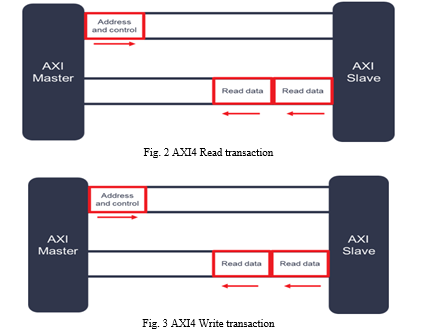

A request channel carries control information that describes the nature of the data [4] to be transferred. This is known as a request. The data is transferred between Manager and Subordinate using either:

a. A write data channel to transfer data from the Manager to the Subordinate [5]. In a write transaction, the Subordinate uses the write response channel to signal the completion of the transfer to the Manager [6].

b. A read data channel to transfer data from the Subordinate to the Manager [7].

A. AXI4-Lite Protocol

AXI4 Lite, is a simplified variant of the AXI protocol developed by ARM. It is designed to provide a lightweight and efficient interface for communication between a master device and simpler peripheral devices [8] or memory-mapped registers in a digital system. AXI4-Lite focuses on minimizing complexity and latency for basic read and write [9] transactions. The AXI4-Lite interface consists of five channels: Read Address, Read Data, Write Address, Write Data, and Write Response. AXI4-Lite is incapable of burst transfers.

Some of the features of AXI4-Lite include:

1. No burst transaction is enabled or supported
2. Single address
3. Single data
4. Very small size
5. The AXI interconnect is automatically generated
6. Data width can be 32 bits or 64 bits

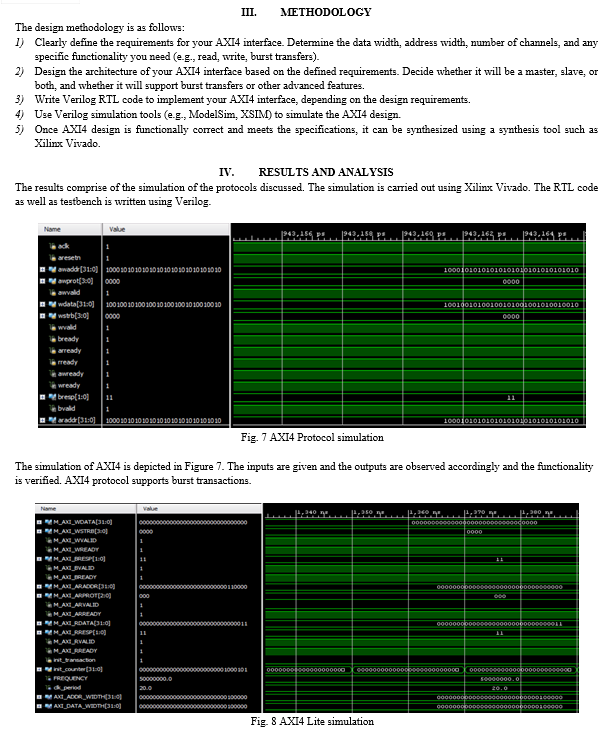

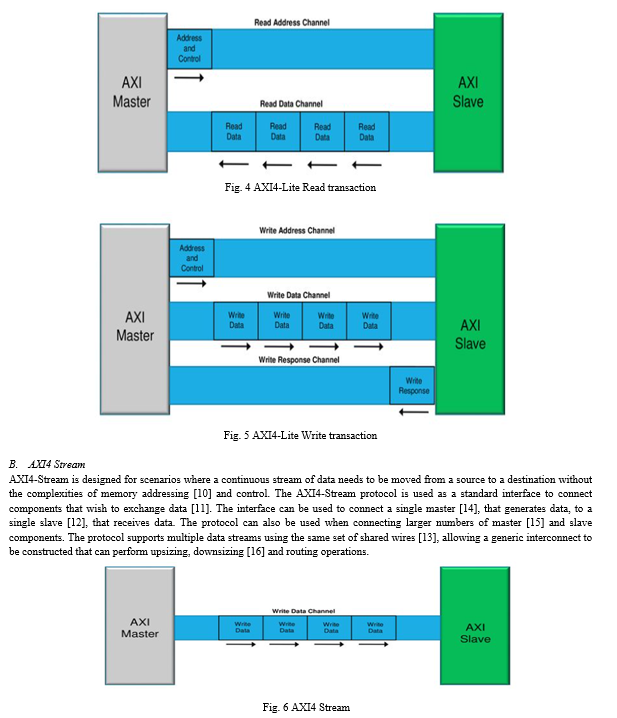

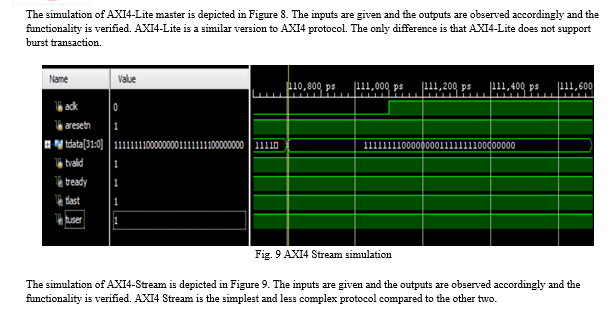

Conclusion

The AXI4 protocol has branched into AXI4, AXI4 Lite, AXI4 Stream. Xilinx Vivado is used to design and implement the same. The AXI4 protocol serves as a standardized and efficient interface for communication between various components within an SoC or digital system. Its ability to support features like burst transactions, streaming, and multiple outstanding transactions makes it invaluable for achieving high performance and scalability. AXI4 has a total on-chip power of 0.07 W. It comprises of a total of 119 nets, 196 input/output ports and 117 cells. AXI4-Lite has a total on-chip power of 4.35 W. It comprises of a total of 160 nets, 155 input/output ports and 150 cells. AXI4 Stream It has a total on-chip power of 2.113 W. It comprises of a total of 41 nets and 37 cells. The code and testbench is written using Verilog. The use of Verilog for RTL design provides flexibility and compatibility with industry-standard design practices.
