Improving Stock Trend Prediction using LSTM Neural Network Trained on a Complex Trading Strategy

Abstract

Technical analysis in stock trading addresses the crucial matter of making optimal trading decisions promptly. Predicting directional movement in the target market using technical indicators is quite common. Besides its many other applications, machine learning helps to solve the algorithmic trading problem of determining optimal trading positions, and some types of deep neural networks have been proven as up-and-coming methods for forecasting the returns of the stock market. The current work presents the idea of training a neural network on a new trading strategy, named, Unified Trading Strategy (UTS) that integrates technical indicators from three well-known categories referred to as leading, lagging, and volatility. The trained network serves as an excellent alternative to the classical technical analysis model by simplifying the process of finding potential events of effective trade with better performance and reusability.

Introduction

I. INTRODUCTION

Historical data in financial trading contains latent temporal features that may preserve economic patterns and market trends. Traditional methods of technical analysis utilize charting and mathematical tools to detect latently profitable patterns from historical data [1]. The financial technical indicators use specific mathematical and statistical methods to reflect the more profound connotation of the available stock data in forecasting future trends [2]. There exist many automated trading systems that help to monitor and manage trades. Real-time trading systems [3], simulators [4], and recommendation systems [5] help investors to reduce the risk and maximize profit in stock trading. Algorithm-based technical indicators use calculations of past price data to trace all oversold or overbought conditions of markets. Short-term and long-term traders have several options for analyzing securities to decide their entry and exit points. Some traders may prefer to formulate custom strategies and indicators for better trading ideas. It helps them work with a greater degree of flexibility and increases the chances of successful trading. A suitable process also helps to fine-tune entry and exit levels by overcoming the lagging that results from the usage of past price data.

Many machine learning models capture nonlinear characters in data without prior knowledge [6]. Since the 1990s, automated trading systems based on machine learning and technical indicators have been employed to predict stocks, foreign exchange, and commodity futures markets [7–10]. Various neural networks have been applied for forecasting the stock market returns. Multi-Layered Feed Forward Network with backpropagation algorithm [11], Adaptive Neuro-Fuzzy Inference System [12], Radial Basis Function Network [13], and Long Short Term Memory (LSTM) [14] have outperformed other machine learning techniques such as SVM [15] and Random Forest [16]. LSTM and basic stock market data, including OHLC (Open, High, Low, and Close) prices used for market prediction, have shown improvement over the traditional methods with few exceptions [17,18]. LSTM have been applied extensively for investigating stock markets [19], econometrics [20], and financial market predictions [21].

LSTM model being well-suited to time series data has been used to predict stock future price values after observing historic prices [22-23]. LSTM model with its feature of sequence prediction can be added with additional methods to predict stock market trends for automated trading [24-25]. We developed a method that uses LSTM to solve a classification problem whether a set of price values will form an uptrend or a downtrend. The model is trained to learn the patterns of up/down trends and it generates buy/sell signal as its output.

For training the LSTM model over different patterns of market trends, our trading strategy uses multiple technical indicators to validate existing trends in stock data. The trained LSTM model finally mimic the behavior of these technical indicators and become able to automatically generate buy/sell signals.

In this research work, a new trading strategy called Unified Trading Strategy (UTS) has been developed that utilizes the performance and efficiency of well-known technical indicators. UTS validated trend data is used to train an LSTM model to automate the detection of patterns that take over the trends. Our results show that the developed trading strategy and the trained neural network model are finally able to generate buy/sell signals for automated trading that outperforms the manual stock trading. We try to evaluate how a LSTM based recognizer behaves compared to the traditional algorithm-based system.

The rest of this paper is arranged as follows: The second part describes the methodology of the proposed model, and the third part is composed of experimental work and results. Finally, the fourth part provides the conclusion and future directions.

II. METHODOLOGY

Technical indicators are used for chart analysis to detect patterns in price charts. They also offer price analysis to predict future price action. Depending on the functionality, a technical indicator may be lagging, leading, or volatile. Moving Average (MA) and Moving Average Convergence Divergence (MACD) are lagging indicators, also known as trend indicators. Leading indicators like RSI (Relative Strength Index) try to predict future price trends by calculating the price rate changes. They are also referred to as momentum-based indicators. Average Directional Movement Index (ADX) and Average True Range (ATR) are examples of volatility-based indicators [26] that measure the volatility level of the price. Many financial prediction models use these naïve trading signals for feature engineering. Our strategy applies one or more indicators from three different categories of technical indicators. It follows an algorithm to search and select common trend signals. A total of five technical indicators, including Average Directional Index (ADX), Exponential Moving Averages (EMA), Moving Average Convergence Divergence (MACD), Triple Exponential Average (TRIX), and Relative Strength Index (RSI), are considered by UTS. A short description of these indicators is given below.

Where,

AG and AL are simple average-gains and average-losses over 9-day period.

4. Average Directional Index (ADX): works together with a Minus Directional Indicator (-DI) and a Plus Directional Indicator (+DI). The directional movement indicators are used to detect stock trends, typically used to determine entry and exit points. The ADX is derived from the smoothed averages between +DI and –DI. It measures the strength of the trend over time. Using all three indicators together, we can determine both the direction and strength of the movement. The value of ADX ranges between 0 and 100. A reading below 20 indicate trend weakness, and all readings above 40 are considered vital.

5. Triple Exponential Average (TRIX): is a momentum oscillator representing the percent rate of change of a triple exponentially smoothed moving average. Given below are the steps involved in the calculations of the nine days TRIX.

When the stock market index increases its value compared to its previous performance, it is referred to as an uptrend, and a relatively decreasing market index exhibits a downtrend movement [27]. A buy signal is expected when security is believed to be overbought, i.e., trading above its fair or intrinsic value. On the other hand, a sell signal results from an oversold market that has fallen sharply. A trading strategy is a set of predetermined rules that decides how to approach stock trading to achieve profitable returns. UTS is a trend-following strategy that works on a breakout model, buying strength, and selling weakness. The following points help to understand the methodology of UTS, which is also illustrated in Fig. 1.

Technical Indicators (TI’s) are applied on close prices of available historical data. Each of these TI’s try to determine and mark a trend.

a. A trend period may be determined by some TI’s early, and others may observe it late or may not observe it at all. The algorithm scans adjacent days around a trend period to search and count several TI’s, marking this period as a potential trend.

b. To validate an uptrend or a downtrend, we set the minimum number of TI’s to confirm this trend.

c. The average of days marked by different TI’s is selected as the start day of the trend.

d. Sideways are ignored. Only uptrends and downtrends are marked alternatively.

The significant and consistent price change serves as a good feature for the trend period. This change is calculated by taking the difference of prices of consecutive days. A positive change in prices represents an increase (buy-signals), and a negative change indicates a decrease in prices (sell-signals). This increase and decrease serve as class labels for the regression method determining the directional movement. We use these features to train our LSTM model.

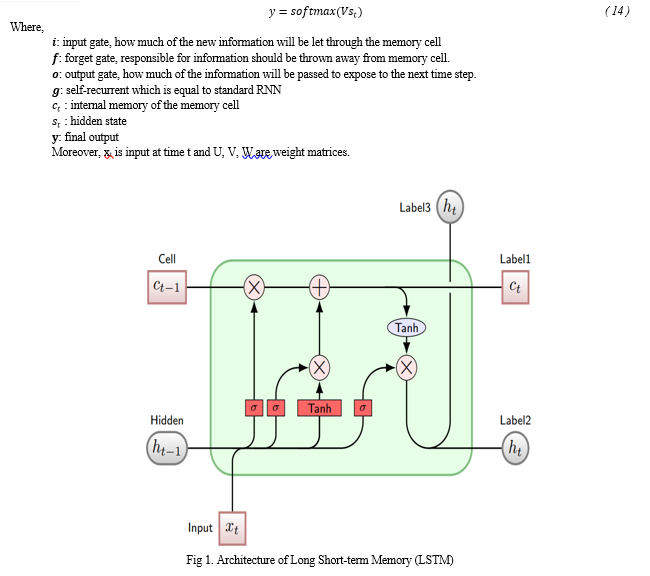

The LSTM model as a machine learning-based model can estimate the predictive power of traditional indicators in different market situations. Also, compared to the other models, the feature detection is excellent by using LSTM models. They are Recurrent Neural Networks (RNNs) designed to tackle the problem of vanishing or blowing up gradients. It is carried out by introducing long short-term memory in RNN, where only necessary information is allowed in the evaluations. Equations 8 to 14 illustrate the structure of LSTM and its architecture is given in Fig. 2.

III. EXPERIMENT AND RESULTS

The input features for training our DNN model are generated from the dataset for 120 different US stocks collected from Yahoo Finance [28]. UTS marks the days for up and downtrends, and the change in price for the marked days is calculated. The output is of binary type as for uptrends and downtrends, the difference in prices is positive or negative, respectively. The objective of adapting changes instead of values is to offer a fair comparison across different stocks and periods. It confirms that our model learns a generalized pattern for predicting any stock using historical data, which is the essence of technical analysis.

The proposed model is implemented in Python by using the deep learning library Keras [29]. Model’s hyper-parameters candidate and optimal sets are shown in Table I. Different candidate sets were tested including number of hidden units, parameter initializer, activation type, dropout rate, and optimization type. The example of the optimal hyper-parameter values is shown in the last column.

Table I: LSTM model hyper-parameters candidate and optimal sets

Total 4,656 features extracted from trend periods (predicted by UTS) are fed sequentially to the model consisting of an LSTM layer connected with an output layer using 32 connections. LSTM layer is optimized and it finally used tanh as its activation function. As our features are labelled by 1 for uptrend signals and 0 for downtrend signals, we used sigmoid function (Equation. 15) as an activation function at the output layer, and the loss function is set to binary cross-entropy. This function receives the output from the previous layer and generates a probability value between [0,1].

A fraction of all total signals that are not a part of the training set is used to test the model. Table II is a binary confusion matrix that is used as evaluation metrics for measuring the performance of the LSTM model. True positive (TP) in a confusion matrix indicates cases wherein both actual label and predicted label are correctly positive (i.e., buy signal). False positive (FP) indicates cases wherein the actual label is negative (i.e., sell signal) but the model prediction is incorrectly positive. False negative (FN) indicates the cases when the actual label is positive but the predicted label is incorrectly negative (i.e., sell signal). Finally, true negative (TN) indicates cases wherein both actual label and predicted label are correctly negative.

Table II: Confusion matrix for the LSTM model evaluation

The values of Precision (Equation. 16) and Recall (Equation. 17) can express the performance of a binary classifier model or more accurately, we can use f1-score (Equation. 18) that represent the harmonic mean of precision and recall. For above confusion matrix, the value of f1-score is 0.99 (1 is the best).

The changes in close prices for the new stock are fed to the trend prediction model that marks the days as potential candidates for buy and sell opportunities. The model generates an output between [0,1] for each set of values. The threshold values are selected to sort out buy/sell signals depending upon the volatility of a stock. Typically, all the values greater than 0.70 represent buy signs, and all values less than 0.30 indicate sell signals. Rest of the values represent a range i.e., one of the three ways a market can be biased.

The performance of a trading system is assessed on existing historical data from a stock market for a specific time. The analysis resulting from a single instrument (stock or others) should not be trusted entirely, as the selection of trading data may be biased to show a trading strategy looks profitable. The choice of multiple stocks having diverse patterns features an ideal assessment. This research forms a test bench (Table III) composed of 8 stocks from different sectors, profiles, and volatilities.

For the sake of generality, all the algorithm parameters remain unchanged over the entire test bench. Regarding the trading horizon, the ten years (2010 to 2019) data is collected to represent the set of economic phenomena for the selected markets. It less likely contains significant market regime shifts that may harm the stability of a trading strategy.

Table III. Performance assessment testbench

Some Key Performance Indicators (KPI’s) are selected to assess the trading model accurately. Fig. 3. presents a list of these performance indicators employed to quantify the performance of the proposed trading system.

These performance indicators provide information about the performance and analysis of the trading system's strengths and weaknesses. We compare the performance of both the unified strategy and the trained model with the Buy and Hold (B& H) strategy.

The calculations of performance indicators in Table IV seem appropriate to analyze the trading policies and the trained model accurately. LSTM based model trained on UTS delivered higher risk-adjusted measurements for all stocks as indicated by the Sharpe ratio [30] and profit factor. Sharpe ratio was introduced by Sharpe in 1996. It is called reward-to-variability ratio that determines the performance of an investment. It is defined as follows:

Where µ represents the expected return, σ  is the standard deviation of return, and Rf  risk-free rate of return. Profit factor is the ratio of total number of winning trades to the total number of losing trades for a specific trading period. It is a simple performance metric to assess the efficiency of a trading algorithm.  It is defined as follows:

Table IV. Performance assessment on different stocks

The results of percent profit and CAGR (Fig. 4(a-b)) strengthen the observation that the proposed forecast-based strategy and LSTM model consistently deliver significant excess returns over the market index.

The graphs of annual volatility, max drawdown, total net profit in Fig. 4(c) & (e) show that the trained model can self-adapt during both bullish and bearish stock markets. The UTS algorithm can be ranked second as its overall performance is better than the buy-and-hold trading strategy.

Conclusion

The paper introduced a unified trading strategy that can blend the distinctive features of individual indicators from different categories. The research work also employed an LSTM neural network model trained over the trend signals generated by the designed trading strategy. The model learns the characteristics of the unified trading strategy and becomes able to provide insight into the future movements of any input security prices. The trained model efficiently exploits the correlation between stock patterns and future trends. Our results show that the designed LSTM neural network learns behavior of a complex trading strategy and outperforms the benchmark or traditional trading algorithms in forecasting of the market trends. Any system that can exploit the potential of diverse methods in technical analysis may serve as a reliable mode for significant profit. A hybrid model for prediction is possible by incorporating the proposed unified trading strategy to the sentiment analysis of news articles, social media, and corporate reports. Furthermore, new research directions may formulate advance metrics to measure the performance and robustness of the prediction models.
