IOT Based Paralysis Patient Healthcare

Abstract

In health care centers case\'s data similar as heart rate needs to be constantly covered. The proposed system monitors the heart rate and other similar data of case\'s body. For illustration heart rate is measured through a Photoplethysmography. A transmitting module is attached which continuously transmits the decoded periodical data using Bluetooth module. A receiver unit is placed in croaker\'s cabin, which receives and decodes the data and continuously displays it on a Stoner interface visible on PC/Laptop. Thus croaker can observe and cover numerous cases at the same time. System also continuously monitors the case (s) data and in case of any implicit irregularities, in the condition of a case, the alarm system connected to the system gives an audio-visual warning signal that the case of a particular room needs immediate attention. In case, the croaker isn\'t in his chamber, the GSM modem connected to the system also sends a communication to all the croakers of that unit giving the room number of the case who needs immediate care.

Introduction

I. INTRODUCTION

The IOT based paralysis healthcare system is a system designed to help the case convey colorful dispatches, patient data to croakers, nanny, or his/ her loved bones over the internet

II. LITERATURE SURVEY

Smart Healthcare is important for people who need nonstop monitoring which can not be handed outside hospitals. It's also important at pastoral areas or townlets where near conventions can be in touch with megacity hospitals about their case’s health condition.

This work presents a smart health monitoring system that uses biomedical detectors to check case’s condition and uses internet to inform the concerned.

The biomedical detectors then are connected to Arduino UNO regulator to read the data which is in turn connived to an TV display/ diurnal examiner to see the affair.

Data is uploaded to the garçon to store and converted it into JSON link for imaging it on a Smartphone. An android operation has been designed in order to fluently see the case's information by their croakers and family members.

III. METHODOLOGY

Body vitals ( Palpitation Temperature Moisture) are pivotal factors in determining well being of case and help covering the strategy of treatment as well as record the response of treatment being conducted.

While it can be excited and tedious to go for larger population of cases to collect the vitals information on a strict routine, the delicacy and the time pause as well as the estimation of instrumentation increases the threat of false cons.

To break this problem, we present a digitally calibrated and real time vital dimension device that can operate in real time, record the data and shoot it for farther consultancy of experts. While it can improve the efficiency of health tracking records the data generated by measurement can also be used for statistical purpose. Objective of this device is to improve the quality and efficiency of health care.

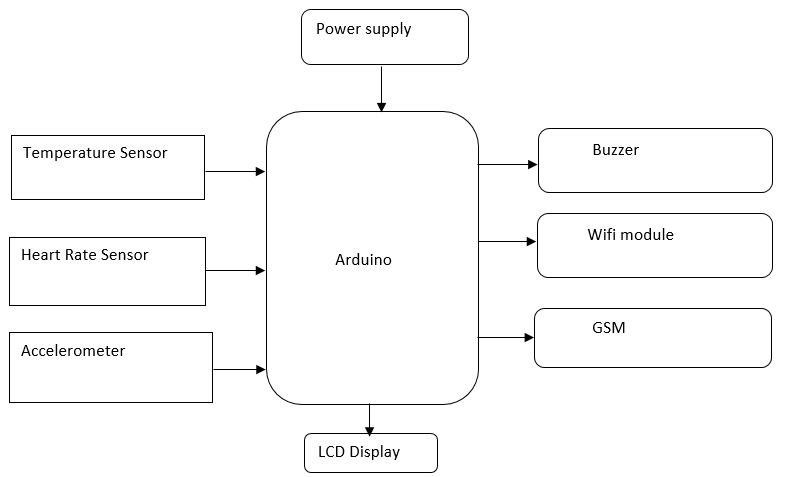

IV. BLOCKDIAGRAM

A. block Diagram Explanation

In this design we're going to cover health of case using colorful detectors like temperature detector, heart beat detector, blood pressure detector, and those nonstop reading of these detector we're going to display on TV display as well as we're going to develop android operation where we can get this readings so that croaker can cover case in sanitarium indeed though he's at some distance or in other words croaker can cover patient ever. then the temperature detector can descry accurate temperature of mortal body and blood pressure detector can descry correct blood pressure of mortal body also the heart beat detector will give heart beat conditions so the nonstop monitoring of case and the number of rounds of croaker and nanny in patient ward will be reduced as well patient health will be ameliorate with great response as continues monitoring will be there.

B. Elements of Block Diagram

1. Arduino uno

The Arduino Uno is an open- source microcontroller board grounded on the Microchip ATmega328P microcontroller and developed byArduino.cc. The board is equipped with sets of digital and analog input/ affair (I/ O) legs that may be connived to colorful expansion boards ( securities) and other circuits. (1) The board has 14 digital I/ O legs (six able of PWM affair), 6 analog I/ O legs, and is programmable with the Arduino IDE (Integrated Development Environment), via a type B USB string. It can be powered by the USB string or by an external 9-volt battery, though it accepts voltages between 7 and 20 volts. It's also analogous to the Arduino Nano and Leonardo. The tackle reference design is distributed under a Creative Commons Attribution Share-Alike2.5 license and is available on the Arduino website. Layout and product lines for some performances of the tackle are also available..

2. LCD (Liquid Crystal Display)

A liquid-crystal display (LCD) is a flat- panel display or other electronically modulated optical device that uses the light-modulating parcels of liquid chargers combined with polarizers. Liquid chargers don't emit light directly, rather using a backlight or glass to produce images in color or snap. LCDs are available to display arbitrary images (as in a general- purpose computer display) or fixed images with low information content, which can be displayed or hidden, similar as preset words, integers, and seven- member displays, as in a digital timepiece. They use the same introductory technology, except that arbitrary images are made from a matrix of small pixels, while other displays have larger rudiments. LCDs can either be typically on (positive) or out ( negative), depending on the polarizer arrangement. For illustration, a character positive TV with a backlight will have black handwriting on a background that's the color of the backlight, and a character negative TV will have a black background with the letters being of the same color as the backlight. Optic pollutants are added to white on blue LCDs to give them their characteristic appearance).

3. Bluetooth

A Bluetooth technology is a highspeed low powered wireless technology link that's designed to connect phones or other movable outfit together. It's a specification (IEEE802.15.1) for the use of low power radio dispatches to link phones, computers and other network bias over short distance without cables. Wireless signals transmitted with Bluetooth cover short distances, generally over to 30 bases (10 measures).

4. Blood Pressure Sensor

Blood Pressure (BP) is one of the important vital signs. It's the pressure applied by the circulating blood on the walls of blood vessels. Blood Pressure is expressed as the rate of the systolic pressure over diastolic pressure. Mercury sphygmomanometer is being used for measuring blood pressure. In this, the height of the column of mercury is considered for measuring the blood pressure. The oscillometric system is used for automated blood pressure measures since 1981. With the advance in technology bias for measuring blood pressure through thenon-invasive oscillometric system are being developed. One analogous device is the Blood Pressure Sensor.

5. Heart Beat Sensor

Heartbeat Detector is an electronic device that's used to measure the heart rate i.e. speed of the twinkle. Monitoring body temperature, heart rate and blood pressure are the introductory effects that we do in order to keep us healthy. Heart Rate can be covered in two ways one way is to manually check the palpitation either at wrists or neck and the other way is to use a Twinkle Detector.

In this design, we've designed a Heart Rate Monitor System using Arduino and Heartbeat Sensor. You can find the Principle of Heartbeat Sensor, working of the Heartbeat Sensor and Arduino grounded Heart Rate Monitoring System using a practical heart rate Detector.

6. Circuit of Arduino based Heart Rate Monitor using Heartbeat Sensor

The following image shows the circuit diagram of the Arduino based Heart Rate Monitor using Heartbeat Sensor. The sensor has a clip to insert the finger and has three pins coming out of it for connecting VCC, GND and the Data.

VI. RESULTS

Output Shown On Thinkspeak Server

VII. ADVANTAGES

1. Better access to healthcare
2. Improved quality of care
3. Peace of mind and daily assurance

References

[1] ProsantaGopeet al. 2016. BSN-Care: A Secure IoTbasedModern Healthcare System Using Body Sensor Network. IEEE Sensors Journal. 16(5): 1368-1376. [2] Tzonelih Hwang et al. 2016. Untraceable Sensor Movement in Distributed IoT Infrastructure.IEEE Sensors Journal. 15(9): 5340-5348. [3] Tae-Yoon Kim et al. 2015. Multi-Hop WBAN Construction for Healthcare IoT Systems. IEEE Platform Technology and Service (PlatCon), International Conference. pp. 27-28. [4] CharalamposDoukaset al. 2015. Bringing IoT and Cloud Computing towards Pervasive Healthcare.IEEE Innovative Mobile and Internet Services in Ubiquitous Computing (IMIS), International Conference. pp. 922-926. [5] Tianhe Gong et al. 2015. A medical Health care system for privacy protection based on IoT. IEEE Parallel Architecture, Algorithms and Programming (PAAP). pp. 217-222. [6] Lin Yang et al. 2014. A Home Mobile Healthcare System for Wheelchair Users.Proceedings of the 2014 IEEE 18th International Conference on Computer Supported Cooperative Work in Design.pp. 609-614. ARPN Journal of Engineering and Applied Sciences ©2006-2017 Asian Research Publishing Network (ARPN).
