Light-Fidelity (Li-Fi) technology, established in 2011, has garnered significant attention in recent years as a viable alternative to conventional radio frequency (RF) wireless communication methods. Li-Fi leverages light waves for data transmission, offering a more secure and efficient means of communication. This project aims to showcase the potential of Li-Fi technology by creating a bidirectional communication system capable of transmitting digital data using a laser and a micro-controller. The system allows for data transmission and reception between two endpoints. For data reception, a solar panel is employed to convert the laser-emitted light waves into electrical signals, which are subsequently interpreted by a micro- controller. The received data is then displayed on an LCD screen for convenient readability.
I. INTRODUCTION
Li-Fi, or Light Fidelity, a technology founded in 2011, is a wireless communication technology that uses visible light to transmit data. It is a relatively new technology and can be used for Single Carrier Modulation (SCM) as well as various Multi Carrier Modulation (MCM) techniques [1]. Li-Fi is based on the principle of modulating the intensity of light emitted by a Light source to carry information.
The modulation is done at a very high frequency that is imperceptible to the human eye, allowing for high-speed data transmission. With the proliferation of mobile devices over RF networks and the increasing demand for high-speed internet, the existing wireless communication technologies are becoming congested and unable to keep up with the demand. A hybrid Li-Fi/Wi- Fi system or ’HLWNets’ on the other hand, offers a potential alternative [2],[3],[4].
Li-Fi has several advantages over traditional wireless com- munication technologies such as Wi-Fi and Bluetooth. One of the main advantages is its high data transfer rates, which can reach several gigabits per second, making it ideal for high- bandwidth applications such as streaming video and down- loading large files[5]. Another advantage is its security, as the visible light signal cannot penetrate through walls, making it more difficult for hackers to intercept the signal. Li-Fi also has some limitations. It requires a light source to function, which means that it cannot be used in environments with low light levels or where lighting is not required.
Other limitation is that it requires a direct line of sight between the transmitter and receiver, which means that it is not suitable for applications that require transmission through walls or other obstacles and lead to channel blockage. In [6], a novel access point assignment (APA) method is proposed for hybrid LiFi and WiFi networks for reducing this blockage. Authors have also assured that this method improves throughput significantly.
Despite its limitations, Li-Fi has the potential to revolutionize wireless communication, particularly in applications where high data transfer rates and security are essential. Some potential applications include in-flight entertainment, smart home automation, and industrial automation. Overall, Li-Fi technology is an emerging technology that has the potential to revolutionize the way we transmit data wirelessly.
The relevance of a Li-Fi based communication lies in the fact that it addresses a growing need for faster and more secure data transmission. Furthermore, Li-Fi has several potential applications in various fields, such as healthcare, aerospace, transportation, and smart cities, IOT, to name a few.
For instance, Li-Fi access points (APs) are helful in sustaining thr growing demand of IOT. An optimal data rate-based slicing scheme that dynamically virtualizes a networked LiFi AP downlink channel bandwidth according to the data rate demands of users and the requested services is proposed by authors of [7].
II. LITERATURE SURVEY
Li-Fi (Light Fidelity) facilitates the wireless method of data transmission through Visible Light Communication (VLC) technology and can be up to 100 times faster than Wi-Fi[8]. Li- fi is a both-sided wireless communication system that releases information via a light source. Li-fi technology first came into use in the year 2011. The working or the implementation of Li-fi is not very complex like Wi-fi communication. It is straightforward to send information through light. The receiver then collects the sent data or information and understands the transmitted data.
For instance, for a small module using LEDs, if the LED is on then a digital ‘1’ is transmitted and in case the LED is off then a digital ‘0’ is transmitted and can be switched on and off very quickly, which gives great open gateways for sending data [9]. In some cases, we need to alter or modify the rate of transmission in which the light source flashes depending upon the information which is to be encoded. As we stated above, the Light source is the main component in this communication, so that light source will serve as the central hub for data transmission from one point to another destination point. The current state of Li-Fi technology is still in its early stages of development and commercialization. Which is why it still has certain misconceptions like, it is a LoS technology, or that it does not work in sunlight conditions, or that it is only for downlink etc [10]. However, the technology has shown promising results in several areas, including data transfer rates, security, and energy efficiency.
In terms of potential applications, Li-Fi technology could be used in a variety of settings, future IOT applications as the authors of have by presenting the current state-of-the-art of LiFi systems and introducing new features and discussed results from a MIMO topology using plastic optical fibre [11],[12]. Li-Fi technology could also be used for high-speed data transfer in areas where Wi-Fi signals are congested, such as stadiums or concert venues. However, Li-Fi technology also has some limitations that need to be addressed, such as the need for direct line-of-sight between the transmitter and receiver, and its susceptibility to interference from other light sources. Research is currently ongoing to address these limitations and further improve the performance and potential applications of Li-Fi technology[13].
While Li-Fi technology has shown great potential, there are still some gaps and areas for further research in the field. Research is mainly going on in these areas to overcome the challenges:
Based on the literature survey, the key findings and conclu- sions are:
a. Li-Fi technology offers much faster data transfer rates compared to traditional Wi-Fi technology.
b. Li-Fi technology has high levels of security and is poten- tially attractive for applications that require high levels of security.
c. Li-Fi technology has potential applications in indoor positioning, smart lighting, and wireless communications in areas where traditional Wi-Fi signals are not suitable.
d. There are still gaps and areas for further research in the field of Li-Fi technology, including standardization, range and coverage, mobility and handover, interference and coexistence, and integration with other technologies.
The recommendations for future research and development of Li-Fi technology include:
III. BLOCK SCHEMATIC AND REQUIREMENTS
A. Block Diagram
To summarize, information in binary format is given to the light source(Laser) with the help of a microcontroller. The Laser gets modulated according to the information bit signal provided[15]. The data transmitted is displayed on the LCD display. This laser beam is then injected on the solar panel mounted at some distance from it. The solar panel captures the light beam and accordingly receives the data signal transmitted. The information bits received by the solar panel is then given to another microcontroller at the receiver end. This microcontroller displays the received signal on an LCD display.
B. Hardware and Software Requirements
a. Arduino IDE : It is a software platform used to program and develop code for Arduino microcontrollers.
b. Proteus 8 : It is a software suite used for electronic circuit design, simulation, and PCB (printed circuit board) layout design.
c. KiCad : KiCad is an open-source software suite used for electronic design automation (EDA) and printed circuit board (PCB) design.
2. Hardware
a. Arduino: An Arduino board is a physical computing platform that consists of a microcontroller and other components.
b. Solar Panel: A 6V solar panel is a type of photovoltaic panel that is designed to convert sunlight into electrical energy with a voltage output of 6 volts.
c. Laser Module: A laser is a device that produces a beam of coherent light through the process of stimulated emission.
d. LCD: It stands for Liquid Crystal Display. It is a type of flat-panel display that uses liquid crystals to display images or text.
C. Selection of major components
Table I
Comparison of Laser Modules
Laser Color |
Wavelength Range |
Applications |
Red |
630-680nm |
Pointers, scanners, alignment |
Green |
515-535nm |
Projectors, displays, astronomy |
Blue |
445-470nm |
Shows, research, imaging |
Yellow |
580-595nm |
Displays, advertising, research |
Violet |
400-420nm |
Excitation, engraving, research |
IR |
800-1064nm |
Sensing, communication, security |
When comparing different laser modules, some of the key factors to consider include their wavelength, output power, beam divergence, operating voltage, operating temperature, and size. It is important to select the right laser module for the specific application, considering factors such as safety, cost, and performance requirements[16]. It is also important to follow proper safety guidelines when handling and operating laser modules. Our model uses a red-colored laser module so as to have better results and to avoid scattering of light for demonstration purposes and clearer results. As red color scatters the least and is clearly visible from a longer distance we use a red color laser module.
The output power range of all of the listed laser modules ranges between a few mW to Watts. They are directly modu- lated along with having good beam quality.
2. Chip Comparison: As can be seen from the table II, both microcontrollers are 8-bit RISC devices with similar program memory and data memory sizes. The PIC18F4520 has a higher CPU speed at 40 MHz compared to the Atmega328p’s 16 MHz However, the Atmega328p has more PWM channels and a greater number of ADC channels, making it more suitable for applications that require analog inputs or output control. The Atmega328p also has a larger EEPROM, making it more suitable for data storage.
TABLE II
Comparison Between ATMEGA328P and PIC
Feature |
Atmega328p |
PIC18F4520 |
Architecture |
AVR 8-bit |
PIC 8-bit |
Instruction Set |
RISC |
RISC |
CPU Speed (MHz) |
16 MHz |
40 MHz |
Program Memory |
32 KB |
32 KB |
Data Memory |
2 KB SRAM |
1.5 KB SRAM |
EEPROM |
1 KB |
256 Bytes |
ADC Channels |
6 |
8 |
PWM Channels |
6 |
2 |
Timers |
3 |
4 |
1/0 Pins |
23 |
40 |
Operating Voltage |
1.8 - 5.5V |
2.0 - 5.5V |
Price |
Inexpensive |
Inexpensive |
D. List of Components
The list of the components used to make a small scale Li-Fi module are described in table III.
Table III
List of Components
Sr. No |
Name and description of part |
Value / model number |
1 |
Arduino chip |
Atmega328P |
2 |
Red Light Laser Module |
5V 650 nm |
3 |
LCD display |
1602 |
4 |
Solar Panel |
6V |
5 |
Power Supply |
5V 1A |
E. Algorithm and Flowchart
a. Define the LASERPIN constant as 9.
b. Include the LiquidCrystal library
c. In the setup function, set the LASERPIN pin as an output and begin serial communication at 19200 baud rate.
d. In the loop function, create an instance of the Liquid- Crystal class with the following parameters: RS pin 12, EN pin 11, D4 pin 5, D5 pin 4, D6 pin 3, and D7 pin 2.
e. Set up the LCD with 16 columns and 2 rows with lcd.begin(16, 2).
f. Set the cursor position to the first row and first column with lcd.setCursor(0,0).
g. Create an integer array of bits with the values 1,0,1,0,1,0,1,0.
h. For each iteration of the for loop, do the following:
2. Receiver Side
a. Define the SOLARPIN constant as A0 and the THRESH- OLD constant as 20.
b. Define the AMBIENT constant as 100.
c. Include the LiquidCrystal library.
d. In the setup function, set the SOLARPIN pin as an input and begin serial communication at 19200 baud rate.
e. In the loop function, create an instance of the Liquid- Crystal class with the following parameters: RS pin 12, EN pin 11, D4 pin 5, D5 pin 4, D6 pin 3, and D7 pin 2.
f. Set the Contrast variable to 100 and apply it to the LCD with analogWrite(6, Contrast).
g. Begin the LCD with 16 columns and 2 rows with lcd.begin(16, 2).
h. Set the cursor position to the first row and first column with lcd.setCursor(0, 0).
i. For each iteration of the for loop, do the following:
IV. IMPLEMENTATION

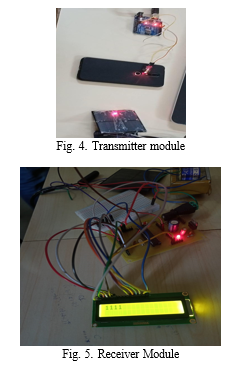

The images of small Li-Fi module as implemented is shown below.
Complete Li-Fi module as implemented is also shown below.
V. RESULTS
Overall efficiency of the system is approximately 87%
The above table represents the transmitted and received values for a given input sequence by the system. The system is supposed to have 100% efficiency theoretically, but due to challenges in current LiFi technology such as obstacle in the line of sight the efficiency is reduced drastically and can be overcomed by the using various techniques like using multiple transmitters, transmitting the light in such a way that it reaches the receiver panel, using minimal sequence and repetition of signal so as to reduce loss of information etc.
In excess ambient light, due to the light in the room some of the information may be distorted leading to error in detection of messages. This can be solved by setting the threshold limit by more vast data available for a particular environment.
Compared to Wi-Fi, Li-Fi communication has the potential to be more energy efficient due to the use of light as a medium of communication. Unlike Wi-Fi, Li-Fi does not rely on the transmission and reception of radio frequency (RF) waves, which require significant amounts of energy to generate and propagate[17]. One of the major energy-saving benefits of Li-Fi is that it can be used to create highly localized communication links, where the optical signal is confined to a small area. This reduces the amount of power needed to generate the signal and improves energy efficiency. Additionally, Li-Fi can be used to provide data communication and illumination simultaneously, which can reduce energy consumption by eliminating the need for separate lighting and communication systems.
A. Graphical Representation of Energy Efficiency
However, it is important to note that the energy efficiency of Li-Fi depends on various factors such as the type of modulation used, the quality of the photodetectors, and the design of the transmitters and receivers. Furthermore, in order to achieve high data rates and reliable communication, Li-Fi may require high-intensity light sources, which can consume significant amounts of power.
TABLE IV
Observation Table For Various Test Cases
Transmitted Data |
Received Data |
Result |
Before Obstacle |
||
10101010 10100101 11111111 11110000 |
10101010 10100101 11111111 11110000 |
Working Fine |
After Obstacle |
||
11110000
10101010 |
11000000
00001010 |
Different methods have been discussed above for the given problem. |
In Excess Ambient Light |
||
11110000
10101010 |
11110000
11101011 |
Set the Threshold limit with more precise data for accuracy. |
In Low Light |
||
10101010 10100101 |
10101010 10100101 |
Working Fine |
In conclusion, while Li-Fi has the potential to be more energy efficient than Wi-Fi, it is important to consider the specific application and implementation details to determine the true energy efficiency of each technology.
B. Data rate Comparison with Respect to Distance in li-fi Module
In Li-Fi communication, data rate and distance are inversely proportional to each other. As the distance between the trans- mitter and receiver increases, the data rate decreases due to the attenuation of the optical signal in the medium. The data rate in Li-Fi communication depends on the modulation technique used to encode the data onto the light signal, as well as the bandwidth of the optical signal. Some commonly used modulation techniques in Li-Fi communication include on-off keying (OOK), pulse position modulation (PPM), and orthogonal frequency-division multiplexing (OFDM).
For short distances of up to a few meters, Li-Fi can achieve data rates of several gigabits per second (Gbps), surpassing the data rates of traditional Wi-Fi communication. However, as the distance between the transmitter and receiver increases, the data rate decreases significantly. For example, at 10 meters, the data rate in Li-Fi communication may drop to a few megabits per second (Mbps) or less.
In summary, the data rate in Li-Fi communication is highly dependent on the distance between the transmitter and receiver, as well as the modulation technique and bandwidth of the optical signal. While Li-Fi can achieve very high data rates for short-range communication, it may not be suitable for long-range communication or applications where the distance between the transmitter and receiver is highly variable.
VI. FUTURE SCOPE
In conclusion, LiFi technology is a promising alternative to traditional wireless communication methods. A basic LiFi transmitter and receiver can be designed using commercially available components such as laser modules and Solar panels. The principle behind LiFi communication is the use of light waves to transmit data, which has advantages such as increased security and higher bandwidth than the traditional wireless methods. Additionally, LiFi technology can be used in various applications such as indoor positioning, healthcare, and trans- portation. While LiFi technology is still in its early stages, it has the potential to revolutionize the way we communicate wirelessly and can be an important part of the future of technology. A basic Transmitter and receiver for demonstrating a Li-Fi system is built. Also implemented our own Arduino module for the transmitter as well as receiver. The different obstacles while implementing the system were identified. The potential solutions were also discussed for the same. The current applications of the technology are listed. A few of which can be that this system can be used for basic transmission if modulated with a PN Code sequence for Secure and encrypted communication. The system, if integrated with an alarm, can be used for security purposes. The system can be used for dual purposes like electricity generation as well as information transfer.
