Analysis of Long Span Steel Tied Arch Bridges

Abstract

Arch bridges construction has reappeared around the world thanks to the cantilever launching method, and nowadays these structures represent one of the three major types of long-span bridges, with the other two types being suspension and cable-stayed bridges. The arch rib is an element mainly subjected to a large axial compression force caused by dead loads, and that’s why arch bridge structures exhibit a complex behavior during strong earthquakes. Furthermore, when a bridge is located close to a fault system, the near field e?ects must be considered, since the structure could experiment with large displacements. This research work aims the analysis and structural stability of a Network arch bridge – a tied-arch bridge with inclined hangers that cross each other at least twice. A comparative analysis with other type of hanger arrangements i.e. a tied-arch bridge with vertical hangers is performed. Possible analysis solutions with respect to spans, materials and carriageway width are presented and succinctly discussed. Earlier this kind of analysis was not possible due to limited processing power, but with better software and available processing power, it is possible to estimate the response of structure more accurately. Modelling using a tri dimensional finite element model of the arch bridges are described through MIDAS CIVIL Software in this research work. Two arch bridges are modelled with different arrangements of hangers – a vertical and inclined network type arrangements – under same load parameters. Comparative analysis is carried and studied in terms of fluctuations in member forces, bending moments, deflections, and behavior under seismic excitation.

Introduction

I. INTRODUCTION

Arch bridges construction has reappeared around the world thanks to the cantilever launching method, and nowadays these structures represent one of the three major types of long span bridges, with the other two types being suspension and cable-stayed bridges. Many ancient and well know examples of stone arches still stand to this day. Arches are good choices for crossing valleys and rivers since the arch doesn't require piers in the center. Arches can be one of the more beautiful bridge types. Arches use a curved structure which provides a high resistance to bending forces. Unlike girder and truss bridges, both ends of an arch are fixed in the horizontal direction (i.e. no horizontal movement is allowed in the bearing). Thus, when a load is placed on the bridge (e.g. a car passes over it) horizontal forces occur in the bearings of the arch. These horizontal forces are unique to the arch and as a result arches can only be used where the ground or foundation is solid and stable. Structurally there are four basic arch types: hinge-less, two-hinged, three hinged and tied arches. The hinge-less arch uses no hinges and allows no rotation at the foundations. As a result, a great deal of force is generated at the foundation (horizontal, vertical, and bending forces) and the hinge-less arch can only be built where the ground is very stable. However, the hinge-less arch is a very stiff structure and suffers less deflection than other arches. The two hinged arch uses hinged bearings which allow rotation. The only forces generated at the bearings are horizontal and vertical forces. This is perhaps the most used variation for steel arches and is generally a very economical design. The three-hinged arch adds an additional hinge at the top or crown of the arch. The three-hinged arch suffers very little if there is movement in either foundation (due to earthquakes, sinking, etc.) However, the three-hinged arch experiences much more deflection and the hinges are complex and can be difficult to fabricate. The three-hinged arch is rarely used anymore. The tied arch is a variation on the arch which allows construction even if the ground is not solid enough to deal with the horizontal forces. Rather than relying on the foundation to restrain the horizontal forces, the girder itself "ties" both ends of the arch together, thus the name "tied arch."

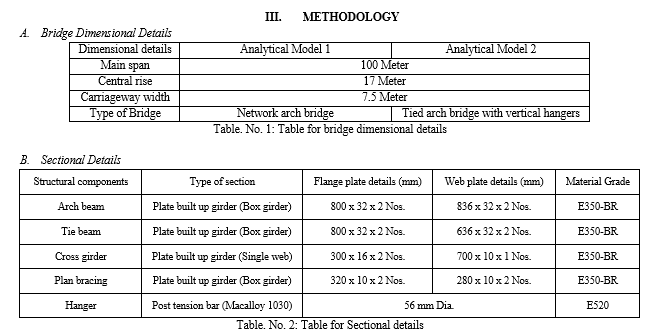

The present work deals with comparative analysis of ‘Network arch bridge’ and ‘Tied-arch bridge with vertical hangers’ under same loading parameters and dimensional specifications (i.e. main span, carriageway width, central rise etc.). A Network arch bridge is a type of bridge in which deck portion is hung below arch beam on inclined suspenders. Analysis of Network arch bridge and Tied-arch bridge is done according to IRC 06:2017, IRC 114:2018, IRC 83 Part 2:2018 etc. The Response spectrum analysis is done considering that the bridges are in zone IV & V. Main span for both arch bridge is taken as 100 m, carriageway width as 7.5 m, central rise as 17 m. The loads that are applied to the bridges are dead load, live load, superimposed dead load, vehicle load, wind load and earthquake load.

Model is created followed by properties for various structural members are defined. Load patterns are assigned. After model creation the structure is analysed for dead load, live load, super dead load, vehicle load, wind load and earthquake load. Parameters such as axial force, shear force, bending moment etc. can be studied and we can obtain the results of respective member of bridges i.e arch beam, tie beam, cross girders, bracings, hangers etc.

Based on the literature, it can see that very limited comparative analysis study is carried out on types of steel arch bridges under same loading parameters. Many literatures focused on the seismic analysis results by changing structural pattern of bridge, input parameters etc. On the other hand Kharde N. V., et al. (2022) presented comparative analysis of suspension cable bridge and tied arch bridge using SAP 2000.

This paper focuses on the behavior of two types of long span steel arch bridges i.e. network arch bridge and tied arch with vertical hangers using MIDAS Civil 2023 by comparing not only the seismic analysis results but also fluctuations in the member forces, moments, eigenvalue analysis results etc. First, the network arch bridge is modelled followed by loading conforming IRC codes. Then, member results are observed under two different seismic zones. Same work flowchart was followed for tied arch bridge with vertical hangers. Based on the analyses, interesting results with respect to bridge behavior were found. Finally, it has been observed that the network arch bridge delivers safer results and more strength than tied arch bridge with vertical hangers.

II. OBJECTIVE

1. To estimate the wind forces, seismic force and temperature loads to be applied on arch bridge for various spans and carriageway width using relevant codes, standards & literature.
2. To study the seismic effect of Steel arch bridge for support condition equivalent to Elastomeric bearing as per IRC 83 Part 2:2018.
3. To study the fluctuation of axial forces, moments, displacements in various structural components of arch bridge during seismic excitation.
4. To study the nodal results of response spectrum.
5. To study the time period (Vibration mode shapes) of structure.
6. To analyze the arch bridge structure in Seismic zone IV and zone V with Hard rock condition to obtain the results.
7. To compare the performance of Tied arch with vertical hangers and Network arch bridge to draw conclusion about which bridge delivers safer results and more strength.

Conclusion

In the present study, an attempt is made to study the fluctuations in forces, moment induced in members along with seismic behavior of Tied arch bridge with vertical hangers and Network arch bridge under same load parameters. The axial tensile, axial compressive force, shear force, torsion, maximum bending moments for various structural components of arch bridge were obtained. The following are the conclusions obtained: 1) It is observed that there is 26% decrease in axial tensile force in Hangers. 2) There is a slight increase in axial compression of about 3% in Cross girders. 3) 80% decrease in shear force has been observed in Arch beam. 4) 18% decrease in Torsional moment has been observed in Cross girders. 5) 181% decrease in bending moment (sagging) has been observed in Arch beam. 6) 137% decrease in bending moment (sagging) has been observed in Tie beam. 7) Excess 16 to 17 radian rotation about Y-Y axis observed in tied arch bridge compared to that of network arch bridge. 8) An average 10% increase in natural frequency of structure observed in tied arch bridge. This change was observed due to the difference in dead weight of bridge (about 100 KN) as there is no change in the stiffness. From the results and discussions, it can be concluded that for equal bridge spans, width, height, and similar sections with same material properties, Network arch bridge delivers safer results and more strength than tied arch bridge.

References

[1] IS 2062:2006, “Indian Standard hot rolled low, medium, and high tensile structural steel”, Bureau of Indian Standards, New Delhi. [2] IRC 6:2017, “Standard specifications and code of practice for road bridges, section: II, loads and load combinations (seventh revision)”, Indian Roads Congress, New Delhi. [3] IRC 83:2018, “Standard specifications and code of practice for road bridges, section: IX, Elastomeric Bearings (part II)”, Indian Roads Congress, New Delhi. [4] IRC:SP:114:2018, “Standard specifications and code of practice for road bridges, guidelines for seismic design of road bridges”, Indian Roads Congress, New Delhi. [5] Nakul V. Kharde & Prof. Dr. V. R. Rathi “Response Spectrum Analysis of Suspension Cable Bridge and Tied Arch Bridge” June 2022. [6] Emrah Erduran, Christian Nordli and Semih Gonen “Effect of Elastomeric Bearing Stiffness on the Dynamic Response of Railway Bridges Considering Vehicle–Bridge Interaction” October 2022. [7] Paolo Zampieri, Cyrille Denis Tetougueni, Emanuele Maiorana & Carlo Pellegrino “Post-buckling of network arch bridges subjected to vertical loads” June 2020. [8] Hidalgo Chavez and Jose J. Alvarez “Seismic performance of a long span arch bridge taking account of fluctuation of axial force” January 2020. [9] C Christian, J I Rastandi and Y Lase “Temperature Changes Effects to Dynamics Performances of a Pinned-Supported Steel-Arch-Bridge” March 2019. [10] Domenico Bruno, Paolo Lonetti and Arturo Pascuzzo “A numerical study on network arch bridges subjected to cable loss” June 2018. [11] Alika Koshi, Dr Laju Kottalil “Performance Comparison of Through Arch Bridge at Different Arch Positions” September 2016. [12] Mihai VLAD, Gavril KOLLO, Vladimir MARUSCEAC “A modern approach to tied-arch bridge analysis and design” December 2015. [13] Cheng-Yu LIANG, Airong CHEN “A method for examining the seismic performance of steel arch deck bridges” March 2010. [14] P. K. Chatterjee, T. K. Datta “Dynamic analysis of arch bridges under travelling loads” August 1994. [15] Wu Hui Jun, Qiu Wen Liang “Dynamic Performance and Seismic Analysis of Tied Arch Bridge” January 2012. [16] Liu Airong, Shen Fulin “Seismic analysis on Long-span Steel-Truss Arch Bridge with Continuous Rigid-frame” 2010. [17] Kaiming Bi, Hong Hao and Wei-Xin Ren “Seismic Response of a Concrete Filled Steel Tubular Arch Bridge to Spatially Varying Ground Motions Including Local Site Effect” July 2013. [18] Anusha Bhasam, Hathiram Jatothu, Tejaswini Akabilvam “DESIGN OF CHENAB BRIDGE IN INDIA” July 2021. [19] Jyothish Kiran A S, Krishnakumar S, Finny Alex, Nikhil Mohanan “Seismic Performance of a Pre stressed Tied Arch bridge Fitted With Dampers” July 2016.
