High Performance M-Term Karatsuba-Like Multiplier for Finite Field Arithmetic

Abstract

Finite field multiplication plays a crucial role in cryptographic circuits due to its widespread application. However, building circuits for these multiplications poses significant challenges due to their complexity. To mitigate this, the Karatsuba algorithm is employed, dividing each number into n/2 bits to reduce space complexity. While this approach reduces space complexity, it also increases time complexity. In our research, we introduce a hybrid approach, implementing a Karatsuba-like multiplier that combines elements of both Karatsuba and SBM (school book multiplication) techniques. Here in the proposed design, we replace the Array multiplier with a Wallace tree multiplier to further enhance design performance. This combination effectively reduces both time and space complexity. Our findings, based on reported device utilization and latency, demonstrate that the proposed multiplier outperforms the standard Karatsuba multiplier in terms of speed and efficiency, particularly in the area–delay product metric.

Introduction

I. INTRODUCTION

The continuous proliferation of modern information technologies across various sectors has led to a rise in the number of threats and the significance of information security. Cryptography systems are instrumental in ensuring the protection and security of information. Within these systems, finite field multiplication stands out as a crucial and frequently used operation that influences the overall speed and cost of systems. Therefore, the efficiency of the multiplier holds paramount importance. Among the range of polynomial multiplication algorithms, the school-book multiplication (SBM) emerges as the most elementary form of multiplication. The complexity of SBM for two polynomials of n-1 degree is O(n2).

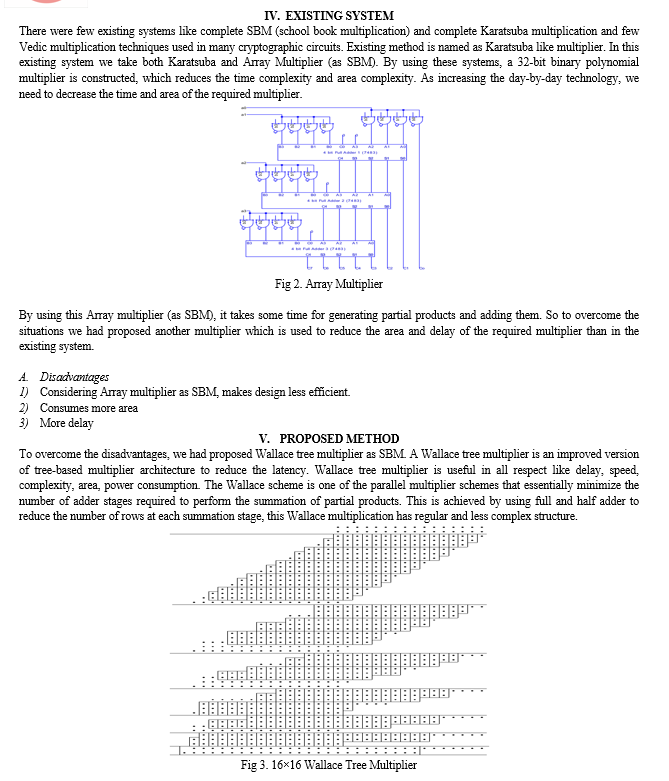

To enhance the efficiency of multiplication, a different type of algorithms has been put forth by researchers. One well-known algorithm is the Karatsuba-Ofman multiplier (KOM), which presents a recursive multiplicative approach with lower space complexity [O (nlog2 3)] compared to the traditional SBM. This strategy involves dividing the operands into lower and upper parts and utilizing three submultipliers to compute the product. Despite the resource efficiency achieved by KOM, it suffers from increased delay when compared to SBM due to its submultiplier-based recursive framework. To tackle this challenge, several Karatsuba modifications and diverse implementation approaches have been proposed.

An innovative solution called Overlap-free Karatsuba was introduced to eliminate the higher combinational delay of the general Karatsuba method. A low-complexity Karatsuba multiplier implemented a fresh approach to reduce the complex register configuration in current systolic implementation, thereby decreasing area and power consumption. Meanwhile, Samanta et al. devised a modified Karatsuba implementation tailored for 8-bit operands, where terms are segregated into different formats to minimize operational latency. Additionally, Li et al. proposed a novel non-recursive Mastrovito multiplier for GF(2m) using an n-term Karatsuba algorithm (KA). Furthermore, Chiou-Yng et al. demonstrated an effective digit-level parallel-in–serial-out (PISO) multiplier with sub quadratic space complexity through the utilization of the overlap-free Karatsuba multiplication algorithm.

The introduction of M-term Karatsuba-like algorithms has garnered significant attention in recent times. These algorithms allow for the division of operands into a greater number of terms compared to the standard two-term Karatsuba approach, consequently reducing the recurrence stages and enhancing multiplication speed. Their optimization of the existing M-term Karatsuba-like algorithm yielded reduced size and depth compared to prior works.

The main contributions of the outlined study are as follows:

1. Conducting gate-level space and time complexity analyses for extended term-based Karatsuba-like algorithms.
2. Devising a strategic plan to develop an effective finite field multiplier using the M-term Karatsuba-like approach.
3. Experimentally evaluating the proposed hardware on FPGA with reduction in delay and area compared to KOM.

II. AIM AND OBJECTIVES

A. Aim

To design a 32-bit Binary Polynomial Multiplier.

B. Objectives

1. To reduce the delay of the multiplier.
2. To reduce the area of the multiplier.

III. BACKGROUND

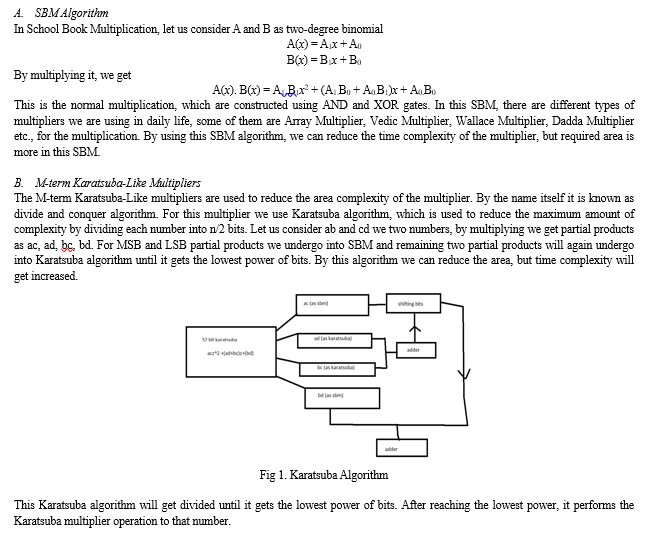

In the realm of finite field arithmetic, the process of multiplication involves utilizing a binary polynomial multiplier, followed by a modular reduction with an irreducible polynomial. The complexities of space and delay in implementing this multiplier are determined by its multiplicative and additive costs. The assessment of space complexity involves the number of combinational gates needed for implementation, while delay complexity is gauged by the linear sum of standard gate delays. This section evaluates the space and delay complexities of the SBM method and the M-term Karatsuba-like approach. By utilizing the both multiplication techniques SBM and Karatsuba we are implementing a 32-bit Binary Polynomial Multiplier.

Conclusion

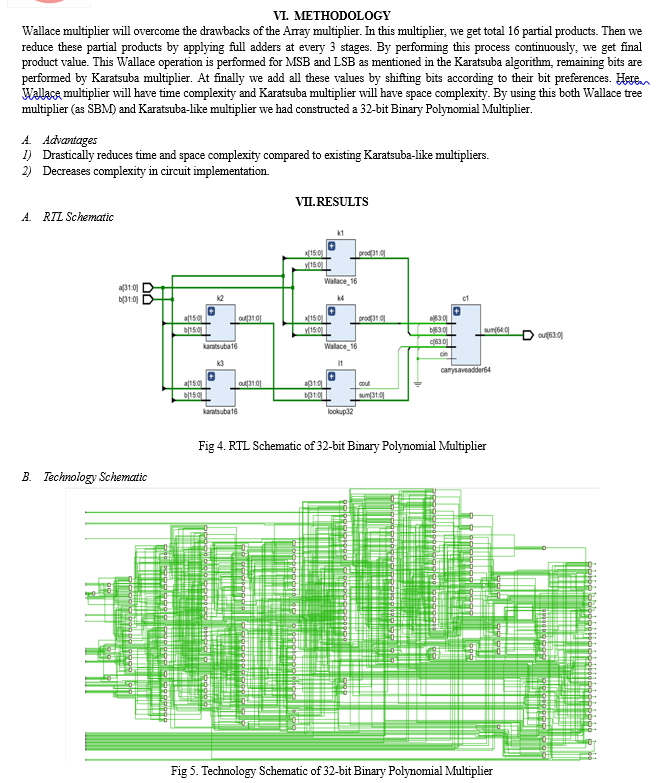

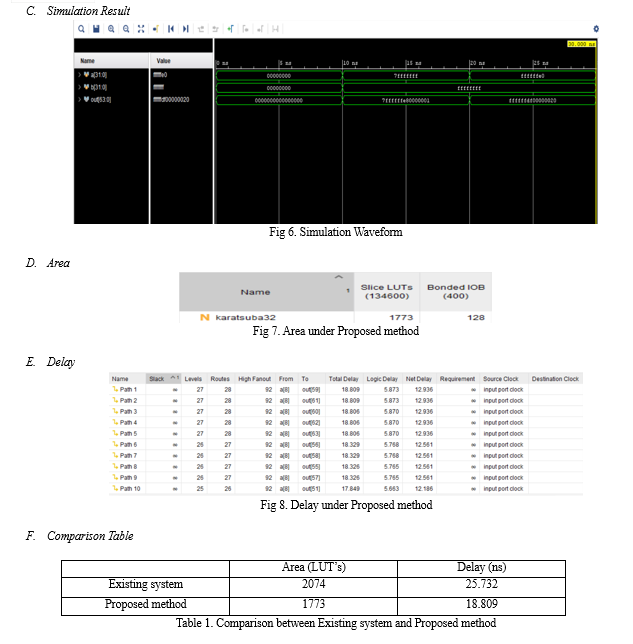

In this article, first M-term Karatsuba-like binary multipliers were analysed in terms of space and time complexities for different values of M and various operand sizes (n). Later, a novel composite method is introduced to take advantage of the low-space complexity of M-term Karatsuba-like and low time complexity SBM (Wallace tree multiplier). The proposed method was extensively tested Xilinx to attain the improvement graph over other similar works. By comparing the area and the delay products of existing system and proposed system, the time and space complexities were drastically reduced. By this project, we had implemented a 32-bit Binary polynomial multiplier which are efficient in both area and delay values. This work achieved the suitable trade-off between space and time complexities, which minimizes the ADP requirement of the multiplier.
