Machine Learning Based Heart Disease Prediction System

Abstract

Heart attack disease is one of the leading causes of the death worldwide. In today’s common modern life, deaths due to the heart disease had become one of major issues, that roughly one person lost his or her life per minute due to heart illness. Predicting the occurrence of disease at early stages is a major challenge nowadays. Machine learning when implemented in health care is capable of early and accurate detection of disease. In this work, the arising situations of Heart Disease illness are calculated. Datasets used have attributes of medical parameters. The datasets are been processed in python using ML Algorithm i.e., Random Forest Algorithm. This technique uses the past old patient records for getting prediction of new one at early stages preventing the loss of lives. In this work, reliable heart disease prediction system is implemented using strong Machine Learning algorithm which is the Random Forest algorithm, which read patient record data set in the form of CSV file. After accessing dataset the operation is performed and effective heart attack level is produced. Advantages of proposed system are High performance and accuracy rate and it is very flexible and high rates of success are achieved.

Introduction

I. INTRODUCTION

Heart disease effects the functioning of the heart. World Health Organization had made a survey and made a conclusion that 10 million people are affected with heart disease and lost their lives. The problem that the Healthcare industry faces in today’s life is early prediction of disease after a person is affected.

Records or data of medical history is very large and the data in real world might be incomplete and inconsistent. In past predicting the disease effectively and treatment to patients might not be possible for every patient at early stages under these circumstances.

Many scientists tried to build a model which is capable of predicting the heart disease in the early stage, but they are not able to build a perfect model. Every proposed system has disadvantages in its own way. In the existing system, Shen et al. had initially, proposed a system which is based on self-applied questionnaire.

In this system the user need to enter all the symptoms which he is suffering from, based on that the result is predicted. This study is based on the analysis data collected in SAQ.  Chen et al. came up with an idea to predict heart disease. He used the technique of Vector Quantization which is one of the artificial intelligence techniques for classification and prediction purpose. Training of neural networks is performed using back propagation to evaluate the prediction system. In the testing phase approximately 80% accuracy is achieved on testing set. Practical use of data collected from previous records is time consuming. Low accuracy rate. So to overcome this we are implementing Random forest algorithm in order to achieve accurate results in less time. Machine learning is given a major priority in modern life in many applications and in healthcare sector. Prediction is one of area where machine learning plays a vital role, our topic is to predict heart disease by processing patient’s dataset and a data of patients i.e., user of whom we need to predict the chances of occurrence of a heart disease. Heart disease can be detected using the symptoms like: high blood pressure, chest pain, hypertension, cardiac arrest, etc.  There are many types of heart diseases with different types of symptoms. Like: 1) heart disease in blood vessels: chest pain, shortness of breath, pain in neck throat., 2)heart disease caused by abnormal heartbeats :slow heartbeat, discomfort, chest pain., etc. Most common symptoms are chest pain, shortness of breath, discomfort, chest pain., etc. Most common symptoms are chest pain, shortness of breath, fainting. Causes of heart disease are defects you’re born with, high blood pressure, diabetes, smoking, drugs, alcohol. Sometimes in heart disease the infection also affects the inner membrane which is identified by symptoms like fever, fatigue, dry cough, skin rashes. Causes of heart infection are bacteria, viruses, parasites.  Types of heart disease: Cardiac arrest, Hypertension, Coronary artery disease, Heart failure, Heart infection, congenital heart disease, slow heartbeat, Stroke type heart disease, angina pectoris. Nowadays there are too many automated techniques to detect heart disease like data mining, machine learning, deep learning, etc. So, in this paper we will briefly introduce machine learning techniques. In this we train the datasets using the machine learning repositories.

There are some risk factors on the basis of that the heart disease is predicted. Risk factors are: Age, Sex, Blood pressure, Cholesterol level, Family history of coronary illness, Diabetes, Smoking, Alcohol, Being overweight, Heart rate, Chest Pain.

A. Problem Statement

Heart disease can be managed effectively with a combination of lifestyle changes, medicine and, in some cases, surgery. With the right treatment, the symptoms of heart disease can be reduced and the functioning of the heart improved. The predicted results can be used to prevent and thus reduce cost for surgical treatment and other expensive.

B. Objectives

The main objective of this research is to develop a heart prediction system. The system can discover and extract hidden knowledge associated with diseases from a historical heart data set. Heart disease prediction system aims to exploit data mining techniques on medical data set to assist in the prediction of the heart diseases.

C. Methodology

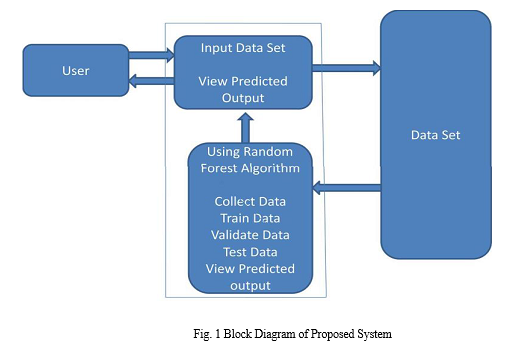

Figure 1 depicts the overall process of this work. Our aim is to build an application of heart disease prediction system using robust Machine Learning algorithm which is Random Forest algorithm. A CSV file is given as input. After the successful completion of operation the result is predicted and displayed.

The working of the system starts with the collection of data and selecting the important attributes. Then the required data is pre-processed into the required format.  The data is then divided into two parts training and testing data. The algorithms are applied and the model is trained using the training data. The accuracy of the system is obtained by testing the system using the testing data. This system is implemented using the following modules.

1. Collection of Dataset
2. Selection of attributes
3. Data Pre-Processing
4. Balancing of Data
5. Disease Prediction

II. LITERATURE SURVEY

This section discusses the state-of-the-art methods for heart disease diagnosis using machine learning techniques that were accomplished by various effective research works.

R. Perumal et al. [18] developed a heart disease prediction model using the Cleveland dataset of 303 data instances through feature standardization and feature reduction using PCA, where they identified and utilized seven principal components to train the ML classifiers. They concluded that LR and SVM provided almost similar accuracy values (87% and 85%, respectively) compared to that of k-NN with 69%. C. B. C. Latha et al. [19] performed a comparative analysis to improve the predictive accuracy of heart disease risk using ensemble techniques on the Cleveland dataset of 303 observations. They appliedthe brute force method to obtain all possible attribute set combinations and trained the classifiers. They achieved a maximum increase in the accuracy of a weak classifier of 7.26% based on ensemble algorithm, and produced an accuracy of 85.48% using majority vote with NB, BN, RF, and MLP classifiers using an attribute set of nine attributes. D. Ananey-Obiri et al. [20] developed three classification models, namely, LR, DT, and Gaussian naïve Bayes (GNB), for heart disease prediction based on the Cleveland dataset. Feature reduction was performed using single value decomposition, which reduced the features from 13 to 4. They concluded that both LR and GNB had predictive scores of 82.75% and AUC of 0.87. It was suggested that other models, such as SVM, k-NN, and random forest, be included.

N. K. Kumar et al. [21] trained five machine learning classifiers, namely, LR, SVM, DT, RF, and KNN, using a UCI dataset with 303 records and 10 attributes to predict cardiovascular disease. The RF classifier achieved the highest accuracy of 85.71% with an ROC AUC of 0.8675 compared to the other classifiers. A. Gupta et al. [22] replaced the missing values based on the majority label and derived 28 features using the Pearson correlation coefficient from the Cleveland dataset and trained LR, KNN, SVM, DT, and RF classifiers using the factor analysis of mixed data (FAMD) method; the results based on a weight matrix RF achieved the best accuracy of 93.44%. M. Sultana et al. [23] explored KStar, J48, sequential minimal optimization (SMO), BN, and MLP classifiers using Weka on a standard heart disease dataset from the UCA repository with 270 records and 13 attributes; they achieved the highest accuracy of 84.07% with SMO.

S. Mohan et al. [24] developed an effective hybrid random forest with a linear model (HRFLM) to enhance the accuracy of heart disease prediction using the Cleveland dataset with 297 records and 13 features. They concluded that the RF and LM methods provided the best error rates.

S. Kodati et al. [25] developed a heart disease prediction system (HDPS) with the Cleveland dataset of 297 instances and 13 attributes using Orange and Weka data mining tools, where they evaluated the precision and recall metrics for the naïve Bayes, SMO, RF, and KNN classifiers.

A. Ed-daoudy et al. [26] researched the Cleveland dataset of 303 records and 14 attributes from UCI. They evaluated the performance of the four main classifiers, namely, SVM, DT, RF, and LR, using Apache Spark with its machine learning library MLlib.

I. Tougui et al. [27] compared the performances of LR, SVM, KNN, ANN, NB, and RF models to classify heart disease with the Cleveland dataset with 297 observations and 13 features using six data mining tools: Orange, Weka, RapidMiner, Knime, MATLAB, and Scikit-Learn.

V. Pavithra et al. [28] proposed a new hybrid feature selection technique with the combination of random forest, AdaBoost, and linear correlation (HRFLC) using the UCI dataset of 280 instances to predict heart disease. Eleven (11) features were selected using filter, wrapper, and embedded methods; an improvement of 2% was found for the accuracy of the hybrid model.

C. Gazeloglu et al. [29] projected 18 machine learning models and 3 feature selection techniques (correlation-based FS, chi-square, and fuzzy rough set) to find the best prediction combination for heart disease diagnosis using the Cleveland dataset of 303 instances and 13 variables.

N. Louridi et al. [30] proposed a solution to identify the presence/absence of heart disease by replacing missing values with the mean values during pre-processing. They trained three machine learning algorithms, namely, NB, SVM (linear and radial basis function), and KNN, by splitting the Cleveland dataset of 303 instances and 13 attributes into 50:50, 70:30, 75:25, and 80:20 training and testing ratios.

M. Kavitha et al. [31] implemented a novel hybrid model on the Cleveland heart dataset of 303 instances and 14 features with a 70:30 ratio for training and testing by applying DT, RF, and hybrid (DT + RF) algorithms.

B. A. Tama et al. [32] designed a stacked architecture to predict heart disease using RF, gradient boosting machine, and extreme gradient boosting with particle swarm optimization (PSO) feature selection using various heart disease datasets, including the Cleveland with 303 instances and 13 attributes.

From the experimental works, it is understood that data pre-processing and feature selection can substantially enhance the classification accuracy of machine learning algorithms. During pre-processing, most researchers [18,19,21,22,26,29–32] replaced the missing values, either by using the mean value or the majority mark of that attribute, to make sure the dataset was comprehensive. In some works [20,24,25,27], the missing valued instances were removed. Feature selection is a challenging task due to the large exploration space. It grows exponentially according to the number of features available in the dataset. To solve this issue, an effective comprehensive search technique is required during feature selection. Furthermore, some studies have employed ensemble models, which combine multiple basic learning algorithms to obtain a better prediction accuracy. However, the performance of these techniques can further be improved regarding accurately predicting disease.

III. SYSTEM DESIGN

System design thought as the application of theory of the systems for the development of the project. System design defines the architecture, data flow, use case, class, sequence and activity diagrams of the project development.

A. System Architecture

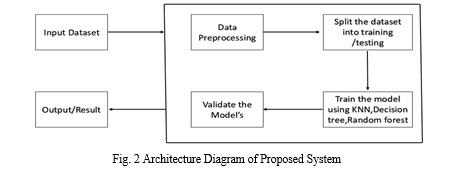

The below architecture diagram in figure 2 illustrates how the system is built and is the basic construction of the software method. Creations of such structures and documentation of these structures is the main responsible of software architecture.

The working principle of the system is shown in fig.2

1. Input Dataset: The user enters the input.
2. Data Pre-Processing: Itcan refer to manipulation or dropping of data before it is used in order to ensure or enhance performance, and is an important step in the data mining process. Data pre-processing is an important step for the creation of a machine learning model. Initially, data may not be clean or in the required format for the model which can cause misleading outcomes. In pre-processing of data, we transform data into our required format. It is used to deal with noises, duplicates, and missing values of the dataset. Data pre-processing has the activities like importing datasets, splitting datasets, attribute scaling, etc. Pre-processing of data is required for improving the accuracy of the model.
3. Split Dataset Into Train and Test: The train-test split is used to estimate the performance of machine learning algorithms that are applicable for prediction-based Algorithms/Applications. This method is a fast and easy procedure to perform such that we can compare our own machine learning model results to machine results.
4. Train the Model: Input which is compared with the data present in the existing data set by using the Random Forest Algorithm. It is an efficient ML algorithm that comes under supervised learning technique. It is be used for both Regression and Classification problems. To solve a complex problem, it uses a process of combining multiple classifiers, to increase the accuracy and performance of the model. "Random Forest is known as classifier that contains more number of decision trees on different subsets of the given dataset and considers the average to improve the predictive accuracy of that dataset."
5. Validate: Model validation refers to the process of confirming that the model actually achieves its intended purpose. In most situations, this will involve confirmation that the model is predictive under the conditions of its intended use.
6. Output or Result: Dataset collection is collecting data which contains patient details. Attributes selection process selects the useful attributes for the prediction of heart disease. After identifying the available data resources, they are further selected, cleaned, made into the desired form. Different classification techniques as stated will be applied on pre-processed data to predict the accuracy of heart disease. Accuracy measure compares the accuracy of different classifiers.

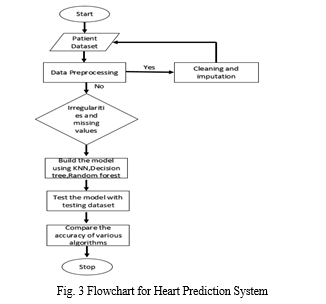

B. Flowchart

The first step is to collect data on patients, which typically includes demographic information as well as medical history. The data is then cleaned and pre-processed to prepare it for analysis.

The dataset is then split into training and testing sets. The training set is used to train the machine learning model, and the testing set is used to evaluate its performance. Various supervised learning algorithms can be used to train the model, such as logistic regression, decision trees, or neural networks. The accuracy of the model is then evaluated using the testing set.

The model can be further optimized by adjusting the hyper parameters using techniques such as cross-validation and grid search. Once the model is optimized, it can be deployed in a real-world setting to predict the likelihood of heart disease in new patients.

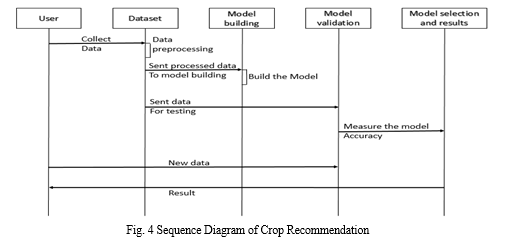

C. Sequence Diagram

A sequence diagram is a type of UML (Unified Modeling Language) diagram that depicts the interactions between objects or components in a system or process. It shows the order in which messages are exchanged between the objects, along with the time sequence of those messages. Below figure 4 shows the sequence diagram of crop and fertilizer recommendation.

Conclusion

Heart disease prediction is a major challenge in the present modern life. With this application if the patient/user is away from reach of doctor, he/she can make use of the application in prediction of disease just by entering the report values. And can proceed further whether to consult a doctor or not. A. Future Scope In future this application can extended by updating some features like, if the user is effected with heart disease all his family members will be notified with a message in early. And also the information should be passed to the nearest hospital. Another feature is there should be online doctor consultation with the nearest doctor available. In this regard, it is important to note that, ML applications using various efficient algorithms are utilized not only in disease prediction and diagnosis but also in the field of radiology, bioinformatics and medical imaging diagnosis etc.
