Analysis of Leachate from the Municipal Solid Waste Disposal Site and Its Impact on Ground Water Quality At, Lucknow Cantonment

Abstract

Open dumping of municipal solid waste is prone to groundwater contamination because of leachate production. In this report, an attempt has been made to assess the pollution potential of leachate generated from the solid waste disposal site and its impact on aquifers in Neil line Lucknow environs, Uttar Pradesh, India. Physico-chemical parameters of leachate are determined to evaluate water quality index (WQI) .A large amount of the water requirement of Lucknow City is supplied from groundwater. The quality of this groundwater was determined by taking samples from wells within the study area. The purposes of this investigation were .To provide an overview of present groundwater quality . To determine spatial distribution of groundwater quality parameters such as pH, electrical conductivity, Cl? , SO4?2, hardness, and NO3? concentrations, and.To map groundwater quality in the study area by using GIS and Geostatistics techniques. ArcGIS 9.0 and ArcGIS Geostatistical Analyst is used for generation of various thematic maps and ArcGIS Spatial analyst to produce the final groundwater quality map .

Introduction

I. INTRODUCTION

This d Presently, India produces 90 million tons of municipal solid waste (MSW) annually. MSW is made up of different organic and inorganic fractions like food, vegetable, paper, wood, plastics, glass, metals, and other inert materials. In Lucknow, it is collected by the municipalities and transported to designated disposal sites (Mor et al. 2006). Due the rapid increase in production and consumption, urban society rejects and generates solid material regularly which leads to a huge increase in the volume of waste generated from several sources such as household, commercial, institutional wastes etc. So waste is a progressively  growing problem at the global and regional level as well as the local levels. The main problem is proper disposal sites have not until been identified by many municipalities and those  are identified are exhausted creating a major threat for the land, air, and water quality of the nearby areas. The open dumping of solid waste causes a crucial impact on all the components of environment (Sharholy 2007). With increase in population and growth of industrialization, groundwater quality is being increasingly destroyed by the disposal of urban and industrial solid waste (Raju et al. 2011; Singh et al. 2015a).

After dumping o solid waste in low-lying areas, they may come into contact with groundwater or rain water along with run-off resulting in the generation of leachate (Akinbile et al2012) Such leachate contains innumerable hazardous and  inimical chemicals which, if introduced into groundwater, would impact its quality or destroy the ability to use it for drinking and other domestic use (Naqa 2004; Cumar and Nagaraja 2011). The rate of depletion of groundwater levels and deterioration of groundwater quality is of immediate concern in major cities and towns of the country (Raju 2006; Prasanna et al. 2011).

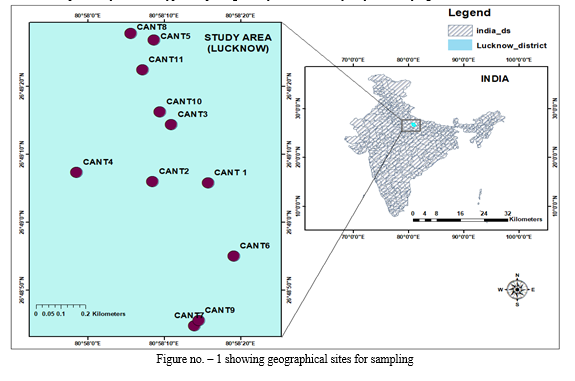

Table no.1 showing location and there corresponding samples

Lucknow is the capital city of the most populated state of Uttar Pradesh and is one of the rapidly developing urban centers of India. Lucknow district is a part of Central Gangatic Plain covering an area of 2, 528 km2 . and lies in middle of North latitudes 26°30’ and 27°10’ and East longitudes 80°30’and 81°13’ with total population of 34 lakhs as per 2011 (Anonymous, 2011). The city is facing a frequent change in environmental quality. Rapid urbanization leads to number of problems as it places large demand on land, water, housing, transport, health, Education etc (Gyananath et al., 2001). The city has an alarming increase in population, it increased from 0.497 million in 1951 to 2.267 million in 2001 and 2.714 million in 2006 to 3.306 in 2011 increased 4.56 times (456 per cent) during the last fifty years. The growth rate of  Lucknow (UA) was at 7.12% per annum (Lucknow Master Plan, 2010). This rising population density has vast impact on natural resources of the area majorly on water quality and quantity.

II. STUDY AREA

Lucknow district of Uttar Pradesh, India, has been introduce in detail.The whole city is spreads over an area of 2528.km2 . Lucnow is located between  26°55’  North  latitudes and 80°59’  East longitudes, on both the sides of river Gomti. Total population of Lucknow is 3,765,000  as per latest provisional figures released by Directorate of Censusin 2021, a increase of 2.39%  from 2020.As per census 2021, density of Lucknow District per square km is 8100 .

The climate is typically humid subtropical  characterized by hot summer March to mid May and cold winter November to February and annual rainfall is about 999 mm, mostly localized between June to September. Situated at an average altitude of 123 m from  mean sea level, it slopes gently from northwest to southeast. Lucknow district is flanked by the perennial rivers  Gomti.The soil of the Lucknow  is of quaternary alluvium type comprising mostly sand and sandy clay with varying amounts of calcareous nodules.

III. OBJECTIVE

1. To assess the pollution potential of leachate generated from the solid waste  impact on ground water in the Neil Line Lucknow, Uttar Pradesh, India.
2. To determine Physico-chemical parameters of leachate and groundwater samples will be determined to evaluate water quality index (WQI) .
3. The migration of heavy metals from leachate through the soil profile.

IV. METHODOLOGY

Dug wells and bore wells were selected for sampling, which are functional and continuously in use for drinking and domestic purposes. A total of 21 groundwater samples were collected from dug wells and bore wells (hand pumps) in the study area during April, 2012 and one leachate sample at the solid waste disposal site. Samples bottles were cleaned by rinsing them with distilled water followed by their treatment with 1 M solution of the preservative acid. In the case of bore wells (hand pumps) the water samples were collected after pumping for 10–15 min in order to remove stagnant groundwater. Water samples collected in polyethylene bottles were used for measuring major cations and anions while samples for metals were collected in separate clean polyethylene bottles after filtering and were acidified with nitric acid to a pH below 2.0 to minimize precipitation and adsorption on container wall (APHA 2005). Heavy metal estimation in the leachate sample was done by digesting 50 ml sample in 10 ml of conc. HNO3 at 80 °C until the solution becomes transparent (APHA 2005). Then the solution was filtered through Whatman filter paper and the volume make up with 100 ml distilled water. Iron (Fe), Chromium (Cr), Cadmium (Cd), Zinc (Zn), Lead (Pb), Manganese (Mn), and Arsenic (As) for groundwater and leachate were analyzed by atomic absorption spectroscopy. pH and electrical conductivity (EC) were measured by pHand EC meters respectively. Total dissolved solid (TDS) was also measured by the EC meter in the field using the standard procedure. Fluoride (F) was analyzed using Orion ion selective electrode 4 Star. Sodium (Na), and Potassium (K) were determined by using flame photometer (Elico CL-378). Calcium (Ca), bicarbonate (HCO3), total hardness (TH), and chloride (Cl) were analyzed by titrimetric method and magnesium (Mg) estimated by the difference in the hardness and calcium. Titrimetric method helps to estimate the concentration of desired ion using chemical indicators which produce a physical change (color) to predict the equivalence point. Sulfate (SO4), phosphate (PO4), nitrate (NO3), total kjeldahl nitrogen (TKN), ammonia nitrogen, and dissolved silica (SiO2) were determined by UV-3200 double beam spectrophotometer model. The chemical oxygen demand (COD) was determined by open reflux digestion method and biological oxygen demand (BOD) was estimated by azide modification of Winkler method. The charge balance of cation and anion calculated was generally<5 % and ratio of TDS/EC are within acceptable limits (0.5), confirming the reliability of the analytical results.

V. RESULT AND DISCUSSION

A. Leachate Characterization And Groundwater Chemistry

Physico-chemical parameters of the leachate depend primarily upon the waste composition and water content. The leachate characterization is carried out by collecting leachate sample  in the drainage and result of the leachate is presented in the Table 1. The pH value of the leachate sample of landfill site is 7.5. Leachate is generally found to have pH between 4.5 and 9 (Christensen et al. 2001). The pH of young leachate is less than 6.5 while old landfill leachate has pH higher than 7.5 (Abbas et al. 2009). Due to the high concentration of volatile fatty acids pH is less than 6.5 at the initial stages of leachate generation, but during the methanogenic stage volatile fatty acids have been converted into methane and carbon dioxide, so pH of leachate would become alkaline. The alkaline nature of leachate shows the mature to old stage of the dumping site (Jorstad et al. 2004). The pH of the present study indicates that the Lucknow solid waste dumping shows mature stage of dumping site. To understand the effect of the leachate of groundwater resources, 11 groundwater samples in and around the solid waste dumping site have been collected randomly. A systematic study conducted to determine the impact of municipal solid waste disposal on groundwater in Lucnow cant has revealed that the groundwater of nearby wells is being significantly contaminated due to the leachate from the landfill. The average concentration of major ions and heavy metals in the leachate and in the groundwater samples collected at varying radial distances from the landfill are shown in Table 1. The data indicate the landfill as the point source for all the contaminants because groundwater flow is outward from the landfill site and the concentration of pollutants decreases radically as we move away from the landfill site, but high EC, TDS, Cl, NO3 and Na are found at the periphery (>3.5 km) of the study area due to localized anthropogenic sources i.e., agricultural activity, animal excreta, application of fertilizers and pesticides, and localized domestic sewage contamination. Electrical conductivity of leachate is 15,800 μS/cm and high EC concentrations are found in the bore wells close to the landfill site. The differences of silica of leachate and groundwater samples are very little which indicate that the source of silica in the groundwater is due to the geogenic process. Silica concentration in groundwater is most conveniently related to interaction with solid phases, as it enters the system during the weathering of silicate minerals . The Ca, Mg, K, and Na values of leachate are 1600, 600l, 280, and 1385 mg/l, respectively. The possible source of cations in leachate is domestic wastes (Kale et al. 2010). High calcium and sodium concentrations are observed in some of the wells close to landfill site which may be due to leaching of pollutants from the landfill site or anthropogenic wastes mixing with the rainwater and percolation in the groundwater system which led to increase concentration in nearby well (≤1) from the landfill site. The anions of landfill leachate of HCO3, F, NO3, SO4, Cl, and PO4 are 141, 0.3, 327, 267, 1250, and 2.25 mg/l, respectively (Table 1). High chloride, sulfate and nitrate concentrations are primarily due to domestic wastes and kitchen wastes from households, restaurants, and hotels (Mor et al. 2006; Kale et al. 2010). Urea and ammonium nitrate are most commonly used as fertilizers, contributing nitrates to the groundwater (Raju et al. 2011). The high concentrations of chloride in nearby wells indicate the influences of leachate, domestic waste, and other agricultural activities. The heavy metals (Fe, Cr, Cd, Zn, Pb, Mn, and As) were analyzed to assess the metal pollution in the leachate (Table 1). The concentration of heavy metals in a landfill is generally higher at earlier stages because of the higher metal solubility as a result of low pH caused by the production of organic acids (Kulikowska and Klimiuk 2008). As a result of increased pH at later stages, a decrease in metal solubility occurs resulting in a rapid decrease in the concentration of heavy metals except lead because lead is known to produce a very heavy complex with humic acids (Harmsen 1983). There is no known natural source of heavy metals in the study area, but iron, chromium, and lead are found to be more prevalent in the leachate and nearby groundwater wells which may be due to plastics, batteries, leather, paint products, metallic items, fluorescents lamps, wood preservatives, and metal scrap dumped in the solid waste disposal site. Vehicular emissions and agricultural activities also contribute heavy metals such as Pb, Cu, Zn, and Cd to the study area.

Table – 2 determination water qualiy

B.  Water Quality Classification for Household Purposes

A quick and easy way to show when the quality of the water is declining is the water quality index (WQI). WQI aids in better management of problems with water quality and increases the efficiency of preventative measures.. It is crucial to categorise water quality according to its appropriateness for consumption (Vasanthavigar et al. 2010). For the calculation of WQ, the requirements for drinking specified by BIS 10500 (2003) have been taken into account.I. In order to calculate WQI, weights (wi) were assigned based on the relative significance of each chemical parameter for drinking. Due to their significant significance in determining water quality, the parameters chloride, nitrate, total dissolved solids, fluoride, iron, and sulphate have been given the maximum weight of 5 (Srinivasamoorthy et al. 2008). Given a minimum weight of 1, bicarbonate and phosphate are considered minor contributors to water quality. According to their significance in determining water quality, other characteristics such as calcium, magnesium, sodium, total hardness (TH), manganese, silicate, and potassium were given weights ranging from 1 to 5. The following equation is used to calculate the relative weight (Wi).:

Where n is the number of parameters, wi is the weight of each parameter, and wi is the relative weight. By dividing each parameter's concentration in each water sample by its corresponding standard in accordance with the BIS 10500 (2003) criteria, and then multiplying the result by 100, each parameter is given a quality rating scale (qi). where the quality rating, qi, is determined by the concentration of the ith parameter. Ci represents the concentration in milligrammes per litre of each chemical parameter in each water sample. The standard for each chemical parameter in drinking water in India is SI, measured in milligrammes per litre.. For each chemical parameter, the Si is first calculated in order to calculate the WQI, which is then done using the equation below:

 where SIi is the ith parameter's sub-index. The water may be categorised into five categories based on the water quality index values, including exceptional water. (300)

Table 2 Leachate pollution index (LPI) for the landfill site

Final value o WQI by dividing the total overall pollution rating by total Wi  =  89.56mg/l.

VI. ACKNOWLEDGMENTS

The first author (SV) is thankful to Asst.Prof. Anirudh Gupta CED,IET Lucknow and also thankful of Ecomen Laboratoy Pvt. Ltd. Lucknow  for providing their prestigious support in finding out the results of  the sample .

Conclusion

Groundwater is immensely important for water supply in both urban and rural areas of developing nations. The impact of municipal solid waste disposal site has revealed that groundwater of nearby wells are significantly contaminated due to leachate. The quality of groundwater was not much affected in many wells which are far away from the landfill site. The leachate generated in the Lucknow cant Neil line landfill is less viscous due to the low concentration of contaminants such as TKN, BOD, Cl, and COD present in the leachate which represents the moderate value of LPI. The majority of the groundwater samples belong to the good quality water and only 12% of the samples show as unsuitable for drinking purposes. Based on the values of the water quality index, the water may be divided into five classes.: excellent water 50 acceptable water 51 – 100 bad water 101 -200 extremely poor water 201 – 300 water unfit for consumption >301 Table - 13 The research area\'s WQI values vary from 51 to 387 mg/l. 11 groundwater samples were taken, and 61% of them water looked wonderful., 20% showed bad water, 4% showed extremely poor water, and 12% showed water that wasn\'t fit for consumption. The regional water quality index revealed that ions from the dump site are affecting surrounding wells. A high WQI value is seen in the study\'s northwest corner

References

[1] Assessment of pollution potential of leachate from the municipal solid waste disposal site and its impact on groundwater quality, Varanasi environs, India Shubhra Singh & N. Janardhana Raju & Wolfgang Gossel & Peter Wycisk [2] Abbas AA, Jingsong G, Ping LZ, Ya PY, Al- Rekabi WS (2009) Review on landfill leachate treatments. Am J Appl Sci 6(4):672–684. doi:10. 3844/ajassp.2009.672.684 [3] Akinbile CO, Yusoff MS, Shian LM (2012) Leachate characterization and phytoremediation using water hyacinth (Eichorrnia crassipes) in Pulau Burung, Malaysia. Biorem J 16(1):9–18. doi:10.1080/ 10889868.2011.628350 [4] APHA (2005) Standard methods for the examination of water and wastewater, 25th edn. American Public Health Association, Washington, DC [5] BIS 10500 (2003) Indian standard: drinking water. Specification (first revision), amendment No 2, New Delhi [6] CERG (2011) Chintan environmental research and group. http://www. chintan-india.org/documents/research_and_reports/chintan-reportfailing-the-grade.pdf [7] Chian ESK, De Walle FB (1976) Sanitary landfill leachate and their treatment. J Environ Eng Div 102(2):411–431 [8] Christensen TH, Kjeldsen P, Bjerg PL, Jensen DL, Christensen JB, Baun A, Albrechtsen HJ, Heron G (2001) Biogeochemistry of landfill leachate plumes. Appl Geochem 16:659–718. doi:10.1016/S0883- 2927(00)00082-2 [9] Cloutier V, Lefebvre R, Therrien R, Savard MM (2008) Multivariate statistical analysis of geochemical data as indicative of the hydrogeochemical evolution of groundwater in a sedimentary rock aquifer system. J Hydrol 353(3–4):294–313. doi:10.1016/j.jhydrol.2008. 02.015 [10] Craig E, Anderson MP (1979) The effects of urbanization of ground water quality: a case study of ground water ecosystems. Environ Conserv 30(2):104–130 [11] Cumar SK, Nagaraja B (2011) Environemntal impact of leachate characteristic on water quality. Environ Monit Assess 178(1–4):499–505. doi:10.1007/s10661-010-1708-9 [12] Dhere AM, Pawar CB, Pardeshi PB, Patil DA (2008) Municipal solid waste disposal in Pune City—an analysis of air and groundwater pollution. Curr Sci 95(6) [13] D?az RV, Aldape J, Flores M (2002) Identification of airborne particulate sources, of samples collected in Ticomán, Mexico, using PIXE and
