Network Revolution in the IT Industry: Transforming Connectivity and Innovation

Abstract

Introduction

I. SPANNING TREE PROTOCOL (STP) OVERVIEW

Spanning Tree Protocol (STP) is a Layer 2 protocol essential in Ethernet networks to prevent network loops. Redundant paths in a network can cause:

1. Broadcast storms: Excessive traffic that floods the network.
2. Multiple frame copies: Duplication of frames, creating confusion.
3. MAC table instability: Incorrect MAC address mapping due to looped traffic.

STP ensures there is always a single active path between devices in a network by blocking redundant paths until needed.

II. KEY FEATURES OF TRADITIONAL STP

1. IEEE Standard: Defined by the IEEE 802.1D specification.
2. Root Bridge Election: Utilizes Bridge Protocol Data Units (BPDUs) to elect a Root Bridge, which acts as the central reference point in the network topology.
3. Port States:

• Blocking: Prevents loops by not forwarding frames.
• Listening: Monitors BPDUs but doesn’t forward traffic.
• Learning: Builds MAC address tables without forwarding frames.
• Forwarding: Operates normally by forwarding frames.
• Disabled: No activity on the port.

1. Timers:

• Hello Time: Interval between BPDU transmissions (default: 2 seconds).
• Forward Delay: Time spent in the listening and learning states (default: 15 seconds each).
• Max Age: Time before considering a BPDU invalid (default: 20 seconds).

1. Redundant Path Management: Blocks redundant paths and only activates them when the primary path fails.

III. LIMITATIONS OF TRADITIONAL STP

1. Convergence Time: Takes 30-50 seconds to stabilize the network after a topology change.
2. Inefficiency: Redundant links remain blocked, resulting in underutilized bandwidth.

A. Base Topology

B. Configuration Details

• Created two Layer 3 VLANs (VLAN 10 and VLAN 20) on LAB-SWITCH-01, making it the Root Bridge for these VLANs.
• Configured LAB-SWITCH-02 as the Backup Root Bridge for both VLANs.
• Assigned Higher HSRP Priority to LAB-SWITCH-01, ensuring it is the active switch for both VLANs.

Switch Roles:

• LAB-SWITCH-01: Root Bridge for VLANs 10 and 20.
• LAB-SWITCH-02: Backup Root Bridge for VLANs 10 and 20.

C. Traffic Flow (Layer 2 STP)

Due to STP:

• Looped interfaces or redundant links are blocked to prevent Layer 2 loops.
• Traffic for VLANs 10 and 20 flows through a single active link, while the second link operates in a standby state.

LAB-SWITCH-01 – Root Bridge for Vlan 10, 20

LAB-SWITCH-02 – Backup Root Bridge for Vlan 10, 20

D. Base Topology – Blocking links

LAB-SWITCH-01: Spanning-Tree status

LAB-SWITCH-02 : Spanning-Tree status

LAB-SWITCH-03 : Spanning-Tree status

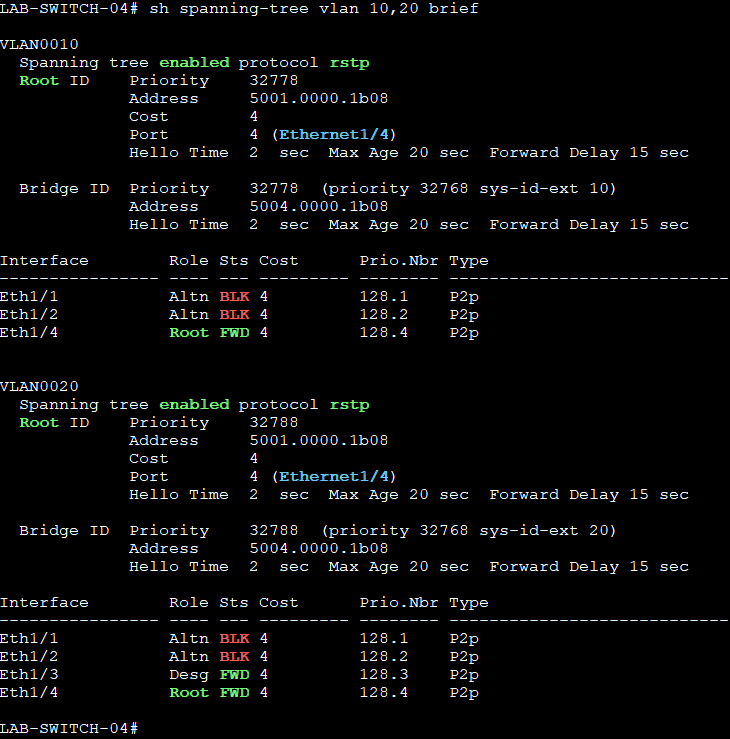

LAB-SWITCH-04 : Spanning-Tree status

LAB-SWITCH-01: HSRP Status

LAB-SWITCH-02 : HSRP Status

IV. BUSINESS CHALLENGE

From a business perspective:

1. Blocking expensive fiber links leads to resource underutilization.
2. All VLAN traffic passing through a single link increases operational costs and reduces network efficiency.

V. IMPLEMENTED SOLUTION

To optimize resource utilization and enhance network performance, the following solutions were implemented:

Per-VLAN Spanning Tree (PVST)

1. Configured separate primary and secondary paths for each VLAN to distribute traffic efficiently:

• VLAN 10: Uses Link A as its primary path.
• VLAN 20: Uses Link B as its primary path.

1. HSRP Configuration
2. Increased HSRP priority for VLAN 20 on the secondary switch to ensure smooth traffic flow at both Layer 2 and Layer 3.
3. To address this issue, we have implemented the following solutions to optimize resource utilization and enhance network performance:
4. For example, VLAN 10 uses Link A as its primary path, while VLAN 20 uses Link B.

Base Topology : Traffic Flow per Vlan

LAB-SWITCH-01: Spanning-Tree Status

LAB-SWITCH-02: Spanning-Tree Status

LAB-SWITCH-03: Spanning-Tree Status

LAB-SWITCH-04: Spanning-Tree Status

We need to increase the HSRP priority for VLAN 20 on the secondary switch to ensure smooth traffic flow not only at Layer 2 but also at Layer 3

LAB-SWITCH-02: HSRP Status

LAB-SWITCH-01: HSRP Status

VI. CISCO VIRTUAL PORT-CHANNEL (vPC)

Cisco’s Virtual Port-Channel (vPC) is a groundbreaking feature available on Nexus switches. It enables two switches to function as a single logical switch to downstream devices, ensuring high availability, redundancy, and loop-free topologies.

A. Why vPC is Needed?

Traditional Layer 2/Layer 3 designs heavily relied on STP, which has limitations:

• Redundant Path Blocking: STP blocks redundant links, wasting valuable bandwidth.
• Convergence Delays: Topology changes can cause high delays, impacting performance.

B. vPC Advantages

• Enables active-active forwarding on multiple links.
• Eliminates STP blocking on redundant paths.
• Provides faster convergence, ensuring high availability.

C. Key Benefits of vPC

1. Reduces STP Dependency: Minimizes reliance on STP for loop prevention.
2. Maximizes Link Utilization: Supports active-active forwarding, using all available links.
3. Simplifies Network Architecture: Makes dual-homed device configurations straightforward.
4. Improves Reliability and Performance: Enhances network uptime and efficiency.

D. Base vPC Configuration

1) vPC Peer-Link

A dedicated port-channel between two Nexus switches for synchronization.

2) Downstream Devices

Devices connected to both switches via active-active links, leveraging vPC for optimal bandwidth and redundancy.

LAB-SWITCH-01: vPC status

LAB-SWITCH-02: vPC status

Configuration for the downstream interface connected to the downstream switches

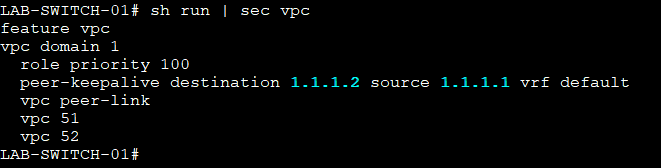

LAB-SWITCH-01

LAB-SWITCH-02

LAB-SWITCH-03 : Active interfaces connected to northbound devices

LAB-SWITCH-04 : Active interfaces connected to northbound devices

LAB-SWITCH-03 : Traffic is passing through both links without any blockage.

LAB-SWITCH-04 : Traffic is passing through both links without any blockage.

Conclusion

With the implementation of PVST and vPC, we addressed inefficiencies in traditional STP by enabling better resource utilization and ensuring a robust, scalable, and high-performing network. By increasing HSRP priority for VLAN 20 on the secondary switch, traffic flow has been optimized at both Layer 2 and Layer 3, enhancing overall network stability and business operations.
