Optimal Operation of Automotive Electrical System with Photovoltaic Generation and Three-level Battery Management Scheme

Abstract

For many years, the electrical power requirements in Automotive Electrical System (AES) have been quickly increasing and are predicted to continue to climb. This trend is being pushed by the introduction of a slew of new vehicle features. The constant growth in power needs is stretching the limitations of current automotive power generation and control technologies, stimulating the development of higher-power and higher-voltage electrical systems and components. Electrical power on a vehicle is not free. It comes as a direct result of consuming fuel within the engine to drive the alternator. With a typical engine efficiency of 44% and with present fuel costs this leads to onboard electrical power costs 4 times more than a typical household utility rate. Global oil and gas resource depletion, as well as environmental concerns, have prompted the automobile industry to build more efficient and eco-friendly cars in order to minimize fuel use and safeguard the environment. In our proposed Automotive Electrical system configuration, we have an AES system which is powered by an automotive alternator and battery combination where the alternator is driven by an IC engine and we have a hybrid energy system using a Rooftop PV array with a battery management system (BMS). We discovered that during the off state, the whole load of the automobile is dependent on the 12Vlead acid battery for power, which causes the SOC to drop dramatically. As a result, the suggested model will include a flexible thin-film solar PV module positioned on the rooftop, which will be supported by a Maximum Power Point (MPPT) Tracking charge controller and will deliver energy to recharge the extra battery and meet the electrical requirements when the vehicle is stationary. When the vehicle is in motion, the existing alternator in the car\'s electrical system takes over the battery charging requirements, by this way, we can meet the electrical requirements of AES without running the engine for a long time by consuming fuel. The proposed model specialty is investigated using MATLAB/Simulink and compared with existing methods.

Introduction

I. INTRODUCTION

On a vehicle, there is no free electricity. It occurs as a result of the alternator being driven by the engine's fuel consumption connected by the belt. From many years, automotive electrical power consumption has been quickly increasing because of including electrical loads like a starter motor, including of various sensors, mobile chargers, various indication lamps, FM radios etc, and this trend is projected to continue. Due to the technical development of automobiles, their electricity consumption has grown significantly over the past years and electronic control units (ECUs) have become the key components in automotive [1]. Their objectives include the control of the power train, as well as safety and comfort requirements. In the case of HEVs, additional demand of 100 Watts electrical power increases the fuel consumption by 0.1 to 0.2 liters per 100 kilometers. Similarly, in the case of BEVs, the electrical driving distance is reduced by electronics. In order to maximize the operational range of HEVs and BEVs, alternative energy harvesting methods such as photovoltaics are considered [2]. The Basic AES schematic circuit shown in Fig 1.

As we know that during off state the of vehicle entire loads depend on 12Vlead acid batteries for their supply which SOC may reduce drastically. Lead-acid batteries have a low charging rate i.e fully saturated battery takes 14 to 16 hours and it also has a limited life cycle more repeated cycles may reduce battery life Another problem is the low conversion efficiency of the alternator due to belt and also low-efficiency engine due to this electricity produced in the car is four times the average household utility rate. As a result, the fuel expenses connected with generating electricity can be substantial and should no longer be overlooked.

In this project, we have addressed the topic of how improving the automotive electrical system can combat this problem by measurably reducing fuel costs. First, a fundamental overview of the automotive electrical system is given. Each of the major power-related elements of the automotive electrical system are reviewed. The project involves in addressing the problems above by adding extra battery bank by a conjunction of PV array with MPPT [3] and hence decreasing the load on the alternator and supplying sleep mode currents and loads with power generated for solar and ultimately reducing fuel consumption. A battery management scheme for battery protection is developed.

II. MATHEMATICAL MODELLING OF AES COMPONENTS

Automotive Electrical System (AES) is a combination of various devices belonging to different domains. So, we need to analyze each component individually to get an overall understanding about its parameters and their prominence. For ease of modelling, the whole AES is divided into atomic units like the Alternator model, Starter motor, Lead-acid battery, PV array, MPPT, and DC-DC converters.

A. Automotive Alternator

The two components that generate power are the rotor and the stator. The rotor spins past three stationary stator windings, or wire coils, around a fixed iron core that makes up the stator as the engine rotates the alternator pulley. A three-phase current is what it's called. The coil windings are equally placed around the iron shaft at 120-degree intervals. The rotor's alternating magnetic field causes an alternating current to flow in the stator. The AC current is delivered into a connected set of diodes via stator leads. To manage the current, two diodes are connected to each stator lead. The diodes are used to stop and direct the flow of current. Because batteries require DC electricity, the diodes act as a one-way valve, allowing current to flow only in one direction.

Table 1: Automotive alternator Parameters

B. Modelling of starter Motor

A starter, also known as a starter motor it is generally a DC motor, it is an electrical device that rotates (cranks) internal combustion engines to allow them to start under their own power. Initially starter motor gets supply from 12V Lead Acid battery it draws huge amount of current. Later the engine was detached from the starter motor as soon as it started running and now relies on the combustion process. The starter motor gear meets the teeth of the flywheel in this component, which is located on the engine's gearbox housing. Based on engine power starter motor power rating varies, in this we have used 5KW motor.

ia = armature current eb= back emf ea= armature terminal voltage wm = motor speed (rad/sec) T = motor torque Tf = static friction torque Ra = armature resistance La = armature inductance Jm = rotational inertia Bm = viscous friction

Table 2: Starter Motor Parameters

C. Modelling of Lead-Acid Battery

In order to implement a better control strategy and justify the performance of the proposed topology in Automotive Electrical System, one must know the equivalent parameter model of lead acid battery as shown in Fig (4).

The battery is modelled as a series resistor and a constant voltage source if the Battery charge capacity parameter is set to infinite. The block mimics the battery as a series resistor and a charge-dependent voltage source if the Battery charge capacity parameter is set as Finite. In this we have considered battery with no dynamics, no self-discharge, and with no aging.  In the finite case, the voltage is a function of charge and has the following relationship:

where:

 1. SOC (state-of-charge) is the ratio of current charge to-rated battery capacity.

 2. V0 is the voltage when the battery is fully charged at no load, as defined by the Nominal voltage, Vnom parameter.

 3. β is a constant that is calculated so that the battery voltage is V1 when the charge is AH1. Specify the voltage V1 and ampere-hour rating AH1 using block parameters. AH1 is the charge when the no-load (open-circuit) voltage is V1, and V1 is less than the nominal voltage

Table 3: Battery Specifications

D. Mathematical Modelling of Photovoltaic Array

The mathematical equations of voltage and current are used and modelled using MATLAB/Simulink for PV array modelling. Solar cell modelling equations are simply multiplied by factors of series and parallel no of cells because an array is a series-parallel combination of solar cells. The single-diode electrical equivalent circuit of a PV cell is shown in Figure 5 is sufficient for PV Array modelling. It includes a current source (Iph) in parallel with a diode (D), a shunt resistance (Rsh) and a resistance (Rs) in series.

E. Buck Converter

Buck converter is a power electronic circuit that steps down the input DC voltage to the output load. Thus, the average output voltage of the buck converter is smaller than the source voltage. Buck converter circuit is shown in fig6. The working principle of the circuit depends on the condition of the switch. The switch has two states, which are closed (ON) or open (OFF). Switch (S) is generally a power electronic component such as MOSFETs. The operating mode buck converter consists of two types of continuous and discontinuous. Circuit operating modes depend on the current through the inductor. In continuous mode, the inductor current never reaches zero while in discontinuous mode will reach a value of zero for a time.

The Output voltage under continuous conduction mode is:

Table 5: Buck Converter Parameters

III. PROPOSED SIMULINK MODELS

Before discussing about the proposed AES topology, we will discuss about the basic model & its SIMULINK model shown in fig. 7 and its demerits compared with existing model.

Engine averaged model is developed with the help of parameters like car tire diameter and we have given the speed manually. The engine subsystem is shown in below fig. 8 it is the model for starting, idle and also for some constant speed which is same for both cases with PV and without PV.

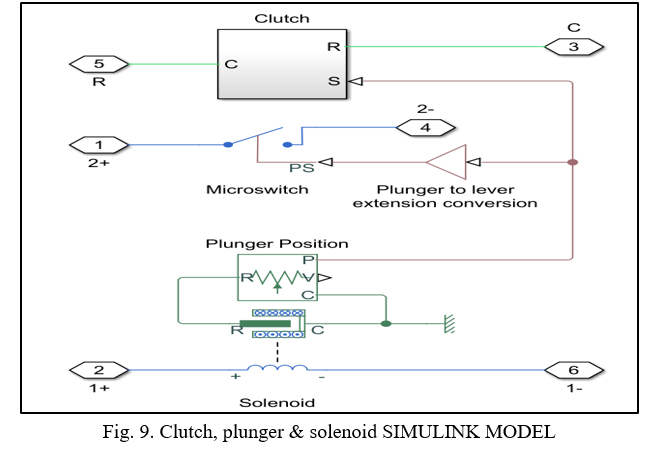

To start the engine in IC Engines it requires starting system which contains clutch, Starter solenoid, Pinion, starter motor etc. By pressing clutch the plunger will move the pinion gear flywheel teeth which is located on starter motor shaft will attached to the engine crank shaft later when we turn the ON the key solenoid coils get supply from the battery and will acts as a switch to the starter motor. So, when we turn the key a huge amount of current will flow from solenoid coils to starter motor which will rotate the pinion which is attached to engine later engine cranking occurred and car will start. After the car has started the plunger will comes back and supply to the starter motor will be turned OFF. The above fig. 9 represents clutch, plunger, solenoid subsystem

During starting huge current demanded by starting system mainly starter motor to crank the engine. This huge amount for current is supplied by 12V lead acid battery, so the battery SOC is reduced. Not only for starting battery will also support the electrical requirements when the engine is off so the charge of battery will be keep falling. So, the battery cannot serve continuously for the electrical loads in car, So, there should be some way to recharge the battery and power to all the electrical loads such as various lighting systems, mobile chargers and all electrical and electronic accessories in car. So, charging system serves this purpose for charging the battery and give supply to the electrical components in car. The Charging system consist of Automotive Alternator which is attached to engine via belt and also it contains full bridge rectifier and to convert supply from alternator from AC to DC. This DC supply will charge the battery and also used for self excitation of its own field winding. This Automotive system is shown in fig. 10 is same for both topologies.

Automotive Alternator will keep on running in conjunction with engine. So, the output of alternator will vary continuously with the speed so it is not desirable for this case a field voltage regulator is included in that circuit to set field voltage in limits there by output in limits. That field voltage regulator subsystem is shown in fig. 11.

The proposed model will have the flexible thin-film solar PV module positioned on the roof top, supported by a Maximum Power Point Tracking charge controller, provides the energy to recharge the car battery when the vehicle is stationary. Because the MPPT is based on the Power Versus Voltage characteristics of a Solar Panel, the voltage of the Solar Panel may be regulated to give maximum power to the load by inserting the MPPT DC-DC Converter between the Solar Panel and the Battery. The existing alternator in the car's electrical system takes over the battery charging requirements when the vehicle is in motion. .In the SIMULINK model we have included the fuel consumption display system

The fig. 12 consists of all the possible loads in automotive, it consists of starter motor, solenoid, ignition system, lighting systems, Fuel pump motor is modelled as equivalent resistance and also hybrid energy system using PV array with constant irradiance and with variable irradiance values, and fuel indication and BMS.

The fig. 13 represents AES with hybrid energy system and extra battery backup which is charged by solar power which is used with in combination with main battery. The subsystem shown in fig. 14 represents solar panel with MPPT algorithm and Buck-converter. various parameters of the solar array is addressed in tabular (4) form.

A MPPT is used for extracting the maximum power from the solar PV module and transferring that power to the load. A Buck converter serves the purpose of transferring maximum power from the solar PV module to the load. A Buck converter acts as an interface between the load and the module. By changing the duty cycle the load impedance as seen by the source is varied and matched at the point of the peak power with the source so as to transfer the maximum power. Therefore, a MPPT technique is required to obtain maximum power from a PV system. MPPT is used in photovoltaic (PV) systems to maximize the photovoltaic array output power, irrespective of the temperature and radiation conditions and of the load electrical characteristics with the use of DCDC converter like buck converter configuration.

The subsystem shown in fig. 15 represents BMS with various protections for battery like over and under voltage, over current protection and also it has over charge protection its state of charge (SOC) measurement is explained in subsystem shown in fig. 15. The battery voltage limits are 15V-9V, and battery charge percentage limits are 95%-10%, battery current limit is 415A. So, by providing all these protections we can protect the battery from damage due to over charge and over current and over voltage and its life time is improved.

IV. RESULTS & DISCUSSIONS

In this section, the simulation results of AES with and without PV array under simulation using MATLAB 2020a are presented.

A. Basic AES Operation

Below fig. 16 represents switching time of various electrical loads like ignition, starter motor and various lights turn ON time sequence.

The fig. 17 shows current vs Time characteristics of various automotive loads. solenoid switch draws current during starting to connect starter motor its conduction time is observed in figure, later starter motor draws huge amount of current to crank the engine and after engine has started its supply will be disconnected after 3 seconds it is observed, petrol pump load also included.

The above fig. 18 represents battery voltage and current characteristics and also alternator output voltage and output current waveforms. From the above figure we have observed that upto 3seconds solenoid and starter motor draws supply from lead acid battery to start the engine it is identified by observing battery waveforms.

As we have observed in fig. 19 that SOC of battery is reduced starting and later alternator charged the battery & hence the SOC% increased.

B. AES operation with PV Array

When Automotive Electrical System operated with the battery and 215 W PV array with constant irradiance of 1000W/m2 the following are its output waveforms.

The waveforms shown in above fig. 20 represents current drawn by AES loads. It consists of solenoid switch and starter motor combinedly call as starting system and current drawn by various lamps loads and also current drawn by fuel pump. These loads are supplied from main battery current and also by current generated by solar Array.

Fig. 21 represents current and voltage wave forms of PV array we have observed that current and voltages has changed accordingly in way to get maximum power from the solar panel. Here we have used P&O algorithm to track MPPT. By this way we can give some support to the existing AES system.

The waveform shown in fig. 22 represents solar array output power. We have observed that solar array power has build constantly with constant irradiance and MPPT.

The amount of fuel consumed by the engine to run the alternator to meet the demand of AES loads is represented in the fig. 23. In that we have observed that fuel consumed by the engine is being increased with time of operation.

Fuel consumption of various AES topologies like No-load (only starting load), existing Full load, PV array aid to the existing system, PV array extra battery aiding the existing system. We have observed that fuel consumed in full load is 5.7mL per min that equal 342mL per hour which is roughly 35 RS/hr only consumed by the engine to supply to the electrical loads. We also observed that with the including of rooftop solar array the fuel consumption is reduced to 4.5mL per min with the same load on AES system that means 270mL per hour which is roughly 27 RS/hr only consumed by engine to supply the loads, which is less than existing system cost. This will show more effective for large vehicles and small vehicles for longer duration of operation.

Conclusion

Increase in electrical and electronic accessories in automotive system and increasing fuel prices and environmental concerns provide automotive industry to produce more efficient vehicles. However, because to the constraints imposed by the energy supply of existing Lead acid battery, there are still some questions about its performance and dependability. In this we have developed a battery-Rooftop PV array Hybrid Energy System to supply power to AES in a best efficient way. The goal is to reduce the fuel consumed by the engine to provide supply to the automotive loads by hybrid operation of rooftop PV array. In these various topologies are included for storing of PV power when we have constant irradiance of 1000W/m^2.Here we have observed that it has costed around 35 RS/hr for existing regular AES system to supply its loads which is around 350 RS/hr for 10hours of operation of vehicle which is higher than the conventional power generation for unit cost. So with the proposed hybrid energy system for AES system, we have got fuel consumption around 27 RS/hr and it is around 270 RS/hr for 10 hours of operation which is less than convention system as and also we know the solar power is free of cost. By integrating the solar panels less energy from ICE is demanded. With a smaller engine system, the overall efficiency of AES system gains a significant improvement. As a result, fuel consumption and pollutant emission can be reduced.
