Performance of Flowable Concrete for Application in Underground Structures -NATM Tunnel and Station Box of Mumbai Metro Project

Abstract

High-performance flowable concrete offers special combinations of performance, uniformity, and consistency requirements that cannot be possible by traditional normal slump concrete. It is an advanced concrete than traditional concrete with high workability without segregation, bleeding and it is suitable for placing in structures with congested reinforcement of structure, long distance pumping concrete-like inside NATM tunnel, cross passages, and underground station box concrete structures. Flowable concrete can be flow itself but does not have the self-compacting capability. Flowable concrete required vibration to ease flow to reach each corner of formwork and compaction for achieving a smooth surface finish after de-shuttering. Mix proportion of flowable concrete must ensure a good balance between deformability and stability. The behavior of concrete can be affected by the characteristics of selected ingredients in concrete and the mix proportions. It becomes necessary to evolve a procedure for mix design of flowable concrete. The paper presents an experimental procedure for the mix design of flowable concrete for grade M40 and implementation of the same mix at the cast in situ Base slab, Roof slab Rcc walls for underground metro stations, NATM tunnel & cross passages in Mumbai Metro Project, package -UGC-07. The test results for acceptance characteristics of M40 grade flowable concrete such as flow table test, compressive strength at the ages of 7, 28, and 56 days determined, and results are included here. Successful production of temperature control flowable concrete from batching plant, transportation, placement procedures, and proper planning of handling and execution of flowable concrete at the site are presented in this article.

Introduction

I.INTRODUCTION

Rheological properties and behaver of flowable concrete or self-compacting concrete are advanced than traditional normal slump concrete. The hardened concrete is dense, homogeneous, and has the equivalent properties as traditional normal slump concrete. Flowable concrete is suitable for a fast rate of concrete placement, with faster construction times and ease of flow around congested reinforcement without vibration or little bit surface tamping to get better surface finish. “It ensures good homogeneity, pumping ability, best surface, finish and consistent concrete strength and durability to the concrete structure. The workability of concrete describes the flowability, mobility, and stability of fresh concrete.

Specific measurement limits of Slump, Slump flow, Flow table cannot be fixed and its totally depends on placing condition of site, however concrete should be homogenies, cohesive, no settlement and no bleeding in mix”[1]. The mechanical properties of concrete like compressive strength, flexural strength, split tensile etc. are mainly affected by composition of concrete ingredients. In Mumbai region river sand is not available and therefore construction industries are totally depending on manufactured sand. In M-sand it is difficult to maintain required fractions of sieve sizes for getting appropriate zone of sand i.e., zone II as per IS383:2016 [2]. According to site requirements only flowable concrete was suitable due to long distance of pipe installation, pumping and congested reinforcement in the structure.

Hence flowable concrete was developed by conducting several numbers of concrete mix trials and concluded that trials were only achieving standards requirements for flowability by slump flow, flow table tests and sieve segregation resistance tests as per specification mentioned in European standard [3]. Chemical admixtures i.e., superplasticizers required for optimized the cementitious content and minimize the W/C ratio for production of high performance flowable concrete [4].  Appropriate selection of supplementary cementitious materials such like GGBS, Ultrafine GGBS-Alccofine, Crystalline growth admixture etc. are also required for improving durability, decreasing permeability, aiding in pumpability and finish ability, mitigating alkali reactivity and improving the overall hardened properties of concrete. The improved construction practice and performance, combined with the health and safety benefits of structure, high performance flowable concrete is the better solution for cast in situ civil engineering construction.

II.CONCRETE INGREDIENTS

A. Cement

Ordinary Portland cement (Grade 53) of M/s Ultratech is used. Physical & Chemical properties are as given in Table 1 & 2.

B. GGBS

Ground granulated blast furnace slag (GGBS) of M/s JSW obtained from Pen, Raigad, Maharashtra, India. The physical and chemical properties of GGBS are given in the Table 1 and Table 2, respectively.

C. Ultrafine GGBS -Alccofine

Ultrafine GGBS commercially available as Alccofine-1203 is a low calcium silicate-based mineral additive which is generally used as a replacement of silica fume in high-performance concrete [5]. Alccofine 1203 is a slag based SCM having ultra-fineness with optimized particle size distribution [6].

Table 1. Physical Properties of Cement, GGBS and UGGBS-Alcofine 1203

Table 2. Chemical Properties of Cement. GGBS and UFGGBS-Alccofine 1203

OPC 53 grade Cement, GGBS and UGGBS-Alccofine are conformed to Indian Standard Specifications IS: 269-2015, IS 16714-2018and IS 16715-2018 [7], [8] [9]

???????D. Chemical admixtures and crystaline growth waterproofing admixture

Poly carboxylic ether-based superplasticizer admixture brand name Sika ViscoCrete 5138 & Sika ViscoCrete 5229NS   M/s Sika are used to bring out the required water reduction and maintain the dispersing effect during time required for transportation and placement at site. Crystalline growth waterproofing admixture brand name SIKA 101 H of M/s Sika. The use of crystalline admixtures (CA) has a potential of improving the durability and reducing permeability of concrete structures especially those exposed to environments like extradosed structure of underground structures [10]

Table 3. Physical Properties of Chemical admixtures

Table 4. Physical Properties of Crystalline Waterproofing admixture (C.W.A)

Concrete admixtures are conformed to Indian Standard Specifications I S: 9103:1999 [11] and Crystalline Waterproofing admixture confirmed to manufacturer technical product data sheet.

???????E. Aggregates

In Mumbai region, Maharashtra, India, river sand is not available and therefore construction industries are totally depending on manufactured sand.

Coarse aggregate and Manufactured sand are obtained from nearest source i.e., Kunde vahal, Panvel,,Raigargh, Maharashtra . Fine aggregate- M/sand and coarse aggregate are conformed to Indian Standard Specifications IS: 383-2016 [2].

Table 5 shows the physical properties of the coarse and fine aggregates.

Table 5. Physical Properties of Coarse and Fine Aggregates

III.CONCRETE MIX COMPOSITIONS

The concrete mix is designed as per absolute volume method according to the Indian standard -Concrete mix proportioning Guidelines [12] to meet environmental exposure condition of Mumbai city, Maharashtra i.e., considered sever condition. The properties of the concrete ingredients differ from one state to another state of the same country, and it is totally depending on actual environmental exposer condition of site and quality of available concrete ingredients for making suitable concrete mix [13].

Concrete mix compositions are presented in Table 6 & Table No-7.

Five concrete mix design trials were taken of M40 Grade and finalized TR 5 for NATM Lining flowable concrete for implementing in NATM tunnel and Cross passages of underground Mumbai Metro Project in Package- UGC-07, Line -3. Coarse aggregate content, fine aggregate content and cementitious content were optimized, until a slump flow of 500-700 mm is achieved by slump flow test. For each trial, tests are carried out in order that the trial mix satisfies slump flow test, Flow table test and Sieve stability tests.

Four concrete mix design trials were taken for the structures -Base slab, RCC walls and Roof slab Flowable Concrete M40 Grade for metro Station in UGC-07 of Mumbai Metro Project, Line -3. Satisfactory results obtained in trial mix no-TR 9. Coarse aggregate content, fine aggregate content and cementitious content were optimized, until a slump flow of 500-700 mm is achieved by slump flow test. For each trial, tests are carried out in order that the trial mix satisfies slump flow test, Flow table test and Sieve stability tests.

A. Test Methods

 Flowable Concrete is able to flow under its own weight without segregation, bleeding with some vibration and these behavior of concrete can be ensured by tests like Flow table test ,Slump flow, Slump test , and Sieve stability tests of concrete to determine the flow ability, passing ability and segregation resistance of SCC mixtures according to BS: EN 12350 Part 2, 5,8, 9, 10, 11, and 12 [14]

Table 8.  NATM Lining flowable concrete M40 Grade - Flowing ability, passing ability and segregation resistance are checked after 3 hrs. and results are as below.

Trial mix no TR 4 has achieved all the requirements of filling ability but could not achieve the requirements of passing ability. In trial No-TR 5 achieved all the requirements of filling ability and could not achieve the requirements of passing ability but values are found closer to the requirements. Trial mix no TR5 has been finalized based on above-mentioned tests results values with considering TR5 can be achieved all the parameters of flowing and passing ability at site if apply some vibration during casting the structure.  Details of final NATM Lining flowable concrete M40 Grade mix design trial mix no- TR5 is as below.

TABLE 9: Table showing the finalized mix proportion for the high performance flowable concrete Trial Mix No- TR 5 NATM Lining flowable concrete M40 Grade (12.5 MSA)

Table 10. Test Results of NATM Lining flowable concrete M40 Grade in Laboratory

Mix proportion of selected mix design TR5 implemented at site for Tunnel NATM concrete and NATM cross passages and total 11426 cum concrete quantity is executed from 25th Feb 2020to 30th june’2021.

The flowing ability and passing ability of concrete mix are checked according to conformity criteria for the properties of Flowable concrete [3] at site and observed results are as below.

Table 11. The Average Test Results of Site executed High performance Flowable concrete mix during concreting for Tunnel NATM Lining Concrete.

All the parameters of tests are not checked at site because shifting of all testing apparatus could not practically possible during concreting at site, but Slump flow and Flow table tests were carried out for 1904 Transit Mixers and their average values are mentioned in above table.

Some tests could not be conducted at site laboratory due to non-availability of enough testing equipment’s at in house laboratory. Hence samples of specimens were sent to authorized NABL laboratory for conducting tests are as below.

Table 12. Hardened Concrete Test results for Tunnel NATM Lining Concrete.

Table 13. The Cube Compressive Strength for Successful Trial Mix no TR-5 for M40 NATM Lining Flowable Concrete in N/mm2

After achieving all the parameters according to the requirements of site conditions for Flowable concrete for grade M40 then same mix is implemented site for the construction of NATM tunnel lining and cross passages. The compressive strength results of site casted cubes for 7 days,28 days and 56 days are represented in table and graph as below.

Table 14. The Compressive Strength of site casted cubes for M40 grade High Performance Flowable Concrete (in N/mm2)

Table 20. The Cube Compressive Strength for Successful Trial Mix no TR-9 for M40 Grade high performance flowable concrete in N/mm2.

After achieving all the parameters according to the requirements of site conditions for Flowable concrete for grade M40 then same mix is implemented site for the construction of RCC structures i.e., Base Slab, Roof slab and RCC walls. The compressive strength results of site casted cubes for 7 days,28 days and 56 days are represented in table and graph as below.

Table 21. The Compressive Strength of site casted cubes for M40 grade High Performance Flowable Concrete (in N/mm2)

IV. EXECUTION OF THE CONCRETE POURING AT SITE

Following points were ensured at site before and during placement of high performance flowable concrete.

1. Assessment for the placement situations of HPFC either by using boom placer, long distance pipe pumping, direct placing via a chute or a concrete bucket placement.
2. Shutter were designed for the capability and withstanding in the forces of lateral pressure of fresh concrete.
3. Concrete pour plans were prepared for every concrete pour for maintaining sequence of concrete production from batching plant, placing at site, movements of pump and pipe’s location during concreting to maintain the concrete pour rate and avoid formation of cold joints.
4. Quality control tests and checks at batching plant before despatching the concrete and same tests were performed at site also before pouring at the structure.
5. Avoid direct free fall of HPFC more than 1.5 m height.
6. During concrete pouring visual checks were carried out on potential segregation inside the formwork and found no segregation.
7. Concrete pour rate was maintained to avoid entrainment and to limit the pressure on the formwork.
8. Shutter vibrators, needle vibrators were used according to placing condition to ease of flow and reach each corner of formwork and compaction for achieving smooth surface finish after de-shuttering.

A. Quality Control Checks &Concrete surface finish after De-shuttering of the Structure

Appropriate technical team and testing equipment’s were deployed at Batching plant, TM checking point and placement point.

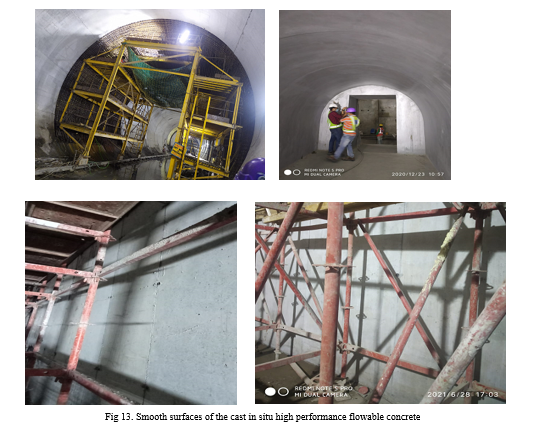

Flowable concrete has been placed successfully in formwork without any break downs and obstacles due to proper planning and systematic arrangement. After De-shuttering NATM tunnel lining, Cross passage lining RCC walls concrete surfaces found smooth.

V.  ACKNOWLEDGMENT

The authors are thankful to Director Projects of Mumbai Metro Rail Corporation and PMT Head of Shanghai Tunnel Engendering Co., Ltd for their motivational inputs and supports.

Compliance with ethical standards

Conflict of interest - On behalf of all authors, the corresponding author states that there is no conflict of interest.

Conclusion

1) High performance flowable concrete can be developed with partially fulfills the requirements of self-compacting concrete and implemented at site also according to site situations. 2) High performance flowable concrete can be easily placed in long distance pumping and congested reinforcement structure with some vibration during the placement. 3) Crystalline waterproofing admixture plays effective role for reducing permeability and increase durability of the structures. 4) Water permeability tests and RCPT values found less in low cementitious concrete i.e., TR 9 due to adding of crystalline waterproofing admixture as compared to high cementitious concrete trial mix no TR 5. 5) More impermeable and durable concrete can be developed in optimized cementitious content using crystalline waterproofing admixture in concrete.
