Total Leaf Protein Content: A Measure to Study the Phytotoxic Effects of Sulfur Dioxide on Crop Plants

Abstract

Effect of different concentrations on total leaf protein content was studied in three economically important plant species, viz., tomato, mung bean and maize. Different treatments of SO2 exposure were administered in artificial fumigation chambers. Maize showed least reduction in total proteins. Tomato exhibited maximum decline in protein content after SO2 fumigation. Relationship between individual and interactive effects of SO2 concentration were analyzed with the help of a statistical regression model. Present study helps to establish a correlation between the total leaf protein content, free radicals, activities of antioxidant enzymes like superoxide dismutases and peroxidases and plant sensitivity to SO2 under ambient conditions as well as in greenhouse environment.

Introduction

I. INTRODUCTION

Sulfur dioxide is one of the dangerous phytotoxicants in ambient as well as under greenhouse conditions. Exposure to low concentrations of  SO2 is known to induce several physiological and biochemical modifications in plants, as documented and reviewed by many investigators like Chauhan, (1989a), Darall, (1989), Varshney  et al., (2009), Rai et al., (2011), Singh et al., (2012),  Brahmachari and Kundu, (2017),and  Lee et al., (2017) . Total leaf protein content constitutes one of the important parameters for healthy plant metabolism. Investigators like Agrawal et al., (2006), Varshney et al., (2009), Singh et al., (2012), and Lee et al., (2017) have observed a decrease in total proteins in SO2-fumigated plants in many plants . Alohisen  (2014) attributes this decline primarily to the free-radical induced breakdown of existing proteins, resulting in an increase in the total free amino acid content .Reduced de novo synthesis of proteins is another reason for the decrease in protein content. The relationship between total protein content and the activity of antioxidant enzymes like peroxidases and superoxide dismutase (SOD) helps to explain the possible mechanisms of SO2-tolerance by many plants. Present investigation on three economically important crop plants explains the levels of total leaf proteins in relation to SO2 stress. The combined effects of SO2 dosage and exposure time have been analysed using a regression model.

II. METERIAL AND METHODS

A. Plant Material and Fumigation System

Three economically important cultivated plant species viz., Vigna radiata (L.) Wilczek [Mung bean], Solanum esculentum(= Lycopersicon esculentum Mill.[Tomato], and Zea mays L. [Maize] were grown from seeds in the nursery.  Fifteen-day-old seedlings of these plants were subjected to different SO2 treatments through an artificial fumigation system. Sulfur dioxide was generated from an aqueous solution of Na2S2O5 and circulated over the plants kept in specially designed closed-top fumigation chambers (1 x 1 x1m= 1m3) at temperatures ranging between 25-290C ± 10C and at a Relative humidity (RH) of 60 ± 5%. As a source of illumination, two metal halide lamps of 200W each were employed following  a light/dark cycle of 12/12 hours..

B. Fumigation Protocol

Artificial fumigations were carried out according to the following protocols detailed by Chauhan, (1989a):

Treatments: T-1 = 0.05 ppm (134.0μg m-3 SO2) [x 4h], T-2 = 0.1 ppm (268.0 μg m-3 SO2)[x 2h], and T-3 = 0.2 ppm(536.0 μg m-3 SO2) [x 1h] for 60 days. Thus, the SO2 dose was kept constant. Among the above, V. radiata was fumigated for only 45 days. Controls (C) were maintained simultaneously by exposing the plants to air alone. Fresh leaf tissue (0.2g) was homogenized in 10 ml of 5%TCA and total protein content was estimated following the method of Lowry et al.,(1951).

III. RESULTS AND DISCUSSION

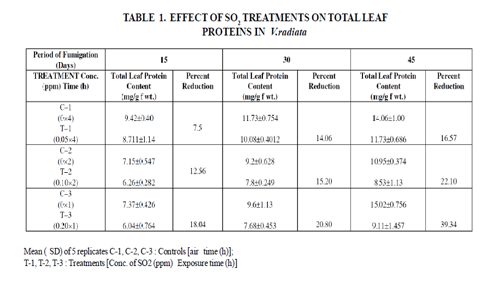

Leaves of Vigna radiata showed considerable reduction in total leaf proteins following SO2 treatment. A progressive reduction in protein content was observed with respect to the dosage, viz., 39.34, 22.10 and 16.57 per cent for treatments T-3, T-2, and T-1 respectively for 45-day fumigation (Table 1, Fig. 1). Whereas the total leaf protein content in control plants of Solanum esculentum (=Lycopersicum esculentum) was slightly less than that recorded for Vigna, there was much pronounced reduction in leaf proteins in all the three treatments. The reduction values were much higher in T-1, T-2 and T-3 over the corresponding values in Vigna. For instance, values for total leaf protein content in the treatments T-1, T-2, and T-3 for 60 days were 30.21,57.94, and 62.68% respectively (Table 2 , Fig. 2), which were considerably higher than the other plant species investigated.SO2-fumigated plants of Zea mays exhibited least reduction in total leaf protein content. 60-days fumigation cycle with T-1, T-2, and T-3 treatments resulted in a reduction in protein content of only 14.14, 18.75, and 21.87% respectively (Table 3,Fig. 3).

Investigators like Malhotra and Khan ,(1984), Hamid and Jawaid, (2009), Rai et al., (2011), Singh et al., (2012), Brahmachari  and Kundu, (2017),and Lee et al., (2017) have reported a general decrease in protein content in SO2-fumigated plants in several cultivated and wild species. Reduction in protein content can be attributed to a) enhanced sulphitolysis, b) free radical reactions, and c) reduction in de novo protein synthesis, as suggested by Lendzian and Unsworth, (1983). Production of HSO3- and SO3- ions induces cleavage of disulphide linkages in proteins giving thiols and sulphonates. According to Shimazaki et al., (1980)  sulphitolysis of the disulphide bond causes unfolding of protein molecules. Free radicals generated during SO2 oxidation to SO4-2, may induce lipid peroxidation, which constitutes an important mechanism of membrane deterioration in SO2 -fumigated plants, as has been shown by Irigoyen et al., (1992). In addition, SO2-induced free radicals also inactivate proteins by modifying their amino acid residues (Wolff et al., 1986), thereby rendering many vital enzymes inactive. A distinct relationship seems to have been established regarding the effects of SO2 on total proteins and the concentration of antioxidant enzymes. Peroxidases and SOD have been shown to play a vital role in SO2 tolerance, as reported by Chauhan, (1989b), Singh et al., (2012), Brahmachari and  Kundu,  (2017),and Lee et al., (2017).  Vigna and Zea mays, which show high SOD and peroxidase content, recorded less lipid peroxidation (Chauhan 1989b, 2015). Reduction in total leaf protein content after SO2 exposure was also less in these two species as compared to tomato, which incidentally had low activities of these two enzymes. In addition, the emission of volatiles like ethylene, ethane, acetaldehyde and ethanol from SO2-treated plant tissues increase dramatically prior to the appearance of visible injury symptoms. Chauhan, (1990) reported that the spurt in volatile emissions in indicative of lipid peroxidation due to sulphate oxidation-induced free radical generation.

Interestingly, recent investigaions, as reviewed by Li et al., (2022) also tend to implicate SO2 as a vital signalling molecule. SO2 fumigation is now thought to reprogramme the expression of many genes thereby modulating physiological processes like seed germination, stomatal action, fruit-keeping and response to environmental stress.

Conclusion

I am grateful to Prof. C.K.Varshney for his guidance at the School of Environmental Sciences, Jawaharlal Nehru University, New Delhi, India.

References

[1] M. Agrawal, B. Singh, S.B. Agrawal, J.N.B. Bell, and F.Marshall , “The effect of air pollution on yield and quality of mungbean grown in periurban areas of Varanasi,” Water, Air, Soil Poll., vol. 169, pp. 239-254, 2006. [2] A.A.Almohisen,”Response of free amino acids in four legumes plans to air pollution,” J.Biol. and Today’sWorld., vol. 3(8), pp.169-173, 2014. [3] S. Brahmachari and S. Kundu,”SO2 stress: Its effect on plants, plant defence responses and strategies for developing enduring resistance. Int. Adv. J. Sci. Eng. and Technol., vol. 4(7), pp.303- 309, 2017. [4] A. Chauhan ,1989a. Effect of Sulphur Dioxide on Plants at Biochemical and Physiological Levels. PhD. Thesis, University of Garhwal , India. [5] A. Chauhan, “Superoxide dismutase-a bioindicator of plant response to SO2-stress,” in Proc. Int. Sym. Pl. and Poll. in Dev. and Develop. Coun., Izmir, Turkey, p.549-568. [6] A. Chauhan, “Early diagnosis of SO2-stress by volatile emissions in some crop plants,” Oecologia, vol. 84, pp. 289-294, 1990. [7] A. Chauhan, “Peroxidase activity as an indicator of SO2 –tolerance in crop plants,” Int. Jour. Innov. Res. and Dev., vol.4 (13), pp. 45-50, 2015. [8] N.M Darall, “The effect of air pollutants on physiological processes in plants,” Plant Cell Environ., vol. 12, pp. 1-30, 1989. [9] N.Hamid and F. Jawaid, “Effect of short-term exposure of two different concentrations of sulphur dioxide and nitrogen mixture on some biochemical parameter of soybean (Glycine max (L.) Merr.,” Pak. J. Bot., vol.41(5), pp.2223-2228, 2009. [10] J.I. Irigoyen , D.W. Emerich , and M. Sanchez-Diaz, “Alfalfa leaf senescence induced by drought stress: photosynthesis, hydrogen peroxide metabolism, lipid peroxidation and ethylene evolution,” Physiol. Plant., vol. 84, pp. 67-72, 199 [11] H. K. Lee, I. Khaine, M. J. Kwak, J.H. Jang, T.Y.Lee, J.K.Lee, L.R.Kim , W.I.Kim, K.S.Oh, and S.Y.Woo, “The relationship between SO2 exposure and plant physiology: A mini review,” Hortic. Environ. Biotechnol., vol. 5(6), pp. 523-529, 2017. [12] K.J.Lendzian and MH. Unsworth, Ecophysiological Effects of Atmospheric Pollutants, O.L. Lange, P.S.Nobel , C.B.Osmond , and H.Ziegler, Eds. Berlin, Germany: Springer-Verlag, 1983. [13] Z.H. Li, X.E. Li, and H.Y. Chen, “ Sulfur dioxide: An emerging signaling molecule in plants.” Front. Pl. Sci., vol. 13 , pp. 891626, 2022. [14] O.H. Lowry, N.J. Rosenbrough, A.L. Farr, and R.J. Randall, “Protein measurement with the folin phenol reagent,” J. Biol. Chem. vol.193, pp. 267-275, 1951. [15] S.S.Malhotra and A.A.Khan, Biochemical and Physiological Impact of Major Pollutants. In M. Treshow, Ed. Chichester, John Wiley & Sons, pp. 1984. [16] R. Rai , M. Rajput, M. Agrawal , and S.B. Agrawal, “Gaseous air pollutants: a review on current and future trends of emissions and impact on agriculture” J. Sci. Res. B.H.U., vol. 55, pp. 77-102, 2011. [17] K. Shimazaki , T. Sakaki, and K. Sugahara. “Active oxygen participation in chlorophyll destruction and lipid peroxidation in SO2- fumigated leaves of spinach,” Res. Rep. Nat. Inst. Environ. Sci. Ibarki, Japan, vol. 11, pp. 91-101, 1980. [18] L.P.Singh , S.S.Gill , R. Gill, and N Tuteja, Mechanism of Sulphur Dioxide Toxicity and Tolerance in Crop Plants, N.Tuteja, A.F.Tiburcio, SS.Gill, and R.Tuteja, Eds. Weinheim, Germany: Wiley-VCH Verlag GmBh & KGaA, 2012. [19] C.K.Varshney, C.K. Garg, W.K. Lauenroth, and R.K.Heitschmidt, “Plant responses to sulphur dioxide pollution,” CRC Crit. Rev. Environ. Cont., vol. 9, pp. 27- 49, 2009. [20] S.P.Wolff , A. Garner, and R.T. Dean, “Free radicals, lipids and protein degradation.” Trends Biochem. Sci.,vol 11, pp. 27-31, 1986.

Copyright

Copyright © 2023 Aprajita Chauhan. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
