Pneumonia Classification in Lung X-ray Images Using CNN Technique

Abstract

A fundamental phase in the technique of pneumonia diagnosis is the evaluation and categorization of lung disorders utilizing X-ray pictures, especially during a crucial era such as the COVID19 pandemic, which is a kind of pneumonia. As a result of the growing number of cases, an automated approach with high classification accuracy is required to classify lung disorders. Due to its quickness and effectiveness when it comes to visual recognition tasks, CNN based segmentation has acquired a lot of traction in recent years. We present an implementation of CNN-based classifier techniques utilize a domain adaptation approach to identify pneumonia and analyze the outcomes to choose the best model for the job depending on specific parameters in this paper. There are various models because this is a rapidly growing topic, and we will concentrate on the best-performing methods relying on their structure, tier length and style, and categorization task assessment criteria. To begin, we look at the existing traditional approaches and supervised learning frameworks for segmentation. Then, depending on the reliability and damage functionality of the constructed models, we undertake a detailed evaluation and analysis. A rigorous examination of the findings is carried out in order to highlight the major concerns that need to be addressed.

Introduction

I. INTRODUCTION

Pneumonia is a lung infection that causes inflammation in the breathing sacs. Even though the characteristics are often the same regardless of the etiology, Infections or viruses, such as the covid-19 viral, can cause it.. To determine the source of pneumonia, doctors will need to do more tests or employ X-ray imaging. They can only tell if a lung has pneumonia or not via X-ray imaging of the lungs. Every year, nearly 800,000 children around the age of five die from pneumonia, at over 2200 deaths each day. Pneumonia affects almost 1400 children out of every 100,000 youngsters. As per the Global Burden of Disease Study, lesser respiratory tract infection such as pneumonia was the second greatest cause of death in 2013.

In Europe, about one-third of hospitalized patients are infected with the virus. The pneumococcal illness affects over 35% of hospitalized patients in Germany and 27.3 cent of children globally. According to the latest data from the John Hopkins Bloomberg School of Public Health, India has the worst rate of pneumonia death rates among kids around the age of five, with 2.97 lakh pneumonia and diarrhea fatalities in 2015. The first step is to diagnose the signs of the sickness and use particular signals to locate the coronavirus. Depending on the kind of coronavirus, symptoms might differ from a common cold to a headache, coughing, breathlessness, and serious breathing issues. The patient could also cough for no obvious cause for a few days. In recent times, machine learning and Deep Learning have been utilized to automatically identify a variety of illnesses and lesions throughout the body. Given that one technique of diagnosis is the examination of chest X-ray pictures, computer vision and Deep Learning can aid in the diagnosis of this condition.

Many studies have utilized machine vision and Deep Learning to combat the illness since it become common. Many academics are now interested in artificial neural network (ANN) applications, particularly CNN. For medical picture categorization, this strategy is effective. It allows computers to solve a variety of pattern recognition and object extraction issues utilizing 2D or 3D picture datasets. The categorization of 3D MRI pictures demands a lot of processing power, which may be avoided by using a parallel technique. The authors present a parallel c- mean method used for MRI image segmentation with acceptable time complexity on its findings, as an instance of the aforesaid parallel approach. Using Graphical Processing Units (GPU) to get around the execution time constraint has become more important in medical image computation applications,    particularly    in    the    context    of the machine and analysis techniques.

II. RELATED WORK

This section examines a variety of significant and related studies that employ machine and deep learning models to perform supervised classification for pneumonia diseases. These models were examined using a variety of criteria, with less or more meaningful consequences depending on their design and interpretation. Many studies on the identification of pneumonia illness, particularly ANN-based models, have recently been published, with excellent findings that are well suited to this kind of sickness. It should be noted that the COVID-19 viral causes severe pneumonia. Infections that trigger breathing difficulties, such as SARS and the Middle East respiratory syndrome, are always a danger (MERS). A novel coronavirus (2019-nCoV; SARS-CoV-2) was discovered in late December 2019 and has now spread throughout China and other countries around the world. The viral pandemic has triggered fear and a public-health emergency all around the world, and the majority of instances are continuing to rise. Pneumonia, on the other hand, has unknown causes and consequences. When it comes to epidemic protection, early identification and diagnosis are critical to illness treatment. We look at a variety of studies done by international specialists on the clinical symptoms, diagnostic techniques, and treatment options for the SARS-CoV-2-related illness identified as COVID-19, as well as potential remedies.

Introduction As the pandemic of coronavirus disease-19 (COVID-19) progresses, numerous specialists continue to play important roles in diagnosis and therapy. COVID-19's chest CT symptoms have dominated the radiological literature to date (Zhou et al. [1]; Chung et al. [2]). Foldable chest radiography (CXR) would most probably be the most frequently used modality for detecting and monitoring lung abnormalities because of infection prevention and control concerns relating to patient carriage to CT suites, inadequacies initiated in CT room decontamination, and a lack of CT connectivity in some regions of the world. Indeed, the American College of Radiology (ACR) advises that the CT decontamination required after scanning COVID-19 patients could result in radioactive service delays and advises against it.

Despite the fact that pediatric pneumonia is a prominent cause of both short- and long-term morbidity and mortality worldwide, a dependable gold standard for its diagnosis has yet to be discovered. Clinical, epidemiological, and radiographic clinical diagnoses have varying degrees of value within and between communities, and are strongly reliant on the skills and resources available in different circumstances. This article discusses the significance of     radiographs     in     the     evaluation     of pediatric pneumonia. Although chest radiographs (CXRs) are the most commonly used test, they are not suitable for use in ambulatory settings, cannot distinguish between caused by pathogens illnesses, and also have a limited role in sickness treatment. The Global Action Plan for Pneumonia and Diarrhea (GAPPD) recently performed a series of assessments that looked at the epidemiology of the two lethal illnesses on a national and regional scale, as well as the effectiveness of treatments, impediments to reaching high coverage, and the primary consequences for health policy. The goal of this article is to offer country-level statistics on childhood pneumonia. It should make it easier for regional policymakers and stakeholders in WHO and UNICEF member countries to put recommended policies into action. Primary epidemiological   evidence   contributing   to models of pediatric pneumonia burden has only modestly improved since 2000; all estimates have substantial uncertainty boundaries. Nonetheless, there is indication of a downward trend in all burden metrics from 2000 to 2010. Despite being generated from diverse and independent data, the predictions of pneumonia prevalence, severe morbidity, mortality, and etiology are internally consistent, providing confidence to the new set of estimates. Beyond the newborn era, The most common cause of illness and fatality in children under the age of five is pneumonia, necessitating continued tactics and developments to further lower the burden.

III. RESEARCH METHODOLOGY

A. Dataset
"Labeled Optical Coherence Tomography (OCT) and Chest X-Ray pictures for Segmentation" version 3 [20] is the primary dataset utilized in this study. In experiments, just the Chest X-Ray portion is employed. This section of the dataset is used to train and validate all of the classifiers produced in this research. There are two sorts of pictures in the lung X-ray database: visuals for healthy persons (NORMAL) and visuals for people who have pneumonia. The dataset's structure is summarised in table 2.

B. Artificial Neural Network (ANN)

The nervous system is the most intelligent system capable of interpreting real-world input, thus the ANN idea is based on it. Associations among brain neurons provided the therapeutic ability. This topology creates a massive natural neural network capable of resolving complex real-world processes. Like the natural neural network, ANN involves superposing a large number of artificial neurons. Figure 2 shows the simplest artificial neural network design, the fundamental ANN (perceptron).

The perceptron consists of an input tier that accepts a vector xi as input, as well as freely distributable parameters in the type of a vector wi and a biased. The perceptron's output is represented by yi as a vector of predicted possibilities.

C. Convolutional Neural Network (CNN)

The CNN is a form of ANN, but the reverse is not true. CNNs are most typically used to analyze visual pictures automatically. One or more convolution layers can be found in a CNN.

CNN is an ancient concept. This abstraction had been proven to function better for handwritten character recognition [22]. This form of network, on the other hand, lacks the challenge of processing massive and heavy pictures. As a result, because to limitations in processor power, memory, and dataset accessibility, this strategy proved unfeasible. Because to technology advancements in storage, memory, and technique optimization, these constraints are now mostly obsolete.

IV. PROPOSED APPROACH

CNN is an ancient concept. This abstraction had been proven to function better for handwritten character recognition [22]. This form of network, on the other hand, lacks the challenge of processing massive and heavy pictures. As a result, because to limitations in processor power, memory, and dataset accessibility, this strategy proved unfeasible. Because to technology advancements in storage, memory, and technique optimization, these constraints are now mostly obsolete. Connectivity: Each keyframe neurons are only locally coupled to the following layer's neurons. The network's complexity is reduced by using this connection model. An input layer with the specified configuration, such as picture shapes and patches, is often required to form a CNN network. Then there's the sort of convolutional layer, It must be pre- programmed with a certain number of neurons as well as efficiency and perceptrons. A pooling layer must be used after each convolutional layer, with a specified pooling filter. Before the output tier can be established, a succession of Input tiers should be generated first, which needs the configuration of a loss function. Image preprocessing, information analysis shown in the convolution phase, training the structure, and verifying the resultant model are the major phases in any vision categorization. Finally, the completed CNN model was put to the test. An input nodes, convolution tiers with ReLU activation feature, pooling tiers, and fully connected layers are shown in Figure 3 of a CNN model designed to identify lung pneumonia.

Dataset preprocessing entails resizing and enlarging photos, removing unwanted images, and adjusting the contrast to feed the network. Transforming raw data to winners and normalizing it is also part of the process. This technique's output is fed into a CNN network for training, yielding a pre-trained version suitable for testing. The convolution layers' features selection and extraction stage comprise extracting just the most significant characteristics before transferring them to a suitable format. The selection phase entails choosing the most beneficial properties in order to complete the classification case. The training learning process is used to train the network by updating the parameters of neurons across layers. These are accomplished by lowering the gradient descent and improving the prediction performance of the verification component. If there are just two classes to forecast, the loss optimization is done with a sigmoid function. Metrics for evaluating classification Almost all measures for analyzing a model's performance are based on a set of fundamental parameters that must be calculated: True positive as TP, refers to the sequence of photos correctly categorized as pneumonia when compared to the ground truth. A number of photos correctly identified as normal matching the true labels, abbreviated as TN. False-positive, abbreviated as FP, occurs when CNN labels pictures as having pneumonia when the ground truth indicates that it is actually normal. False-negative, abbreviated as FN, corresponds to the number of photos that CNN classed as not having pneumonia but that, according to ground-truth labeling, do. Precision is shortened as P, recall is shortened as R, the F1 score is shortened as F, and accuracy is shortened as A:

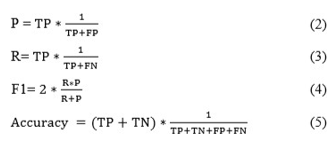

The conventional methods in (Eq.2) are used to obtain the F1 result (Eq.3). The calculation for this factor is in (Eq.4). We are using the test set to produce a new sample for the model during the testing stage. The dataset containing the testing dataset must be equivalent to the original set but not associated in order to properly test the model. This increases the test's validity and accuracy. The CNN model's segmentation algorithm assigns a value to every picture depending on the input parameters to the specified level of certainty in the decision: Initialization is essential before beginning the learning step, where the characteristics are adjusted across epochs.

Those factors must've been set in motion by the original values, which can be random in some situations. Otherwise, a specified function generates those values. The Xavier initialization approach is the most commonly utilized initialization method. The activation function is the mechanism that represents a neuron's processing component. It is determined by the type of neural network layer. In CNN networking, the ReLU functionality is the most widely used perceptron for tiers. Pooling: This phase entails using a filter to reduce the size of features and maintaining only the most significant matters. The most common pooling approaches used in CNN models are max pooling and average pooling. These method selects only the filter's maximum element, while the average pooling method selects the filter's average element.

V. RESULTS

In recent years, CNN models have shown promising results in a variety of applications. In these existing systems, the network size, defined optimizers, and type of tiers used vary. Because training tasks necessitate a large processing capacity, we used a parallel processing design in the simulated environment, using a graphical processing unit (GPU), to speed up the training phase provided by the KAAGLE platform. In our test, we employed a CPU with two cores and 13 GB of RAM, as well as a GPU with 16 GB of RAM. Using the transfer learning technique, we create and compile five alternative simulations based on current systems in the research. Depending on the situation, each model may or may not be able to complete the categorization assignment. For our pneumonia diagnosis challenge, we chose the designs in figure 4 after running numerous algorithms numerous cycles and evaluating each different arrangement. Taking into account the over-fitting and under-fitting concerns, certain configurations produce better outcomes in terms of accuracy and loss.

We employ two dropout stages and one dense tier as predictors in all of the systems in this article, using SOFTMAX activation at the output tier. To construct the model, we employed a logistic regression approach known as the "RMSProp" estimator and categorized cross-entropy accuracy as a variable. Image-net is used to create the weights. Since the organization of pneumonia diagnosis is tougher in comparison to the previously trained dataset, we decided not to freeze any tiers of the previous design. We inserted a callback parameter that notified us to stop training after three iterations if there was no improvement in accuracy. This helped us avoid overfitting training tiers. As a result, the training process must come to a halt at the point where there has been no gain in accuracy. The evaluation developmental stage is to check the performance of the models in each epoch while learning our recommended algorithms. Then, for the following epoch of learning, adjust the weights on the back-propagation mechanism. We used the validation dataset presented in Figure 1 for this purpose. The evaluation developmental stage is to check the performance of the models in each epoch while learning our recommended algorithms. Then, for the following epoch of learning, adjust the weights on the back-propagation mechanism. This was done with the testing data shown in Figure1.

Although the VGG19-based model failed to predict 26 cases of pneumonia, it did correctly predict 615 of 641 characteristics. Only four cases were predicted to be normal by the model. In terms of the total number of instances, this is a decent result. The VGG16-based model fails to recognize 21 pneumonia cases, making it superior to the VGG19-based model. However, when compared to Resnet152V2, it is ineffective at detecting pneumonia patients.

ResNet152V2-based forecasts, on the other hand, failed 32 out of 32 times, comprising normal and pneumonia patients. This is a step up from the VGG16-based model. As a result, in this experiment, The confusion matrix outcomes from the VGG 16- based technology are the finest. The other systems in this research give fewer intriguing results based on their confusion matrix. Classification based on CNN techniques for medical imaging increases efficiency (accuracy) after fine-tuning the system VGG16 produced by Companies, with outcomes of almost: 97 percent for pneumonia identification, 11.51 percent loss. The VGG16-based system's damage functional is clearly modest, and its reliability is the highest of all trained systems. On epoch 33, the VGG16-based model reaches its peak accuracy, with a loss of 11.51 percent and precision of 91 percent. In terms of accuracy, The system based on VGG19 is quite similar to the standard depending on VGG16, but the other models, have relatively poor overall accuracy to trust for our purpose.

The ROC curve is a fundamental tool for assessing system efficiency depending on the sensitivity and specificity measurements. The susceptibility is plotted against a specificity value in this ROC graph (false positive rate). The area under the curve (AUC) is a measurement of a model's ability to differentiate between a normal and a pneumonia picture.

???????

Conclusion

Pneumonia disease segmentation is an essential first step in detecting lung infections caused by a variety of causes, including covid-19. Convolutional neural networks, in particular, are a fascinating technology for producing results automatically, efficiently, and quickly. Since its inception, this technique has faced numerous challenges, including the global leakage of datasets and algorithmic time and processing difficulties. To enhance prediction accuracy, a few variations must be decided made more frequently, such as expanding the range of data by integrating two individual data sources to create a larger repository of datasets, which necessitates the use of high computation effectiveness is required to practice all of the given datasets in a reasonable amount of time and epochs. They also have to process and analyze the image pixels differentially during learning by resizing and reconfiguring contrast on X-Ray pictures based on processing performance, as well as offering the best adaptive optimizer. We also intend to develop an optimised novel model specifically for chest X-Ray images in the future. Considering the algorithm\'s complexities, the training process can take a lengthy period, which must be optimised as much as feasible, and the capacity of available resources. As a result, researchers must put in a lot of effort to reap the benefits of this magical field in our world.
