Pollution Based Ventilation Control in Automobiles

Abstract

Growing worries about air pollution have driven new approaches to confined spaces, such autos. The proposed system includes air quality sensors, ventilation control mechanisms, and data processing units inside the car. It continuously monitors the amount of CO2 and other air pollutants. It emits warning sounds and turns on automated window ventilation when thresholds are passed. Furthermore, the system proposes closing windows in high-pollution areas and detects foul odors to put on air fresheners accordingly. Alerts are sent by push notifications, sirens that sound, or dashboard lights. This innovation combines sophisticated ventilation control, real-time monitoring, and alerts to make driving safer while prioritizing both environmental sustainability and passenger safety.

Introduction

I. INTRODUCTION

The creation of an effective air quality monitoring and control system within automobiles is required due to the negative effects of poor in-car air quality, which include health problems, drowsiness, and impaired driver decision-making. In order to address this issue, the Pollution-based Ventilation Control in Automobiles project installs an intelligent ventilation system that makes dynamic adjustments in response to current pollution levels. This cutting-edge system combines sophisticated sensor technology that is strategically positioned both inside and outside the vehicle to continuously monitor levels of various pollutants, with the primary goal of enhancing the health and comfort of vehicle occupants while also contributing to environmental sustainability. An advanced onboard computer with algorithms built in to dynamically control the vehicle's ventilation system processes real-time data from these sensors.

In addition, the initiative prioritizes user comfort and control by providing simple-to-use dashboard interfaces for monitoring and manual overrides in vehicles. The initiative intends to limit overall emissions during high pollution events by lowering the intake of polluted external air, addressing issues related to both individual health and the ecosystem as a whole. An important advancement in the development of in-car air quality management is the Pollution-based Ventilation Control in Automobiles project. Its all-encompassing strategy raises the bar for in-car air quality by integrating cutting-edge sensor technology, clever algorithms, and intuitive user interfaces. The project seeks to promote environmental responsibility and occupant well-being in order to contribute to cleaner and healthier air within cars while promoting environmentally friendly modes of transportation.

III. PROPOSED WORK

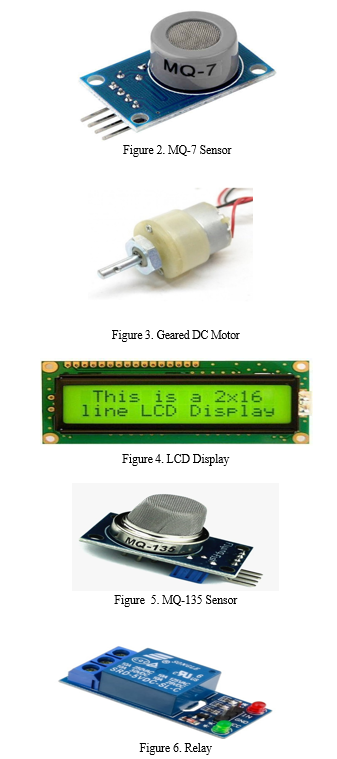

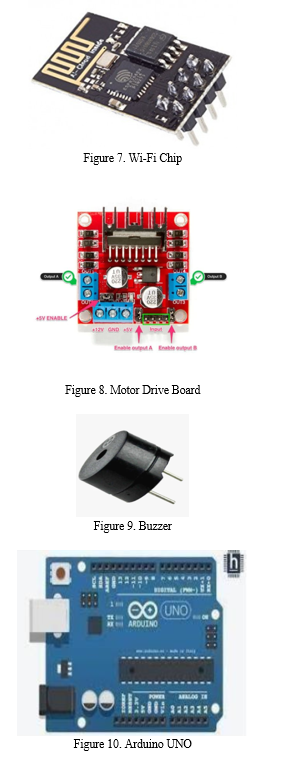

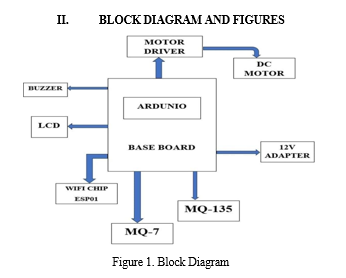

The MQ135 and MQ7 gas sensors are the focal point of the simple yet efficient operating concept of the pollution monitoring and ventilation control system. These sensors are interfaced with an Arduino microcontroller. With an emphasis on the Air Quality Index (AQI) and carbon monoxide (CO) levels, these sensors assess a variety of air contaminants. When the system first boots up, it signals "Pollution based Ventilation Control" on a 16x2 LCD that is connected. The sensors continuously measure analog signals from the ambient air, converting them into analytically useful data and AQI and CO levels based on the analog readings.

The system has an alarm mechanism to guarantee user safety and awareness that is activated by specified threshold levels for CO and AQI. The LCD panel updates to show a hazardous air warning message and an auditory warning is activated through a buzzer when critical thresholds are exceeded. The LCD is used to regulate the system's ventilation control feature, which represents the opening and closing of a ventilation mechanism. When air quality improves and the ventilation symbol opens, it indicates a safe atmosphere. When hazardous conditions arise, the ventilation symbol closes, suggesting the need to minimize airflow.

This mechanism offers clear and quick feedback on the quality of the air. An efficient ventilation management system and pollution monitoring are enhanced by alarms, real-time monitoring, and a visual depiction of ventilation status. The system provides users with a proactive means of preserving healthy air quality in their surroundings, hence augmenting overall safety and well-being, through the integration of various components.

IV. RESULTS

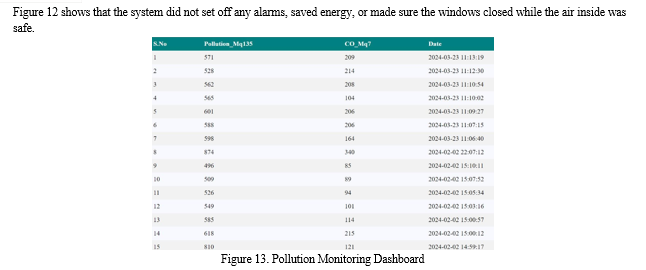

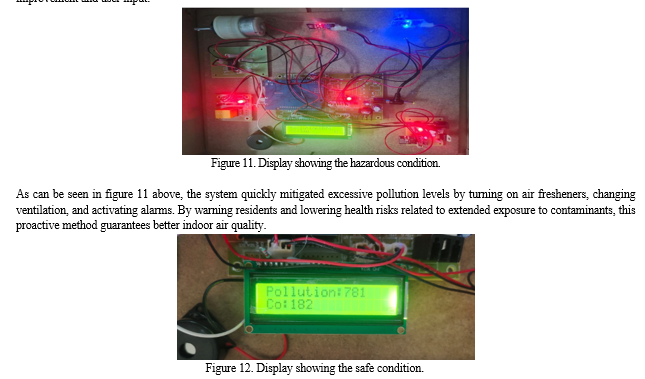

Hardware and software are successfully integrated in the ventilation control and pollution monitoring system. It uses MQ135 and MQ7 gas sensors to provide precise readings and sets off alarms for dangerous air situations. In order to reduce dangers, it quickly responded during testing by turning on air fresheners, modifying airflow, and activating alarms. The system keeps running smoothly under typical circumstances, guaranteeing the comfort of the passengers. It effortlessly establishes real-time monitoring connections with external servers through a Pollution Monitoring Dashboard, providing insightful data on trends in air quality. Even though controlled testing shows promise, real-world implementation requires attention to practical issues including sensor calibration and interoperability with various vehicle models. Performance optimization and resolving deployment issues require constant improvement and user input.

Conclusion

In conclusion, a major development in the fight against poor in-car air quality is the vehicle ventilation control system and air quality monitoring system. The system effectively accomplishes its goals by monitoring and identifying contaminants, improving passenger comfort and health, and continuously evaluating the quality of the air. It is outfitted with accurate sensors and clever management systems that make sure that when pollution levels rise over predetermined levels, appropriate action is taken right away, guaranteeing prompt notifications and remediation. Positive user feedback and its flexibility to adapt to a variety of vehicles show that, despite some obstacles, it has the potential to be widely adopted. The system supports resilient cities and sustainable mobility by combining with current infrastructure and developing technology. Future improvements should result in increased efficacy and better air quality control, making driving safer for everyone.

References

[1] Abbas, F. N., Abud, E. N., Saadoon, I. M., and Abdalrdha, Z. K. (2020). able to use an Arduino Uno and a gas sensor MQ-135 to measure the quality of the air. Journal of Engineering Research and Technology International, 13(10), 2955–2959. [2] In 2021, Al-Rawi, M. A., Chand, P., and Evangelista, A. V. M. Modular Indoor Environmental Quality Monitoring System at an Affordable Price. Technological Innovation Advancements—Imeti. [3] Bansal, N. (2020) [3]. Designing Internet of Things Solutions with Microsoft Azure: A Survey of Secure and Smart Industrial Applications. Sprout.
