Quantum AI: Deep Learning optimization using Hybrid Quantum Filters

Abstract

Deep learning algorithms have shown promising results for different image processing tasks, particularly in remote sensing & image recognition. Till now many studies have been carried out on image processing, which brings a new paradigm of innovative capabilities under the umbrella of intelligent remote sensing and computer vision. Accordingly, quantum processing algorithms have proved to efficiently solve some issues that are undetectable to classical algorithms and processors. Keeping that in mind, a Quantum Convolutional Neural Network (QCNN) architecture along with Hybrid Quantum filters would be utilized supported by cloud computing infrastructures and data centers to provide a broad range of complex AI services and high data availability. This research summaries the conventional techniques of Classical and Quantum Deep Learning and it’s research progress on real-world problems in remote sensing image processing as a comparative demonstration. Last but not least, we evaluate our system by training on Street View House Numbers datasets in order to highlight the feasibility and effectiveness of using Quantum Deep Learning approach in image recognition and other similar applications. Upcoming challenges and future research areas on this spectrum are also discussed.

Introduction

I. INTRODUCTION / OBJECTIVE

Objective of the project is to:

1. Make use of Quantum Computing and Deep Learning - CNN to develop a more efficient and outperforming technique that can be applied to solve complex machine learning tasks like digit recognition from high resolution images taken from a distance to identify addresses of congested households too many at a time
2. Use superposition and entanglement theories, which are not seen in traditional computing environments, to achieve high performance through qubit parallelism. Here qubit is referred to as the quantum bit which is basically a unit of quantum information.
3. Extend the key features and structures of existing CNN to quantum systems defined in the many-body Hilbert space is transferred to a classical computing environment, the data size grows exponentially in proportion to the system size, making it unsuitable for efficient solutions. Because data in a quantum environment can be expressed using qubits, the problem can be avoided by applying a CNN structure to a quantum system

II. PROPOSED APPROACH

Quantum Convolutional Neural Network (QCNN) provides a fresh approach to the solution of the problem to solve with CNN using a quantum computing environment, and also an effort to improve the model performance in recognizing digits.

1. The first part of the solution to be introduced proposes a model to effectively solve the classification problem using classical Deep Learning by applying the structure of CNN to the classical convolution environment.

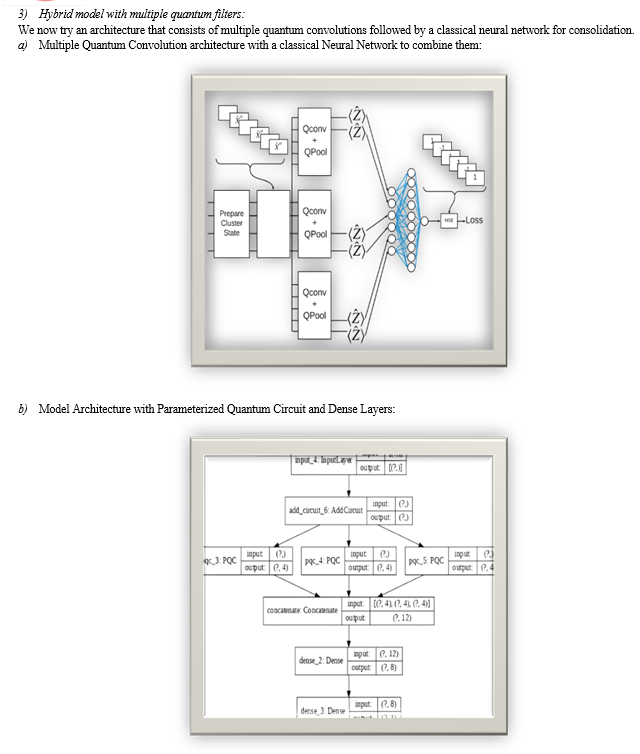

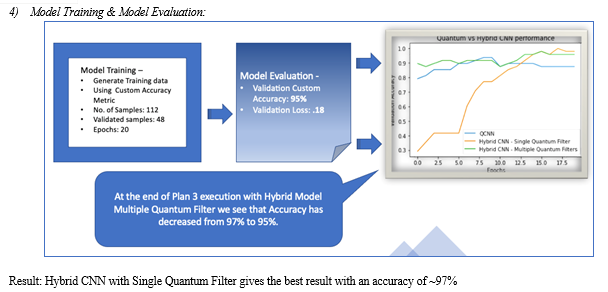

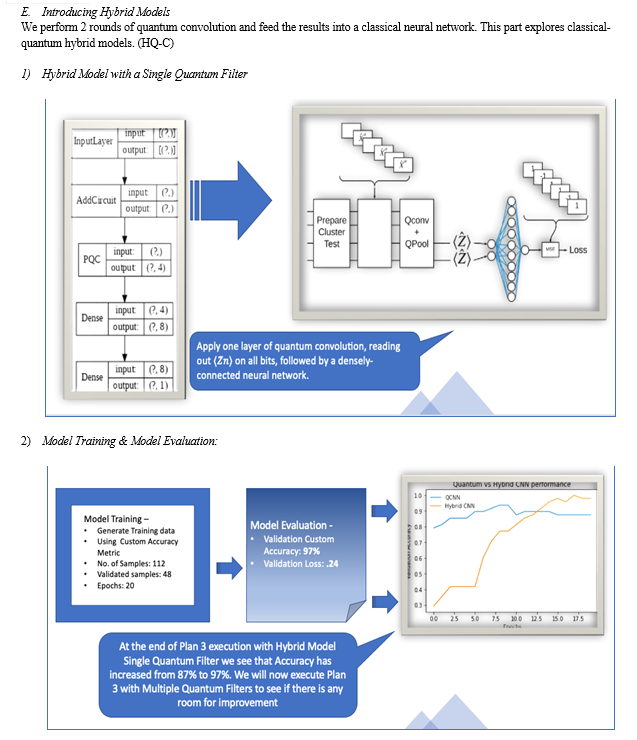

2. The second part introduces a method to check whether the algorithm could be performed by adding a layer using Quantum Computing to the CNN learning model used in the existing computer vision. Hybrid Quantum filters can be introduced to optimize model accuracy and loss.

This model can also be used in small quantum computers, and a hybrid learning model can be designed by adding a quantum convolution layer to the CNN model or replacing it with a convolution layer. If successful, this solution could be applied on UAV’s or Quantum Drones (QD) by building an Internet of Quantum Drones (IoQD) network to effectively process high resolution images of house addresses to recognize digits from the later to enhance commercial activities like smart delivery hence making it unique.

III. POTENTIAL CHALLENGES & RISKS

A. Issues, knowledge gaps and futuristic aspects of the IoQDs and related architectures for which this solution could be actually implemented

B. Lack of enough opportunities and time for implementing this disruptive technology stack

C. Scientific knowledge lacking

D. Energy and Environmental challenge in testing this project

E. Tracking transmission delays and other challenges involved with space communication

F. Cyberattack protection

G. Achieving performance with compact resource-constrained devices

H. Security based on Quantum Computation

IV. BACKGROUND OF PREVIOUS WORK DONE

A. Quantum Convolutional Neural Networks (QCNN) Using Deep Learning for Computer Vision Applications

B. Dynamic fluorescence lifetime sensing with CMOS single-photon avalanche diode arrays and deep learning processors

C. 3D Object Detection and Tracking Methods using Deep Learning for Computer Vision Applications

D. Pneumonia classification using quaternion deep learning

E. Deep Learning based Object Detection Model for Autonomous Driving Research using CARLA Simulator

F. Quantum Neural Network-Based Deep Learning System to Classify Physical Timeline Acceleration Data of Agricultural Workers

G. Artificial Intelligence (AI) Enabled Vehicle Detection and counting Using Deep Learning

V. IMPLEMENTATION

A.  Technology Stack Used – Resources

1. Code repository will contain implementation of Quantum Neural Network as well as Classical Convolutional Neural Network for Classification Task on Street View House Numbers dataset.
2. Python 3.9
3. For the Quantum Implementation we would need:
   • TensorFlow-Quantum
   • Cirq

4. For the Classical Implementation we would need:

• TensorFLow 2.x
• TensorBoard

5. The Jupyter Notebooks are developed in Google Colab.

6. The Repository contains weights for trained Classical and Quantum Models.

7. Deployment feasibility of the entire QuantumAI setup on GCP, Qiskit Runtime Simulation, etc.

B.  Datasource And Loading

• Dataset Chosen: The Street View House Numbers (SVHN) dataset is one of the most popular benchmarks for object recognition tasks in academic papers. The images were obtained from house numbers in Google Street View images, are hosted by Stanford University and are very similar in philosophy with the MNIST dataset. However, the original purpose of this dataset is to solve a harder problem: that of recognizing digits and numbers in natural scene images.
• Dataset Format: The data of the Street View House Numbers dataset, which can originally be found here are originally in .mat, i.e. files which can be best processed with MATLAB; thus, some preprocessing is. It is important to note that the data are divided into two formats and in this particular kernel we are going to use Format 2.

1. Format 1: The original, variable-resolution colored house-number images with character level bounding boxes.
2. Format 2: The cropped digits (32x32 pixels) which follow the philosophy of the MNIST dataset more closely, but also contain some distracting digits to the sides of the digit of interest.

C. Workflow Operations

1. Classical Deep Learning with TensorFlow

a. Configurations/Libraries

• Keras
• Tensorflow

b. Preprocessing Functions

• FormatArray()
• fixLabel()
• rgb2gray()

The above three functions formats the array in proper shape, fix the label range and convert the pixels from RGB to GrayScale format.

2. Data Preprocessing

Let's have a look at the first image from our X_train and the  corresponding label from y_train.

From the colorbar in the above visualization, we see that there are grayscale images in the dataset and hence their values range from 0 to 255. It's better to scale these pixel values in our dataset so that the values range from 0 to 1. This will help us to converge our CNN training faster.

3. Normalizing the Train and test Image Data

X_train = X_train/255.0

X_test = X_test/255.0

Post normalizing let's again have a look at the first image from our X_train.

Before proceeding, we need to reshape our images in the dataset to include the grayscale parameter at the end.

X_train = X_train.reshape(X_train.shape[0], *(32,32,1))

X_valid = X_valid.reshape(X_valid.shape[0], *(32,32,1))

X_test = X_test.reshape(X_test.shape[0], *(32,32,1))

• The shape of the X_train is (58605, 32, 32, 1)
• The shape of the X_valid is (14652, 32, 32, 1)
• The shape of the X_test is (26032, 32, 32, 1)

4. Building the Deep Learning Model

Now that we are aware of the dataset, we can start building our Deep Learning model. We will use TensorFlow and specifically the tensorflow.keras API for building the model. TensorFlow is one of the leading Machine Learning libraries that is being used these days and can be used for constructing Neural networks. Building our network involves the following steps which together create Python code:

• Adding imports: we depend on other packages for building our Neural network. We have to import the specific components that we require first.
• Specifying the configuration options: configuring a Neural network involves specifying some configuration options.
• Creating the model skeleton: we then actually create the Neural network, or more specifically the model skeleton. We will then know what our model looks like, but it's not real yet.
• Compiling the model: when compiling the model, we make it real, by instantiating it and configuring it. It can now be used.
• Fitting data to the model: in other words, training the model.
• Evaluating the model: checking how well it works after it was trained.

5. Libraries to be imported to build CNN

The first thing we have to do is adding the imports.

• First of all, we'll be using the Extra Keras Datasets package for importing SVHN Dataset.
• We then import the Sequential Keras API, which is the foundation for our Keras model. Using this API, we can stack layers on top of each other, which jointly represent the Deep Learning model.
• We will also use a few layers: we'll use Convolutional ones (Conv2D) for 2D data (i.e., images), Densely-connected ones (for generating the actual predictions) and Flatten (Dense layers can't handle non-1D data, so we must flatten the outputs of our final Conv layers).
• For optimization, we use the Adam optimizer (tensorflow.keras.optimizers.Adam) and for loss we use categorical_crossentropy loss.
• Finally, because we use categorical crossentropy loss, we must one-hot encode our targets. Using the to_categorical util, we can achieve this.

6. Configuration Parameters

• batch_size = 250
• no_epochs = 150
• validation_split_size = 0.20
• verbosity = 1
• optimizer = Adam()
• loss_function = categorical_crossentropy
• additional_metrics = ['accuracy']

7. Creating the Model Skeleton

We can then create the model skeleton:

• We first initialize the Sequential API into the CNN_model variable.
• We then stack a few layers on top of each other and indirectly on top of the model foundation. Specifically, we use 3 Convolutional layers, then Flatten the feature maps generated by the last layer, and use Dense layers for the final prediction (using Softmax).

8. Compiling and Model Training

Model training at 100th Epoch:

Epoch 100/100

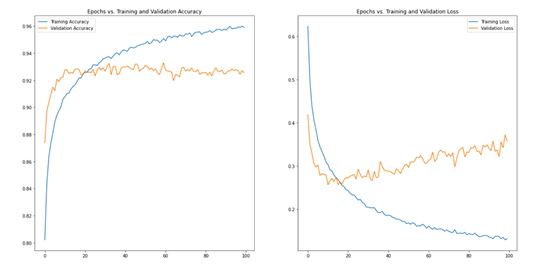

1832/1832 [==============================] - 39s 21ms/step - loss: 0.1311 - accuracy: 0.9592 - val_loss: 0.3571 - val_accuracy: 0.9256

9. Model Evaluation

• The loss on the test set is 0.3858301639556885
• The accuracy on the test set is 0.922633707523346

10. Quantum Deep learning - QCNN

• About QML – Quantum Machine Learning: We shall perform QML on America’s household dataset using TensorFLow Quantum and Cirq.
• TensorFlow-Quantum is a great place to start learning QML and get into this amazing field. TensorFlow Quantum (TFQ) is a quantum machine learning library for rapid prototyping of hybrid quantum-classical ML models. TensorFlow Quantum focuses on quantum data and building hybrid quantum-classical models. It integrates quantum computing algorithms and logic designed in Cirq, and provides quantum computing primitives compatible with existing TensorFlow APIs, along with high-performance quantum circuit simulators.
• Cirq is a Python software library for writing, manipulating, and optimizing quantum circuits, and then running them on quantum computers and quantum simulators. Cirq provides useful abstractions for dealing with today’s noisy intermediate-scale quantum computers, where details of the hardware are vital to achieving state-of-the-art results.

   a) Configurations/Libraries

• Cirq 0.7
• Tensorflow 2.3.1
• Tensorflow-quantum 0.2

b)  Preprocessing Functions (same as CNN)

• FormatArray()
• fixLabel()
• rgb2gray()

c)  Image Plot

???????

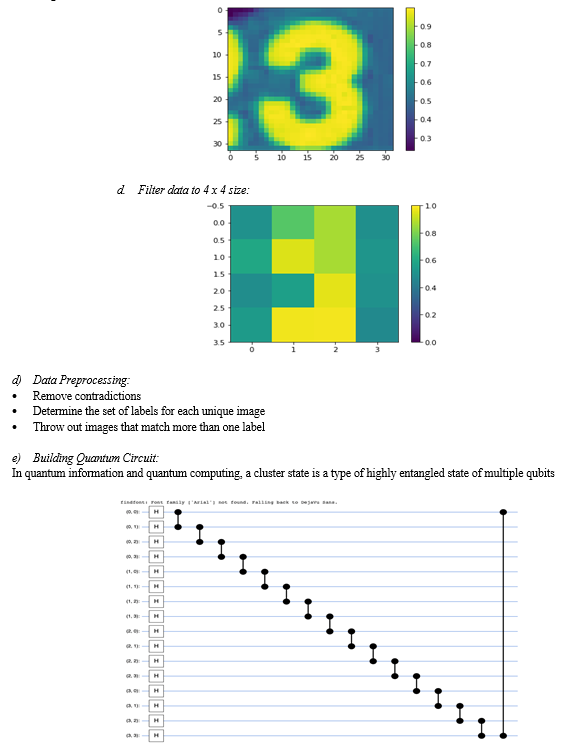

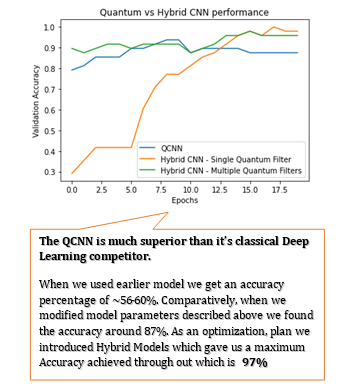

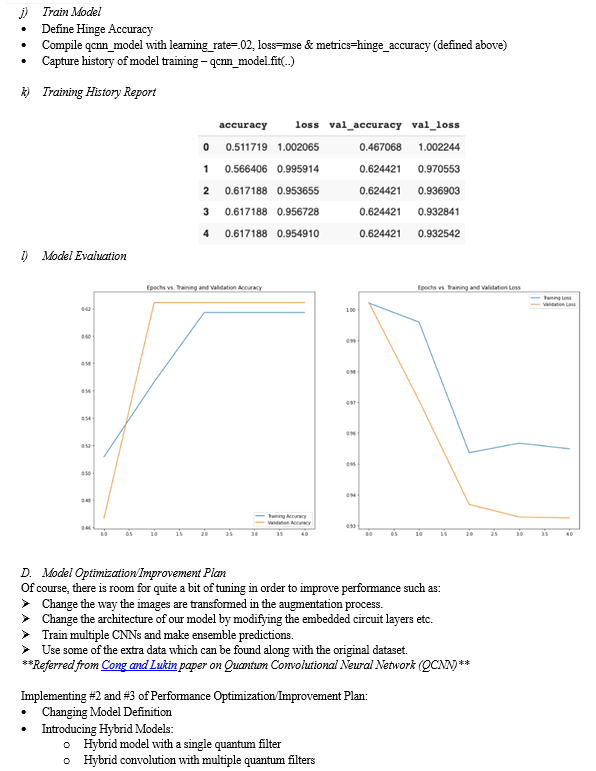

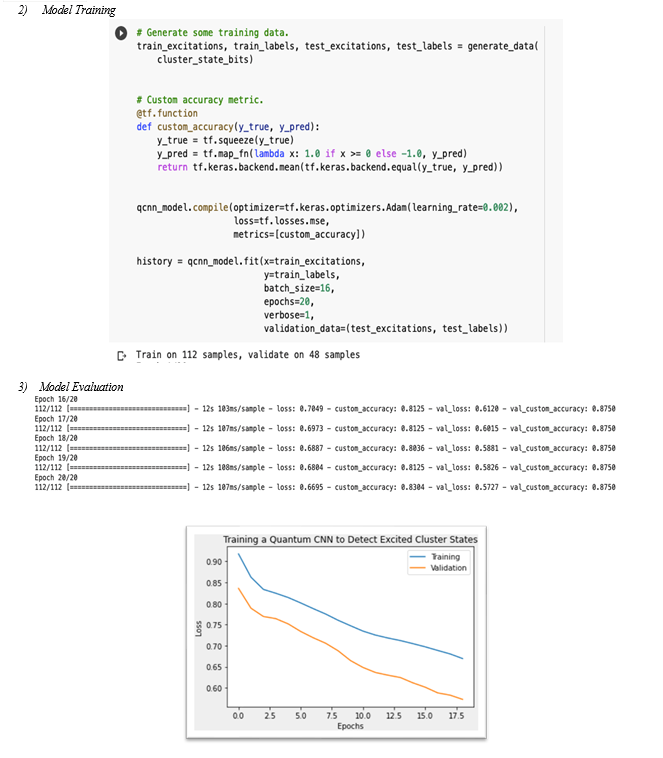

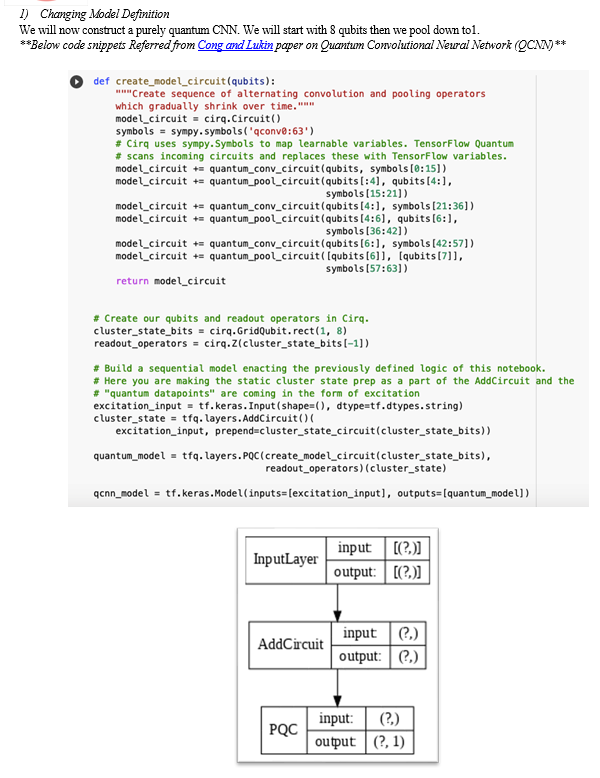

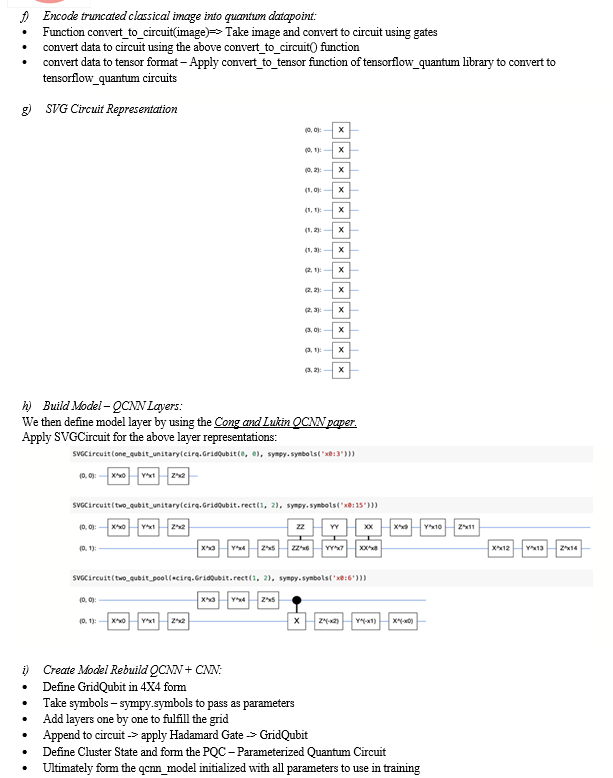

Conclusion
