Ijraset Journal For Research in Applied Science and Engineering Technology
Authors: Madapati Asha Jyothi, Mr. M. Kalidas
DOI Link: https://doi.org/10.22214/ijraset.2022.47281
Certificate: View Certificate
Efficient and accurate object detection has been an important topic in the advancement of computer vision systems. With the advent of deep learning techniques, the accuracy for object detection has increased drastically. The project aims to incorporate state-of-the-art technique for object detection with the goal of achieving high accuracy with a real-time performance. A major challenge in many of the object detection systems is the dependency on other computer vision techniques for helping the deep learning based approach, which leads to slow and non-optimal performance. In this project, we use a completely deep learning based approach to solve the problem of object detection in an end-to-end fashion. The network is trained on the most challenging publicly available data-set, on which a object detection challenge is conducted annually. The resulting system is fast and accurate, thus aiding those applications which require object detection.
I. INTRODUCTION
Object detection is a well-known computer technology connected with computer vision and mage processing. With the advent of deep learning techniques, the accuracy for object detection has increased drastically. It focuses on detecting objects or its instances of a certain class (such as humans, flowers, animals) in digital mages and videos. There are various applications including face detection, character recognition, and vehicle calculator.
A. Problem Statement
Many problems in computer vision were saturating on their accuracy before a decade. However, with the rise of deep learning techniques, the accuracy of these problems drastically improved. One of the major problem was that of mage classification, which is defined as predicting the class of the mage. A slightly complicated problem is that of mage localization, where the mage contains a single object and the system should predict the class of the location of the object in the mage (a bounding box around the object). The more complicated problem (this project), of object detection involves both classification and localization. in this case, the input to the system will be a mage, and the output will be a bounding box corresponding to all the objects in the mage, along with the class of object in each box.
B. Literature Survey
Authors: Babenko, B., Yang, M., Belongie, S
Abstract:: In this paper we address the problem of tracking an object in a video given its location in the first frame and no other information.
Recently, a class of tracking techniques called “tracking by detection” has been shown to give promising results at real-time speeds. These methods train a discriminative classifier in an online manner to separate the object from the background. This classifier bootstraps itself by using the current tracker state to extract positive and negative examples from the current frame. Slight inaccuracies in the tracker can therefore lead to incorrectly labeled training examples, which degrade the classifier and can cause drift. in this paper we show that using Multiple instance Learning (MIL), instead of traditional supervised learning, avoids these problems and can therefore lead to a more robust tracker with fewer parameter tweaks. We propose a novel online MIL algorithm for object tracking that achieves superior results with real-time performance. We present thorough experimental results (both qualitative and quantitative) on a number of challenging video clips.
2. A review and comparison of measures for automatic video surveillance systems.
Authors: Baumann, A., Bolt z, M., Ebling, J., Koenig, M., Loos, H.S., Merkel, M., Niem, W., Warzelhan, J.K., Yu, J
Abstract: Today's video surveillance systems are increasingly equipped with video content analysis for a great variety of applications. However, reliability and robustness of video content analysis algorithms remain an issue.They have to be measured against ground truth data in order to quantify the performance and advancements of new algorithms. Therefore, a variety of measures have been proposed in the literature, but there has neither been a systematic overview nor an evaluation of measures for specific video analysis tasks yet. This paper provides a systematic review of measures and compares their effectiveness for specific aspects, such as segmentation, tracking, and event detection. Focus is drawn on details like normalization issues, robustness, and representatives. A software framework is introduced for continuously evaluating and documenting the performance of video surveillance systems. Based on many years of experience, a new set of representative measures is proposed as a fundamental part of an evaluation framework.
3. Handcrafted and Deep Trackers: Recent Visual Object Tracking Approaches and Trends
Authors: Mustansar Fiaz
Abstract: in recent years visual object tracking has become a very active research area. An increasing number of tracking algorithms are being proposed each year. t is because tracking has wide applications in various real world problems such as human-computer interaction, autonomous vehicles, robotics, surveillance and security just to name a few. in the current study, we review latest trends and advances in the tracking area and evaluate the robustness of different trackers based on the feature extraction methods. The first part of this work comprises a comprehensive survey of the recently proposed trackers. We broadly categorize trackers into Correlation Filter based Trackers (CFTs) and Non-CFTs. Each category is further classified into various types based on the architecture and the tracking mechanism. in the second part, we experimentally evaluated 24 recent trackers for robustness, and compared handcrafted and deep feature based trackers. We observe that trackers using deep features performed better, though in some cases a fusion of both increased performance significantly. In order to overcome the drawbacks of the existing benchmarks, a new benchmark Object Tracking and Temple Color (OTTC) has also been proposed and used in the evaluation of different algorithms. We analyze the performance of trackers over eleven different challenges in OTTC, and three other benchmarks. Our study concludes that Discriminative Correlation Filter (DCF) based trackers perform better than the others. Our study also reveals that inclusion of different types of regularization s over DCF often results in boosted tracking performance. Finally, we sum up our study by pointing out some insights and indicating future trends in visual object tracking field.
II. SYSTEM ANALYSIS
A. Existing system:
There has been a lot of work in object detection using traditional computer vision techniques (sliding windows, deform-able part models). However, they lack the accuracy of deep learning based techniques. Among the deep learning based techniques, two broad class of methods are prevalent: two stage detection (RCNN, Fast RCNN, Faster RCNN) and unified detection (Yolo, SSD).
Disadvantages of Existing system
B. Proposed System
Here we are proposed YOLOV3 and YOLOV3-TINY models, One of the important fields of Artificial Intelligence is Computer Vision the science of computers and software systems that can recognize and understand images and scenes. Computer Vision is also composed of various aspects such as image recognition, object detection, image generation, image super-resolution and more. Object detection is probably the most profound aspect of computer vision due the number of practical use cases.
Object detection refers to the capability of software systems to locate objects in an image/scene and identify each object. It has been widely used for face detection, vehicle detection, pedestrian counting, web images, security systems and driver less cars. There are many ways object detection can be used as well in many fields of practice. Like every other computer technology, a wide range of creative and amazing uses of object detection will definitely come from the efforts of computer programmers and software developers. Getting to use modern object detection methods in applications and systems, as well as building new applications based on these methods is not a straight forward task.
Early implementations of object detection involved the use of classical algorithms, the popular computer vision library. However, these classical algorithms could not achieve enough performance to work under different conditions.
Advantages of proposed system
C. System Requirements
The functional requirements or the overall description documents include the product perspective and features, operating system and operating environment, graphics requirements, design constraints and user documentation.
The appropriation of requirements and implementation constraints gives the general overview of the project in regards to what the areas of strength and deficit are and how to tackle them.
Python del 3.7 version (or)
Anaconda 3.7 (or)
Jupiter (or)
Google colab
Minimum hardware requirements are very dependent on the particular software being developed by a given En thought Python / Canopy / VS Code user. Applications that need to store large arrays/objects in memory will require more RAM, whereas applications that need to perform numerous calculations or tasks more quickly will require a faster processor.
Operating system : windows, Linux
Processor : minimum Intel 3
Ram : minimum 4 gb
Hard disk : minimum 250gb.
2. System Study
Feasibility Study
The feasibility of the project is analyzed in this phase and business proposal is put forth with a very general plan for the project and some cost estimates. During system analysis the feasibility study of the proposed system is to be carried out. This is to ensure that the proposed system is not a burden to the company. For feasibility analysis, some understanding of the major requirements for the system is essential.
Three key considerations involved in the feasibility analysis are
III. SYSTEM DESIGN
A. System Architecture
YOLOv2 improves the performance by using more anchor boxes and a new bounding box regression method.
YOLOv3 is an enhanced version of the v2 variant with a deeper feature detector network and minor representational changes. YOLOv3 has relatively speedy inference times with it taking roughly 30ms per inference.
YOLOv4 (YOLOv3 upgrade) works by breaking the object detection task into two pieces, regression to identify object positioning via bounding boxes and classification to determine the object's class. YOLO V4 and its successors are technically the product of a different set of researchers than versions 1-3.
B. DFD Level-O
The DFD is also called as bubble chart. t is a simple graphical formalism that can be used to represent a system in terms of input data to the system, various processing carried out on this data, and the output data is generated by this system.
The data flow diagram (DFD) is one of the most important modeling tools. t is used to model the system components. These components are the system process, the data used by the process, an external entity that interacts with the system and the information flows in the system.
C. DFD Level-1
DFD shows how the information moves through the system and how t is modified by a series of transformations. t is a graphical technique that depicts information flow and the transformations that are applied as data moves from input to output.
DFD is also known as bubble chart. A DFD may be used to represent a system at any level of abstraction. DFD may be partitioned into levels that represent increasing information flow and functional detail.
D. UML Diagrams
UML stands for Unified Modeling Language. UML is a standardized general-purpose modeling language in the field of object-oriented software engineering. The standard is managed, and was created by, the Object Management Group.
The goal is for UML to become a common language for creating models of object oriented computer software. In its current form UML is comprised of two major components: a Meta-model and a notation. In the future, some form of method or process may also be added to; or associated with, UML. The Unified Modeling Language is a standard language for specifying, Visualization, Constructing and documenting the artifacts of software system, as well as for business modeling and other non-software systems.
The UML represents a collection of best engineering practices that have proven successful in the modeling of large and complex systems.
The UML is a very important part of developing objects oriented software and the software development process. The UML uses mostly graphical notations to express the design of software projects.
The Primary goals in the design of the UML are as follows:
a. Provide users a ready-to-use, expressive visual modeling Language so that they can develop and exchange meaningful models.
b. Provide extensibility and specialization mechanisms to extend the core concepts.
c. Be independent of particular programming languages and development process.
d. Provide a formal basis for understanding the modeling language.
e. Encourage the growth of OO tools market.
f. Support higher level development concepts such as collaborations, frameworks, patterns and components.
g. Integrate best practices.
E. Use Case Diagram
A use case diagram in the Unified Modeling Language (UML) is a type of behavioral diagram defined by and created from a Use-case analysis. its purpose is to present a graphical overview of the functionality provided by a system in terms of actors, their goals (represented as use cases), and any dependencies between those use cases. The main purpose of a use case diagram is to show what system functions are performed for which actor. Roles of the actors in the system can be depicted.

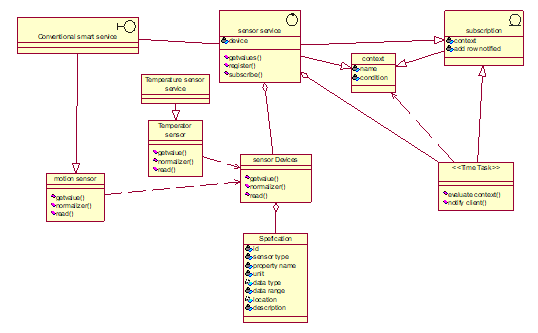

F. Class Diagram
The class diagram is used to refine the use case diagram and define a detailed design of the system. The class diagram classifies the actors defined in the use case diagram into a set of interrelated classes. The relationship or association between the classes can be either an "is-a" or "has-a" relationship. Each class in the class diagram may be capable of providing certain functionalities. These functionalities provided by the class are termed "methods" of the class. Apart from this, each class may have certain "attributes" that uniquely identify the class.
G. Sequence Diagram
A sequence diagram represents the interaction between different objects in the system. The important aspect of a sequence diagram is that is time-ordered. This means that the exact sequence of the interactions between the objects is represented step by step. Different objects in the sequence diagram interact with each other by passing "messages".
Activity diagram of object detection module The process of object detection begins by dividing the points into smaller sections of data called chunks. The chunks are created by projecting all the points into the XY plane and then dividing the plane into small regions. The regions in the X direction (azimuth) are separated by the angle from the center line and the regions in the Y direction (range) are separated by their range from the sensor. There are five regions in azimuth that span evenly across the field of view and fifteen regions in range that span 25 feet at close ranges and 100-200 feet at the farther ranges. For the points in each chunk, a plane is created that best fits the data using singular value decomposition (SVD). It is assumed that the majority of the points contained within each chunk are returns from the terrain. Thus, the fitted plane can be used to classify the points within each chunk. A standard deviation value representing the uncertainty of the radar beam width is applied above and below the fitted plane. Points that fall within three standard deviations of the plane are classified as terrain. Three standard deviations was selected because it represents 99.7% of the area of the radar beam. The points more than three standard deviations above the plane are classified as obstacles and the points more than three standard deviations below the plane are classified as below terrain. It should be noted that for radar applications, it is not unusual to see points located beneath a surface due to multi-path effects of the radar beam.
These points are usually mirrored returns from strong targets. Multi-path radar effects have been studied for over 50 years and are still being studied today . After point classification, the obstacle points are clustered using DBSCAN.
The resulting clusters are validated by comparing them with their surrounding regions in the 2D intensity image generated earlier by this module. Validation occurs by verifying a contrast in intensity of the object itself versus the background of the object. If there is a significant contrast, meaning that the cluster has a higher intensity than its surrounding area, the cluster is validated. Validated clusters are then tracked with time and can be used to determine if the object is a hazard to the vehicle.
Mapping: It is not feasible to store all of the points in memory over periods of time longer than 10 seconds. The radar can theoretically generate 5,581,500 points in each 0.5 second frame. Thus, in order to maintain a history of the environment for future use, the data must be sampled into a database capable of storing data over a large physical area.
K. Component Diagram
The component diagram represents the high-level parts that make up the system. This diagram depicts, at a high level, what components form part of the system and how they are interrelated. A component diagram depicts the components culled after the system has undergone the development or construction phase.
L. Component Diagram
The data (account and inspection ID) flows into the component via the port on the right-hand side and is converted into a format the internal components can use. The interfaces on the right are known as required interfaces, which represents the services the component needed in order to carry out its duty.
The data then passes to and through several other components via various connections before it is output at the ports on the left. Those interfaces on the left are known as provided interface, which represents the services to deliver by the exhibiting component.
It is important to note that the internal components are surrounded by a large 'box' which can be the overall system itself (in which case there would not be a component symbol in the top right corner) or a subsystem or component of the overall system (in this case the 'box' is a component itself).
M. Deployment Diagram
A deployment diagram is a UML diagram type that shows the execution architecture of a system, including nodes such as hardware or software execution environments, and the middleware connecting them. Deployment diagrams are typically used to visualize the physical hardware and software of a system. A line that indicates a message or other type of communication between nodes. Component: A rectangle with two tabs that indicates a software element. Dependency: A dashed line that ends in an arrow, which indicates that one node or component is dependent on another.
IV. DESIGN PHASE
A. Modules and Functional Requirement
B. Functional Requirements
a. ImageNet: Image Net data set consists of around 14 million images in total for 21,841 different categories of objects (data as of 12th Feb 2020). Some of the popular categories of objects in Image Net are Animal (fish, bird, mammal, invertebrate), Plant (tree, flower, vegetable) and Activity (sport).
b. Common Objects in Context (COCO): COCO is a large-scale object detection, segmentation, and captioning data set. It contains around 330,000 images out of which 200,000 are la-belled for 80 different object categories.
c. Google’s Open Images: Open Images is a data set of around 9M images annotated with image-level labels, object bounding boxes, object segmentation masks, and visual relationships. It contains a total of 16M bounding boxes for 600 object classes on 1.9M images, making it the largest existing dataset with object location annotations.
2. Data Pre-processing
a. Read Image: In this step, we store the path to our image data set into a variable then we created a function to load folders containing images into arrays. But first, we need to import the libraries that we are going to use for this tutorial first.
b. Resize Image: In this step in order to visualize the change, we are going to create two functions to display the images the first being a one to display one image and the second for two images. After that, we then create a function called processing that just receives the images as a parameter.
3. Training & Testing
a. Step 1: Annotate some images. During this step, you will find/take pictures and annotate objects' bounding boxes. ...
b. Step 3: Configuring a Training Pipeline. ...
c. Step 4: Train the model. ...
d. Step 5: Exporting and download a Trained model.
4. Modeling
Given an image or a video stream, an object detection model can identify which of a known set of objects might be present and provide information about their positions within the image.
C. Non Functional Requirements
NON-FUNCTIONAL REQUIREMENT (NFR) specifies the quality attribute of a software system. They judge the software system based on Responsiveness, Usability, Security, Portability and other non-functional standards that are critical to the success of the software system.
Example of nonfunctional requirement, “how fast does the website load?” Failing to meet non-functional requirements can result in systems that fail to satisfy user needs. Non- functional Requirements allows you to impose constraints or restrictions on the design of the system across the various agile backlogs. Example, the site should load in 3 seconds when the number of simultaneous users are > 10000.
Description of non-functional requirements is just as critical as a functional requirement.
D. Applications of Machines Learning
Machine Learning is the most rapidly growing technology and according to researchers we are in the golden year of AI and ML. t is used to solve many real-world complex problems which cannot be solved with traditional approach. Following are some real-world applications of ML −
a. Terminologies of Machine Learning
b. Types of Machine Learning
e. Modules Used in Project
TensorFlow is a free and open-source software library for dataflow and differentiable programming across a range of tasks. t is a symbolic math library, and is also used for machine learning applications such as neural networks. t is used for both research and production at Google.
E. Algorithms
YOLOv3 (You Only Look Once, Version 3) is a real-time object detection algorithm that identifies specific objects in videos, live feeds, or images. YOLO uses features learned by a deep Convolutional neural network to detect an object.
The improved Tiny YOLOv3 uses K-means clustering to estimate the size of the anchor boxes for data set. The pooling and convolution layers are added in the network to strengthen feature fusion and reduce parameters. The network structure increases up sampling and down sampling to enhance multi-scale fusion.
Tiny-yolov3 is a simplified version of YOLOv3, which has a much smaller number of convolution layers than YOLOv3, which means that tiny-yolov3 does not need to occupy a large amount of memory, reducing the need for hardware. And it also greatly speeds up detection, but lost some of the detection accuracy.
V. CODING PHASE
A. Sample Code
#include <fstream>
#include <sstream>
#include <iostream>
#include <opencv2/dnn.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
const char* keys =
"{help h usage ? | | Usage examples: \n\t\t./object_detection_yolo.out --image=dog.jpg \n\t\t./object_detection_yolo.out --video=run_sm.mp4}"
"{image i |<none>| input image }"
"{video v |<none>| input video }"
"{device d |<cpu>| input device }";
using namespace cv;
using namespace dnn;
using namespace std;
// Initialize the parameters
float confThreshold = 0.5; // Confidence threshold
float nmsThreshold = 0.4; // Non-maximum suppression threshold
int inpWidth = 416; // Width of network's input image
int inpHeight = 416; // Height of network's input image
vector<string> classes;
// Remove the bounding boxes with low confidence using non-maxima suppression
void postprocess(Mat& frame, const vector<Mat>& out);
// Draw the predicted bounding box
void drawPred(int classId, float conf, int left, int top, int right, int bottom, Mat& frame);
// Get the names of the output layers
vector<String> getOutputsNames(const Net& net);
int main(int argc, char** argv)
{
Command Line Parser parser(argc, argv, keys);
parser.about("Use this script to run object detection using YOLO3 in OpenCV.");
if (parser.has("help"))
{
parser.printMessage();
return 0;
}
// Load names of classes
string classesFile = "coco.names";
ifstream ifs(classesFile.c_str());
string line;
while (getline(ifs, line)) classes.push_back(line);
string device = "cpu";
device = parser.get<String>("device");
// Give the configuration and weight files for the model
String modelConfiguration = "yolov3.cfg";
String modelWeights = "yolov3.weights";
// Load the network
Net net = readNetFromDarknet(modelConfiguration, modelWeights);
if (device == "cpu")
{
cout << "Using CPU device" << endl;
net.setPreferableBackend(DNN_TARGET_CPU);
}
else if (device == "gpu")
{
cout << "Using GPU device" << endl;
net.setPreferableBackend(DNN_BACKEND_CUDA);
net.setPreferableTarget(DNN_TARGET_CUDA);
}
// Open a video file or an image file or a camera stream.
string str, outputFile;
VideoCapture cap;
VideoWriter video;
Mat frame, blob;
try {
outputFile = "yolo_out_cpp.avi";
if (parser.has("image"))
{
// Open the image file
str = parser.get<String>("image");
ifstream ifile(str);
if (!ifile) throw("error");
cap.open(str);
str.replace(str.end()-4, str.end(), "_yolo_out_cpp.jpg");
outputFile = str;
}
else if (parser.has("video"))
{
// Open the video file
str = parser.get<String>("video");
ifstream ifile(str);
if (!ifile) throw("error");
cap.open(str);
str.replace(str.end()-4, str.end(), "_yolo_out_cpp.avi");
outputFile = str;
}
// Open the webcaom
else cap.open(parser.get<int>("device"));
}
catch(...) {
cout << "Could not open the input image/video stream" << endl;
return 0;
}
// Get the video writer initialized to save the output video
if (!parser.has("image")) {
video.open(outputFile,VideoWriter::fourcc('M','J','P','G'),28, Size(cap.get(CAP_PROP_FRAME_WIDTH), cap.get(CAP_PROP_FRAME_HEIGHT)));
}
// Create a window
static const string kWinName = "Deep learning object detection in OpenCV";
namedWindow(kWinName, WINDOW_NORMAL);
// Process frames.
while (waitKey(1) < 0)
{
// get frame from the video
cap >> frame;
// Stop the program if reached end of video
if (frame.empty()) {
cout << "Done processing !!!" << endl;
cout << "Output file is stored as " << outputFile << endl;
waitKey(3000);
break;
}
// Create a 4D blob from a frame.
blobFromImage(frame, blob, 1/255.0, cv::Size(inpWidth, inpHeight), Scalar(0,0,0), true, false);
//Sets the input to the network
net.setInput(blob);
// Runs the forward pass to get output of the output layers
vector<Mat> outs;
net.forward(outs, getOutputsNames(net));
// Remove the bounding boxes with low confidence
postprocess(frame, outs);
// Put efficiency information. The function getPerfProfile returns the overall time for inference(t) and the timings for each of the layers(in layersTimes)
vector<double> layersTimes;
double freq = getTickFrequency() / 1000;
double t = net.getPerfProfile(layersTimes) / freq;
string label = format("Inference time for a frame : %.2f ms", t);
putText(frame, label, Point(0, 15), FONT_HERSHEY_SIMPLEX, 0.5, Scalar(0, 0, 255));
// Write the frame with the detection boxes
Mat detectedFrame;
frame.convertTo(detectedFrame, CV_8U);
if (parser.has("image")) imwrite(outputFile, detectedFrame);
else video.write(detectedFrame);
imshow(kWinName, frame);
}
cap.release();
if (!parser.has("image")) video.release();
return 0;
}
// Remove the bounding boxes with low confidence using non-maxima suppression
void postprocess(Mat& frame, const vector<Mat>& outs)
{
vector<int> classIds;
vector<float> confidences;
vector<Rect> boxes;
for (size_t i = 0; i < outs.size(); ++i)
{
// Scan through all the bounding boxes output from the network and keep only the
// ones with high confidence scores. Assign the box's class label as the class
// with the highest score for the box.
float* data = (float*)outs[i].data;
for (int j = 0; j < outs[i].rows; ++j, data += outs[i].cols)
{
Mat scores = outs[i].row(j).colRange(5, outs[i].cols);
Point classIdPoint;
double confidence;
// Get the value and location of the maximum score
minMaxLoc(scores, 0, &confidence, 0, &classIdPoint);
if (confidence > confThreshold)
{
int centerX = (int)(data[0] * frame.cols);
int centerY = (int)(data[1] * frame.rows);
int width = (int)(data[2] * frame.cols);
int height = (int)(data[3] * frame.rows);
int left = centerX - width / 2;
int top = centerY - height / 2;
classIds.push_back(classIdPoint.x);
confidences.push_back((float)confidence);
boxes.push_back(Rect(left, top, width, height));
}
}
}
// Perform non maximum suppression to eliminate redundant overlapping boxes with
// lower confidences
vector<int> indices;
NMSBoxes(boxes, confidences, confThreshold, nmsThreshold, indices);
for (size_t i = 0; i < indices.size(); ++i)
{
int idx = indices[i];
Rect box = boxes[idx];
drawPred(classIds[idx], confidences[idx], box.x, box.y,box.x + box.width, box.y + box.height, frame);
}
}
// Draw the predicted bounding box
void drawPred(int classId, float conf, int left, int top, int right, int bottom, Mat& frame)
{
//Draw a rectangle displaying the bounding box
rectangle(frame, Point(left, top), Point(right, bottom), Scalar(255, 178, 50), 3);
//Get the label for the class name and its confidence
string label = format("%.2f", conf);
if (!classes.empty())
{
CV_Assert(classId < (int)classes.size());
label = classes[classId] + ":" + label;
}
//Display the label at the top of the bounding box
int baseLine;
Size labelSize = getTextSize(label, FONT_HERSHEY_SIMPLEX, 0.5, 1, &baseLine);
top = max(top, labelSize.height);
rectangle(frame, Point(left, top - round(1.5*labelSize.height)), Point(left + round(1.5*labelSize.width), top + baseLine), Scalar(255, 255, 255), FILLED);
putText(frame, label, Point(left, top), FONT_HERSHEY_SIMPLEX, 0.75, Scalar(0,0,0),1);
}
// Get the names of the output layers
vector<String> getOutputsNames(const Net& net)
{
static vector<String> names;
if (names.empty())
{
//Get the indices of the output layers, i.e. the layers with unconnected outputs
vector<int> outLayers = net.getUnconnectedOutLayers();
//get the names of all the layers in the network
vector<String> layersNames = net.getLayerNames();
// Get the names of the output layers in names
names.resize(outLayers.size());for (size_t i = 0; i < outLayers.size(); ++i)
names[i] = layersNames[outLayers[i] - 1];
}
return names;
}
B. Output
A single image:

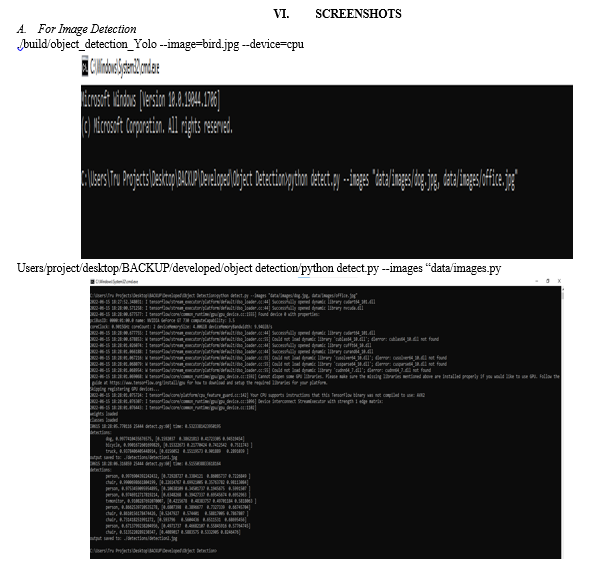

./build/object_detection_yolo --image=bird.jpg --device=cpu
To run on Windows system, change syntax accordingly:
.\build\Release\object_detection_yolo --image=run.mp4 --device=gpu
A video file:

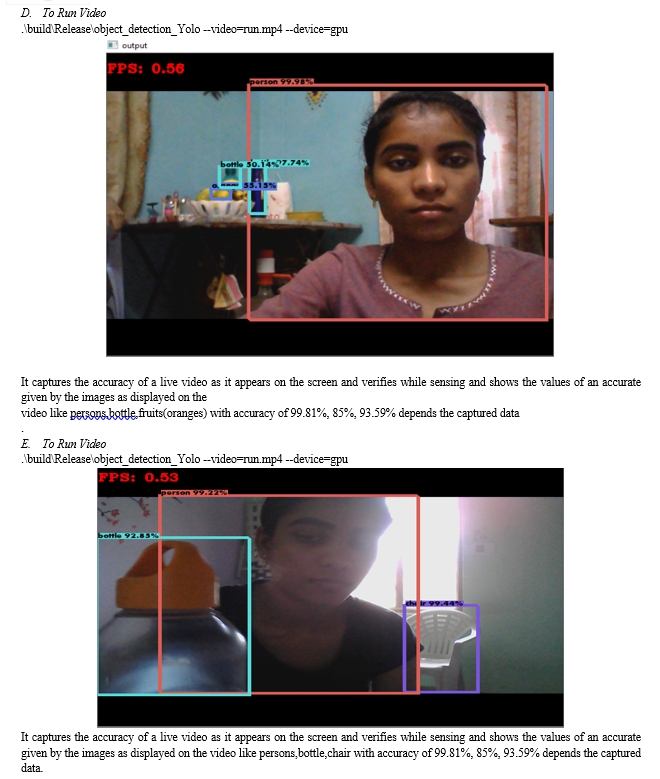

./build/object_detection_yolo --video=run.mp4 --device=cpu
To run on Windows system, change syntax accordingly:
.\build\Release\object_detection_yolo --video=run.mp4 --device=gpu
Model – A model is a specific representation learned from data by applying some machine learning algorithm. A model is also called a hypothesis.
Feature – A feature is an individual measurable property of the data. A set of numeric features can be conveniently described by a feature vector. Feature vectors
are fed as input to the model. For example, in order to predict a fruit, there may be features like color, smell, taste, etc.
Target (Label) – A target variable or label is the value to be predicted by our model. For the fruit example discussed in the feature section, the label with each set of input would be the name of the fruit like apple, orange, banana, etc.
Training – The idea is to give a set of inputs(features) and it’s expected outputs(labels), so after training, we will have a model (hypothesis) that will then map new data to one of the categories trained on.
Prediction – Once our model is ready, t can be fed a set of inputs to which t will provide a predicted output(label).
VIII. FUTURE SCOPE
Computer vision is still a developing discipline, it has not been matured to that level where it can be applied directly to real life problems. After few years computer vision and particularly the object detection would not be any more futuristic and will be ubiquitous. For now, we can consider object detection as a sub-branch of machine learning.
An accurate and efficient object detection system has been developed which achieves comparable metrics with the existing state-of-the-art system. This project uses recent techniques in the field of computer vision and deep learning. Custom data set was created using labeling and the evaluation was consistent. This can be used in real-time applications which require object detection for Pre-processing in their pipeline. An important scope would be to train the system on a video sequence for usage in tracking applications. Addition of a temporally consistent network would enable smooth detection and more optimal than per-frame detection.
[1] Babenko, B., Yang, M., Belongie, S.: Robust object tracking with online multiple Instance learning. EEE Transactions on Pattern Analysis and Machine Intelligence 33(8), 1619– 1632 (2011) 2 [2] Baumann, A., Boltz, M., Ebling, J., Koenig, M., Loos, H.S., Merkel, M., Niem, W., Warzelhan, J.K., Yu, J.: A review and comparison of measures for automatic video surveillance systems. EURASIP Journal on mage and Video Processing 2008(824726), 1–30 (2008) 2 [3] Bhat, G., Johnander, J., Danelljan, M., Shahbaz Khan, F., Felsberg, M.: Unveiling the power of deep tracking. n: Proceedings of the European Conference on Computer Vision (ECCV), pp. 483–498 (2018) 13 [4] Cehovin, L., Leonardis, A., Kristan, M.: Visual object trac ? king performance measures revisited. EEE Transactions on mage Processing 25(3), 1261–1274 (2016) 2 [5] Fiaz, M., Mahmood, A., Javed, S., Jung, S.K.: Handcrafted and deep trackers: Recent visual object tracking approaches and trends. ACM Computing Surveys (CSUR) 52(2), 43 (2019) 1 [6] Henriques, J.F., Caseiro, R., Martins, P., Batista, J.: High-speed tracking with kernelized correlation filters. EEE transactions on pattern analysis and machine ntelligence 37(3), 583–596 (2014) 13 [7] Henriques, J.F., Caseiro, R., Martins, P., Batista, J.: High-speed tracking with kernelized correlation filters. EEE Transactions on Pattern Analysis and Machine ntelligence 37(3), 583–596 (2015) 2 [8] Kasturi, R., Goldgof, D., Soundararajan, P., Manohar, V., Garofolo, J., Bowers, R., Boonstra, M., Korzhova, V., Zhang, J.: Framework for performance evaluation of face, text, and vehicle detection and tracking in video: Data, metrics and protocol. EEE Transactions on Pattern Analysis and Machine ntelligence 31(2), 319–336 (2009)
Copyright © 2022 Madapati Asha Jyothi, Mr. M. Kalidas. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Paper Id : IJRASET47281
Publish Date : 2022-11-03
ISSN : 2321-9653
Publisher Name : IJRASET
DOI Link : Click Here
