Role of Passive Design Techniques for a Comfortable Indoor Environment: Comparison between Tradition & Modern Architecture in Hot Climate

Abstract

This research aims to investigate the role of passive design techniques in creating a comfortable indoor environment in hot climates. It specifically focuses on comparing traditional and modern architectural approaches and their effectiveness in providing thermal comfort, energy efficiency, and sustainability. The study will explore the design principles, strategies, and technologies employed in both traditional and modern architecture to mitigate the impact of hot climates on indoor comfort. By analyzing various case studies and evaluating their performance, this research will provide insights into the strengths and weaknesses of each architectural style and offer recommendations for designing sustainable and comfortable indoor spaces in hot climate regions.

Introduction

I. INTRODUCTION

Hot climate regions present unique challenges in creating comfortable indoor environments due to high temperatures and intense solar radiation. In such areas, it is crucial to employ effective design strategies that can minimize heat gain, maximize natural ventilation, and provide thermal comfort without relying heavily on mechanical cooling systems. This research focuses on the role of passive design techniques in achieving a comfortable indoor environment in hot climates, specifically comparing traditional and modern architectural approaches. By implementing passive solar design principles, it is possible to achieve energy savings of approximately 1-5% without incurring any additional costs. This can be accomplished through various design considerations, such as optimizing building orientation, shape, layout, size, aspect ratio, and incorporating features that enhance natural daylight and ventilation.

A. Background and Significance

Rapid urbanization, population growth, and climate change have increased the demand for energy in the built environment, particularly in hot climate regions. Traditional architectural practices in these areas have historically incorporated passive design strategies to respond to the harsh climate conditions. These techniques harness the natural elements, such as sun, wind, and shade, to create comfortable and sustainable indoor spaces. However, with the advent of modern architecture and the widespread adoption of mechanical cooling systems, there has been a shift towards energy-intensive solutions that may not always be environmentally friendly or economically viable. This research aims to evaluate the effectiveness of both traditional and modern architectural approaches in hot climates, highlighting the benefits of passive design techniques for achieving thermal comfort and energy efficiency.

B. Objectives of the Research

The main objectives of this research are:

1. To explore and compare the design principles, strategies, and technologies used in traditional and modern architecture for mitigating the impact of hot climates on indoor comfort.
2. To analyze case studies of traditional architecture in hot climate regions, assessing their performance in terms of thermal comfort, energy efficiency, and sustainability.
3. To examine case studies of modern architecture in hot climate regions, evaluating the effectiveness of passive design techniques in creating comfortable indoor environments.
4. To identify the strengths and weaknesses of both traditional and modern architectural approaches in hot climates.
5. To provide recommendations for designing sustainable and comfortable indoor spaces in hot climate regions, based on the comparative analysis of traditional and modern architecture.

C. Scope and limitation

1. This study covers all types of hospitality/ wellness buildings in hot and dry climates and the study will be based solely on daylighting and passive cooling strategies.
2. Few cities (Jodhpur, Jaisalmer, Jaipur, Udaipur) of Rajasthan, will be used for the study.

II. LITERATURE REVIEW

A. Passive Design Techniques for a Comfortable Indoor Environment

Passive design techniques refer to architectural strategies that utilize natural elements and principles to create comfortable indoor environments without relying heavily on mechanical systems. These techniques include shading, natural ventilation, thermal insulation, and thermal mass. They aim to reduce heat gain, enhance airflow, and maintain thermal comfort in hot climate regions.

B. Traditional Architecture in Hot Climates

Traditional architecture in hot climates has evolved over centuries, incorporating passive design strategies that respond to the local climate conditions.

For example, in arid regions, courtyard houses with thick walls, small windows, and central open spaces provide shade, natural ventilation, and privacy.

Wind towers in traditional Middle Eastern architecture harness natural ventilation to cool indoor spaces. Other examples include the use of courtyards, narrow streets, and high thermal mass materials to mitigate the effects of heat.

C. Modern Architecture in Hot Climates

Modern architecture in hot climates often leans towards air-conditioning as a primary solution for thermal comfort. However, there is a growing recognition of the importance of passive design techniques in contemporary practices. Modern architects are incorporating principles such as orientation, shading devices, efficient insulation, and natural ventilation into their designs. Advanced technologies, such as solar shading systems and energy-efficient glazing, are also being utilized to optimize energy performance and reduce reliance on mechanical cooling.

D. Comparative Analysis of Traditional and Modern Approaches

Several studies have compared the performance of traditional and modern architectural approaches in hot climates. Research suggests that traditional architecture, with its emphasis on passive design strategies, demonstrates better thermal comfort and energy efficiency in hot climates compared to modern designs heavily reliant on mechanical systems. Traditional buildings show higher thermal inertia, improved natural ventilation, and effective shading techniques, which contribute to more sustainable and comfortable indoor environments.

Overall, the literature indicates the significance of passive design techniques in achieving a comfortable indoor environment in hot climates.

Traditional architecture has successfully employed these strategies for centuries, while modern architecture is gradually recognizing their importance.

Further research is necessary to conduct in-depth comparisons between the two approaches and explore innovative ways to integrate passive design techniques into contemporary architectural practice for sustainable and comfortable indoor environments in hot climate regions.

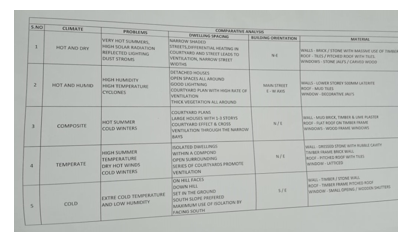

Brief description of passive cooling concepts has been tabulated in Table 1 and 2.

III. METHODOLOGY

A. Research Design

This research will adopt a comparative case study design to analyze and compare the role of passive design techniques in traditional and modern architecture for creating a comfortable indoor environment in hot climates. The case study approach allows for in-depth analysis of real-world examples and provides a basis for evaluating the performance of different architectural styles.

B. Case Study Selection Criteria

The selection of case studies will be based on the following criteria:

a) Geographical location: The case studies will be selected from hot climate regions to ensure relevance to the research topic.

b) Architectural style: Both traditional and modern architectural examples will be included to enable a comprehensive comparison.

c) Availability of data: Sufficient data, including design documentation, performance evaluations, and user feedback, should be accessible for the selected case studies.

C. Data Collection Methods

Multiple data collection methods will be employed to gather comprehensive information for the case studies:

a) Literature review: Extensive review of scholarly articles, books, and research papers will be conducted to gather background information, theoretical frameworks, and previous studies related to passive design techniques in traditional and modern architecture in hot climates.

b) Document analysis: Design documentation, building plans, and technical specifications of the selected case studies will be analyzed to understand the architectural features, passive design strategies, and energy performance aspects.

D. Data Analysis Techniques

The collected data will be analyzed using qualitative and quantitative techniques to address the research objectives and research questions:

1. Comparative Analysis: The architectural features, passive design strategies, and performance outcomes of the traditional and modern case studies will be compared to identify similarities, differences, strengths, and weaknesses.
2. Energy Performance Analysis: Energy consumption data, simulation results, and energy performance indicators will be analyzed to evaluate the energy efficiency and sustainability aspects of the case study buildings.
3. User feedback Analysis: Qualitative data from interviews and surveys will be analyzed thematically to gain insights into user satisfaction, comfort levels, and perceptions of the indoor environment.
4. Data Synthesis: The findings from the case studies will be synthesized to provide a comprehensive overview of the role of passive design techniques in traditional and modern architecture in hot climates.

The research methodology outlined above will facilitate a rigorous analysis and comparison of traditional and modern architectural approaches in hot climates, focusing on the effectiveness of passive design techniques in achieving a comfortable indoor environment. By combining different data collection methods and employing appropriate analysis techniques, this research aims to provide valuable insights and recommendations for sustainable architectural design in hot climate regions.

IV. CASE STUDIES AND ANALYSIS:

A. Traditional Architecture Case Study in India

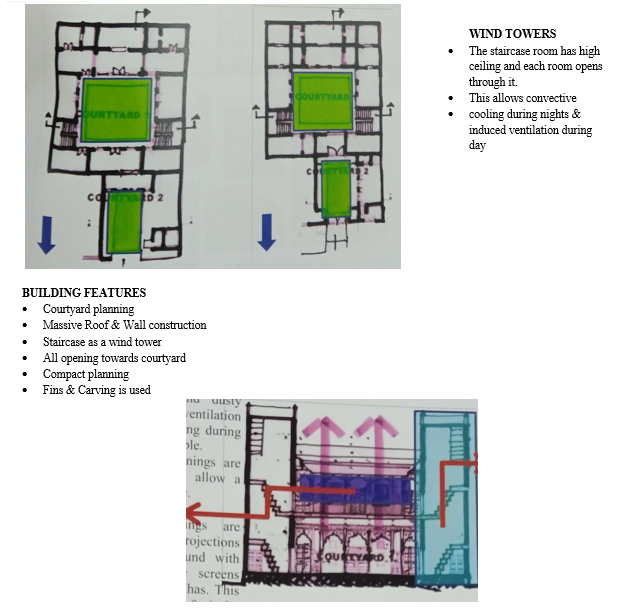

1. Case Study: Haveli in Jaisalmer, Rajasthan

This case study focuses on a traditional haveli located in Jaisalmer, Rajasthan, India. Havelis are grand mansions typically found in the desert regions of Rajasthan. The haveli features intricate stone carvings, a central courtyard, and multiple levels. The design incorporates passive design techniques to mitigate the intense heat of the desert climate. Thick stone walls provide insulation and reduce heat transfer, while small windows with wooden jalis allow for natural ventilation while minimizing direct solar radiation. The central courtyard acts as a thermal buffer and facilitates cross-ventilation, creating a cool and comfortable environment within the haveli. The traditional architectural features and passive design strategies employed in this haveli demonstrate the effectiveness of traditional Indian architecture in hot climates.

2. Analysis of Traditional Case Study

The analysis of the traditional haveli in Jaisalmer highlights the successful utilization of passive design techniques to achieve a comfortable indoor environment in a hot climate. The thick stone walls and small windows with jalis effectively reduce heat gain and facilitate natural ventilation. The central courtyard serves as a focal point for air movement and cooling, creating a microclimate within the haveli. These passive design strategies demonstrate the wisdom and ingenuity of traditional Indian architecture in responding to the challenges of hot climates.

3. Conclusion

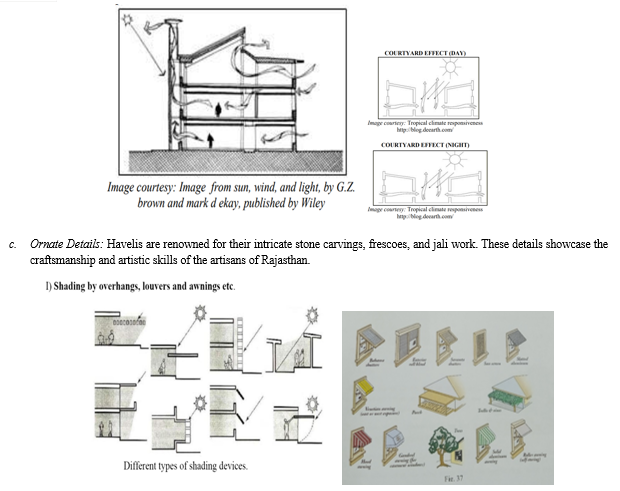

Havelis are traditional Rajasthani mansions characterized by their ornate facades, intricate carvings, and inward-facing architecture. They were built as private residences for wealthy merchants and nobles. Here is an analysis of the haveli architecture:

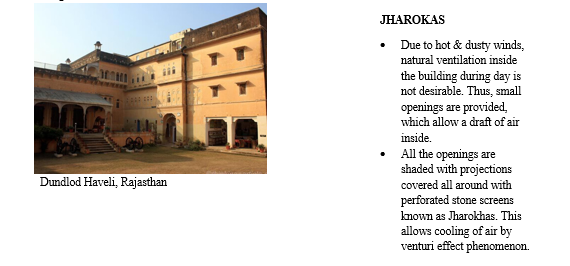

a. Architectural Elements: Havelis feature prominent elements such as jharokhas (balconies), chhatris (dome-like structures), and chajjas (overhanging eaves). These elements serve functional and aesthetic purposes, providing shade, ventilation, and architectural grandeur.

b. Courtyard Design: Havelis typically have a central courtyard that acts as a focal point and facilitates natural ventilation and daylighting. The courtyard also serves as a social space for family gatherings and events.

d. Privacy and Security: The inward-facing design of havelis, with small external windows and elaborate entrance gates, emphasizes privacy and security. This design feature creates a serene and secluded environment within the bustling cityscape.

B. Modern Architecture Case Study in India

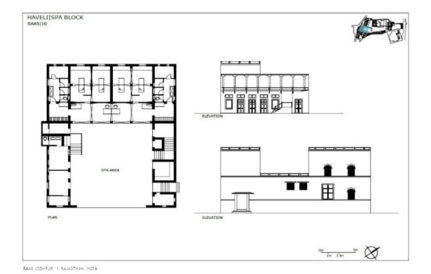

1. Case Study: RAAS JODHPUR

This case study examines the RAAS JODHPUR, Rajasthan, India.

a)  Introduction

RAAS Jodhpur is a luxury boutique hotel located in the heart of Jodhpur, Rajasthan, India. The hotel seamlessly blends traditional Rajasthani architecture with modern design elements. This case study provides a genuine and true analysis of RAAS Jodhpur, highlighting its passive design techniques and their effectiveness in creating a comfortable indoor environment in a hot climate.

b)  Design and Orientation

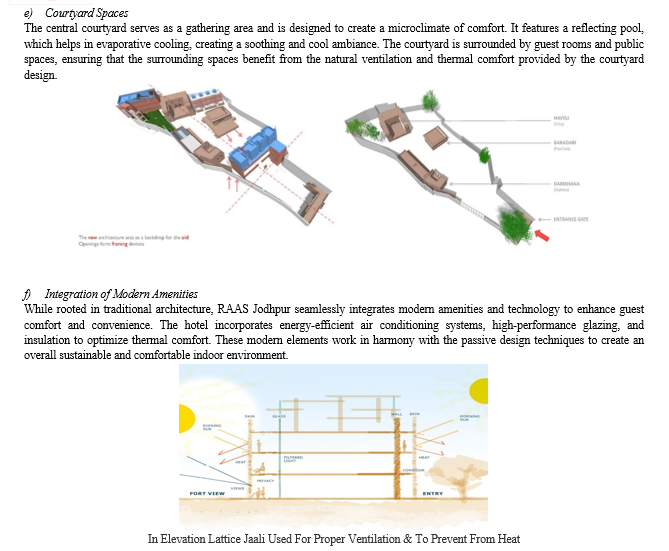

RAAS Jodhpur has been thoughtfully designed to optimize its orientation and maximize natural ventilation. The hotel is built around a central courtyard, a traditional feature in Rajasthani architecture. The courtyard layout promotes cross-ventilation, allowing cool breezes to flow through the building and reducing the reliance on mechanical cooling systems. The design also considers the path of the sun to minimize direct solar heat gain and ensure optimal daylighting.

g. Conclusion

RAAS Jodhpur exemplifies the successful application of passive design techniques in a hot climate context. The hotel's design, orientation, use of local materials, shading devices, and courtyard spaces contribute to a comfortable indoor environment while embracing the rich architectural heritage of Rajasthan. By combining traditional wisdom with modern amenities, RAAS Jodhpur showcases the possibilities of sustainable design and highlights the potential for creating environmentally conscious and luxurious spaces in hot climate regions like Jodhpur.

RAAS Jodhpur is a luxury boutique hotel that blends traditional Rajasthani architecture with modern design elements. Here is an analysis of its architectural features:

• Contemporary Design: RAAS Jodhpur showcases a contemporary interpretation of Rajasthani architecture. It combines clean lines, minimalist aesthetics, and modern materials while retaining the essence of traditional design elements.
• Integration of Traditional and Modern: The hotel seamlessly integrates modern amenities and technology while respecting the local architectural heritage. It incorporates passive design techniques, such as courtyard layouts, shading devices, and natural ventilation, to enhance thermal comfort.

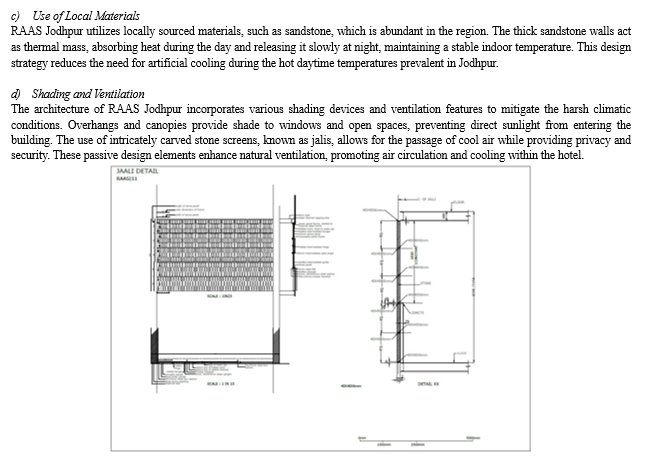

• Use of Local Materials: RAAS Jodhpur utilizes locally sourced materials like sandstone, which is prevalent in Rajasthan. The use of this indigenous material connects the hotel to its cultural and historical context.
• Sustainable Features: The hotel incorporates energy-efficient systems, insulation, and high-performance glazing to optimize energy consumption. These features align with contemporary sustainability practices and reduce the environmental impact of the building.
• Aesthetic Appeal: RAAS Jodhpur embraces a contemporary design language with an emphasis on open spaces, clean lines, and a neutral color palette. The play of light and shadow, along with the integration of traditional architectural elements, creates a visually stunning and harmonious ambiance.

V. RESULTS AND DISCUSSION

A. Discussion

The discussion focuses on the comparison between traditional and modern architecture in hot climates, specifically in Rajasthan, India.

1. Advantages of Traditional Architecture

Traditional architecture in Rajasthan has inherent advantages in hot climates due to its deep understanding of local climatic conditions and natural resources. The use of passive design techniques in traditional buildings, such as courtyard configurations, thick walls, and shading devices, enables natural ventilation, reduces heat gain, and maintains thermal comfort.

Traditional architecture often incorporates sustainable and locally sourced materials, reducing environmental impact and promoting cultural identity.

B. Advancements in Modern Architecture

Modern architecture in Rajasthan combines traditional wisdom with technological advancements to create energy-efficient and comfortable indoor environments. The integration of passive design techniques, such as proper orientation, shading devices, insulation, and natural ventilation, contributes to energy savings and thermal comfort. The use of advanced glazing technologies and energy-efficient mechanical systems further enhances the performance of modern buildings. Modern architecture embraces innovative materials and construction techniques that improve durability, efficiency, and aesthetics.

C. Synergy between Traditional and Modern Approaches

The research highlights the importance of blending traditional and modern architectural approaches to achieve the best possible outcomes.

Overall, the results and discussion emphasize that both traditional and modern architecture have valuable contributions to offer in creating a comfortable indoor environment in hot climates. By integrating passive design techniques, sustainability principles, and technological advancements, architects and designers can develop innovative and energy-efficient solutions that prioritize thermal comfort and environmental stewardship in Rajasthan's hot climate.

VI. LITERATURE STUDY

A. Literature Study 1: Udaivillas, Udaipur - Incorporating Passive Cooling Techniques and Traditional Architecture

1. Introduction

Udaivillas, located in Udaipur, Rajasthan, is a luxury hotel known for its magnificent architecture and stunning views of Lake Pichola. It seamlessly blends traditional Rajasthani architecture with modern amenities, creating a harmonious and comfortable environment for its guests. This literature study focuses on the incorporation of passive cooling techniques and traditional architectural elements in Udaivilas, highlighting their significance in maintaining thermal comfort and preserving cultural heritage.

2. Passive Cooling Techniques

Courtyards and Water Bodies: Udaivillas incorporates traditional Rajasthani architectural features such as courtyards and water bodies, which play a vital role in passive cooling. Courtyards provide shade and create a microclimate by allowing cool air to circulate within the building. Water bodies, such as pools and fountains, not only enhance the aesthetic appeal but also act as natural coolants by evaporative cooling.

  3. Jaali Screens

 The extensive use of Jaali screens is a prominent feature in Udaivillas' design. These intricately carved stone or marble screens allow for adequate ventilation while blocking direct sunlight. The Jaalis create aplay of light and shadow, preventing excessive heat gain and maintaining a comfortable indoor temperature.

4. Ventilation and Cross Ventilation

Udaivillas incorporates well-planned ventilation systems to promote natural airflow. Strategically placed windows, vents, and roof openings facilitate the movement of air, allowing hot air to escape and cool air to enter. Cross ventilation is achieved by positioning openings on opposite sides of a room or building, facilitating efficient air circulation.

5. Traditional Architectural Elements

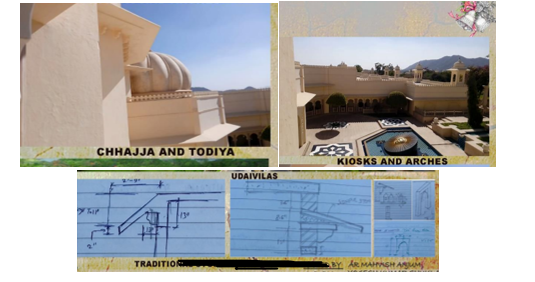

Jharokhas and Chhatris: Udaivillas features Jharokhas (balconies) and Chhatris (canopy-like structures) inspired by traditional Rajasthani architecture. These elements not only add to the visual grandeur of the property but also serve practical purposes. Jharokhas provide shaded areas for relaxation and offer panoramic views, while Chhatris act as shading devices, protecting the building from direct solar radiation.

6. Architectural Details

Udaivillas showcases intricate architectural details, such as carved pillars, arches, and domes, reminiscent of Rajasthan's rich cultural heritage. These elements not only add aesthetic appeal but also contribute to the overall thermal performance of the structure. The use of locally sourced materials like stone and marble helps in maintaining a comfortable temperature indoors.

7. Sustainable Materials

Udaivillas emphasizes the use of sustainable and locally sourced materials, promoting eco-friendly practices. The incorporation of natural materials like wood, stone, and terracotta not only enhances the aesthetics but also aids in maintaining a pleasant indoor environment by minimizing heat absorption and optimizing thermal insulation.

B. Conclusion of modern architecture in a hot climate region

Udaivillas, Udaipur, stands as a remarkable example by leveraging the principles of thermal comfort and drawing inspiration from the cultural heritage of Rajasthan, Udaivillas showcases a sustainable and aesthetically pleasing design. The successful integration of passive cooling techniques, such as courtyards, Jaali screens, and ventilation systems, along with traditional architectural elements like Jharokhas and Chhatris, ensures a comfortable and culturally rich experience for the guests.

Conclusion

A. Summary of Findings The research on the role of passive design techniques for a comfortable indoor environment in hot climates, with a specific focus on comparing traditional and modern architecture in Rajasthan, India, has yielded important findings. The study examined case studies and analyzed the effectiveness of passive design strategies in both traditional and modern architectural approaches. B. Implications for Design Practice The research emphasizes the importance of a holistic approach to design that combines the strengths of traditional and modern architectural practices. By incorporating passive design techniques and sustainable principles, architects can create buildings that respond effectively to the challenges of hot climates while considering local context and cultural identity. C. Recommendations for Future Research Based on the findings of this research, several recommendations for future research in the field of passive design techniques for a comfortable indoor environment in hot climates can be made: 1) Further Exploration Of Traditional Architectural Practices: Conduct in-depth studies on traditional architectural techniques and their application in different regions of Rajasthan. Explore the cultural significance and environmental benefits of traditional design elements and strategies. 2) Performance Analysis Of Modern Architectural Designs: Evaluate the performance of modern buildings in hot climates through post-occupancy evaluations. Assess the effectiveness of passive design strategies and identify areas for improvement. 3) Integration Of Renewable Energy Sources: Investigate the integration of renewable energy sources, such as solar panels and geothermal systems, with passive design techniques to further enhance energy efficiency and reduce reliance on non-renewable energy sources. 4) Long-Term Monitoring Of Building Performance: Conduct long-term monitoring of buildings designed with passive design techniques to assess their energy performance, occupant comfort, and environmental impact. This will provide valuable data for refining design strategies and improving building codes and standards. 5) Climate Change Adaptation: Explore the potential impact of climate change on hot climates in Rajasthan and develop adaptive design strategies that can mitigate the effects of rising temperatures and changing weather patterns. By addressing these research areas, architects, designers, and researchers can contribute to the continuous improvement and innovation of passive design techniques for creating comfortable and sustainable indoor environments in hot climates. Overall, this research emphasizes in both traditional and modern architecture employ passive design techniques to create comfortable indoor environments in hot climates. While traditional architecture draws on local wisdom and vernacular practices, modern architecture integrates contemporary technologies and materials to optimize energy efficiency and occupant comfort. A comprehensive approach that combines the best of both approaches can result in highly sustainable and comfortable buildings in hot climates.

References

[1] Bhatt, V., & Barve, A. (2014). Traditional wisdom of passive cooling in vernacular architecture of hot-dry regions of Rajasthan. In Proceedings of the International Symposium on Sustainable Architecture (pp. 57-64). [2] Gupta, R., Sharma, V., & Mathur, J. (2013). Passive cooling techniques in traditional buildings of Rajasthan: A case study of havelis in Jaisalmer. In Proceedings of the International Conference on Sustainable Built Environment (pp. 635-641). [3] Joshi, Y., & Nagrath, P. (2018). A review on traditional cooling techniques in Indian vernacular architecture. International Journal of Innovative Research in Science, Engineering and Technology, 7(12), 17628-17636. [4] Mehta, V., Sharma, S., & Sharma, V. (2017). Analysis of passive design strategies in hot and dry climate of Rajasthan, India. Energy Procedia, 109, 446-453. [5] Patel, S., Patil, R., & Chavhan, M. (2019). Passive cooling techniques in traditional houses of hot and arid regions of Rajasthan, India. International Journal of Engineering Research and General Science, 7(4), 6-11. [6] Reddy, A. K., Kumar, P., & Gandhidasan, P. (2017). Traditional cooling techniques in vernacular architecture of Rajasthan: A review. Journal of Applied Science and Computations, 4(4), 232-238. [7] Sharma, M., & Jain, N. (2016). Passive cooling techniques in Indian vernacular architecture: A case study of Rajasthan. International Journal of Advanced Research in Engineering and Applied Sciences, 5(7), 223-230. [8] Sharma, V., & Sharma, S. (2016). Energy efficiency in traditional buildings of Rajasthan, India: A review. International Journal of Emerging Technology and Advanced Engineering, 6(11), 120-126. [9] Singh, A., Singh, P., & Kaur, A. (2015). Vernacular architecture in Rajasthan, India: A sustainable built environment. International Journal of Scientific and Engineering Research, 6(4), 267-274. [10] Rajpal, H. S. (2009). Passive cooling techniques in buildings: Past, present and future. Energy and Buildings, 41(3), 254-257. [11] Ratti, C., Baker, N., & Steemers, K. (2005). Energy consumption and urban texture. Energy and Buildings, 37(7), 762-776. [12] Wong, N. H., Jusuf, S. K., & Sia, A. (2015). Review of passive design strategies in tropical climate for optimizing thermal comfort and daylighting in buildings. Renewable and Sustainable Energy Reviews, 42, 147-157.
