Seismic Performance Assessment of Masonary Infilled RC Frames by Using Staad PRO

Abstract

Now a days construction of the RC frame is common because of the simplicity in construction. The masonry walls are mainly used for partition and insulation purposes rather than for structural purposes. However, during the earthquake, this filling contributes to the response of the structure and the behavior of the filling frame is different from that expected for the structure of the bare frame. The fill acts as a compression strut between column and beam. For this purpose, linear dynamic analysis were carried out on the structure of the RC masonry frame to study the influence of the resistance variation of the structure with n without a infill wall, filling effect on dynamic parameters such as the natural period, displacement and state of the hinge. In this rear-end collision effect high building is studied. All analysis are performed by the STAAD PRO v8i software. building modeling and analysis are performed on STAAD PRO v8i. For the analysis the building with G + 10 RCC frame is modeled. In this analysis the width of the strut is calculated manually according to the expression given in the FEMA-356. The infill panels are modeled as equivalent single diagonal struts. Several equations for calculation are considered for these diagonals. In this study the comparison of time verses acceleration , time verses velocity , time verses displacement with respect to the floor is made . The study shows that the influence of filling on the structure is significant. It increases the rigidity of the structure and makes the structure able to withstand a seismic region with respect to the bare frame.

Introduction

I. INTRODUTION

It has always been a human aspiration to create ever higher structures. The moment of reinforced concrete that resists the frames full of masonry walls of unreinforced bricks is very common in India and other developing countries. Masonry is a building material commonly used in the world for reasons that include accessibility, functionality and costs. When it is considered that the masonry in the fillings interacts with the surrounding frames, the lateral load capacity of the structure increases considerably.

The study of buildings damaged by earthquakes further reinforces this understanding. The positive aspects of the presence of fillers are greater resistance and greater rigidity of the filling frames. In skyscrapers, the vertical loads that normally occur, alive or dead, do not represent a big problem, but lateral loads due to wind or earthquake tremors are a cause for great concern and require particular attention in the design of buildings. These lateral forces can produce critical stress in a structure, create unwanted vibrations and, moreover, cause a lateral displacement of the structure that can reach a stage of discomfort for the occupants.

In many countries located in seismic regions, reinforced concrete frames are completely or partially filled with brick masonry panels with or without openings. Although the filling panels significantly increase the rigidity and strength of the frame, their contribution is often not taken into consideration due to the lack of knowledge of the behavior of the frame and the composite filling. The filling wall can be modeled in different ways, such as the diagonal approach of the equivalent upright and the method of the finite element.

II. OVERVIEW

Seismic Analysis is a subset of structural analysis and is the calculation of the response of a building structure to earthquakes. It is a part of the process of structural design, earthquake engineering or structural assessment  in regions where earthquakes are prevalent. Seismic structural analysis methods can be divided into two main categories, static analysis and dynamic analysis. These two main categories can be divided into two main types of analysis, the linear and non-linear analysis. The studied building in this paper is a typical steen-story model of commercial building. The building is comprised of a reinforced concrete structural frame. The overall plan dimension is 22.5m × 22.5 m with 49.1 m in height.  Earthquake resistant design structures are those, which are able to dissipate seismic forces generated due to strong ground motions. In crrent seismic codes,there are several design philosophies which are formulated through experimental studies,computer simulations and observation from past earthquake. To communicate the seismic threat to stake holders ( that is owner,contractor,builder,designer and government agencies) structural engineering commmunity has moved towards predictive methods of design, namely performance-based engineering. The concept lies in making structural elements ductile so as to dissipate the cyclic forces and dissipate energy.

A large number of reinforced concrete and steel buildings are constructed with masonry infills Masonry infills are often used to fill the void between the vertical and horizontal resisting elements of the building frames with the assumption that these infills will not take part in resisting any kind of load either axial or lateral; hence its significance in the analysis of frame
is generally neglected. Moreover, non-availability of realistic and simple analytical models of infill becomes another hurdle for its consideration in analysis. In fact, an infill wall enhances considerably the strength and rigidity of the structure. It has been recognised that frames with infills have more strength and rigidity in comparison to the bared frames and their ignorance has become the cause of failure of many of the multi-storeyed buildings. The recent example in this category is the Bhuj earthquake on 26 January, 2001. The main reason of failure is the stiffening effect of infilled frame that changes the basic behaviour of buildings during earthquake and creates new failure mechanism. This chapter will discuss the structural action of infill panel and failure modes and modelling of infill walls with and without openings.

A. Structural  And   Constructional  Aspect  Of  Infills

The presence of masonry infill is the cause of (i) Unequal distribution of  lateral forces in the different frames of a building overstressing of some frames ; (ii)vertical irregularities in strength and stiffness-soft storey or weak storey as a result higher interstorey drifts and higher ductility demands of RC elements of the soft storey in comparison to remaining stories ; (iii) horizontal irregularities-significant amount of unexpected torsional forces since the centre of rigidity is moved towards the stiffer infilled frames of increased stiffness and as a result occurrence of very large rotation and large displacements in the extreme bare frames;
(iv) inducing the effect of short column or captive column in infilled frame-a captive column is full storey slender column whose clear height is reduced by its part-height contact with a relatively stiff masonry infill wall, which constraints its lateral deformation over the height of contact (CEB, 1996) resulting in premature brittle failure of columns and

(v) failure of masonry infills-out-of-plane and in-plane failure results which become the cause of casualties. A significant amount of research work has been carried out on the consideration of stiffening effect of infill panels and its constructional details. A clear decision has to be taken by the structural engineers, whether the infill walls will be made to participate in resisting the
load or not. Depending upon its load resisting mechanism of infills the construction details will be followed as  :

1. Only axial load−− infill walls tight to the  under side of the floor system - arching action is the dominant mechanism,
   (ii) Axial and lateral load friction or mechanical anchorage along the top to transfer lateral load to the wall-connection must be able to transfer the reaction
2. Only lateral load −− wall built tight to the columns and a movement joint at the top of wall, and no axial and lateral movement joints along all the sides of walls and must be sufficiently thick to isolate the effects of inter-storey drift, floor deflection and
   ual movement-this type of wall is called partition wall (Drydale, Hamid and Baker, 1994).

B. Failure Mechanism Of Infilled Frame

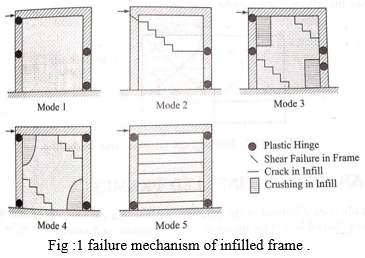

The failure mechanism of an infilled frame is quite complex and depends upon a number of factors such as relative strength and stiffness properties of infill and frame, frame wall interface gaps, openings, shear connectors, and such other characteristics. Figure    shows the five most common modes of failure of masonry infilled frame under increasing intensity of lateral force (Buonopane et al., 1999). In principle, failure mechanism of an infilled frame depends to a extent on the relative strength of the frame and the infill (El-Dakhakhni et al.,2003,Mehrabiet al. (1996) .

C. Analysis Of Infilled Frames

It has already been discussed in the previous sections that the presence of infill affects the distribution of lateral load in the frames of building because of the increase of stiffness of some of the frames. The distribution of lateral forces in the frames of building basically depends upon of rigidity of the building and the resultant of the applied lateral loads. If both nearly
distribution of lateral load remains straightforward ie. in the ratio of their relative fresh. If it is not the case, large torsional forces are introduced in the building. These type of structures can be better analysed on the basis of 3D analysis of building after considering the increased stiffness  of the infilled frames .

The study of interaction of infill with frames has been attempted by using sophisticated analysis like finite element analysis or theory of elasticity. But due to uncertainty in defining the interface conditions between the infilled with the frames, an approximate analysis method may be better acceptable. One of the most common approximation of infilled walls is on the basis of equivalent diagonal strut i.e. the system is modeled as a braced frame and infill walls as web element. The main problem in this approach is to find the effective width for the equivalent diagonal strut. Various investigators have suggested different values of width of equivalent diagonal strut .

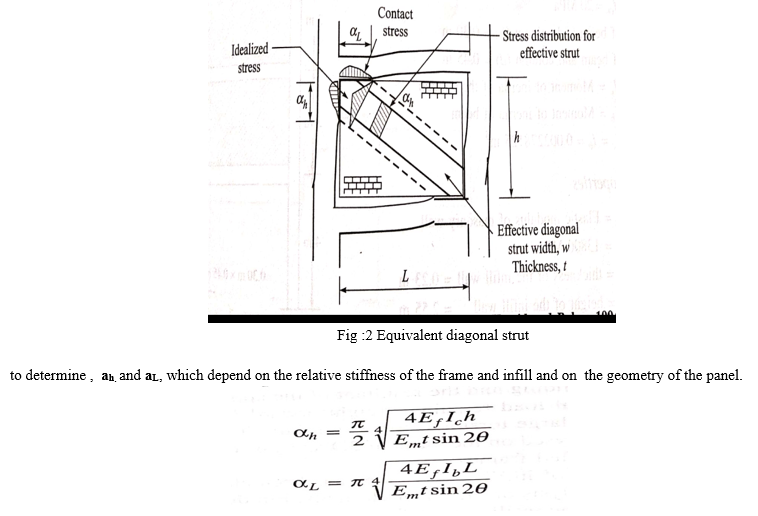

1. Equivalent Diagonal Strut

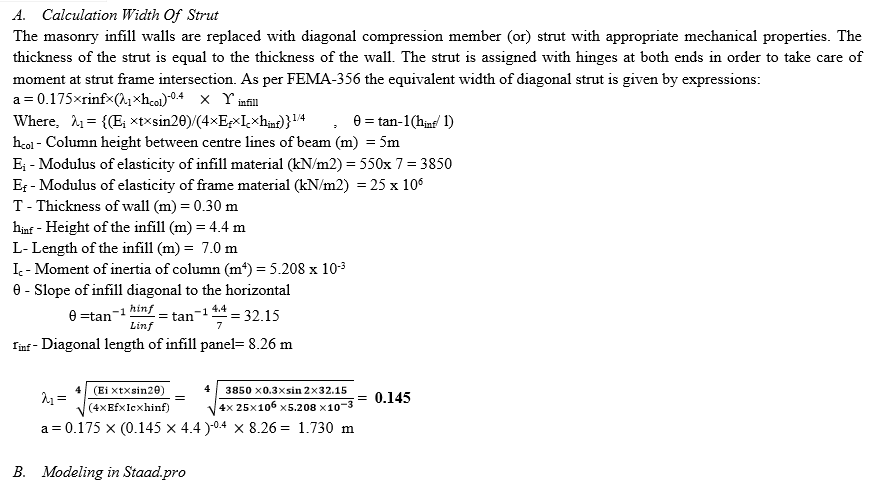

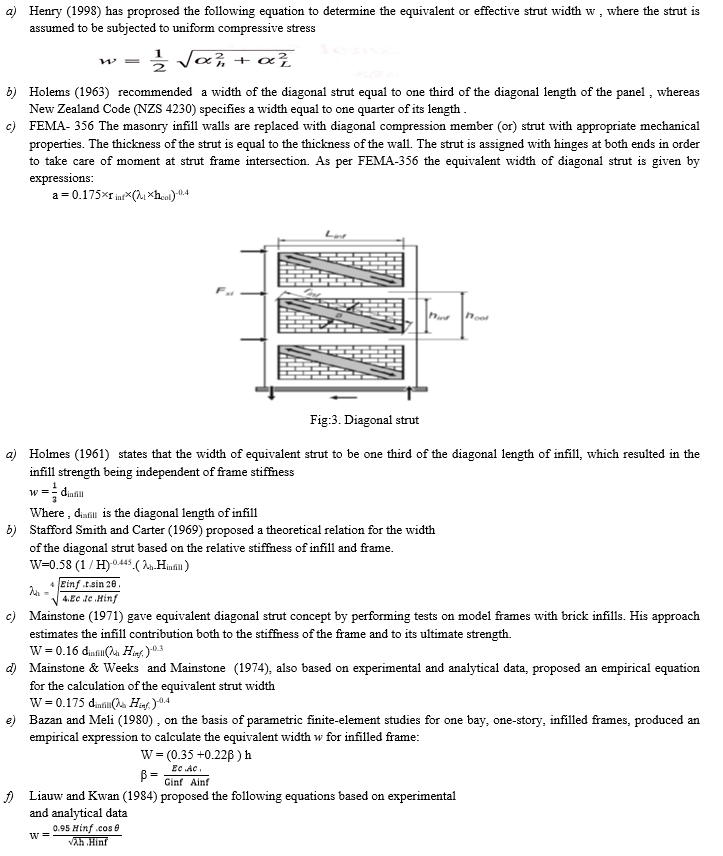

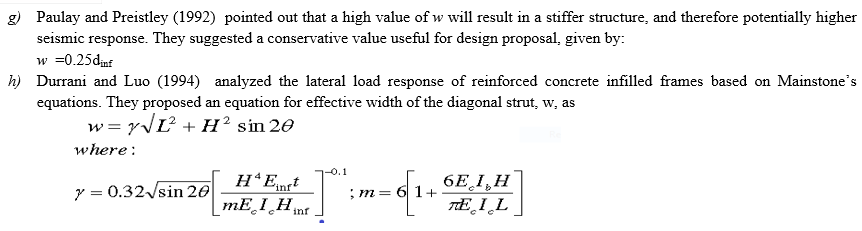

The width of the equivalent diagonal strut (w) can be found out by using a number of expressions given by different researchers

The geometric and material properties of the equivalent diagonal strut are required for total braced frame analysis to determine the increased stiffness of the infilled frame. The geometric properties are of effective width and thickness of the strut. The thickness and
material properties of strut are similar to the infill wall. Many investigators have proposed various approximations for the width of equivalent diagonal strut. Originally proposed by Polyakov (1956) and subsequently developed by many investigators, the width of strut depends on the length of contact between the wall and the columns, ah  and between the wall and beans, aL. shown in Figur . The proposed range of contact length is between one-fourth and one-tenth of the length of panel. Stafford Smith (1966) developed the formulations for ah  and aL on the basis of beam on an elastic foundation. The following equations are proposed.

III. FORMULATION OF WORK

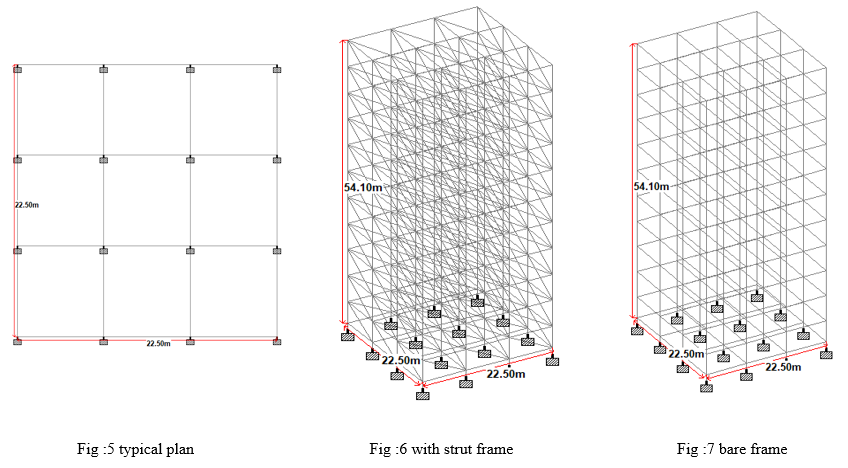

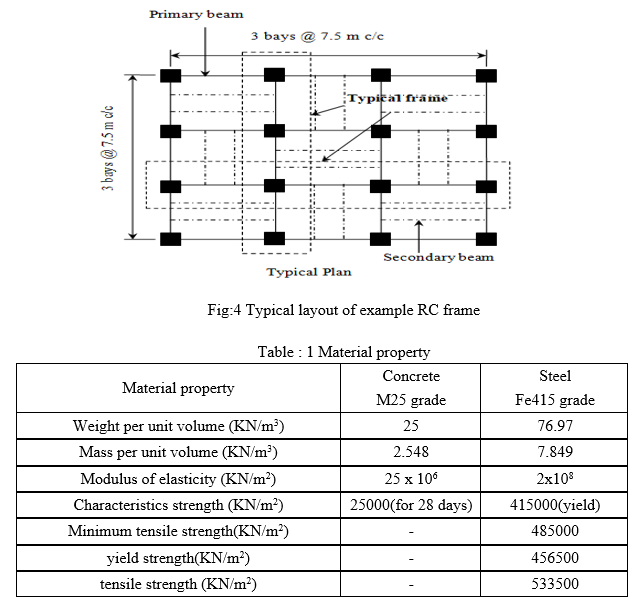

The example RRC frame  represents a medium rise G+10 framed building. Following figure shows the typical layout of the RCC frame. This RCC frame  represents a commercial building in the seismic zone-IV, as per IS 1893, on a medium soil type. The height of a ground floor storey is 4.1m and other floor heights are 5m, and the beam spans 7.5m. The spacing between the frames is 7.5m. Firstly the width of the strut is calculated by using the FEMA356.  Model  of the RCC frame is created in STAAD.prov8i . Two model are created, first without considering diagonal  strut and second is with considering the diagonal strut . Time history analysis is performed for both the model by considering the time verses acceleration  data  for earthquake region IV .

The characteristics of these RCC frame are presented in the following table.

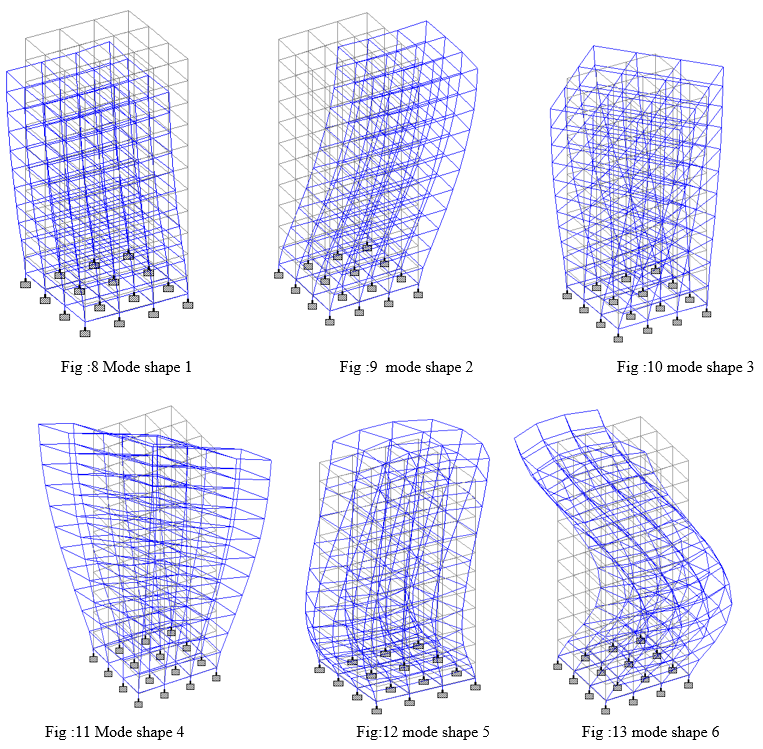

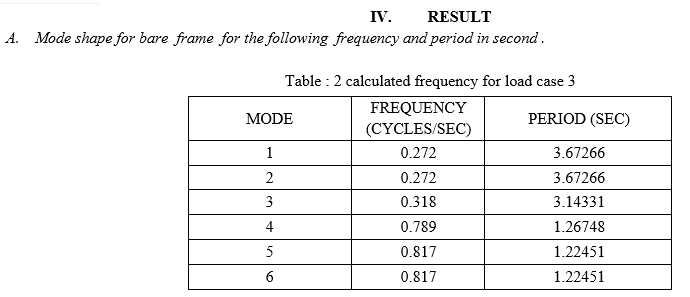

. C. Resultant Displacement of Frame

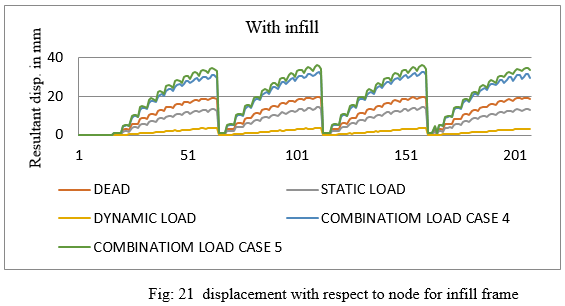

Resultant displacement of the frame is compare with respect to the node for the  dead load , static load , dynamic load , combination of load case 4  , combination of load case 5 which are created in staad, PRO  for the time history analysis .

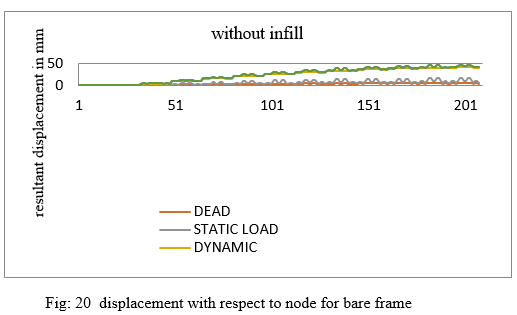

1. Frame Without Infill

2. Frame with Infill

D. Base Shear

It is the total design lateral force at the base of a structure. The total design lateral force or design seismic base shear (VB) along any principal direction shall be determined by the following expression

Ah- Design horizontal seismic forces coefficient

W- Seismic weight of the building.

Vertical Distribution of Base Shear to Different Floor Level the design base shear (VB) computed in 7.6.1 shall be distributed along the height of the building as per the following expression:

Where,

Qi = Design lateral force at floor i,

Wi = Seismic weight of floor i,

hi = Height of floor i measured from base, and

n = Number of storey in the building is the number of levels at which the masses are located

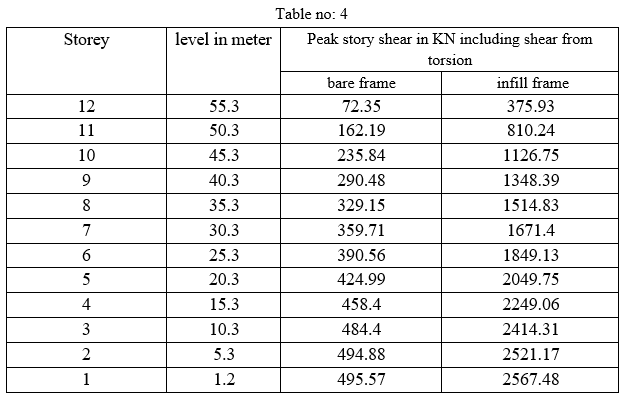

 following table show the base shear of the given building  which is obtained in the response spectrum analysis done in staad pro . Base shear of the bare frame and the infill frame if compared in the following table

Conclusion

1) In this research, the effects of masonry infill on the stability of the building in seismic region is investigated. 2) The response of the structure in the time history analysis and the response spectrum analysis is studied . 3) it is observed that the structure with fully masonry infill is stiffer than the bare structure . 4) The maximum in deflection in bare frame for (g+10) is 47.05mm and in strut frame it is minimum which 36.04mm .. If the effect of infill wall is considered then the deflection has reduced drastically. 5) From this present result it shows that, deflection is very large in case of bare frame as compare to that of infill frame with opening. If the effect of infill wall is considered then the deflection has reduced drastically. And also deflection is more at last storey because earthquake force acting on it more effectively. 6) In the response spectrum analysis the base shear for the bare frame and for infill frame is found out . 7) The base shear for the bare frame is 495.57 KN and for the infill fame is 2567.48 KN . 8) From the response spectrum analysis result it shows that, the base shear for the infill frame is more than the bare frame , hence structure with masonry infill is more stiffer than the bare structure . 9) Finally we can conclude that the structure with infill masonry gives more stability and stiffness to the structure to perform good in the earthquake region than the bare frame structure .

References

[1] Siamak sattar and abbie b. Liel (2010) , “seismic performance of reinforced concrete frame structures with and without masonry infill walls.” [2] Wakchaure m.r, ped s. P (2012) ,earthquake analysis of high rise building with and without in filled walls , international journal of engineering and innovative technology (ijeit) volume 2, issue 2, august 2012 [3] M. S. Razzaghi and m. Javidnia (2015) , “evaluation of the effect of in?ll walls on seismic performance of rc dual frames” [4] Luis decanini, fabrizio mollaioli, andrea mura, rodolfo saragoni (2004) , “seismic performance of masonry infilled r/c frames” , 13th world conference on earthquake engineering vancouver, b.c., canada august 1-6, 2004 paper no. 165 [5] Marco valente (2012) , “seismic performance assessment of a masonry infilled ductile rc structure” iacsit international journal of engineering and technology, vol. 4, no. 6, december 2012 [6] K. Thinley & h. Hao ,(2015) , “seismic assessment of masonry infilled reinforced concrete frame buildings in bhutan”, proceedings of the tenth pacific conference on earthquake engineering building an earthquake-resilient pacific 6-8 november 2015, sydney, australia . [7] Khubaib ilyas khan m.1 and saim raza ,(2015), “seismic performance assessment of masonry infilled reinforced concrete (rc) frame structures ” , international journal of civil and structural engineering volume 6, no 1, 2015 ,issn 0976 – 4399 [8] Momin mohmedakil m and p.g.patel , (2012), “seismic assessment of rc frame masonry infill with alc block” , international journal of advanced engineering research and studies , e-issn2249–8974 [9] Sagar , m.r.suresh , (2016 ) \\\" seismic performance study of rc bare ane infill frame with soft story at different floors by non linear static method” , irjet volume 3 . [10] Monika n1, chaitra d m2, kirankumar k l3 , “comparative study of seismic behavior of rcc building frames with and without masonry infill wall” , irjet , volume: 04 issue: 05 | may -2017 [11] Nasratullah zahir1, dr. Vivek garg2 , “static and dynamic analysis of r.c building frame with infill” , irjet , volume: 04 issue: 07 | july -2017 [12] 1nikunj mangukiya 2arpit ravani 3yash miyani 4mehul bhavsar , “seismic behaviour of r.c frame building with and without masonry infill walls” global research and development journal for engineering , march 2016 [13] Is1893:2002 -“criteria for earthquake resistant design of structure.” [14] is4326:1993 – “earthquake resistance design and construction of building”
