Seismic Retrofitting of RC Frame Structure Using Energy Dissipation Device

Abstract

This study examines the performance-based design of structure that is increasing commonly in earthquake resistance design. to ensure any structure possess earthquake resistant design, certain minimum performance objective is desired at different level of seismic excitation. With the help of some devices, Low to medium rise buildings are performing well for the seismic actions. In the present work, originally deficient RC frame is analyzed with static analysis and after this static non- linear analysis is performed in which suitable energy dissipation devices are installed sequentially. first analyzed with Viscous fluid Damper then Lead- rubber isolator is used has designed as per performance-based design criteria of G+6 RC frame building. These models are analyzed for important residential use and located at seismic zone IV. Linear static and nonlinear static methods are used to analyze the structure with help of CSI ETABSv18 software. Results which are discussed is minimum performance level, story drift, performance point and performance objective. After analysis of results, structure which is installed with Led-rubber bearing isolator is performed well during an earthquake and satisfy with desired minimum performance level. In case of viscous fluid damper, it is not satisfactory to achieve desired minimum performance up to this extent it helps to reduce floor acceleration.

Introduction

I. INTRODUCTION

Seismic retrofitting is the modification of existing structures to make them more resistant to seismic activity, ground movement, or ground breaking caused by earthquakes. With a better understanding of the seismic needs of structures, and with our recent experiences with large earthquakes near urban centers, the need for seismic modernization is well recognized.  Before the advent of modern seismic codes in the late 1960s for developed countries (USA, Japan, etc.) and in the late 1970s for many other parts of the world (Turkey, China, etc.), many structures have been designed without full details. and reinforced for seismic protection. In view of the impending problem, various studies have been carried out. Modern engineering guidelines for seismic assessment, modernization and recovery have been published worldwide, such as those from ASCE-SEI 41 and the New Zealand Society of Earthquake Engineering (NZSEE).

These codes must be updated regularly; such as the 1994 Northridge earthquake highlighted the fragility of welded steel structures. The retrofitting techniques described here can also be applied to other natural hazards such as tropical cyclones, tornadoes, and strong winds caused by thunderstorms. While the practice of modernizing earthquake resistance is primarily concerned with improving the structure to reduce the seismic risks associated with the use of the structure, the reduction of risks and losses due to non-trivial factors. It should also be noted that there is no such thing as a seismic structure, although seismic performance can be greatly improved with a suitable initial design or subsequent modifications.

II. OBEJECTIVES

In this project, three building structure model are considered having irregularity in plan (L - shape) and which is originally deficient to seismic loading. Static non-linear analysis i.e. (pushover analysis) is done using ETABS 2018 software. The objective of thesis are: -

1. To estimate the capacity of the structure using nonlinear analysis.
2. To obtain the performance point of building.
3. To check, building meet the minimum performance level at the moderate seismic zone.
4.  To reduce the demand of structure using energy dissipation devices.

III. SEISMIC RETROFITTING OF BUILDING

Retrofitting refers to providing something with a component or feature that was not present during design and manufacture/construction. Often used in relations to installation of new building systems, such as heating systems etc. Refurbishment implies to a process of improvement by cleaning, decorating, reequipping and may also contain elements of retrofitting.

Renovation of a project refers to the process of returning something to a good state of repair. In terms of heritage constructions, returning the project to its previous state through retrofitting and refurbishment is called ‘Restoration’ or ‘Rehabilitation’.

The Differences between retrofitting and refurbishment A single project may include elements of retrofitting, refurbishment and renovation. The whole process of renovating an   old project into a new building containing elements of retrofitting and refurbishment is called the Rehabilitation of the project. Retrofitting is usually done to an undamaged project as a preventive measure, while on damaged and old buildings, the process of retrofitting is called Rehabilitation.

Structural retrofitting, in terms of buildings, can be broadly classified as Seismic Retrofit usually refers to modifications to make the building more resistant to seismic activity, ground motion and soil failures due to earthquakes. These retrofit methods   are also applicable for other natural hazards as well. The techniques mostly achieve lateral bracing increasing lateral strength, ductility and lateral stiffness in the building.

Non-Seismic retrofit encompasses all other kinds of retrofitting ranging from damages done due to deterioration by aging, error in design, construction flaws etc. the techniques are varied, ranging from increase in size of beams and columns, to increasing concrete cover by adding layer of concrete or plaster.

IV. MODELLING AND ANALYSIS

This chapter explained that, the 3D building model is analyzed using the static nonlinear pushover analysis method. The residential building models G+6 RCC is analyzed using CSI                 ETABS v18 software. The seismic codes are unique to the country. In India, Indian Standard for design of seismic structures IS 1893:2016 is the main standard that         provides the outline for the calculation of seismic design forces.

A. Plan And Three Dimensional View Of Building

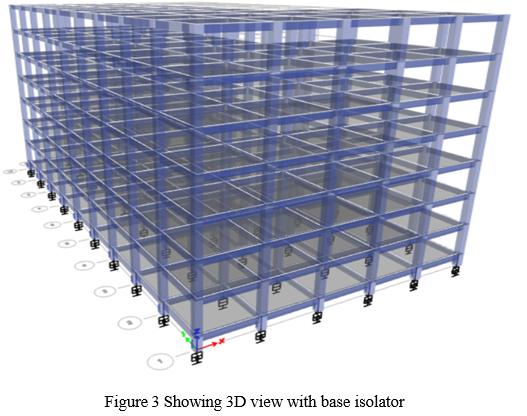

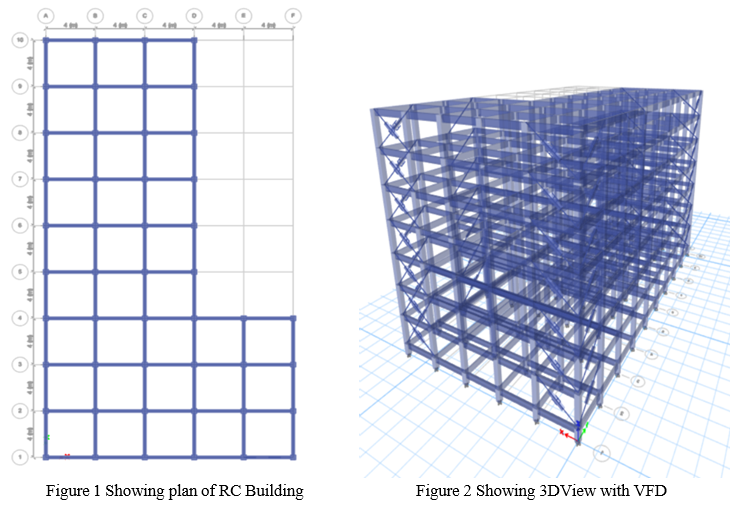

The figure showing below the plan and three-dimensional view of all models with or without energy dissipation devices which is considered for nonlinear analysis. To achieve the desired building performance objective in a deficient building structure.

V. RESULT & DISCUSSION

After Modelling and analysis of above-mentioned structures following results are deduced for Model 1, Model 2, and Model 3 for G+6 stories structure. Results are then compared to assess the structural responses on the basis of story displacements, base shear, hinge results & performance point.

VI. FUTURE SCOPE

The following enlist point work is taken under future to extend the topic further which are as follows:

1. For the Viscous Fluid Damper and Led rubber bearing isolated model considered in these studies are inelastic and Nonlinear static analysis; this provides a further scope to                         study this problem using an inelastic dynamic for all models.
2. Address dynamic analysis to simulate the site-specific other criteria which are not   accommodated in nonlinear static analysis.
3. To meet the minimum performance level under the MCE/DBE case other requirement   need to be checked.
4. Investigation of different EDD’s for finding the best suitability of seismic retrofitting technique.
5. Use the other combination of one or more energy dissipating device for achieved minimum performance level for given guidelines of different manufactures and compare them.

Conclusion

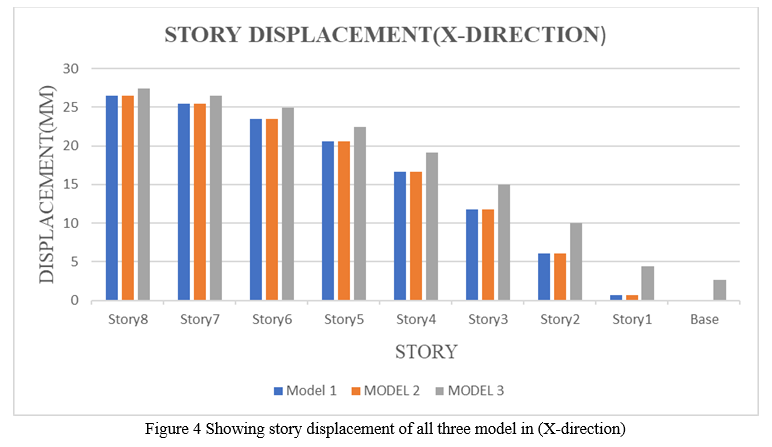

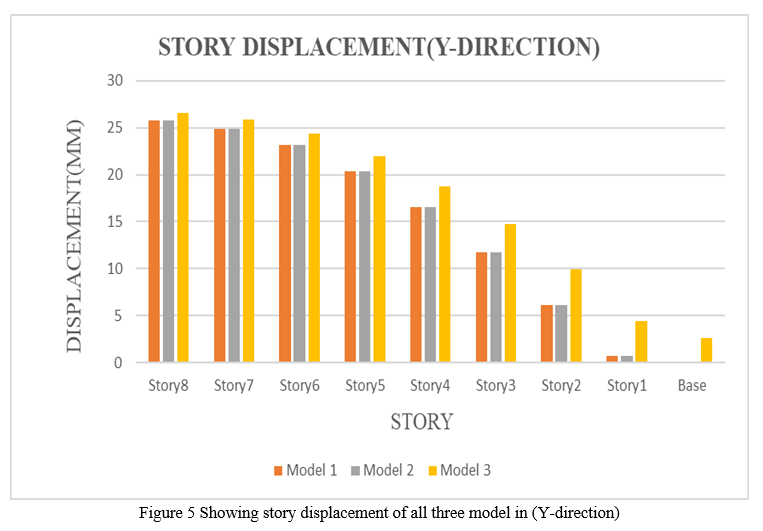

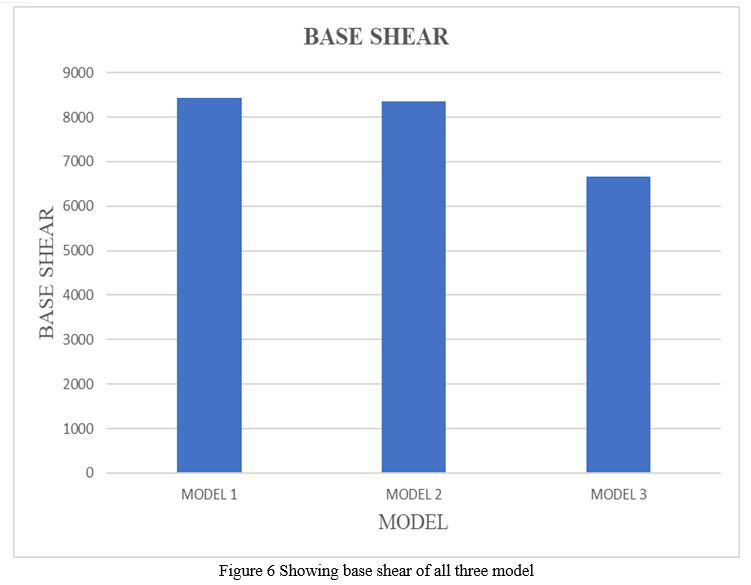

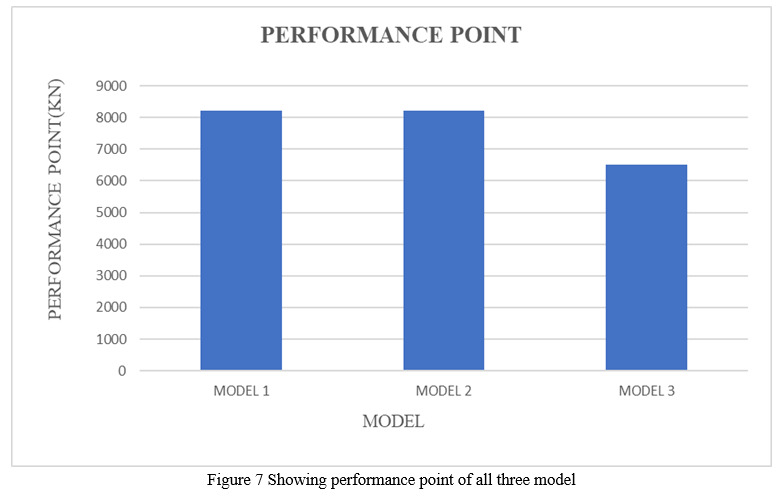

A. Conclusion 1) Deflection of the stories from the initial position is termed as story displacements and its maximum value is obtained at the top story. the maximum value of story displacement in x-direction in model 3 is 27.43, where as in model 1 & model 2 are same. 2) The maximum value of story displacement in y-direction in model 3 is 26.589, where as in model 1 & model 2 are same. 3) The value of base shear under nonlinear static analysis are reduced about 1% in model 2 and 21% of model 3 as compare to model 1. 4) The reduction of base shear is due to installed devices. Viscous fluid dampers ineffective to reduced base shear up to some extent but are effective in controlling other story parameter. In model 3 base shear reduced considerably, due to installing led rubber isolator. 5) The performance point, in first model taken as step 10 (which actually lies between steps 9 and 10), 99% of hinges are within LS and 91% within IO performance level. A ?roof top of 0.246 m, with the height of the building up to roof top h (which excludes the staircase tower room) being 22.2m, gives a ?roof top to h ratio of 0.01108 (in an average sense) which lies within the performance level of IO. 6) The performance point, in second model taken as step 10, of hinge results (which actually lies between steps 9 and 10), 98% of hinges are within LS and 91% within IO performance level. A ?roof top of 0.228 m, with the height of the building up to rooftop h (which excludes the staircase tower room) being 22.2m, gives a ?roof top to h ratio of 0.010270 (in an average sense) which lies within the performance level of IO. 7) The performance point, taken as step 11, of hinge results (which actually lies between steps 10 and 11), 100% of hinges are within LS and 88% within IO performance level. A ?roof top of 0.300 m, with the height of the building up to rooftop h (which excludes the staircase tower room) being 22.2 m, gives a ?roof top to h ratio of 0.01351 (in an average sense) which lies within the performance level of IO. 8) After performing displacement control push over analysis on all model it is observe that, model which is deficient to lateral load initially is not perform well. To satisfy the minimum performance criteria. After installing device (damper) in second model, formation of hinges at collapse level is further increasing which are inappropriate. 9) In third model, hinges are formed in the immediate occupancy level (IO level), which is the minimum performance requirement of any important structure to meet the essential services at the time of emergency. 10) The hinges at performance point of all model at different level are showing the structure performance against inelastic responses. a) In first model, 92% of hinges at(A-IO) level, 7% of hinges lies in the (IO- LS) range & 1% of hinges at CP level. b) In second model, 92% of hinges at(A-IO) level, 7% of hinges lies in the (IO- LS) range & 1% of hinges at CP level. c) In third model, 89% of hinges at(A-IO) level, 11 % of hinges lies in the (IO- LS) range & no hinges at CP level. B. Summary The procedure of analysis using ETABS 2018 software to obtains results from the analysis. The considered models are analyzed and comparative results were developed using pushover analysis. It is found that, the model in which dampers are installed are suitable to reduce drift limit while the model in which base isolation is used. Base shear reduces significantly compare to other considered model and performance objective are attained due to installation of such devices.

References

[1] By Marc Badoux and James O. Jirsa, “STEEL BRACING OF RC FRAMES FOR SEISMIC RETROFITTING”, J. Struct. Eng. 1990.116:55-74. [2] Niels Peter Høj, Marja-Kaarina Söderqvist, “Assessment of the Seismic Resistance and Structural Safety of Existing Multistory Residential Buildings” Structural Engineering International 2/2009 [3] Miao Cao, liyu Xie, Hesheng Tang, Naoki Funaki and Songtao Xue, “Performance Study of an 8-story Steel Building Equipped with Oil Damper Damaged During the 2011 Great East Japan Earthquake”, DOI: http://doi.org/10.3130/jaabe.15.303. [4] Y. Frank Chen, Junsheng Liu & Yun Shi, “Retrofitting of a seismically deficient building”, DOI: 10.1080/24705314.2016.1211234. [5] Corey T. Griffin, “Multi-performance retrofits to commercial buildings in seismic zones, DOI: 10.1080/24705314.2017.1360171, 31 Aug 2017 [6] D. K. Baros and s. E. Dritsos, “A Simplified Procedure to Select a Suitable Retrofit Strategy for Existing RC Buildings Using Pushover Analysis”, Journal of Earthquake Engineering, 12:823–848, Year 2008 DOI: 10.1080/13632460801890240. [7] Fardad Haghpanah, Hamid Foroughi & Reza Behrou “Sustainable seismic retrofitting of a RC building using performance-based design approach” DOI: 10.3846/2029882X.2017.1380539 01 Oct 2017 [8] FABIO MAZZA and ALFONSO VULCANO (2009), “Nonlinear Response of RC Framed Buildings with Isolation and Supplemental Damping at the Base Subjected to Near-Faul Earthquakes” [9] Georgia e. Thermou, amr s. Elnashai, and stavroula j. Pantazopoulou (2010), “Design and Assessment Spectra for Retrofitting of RC Buildings” Journal of Earthquake Engineering, 14:5,743-770, DOI: 10.1080/13632460903410764 [10] Stefano Pampanin and Umut Akguzel (2011), Performance-Based Seismic Retrofit of Existing Reinforced Concrete Frame Bui ldings using Fibre-Reinforced Polymers:Challenges and Solutions DOI: 10.2749/101686611X13049248220041 [11] Miao Cao, liyu Xie, Hesheng Tang, Naoki Funaki and Songtao Xue, “Performance Study of an 8-story Steel Building Equipped with Oil Damper Damaged During the 2011 Great East Japan Earthquake”, DOI http://doi.org/10.3130/jaabe.15.303. [12] Simi Hoque “Building Simulation Tools for Retrofitting Residential Structures” [13] YOSHIRO KOBATAKE “A seismic retrofitting method for existing reinforced concrete structures using CFRP Min-Ho CHEY, J. Geoffrey CHASE, John B. MANDER, Athol J. CARR, “innovative seismic retrofitting strategy of added stories isolation system, Front. Struct. Civ. Eng. 2013, 7(1): 13–23, DOI: 10.1007/s11709-013-0195-9 [14] Y. Daniel, O. Lavan, “Gradient based optimal seismic retrofitting of 3D irregular buildings using multiple tuned mass dampers” [15] O. Lavan, M. ASCE, “Optimal Design of Viscous Dampers and Their Supporting Members for the Seismic Retrofitting of 3D Irregular Frame Structures” DOI: 10.1061/(ASCE)ST.1943-541X.0001261. © 2015 American Society of Civil Engineers. [16] Antonio Formisano, Federico M. Mazzolani, “On the selection by MCDM methods of the optimal system for seismic retrofitting. [17] Hanan Al-Nimry, Musa Resheidat and Saddam Qeran, “Rapid assessment for seismic vulnerability of low and medium rise infilled RC frame buildings”, earthquake engineering and engineering vibration 14: 275-293 Vol.14, No.2 June 2015. [18] “Evaluation of different strengthening techniques efficiency for a soft storey building” [19] Y. Frank Chen, Junsheng Liu & Yun Shi, “Retrofitting of a seismically deficient building”, DOI: 10.1080/24705314.2016.1211234, [20] Paolo Foraboschi, “Versatility of steel in correcting construction deficiencies and in seismic retrofitting of RC buildings.” [21] Massimiliano Ferraioli and AlbertoMandara, “Base Isolation for Seismic Retrofitting of a Multiple Building Structure: Design, Construction, and Assessment.” [22] Simon Petrov?i? & Vojko Kilar (2016),” Seismic Retrofitting of Historic Masonry Structures with the Use of Base Isolation - Modelling and Analysis Aspects” Modelling and Analysis Aspects, International Journal of Architectural Heritage, DOI: 10.1080/15583058.2016.1190881. [23] Antonio Di Cesare and Felice Carlo Ponzo (mar 2017), Seismic Retrofit of Reinforced Concrete Frame Buildings with Hysteretic Bracing Systems:Design Procedure and Behaviour Factor” [24] Hindawi Shock and Vibration Volume 2017, Article ID 2639361, 20 pages: https://doi.org/10.1155/2017/2639361. [25] W. Leonardo Cortés-Puentes, Dan Palermo (sep 2017), “SMA tension brace for retrofitting concrete shear walls.” [26] Georgia E. Thermou and Manousos Psaltakis (2017), “Retrofit design methodology for substandard R.C.buildings with torsional sensitivity”, Journal of Earthquake Engineering, DOI: 10.1080/13632469.2016.1277569 [27] André Furtado, Hugo Rodrigues, Humberto Varum and Aníbal Costa (dec 2015), Fardad Haghpanah, Hamid Foroughi & Reza Behrou (oct 2017), “Sustainable seismic retrofitting of a RC building using performance-based design approach” Engineering Structures and Technologies,9:3,133-141, DOI: 10.3846/2029882X.2017.1380539. [28] Shanshan Wang, A.M. ASCE, and Stephen A. Mahin , F.ASCE (2018),Seismic Upgrade of an Existing Tall Building Using Different Supplemental Energy Dissipation Devices” DOI: 10.1061/(ASCE)ST.1943- 541X.000209. [29] Jiuk Shina, Jong-Su Jeonb (2019), “Retrofit scheme of FRP jacketing system for blast damage mitigation of non-ductile RC building frames.” https://doi.org/10.1016/j.compstruct.2019.111328. [30] Girish Chandra Joshib, Shailesh Ghildiyalb, Piyoosh Rautelaa (2019), “Seismic vulnerability of lifeline buildings in Himalayan province of Uttarakhand in India” https://doi.org/10.1016/j.ijdrr.2019.101168 [31] Arun M. Puthanpurayila, Oren Lavanb, Rajesh P. Dhakala (2019)” Multi objective loss-based optimization of viscous dampers for seismic retrofitting of irregular structures”,Soil dynamics and Earthquake engineering https://doi.org/10.1016/j.soildyn.2019.105765. [32] Vui Van Cao, Son Quang Pham, “Comparison of CFRP and GFRP Wraps on Reducing Seismic Damage of Deficient Reinforced Concrete Structures.” [33] Gobirahavan Rajeswaran & Anil C. Wijeyewickrema (2019) “An Alternative Design Method for the Seismic Retrofit of RC Moment Resisting Frame Buildings with Viscous Dampers” Journal of Earthquake Engineering, DOI: 10.1080/13632469.2019.1684400. [34] Christos Giarlelis (Senior Structural Engineer), Dimitrios Koufalis (Structural Engineer) & Constantinos Repapis (Associate Professor), “Seismic Isolation: An Effective Technique for the Seismic Retrofitting of a Reinforced Concrete Building” Structural Engineering International, DOI: 10.1080/10168664.2019.1678449. [35] Jishuai Wang, Tong Guo, Lianglong Song, and Yongsheng Song, “Performance-Based Seismic Design of RC Moment Resisting Frames with Friction-Damped Self-Centering Tension Braces” JOURNAL OF EARTHQUAKE ENGINEERING, https://doi.org/10.1080/13632469.2020.1785357. [36] Mahesh Babu Addala, Suresh Bhalla & Alok Madan, “Controlling Dynamic Response of Structures Using Hybrid Passive Energy Dissipation Device” Journal of Earthquake Engineering, DOI: 10.1080/13632469.2020.1792378. [37] Vincenzo Manfredi, Giuseppe Santarsiero, Angelo Masi and Giuseppe Ventura,The High-Performance Dissipating Frame (HPDF) System for the Seismic Strengthening of RC Existing Buildings” https://doi.org/10.3390/su13041864.
