Smart Profitable Solutions with Recommendation Framework

Abstract

Discovering the frequent patterns in transactional databases is one of the crucial functionalities of apriori algorithm. Apriori algorithm is an algorithm which works on the principle of association rule mining. It is a dynamic and skillful algorithm used for discovering frequent patterns in a database, hence proving out to be efficient and important in data mining. Apriori algorithm finds associations between different sets of data. Every different set of data has a collective number of items and is called a transaction. The accomplishment of apriori is the set of rules that expose us how often any particular item or a set of items is contained in a set of data. In our proposed system, to provide efficiency, our basic aim is to implement apriori algorithm by setting up a threshold value and a varying support count which will act as a filter for our recommendation data. We can adjust the threshold value in order to increase or decrease the accuracy of the system. We have used apriori algorithm keeping in mind, its application in retailing industry and its capability of computing and handling large datasets and especially for the purpose of market basket analysis. The use of apriori algorithm along with analytical tools can provide insights into data and help the user in management and decision making provided that the user feeds the system in a correct way. Our aim is to provide user with recommendations which would ultimately help them in improving their business operations.

Introduction

I. INTRODUCTION

The business model of Retailing is concerned with selling goods and earning profits, the possibility of gaining profits is directly related to the sales number (assuming that the selling price set for the products are above cost price of product). Retail businesses currently use software for their business management. Most commonly used software for purpose of business management carries an ERP interface and certain tools which only help in carrying out transactional entries and analysis of sales and profits. Such software’s are widely used today and are useful for retailers in managing their business operations. Most of these software’s help the user in inventory management, billing and sales data visualization, but they lack in implementation of certain new technologies like prediction, forecasting, recommendation, etc. If the user is provided with a simple tool to analyze their sales data and provide them with some meaningful information out of that data, it can be very useful for the user. One such way in which we can provide this functionality is by combining the existing management systems along with a data mining system. Data mining is an important research domain nowadays that focuses on knowledge discovery in databases. Data mining uses data from the database to find out meaningful and useful information such that this information can be used in improve any existing system. Its objective is prediction and description.

One of the characteristic of data mining is the association rule mining. It consists of two procedures: first, finding the frequent item set in the database using a minimum support and constructing the association rule from the frequent item set with specified confidence. It relates to the association of particulars where for every event of a, there exists an event of b. This mining is more useful in performing the market basket analysis. Apriori is an algorithm for mining data from databases which shows items that are related to each other it showcases that for every item that an individual bought, what would be the possible items associated with the purchased item. Elaborate techniques, e.g., compressing the data, eliminating the redundant information within or between files that is reduplication, storing only updated parts of data, have been developed to effectively address the original objective of reducing the data size. In data mining apriori is an algorithm for finding and analyzing association between items. Apriori is designed to operate on databases containing transactions (for example, collections of items bought by customers, or details of a website frequentation) association rule mining is a significant technique of data mining. This technique emphasizes more on finding relationships between two or more entities. For understanding these relationships, a technique called market basket analysis has been popularized in data mining. This helps in understanding the business organizations. Our approach was to provide a simple and easy management and recommendation tool to those small scale retailers which will help them in recommendation of products depending upon their sales history and also analyze the sales and profit numbers using graphs and charts.

II. PROPOSED METHODOLOGY

To generate recommendations based on previous sales history, it is required that the inventory, billing and transaction data are fed properly into the system. To get the accurate data entries from the user we have created an inventory management system and a billing system which will help user keep a track of their stock summary. The billing system will generate the transactions which would be stored across the transaction database. Our recommendation system will use data from this database to generate a list of recommended products which were sold in the highest numbers in the given time span.

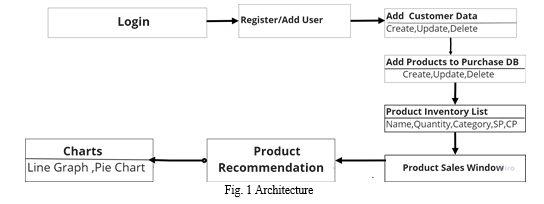

A. Architecture

B. Algorithms

Apriori algorithm is the most established association rule mining algorithm. It is based on the apriori principle that all the nonempty (at least one) subsets of a frequent itemset must be frequent. It is a two-step process.

1. Step 1: The prune step

It scans the entire database to perceive the count of each candidate in Ck where Ck represents candidate k- itemset. The count of each itemset in Ck is match up with a predefined minimum support count to find whether that itemset can be arranged in frequent k-item set Lk.

2. Step 2: The join step

Lk is natural joined with itself to generate the next candidate k+1-itemset Ck+1. The main step here is the prune step which requires scanning the whole 1database for finding the count of each itemset in whole candidate k-itemset. If the database is enormous then it requires more time to find all the frequent item sets in the DB.

Input: D, Database of transactions; min sup, minimum support threshold

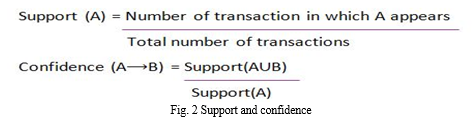

Fig.2 shows how support and confidence values are measured, in the above figure we can see that there are two products A and B. Support is the frequency in which product A appears in all transactions and Confidence is the combined occurrence of pair of A and B with respect to occurrence of A in transaction.

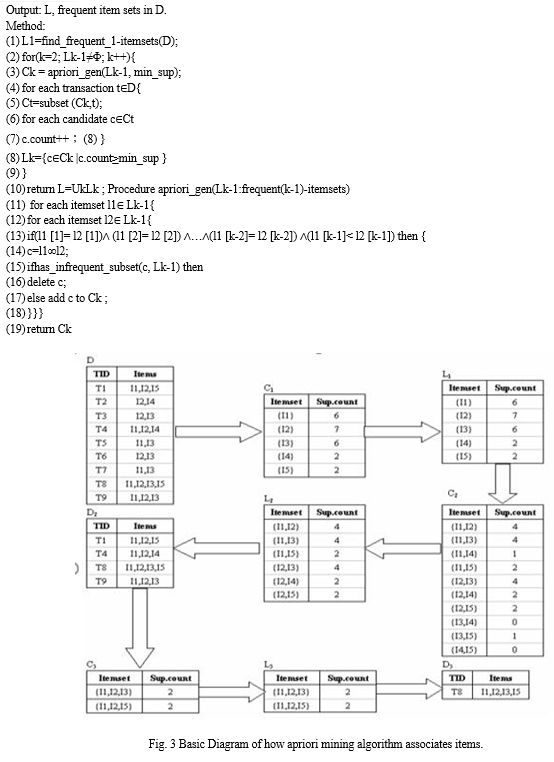

As observed in figure 3, there are 9 transactions (T1, T2, T3, T4, T5, T6, T7, T8, T9) and 5 item sets (I1, I2, I3, I4, I5). We have taken 2 as minimum support. As executing apriori algorithm, first pass consists (I1, I2, I3, I4, I5) as candidate generation items i.e. c1. By comparing with a minimum support frequent items (L1) as (I1, I2, I3, I4, I5). Further steps executed as per same methodology. Goal of the Apriori Algorithm is to find associations between different sets of data. Every distinct set of data has a number of items and is called a transaction. The accomplishment of Apriori is sets of rules that disclose us how often items are contained in sets of data. In order to find more valuable rules, our basic aim is to implement apriori algorithm using multithreading approach which can utilization our system hardware power to improved algorithm is reasonable and effective, can extract more value information. Serial mining consume time and reduce performance for mining. In proposed system, apriori algorithm is implemented in serial and parallel manner and comparisons of both on the basis of varying support count and time using parallel programming technique.

Association rule mining is interested in finding frequent rules that describe association between unrelated frequent items in databases, and it has two main measurements: support and confidence values. The frequent item sets is defined as the item set that have support value greater than or equal to a minimum threshold support value, and frequent rules as the rules that have confidence value greater than or equal to minimum threshold confidence value. These threshold values are generally assumed to be feasible for mining frequent item sets [1]. Association Rule Mining is all about finding all rules whose support and confidence outstrip the threshold, minimum support and minimum confidence values.

Association rule mining advance on two main steps. The first step is to find all item sets with adequate supports and the second step is to generate association rules by combining these frequent or large item sets.

Any given association rule has a support level and a confidence level. Support is the percentage of the population which fascinates the rule or in the other words the support for a rule R is the ratio of the number of occurrence of R, given all occurrences of all rules. The support of an association pattern is the percentage of task relevant data transactions for which the pattern is true.

C. Dataset

To get the results we have considered a list of 21 products and assigned them with a unique id. Out of those selected 21 products we have created a pseudo transaction dataset in csv format which has more than 5500 transactions.

D. Applications

This kind of recommendation systems can be used for all retail based operations. It can mainly be used for small scale retail operations for instance, a grocery store, pharmacy store, takeaway food outlet.

E. Results

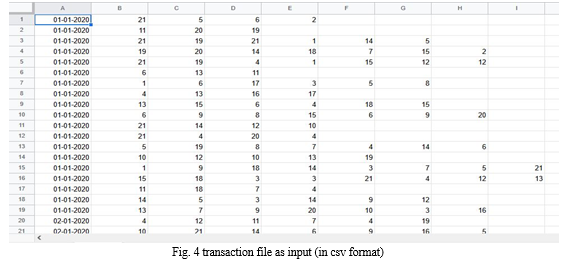

Fig.4 given below show the csv transaction file which consists of set of transactions which have occurred

III. ACKNOWLEDGMENT

We are Thank you to all respected person who helped in discussion for this topic and given their useful suggestion to make better performance. And we also thanks to all persons, references for sharing their knowledge with us.

Conclusion

The paper represents how the use of data mining along with data management and data visualization systems can help in improving business operations. The use of Apriori association rule mining algorithm can help in creating a frequently sold product item. Considering a retail scenario of use we can use this item set to help the user in their inventory management, and for setting up the pricing, offers and promotions for their products. The user can decide their sales strategy by the data returned by the system. As sales are directly proportional to the profit earned by the user, only if the user sets the selling price of products in a way where selling price is greater than cost price of the product. To get the results we have considered a list of 21 products and assigned them with a unique id. Out of those selected 21 products we have created a pseudo transaction dataset in csv format which has more than 5500 transactions. After selection of this file as input and entering the time duration, minimum support and confidence values from the user, the system returns the frequently sold product set to the user. The end result which is a list of products can also be used to study the seasonal sales pattern of some particular products and help the user in formulating their sales strategy. The paper gives work flow of how the product recommendation system works, the models and algorithm required for performing recommendations is included. The main focus was to demonstrate how data mining can be used along with data management and visualization tools in improving business operations considering the retail sector.

References

[1] Agrawal and R. Srikant. Fast algorithms for mining association rules. IBM Research Report RJ9839, IBM Almaden Research Center, San Jose, California, June 1994. [2] JugendraDongre, S. V. Tokekar, and GendLalPrajapati, “The Role of Apriori Algorithm for Finding the Association Rules in Data Mining” International Conference on Issues and Challenges in Intelligent Computing Techniques (ICICT),IEEE Catalogue Number: CFP1463W-DVD ISBN: 978-1-4799-2899-6, 2014. [3] Sheila A. Abaya, “Association Rule Mining based on Apriori Algorithm in Minimizing Candidate Generation”,In:International Journal of Scientific & Engineering Research Volume 3, Issue 7, July-2012. [4] Mamta Dhanda,” An Approach To Extract Efficient Frequent Patterns From Transactional Database”, In: International Journal of Engineering Science and Technology (IJEST), Vol.3 No.7 July 2011, ISSN:0975-546. [5] Annie, L. C., & Kumar, A. (2012). Market Basket Analysis for a Supermarket based on Frequent Itemset Mining. International Journal of Computer Science Issues, 9 (5), 257-264. [6] Conceptual Model of Business Value of Business Intelligence Systems, Ales Popovic, Tomaz Turk, Jurij Jacklic, Journal of Management, Vol. 15, 2010. [7] Nizar Mabroukeh and C. Ezeiefe, “A Taxonomy of Sequential Pattern Mining Algorithms”, ACM Computing Surveys, Vol. 43, No. 1, Article 3, Nov. 2010. [8] M. Tiwari, “Data Mining: A Competitive tool in Retail Industries”, Global Journal of Enterprise Information System, vol. 2, Issue 2, December 2010. Hongwei Liu, Bin Su and Bixi Zhang, “The Application of Association Rules in Retail Marketing Mix”, Proceedings of the IEEE International Conference on Automation and Logistics, Jinan, China, 2007
