Tracking People Using Face Recognition

Abstract

In recent years, face recognition has emerged as an active field within computer vision, driven by potential applications and the parallel development of algorithmic techniques alongside the increasing availability of cost-effective computers with sufficient computational power to support these algorithms. As a biometric information process, a face recognition system offers wider applicability and operational range compared to other biometric methods such as fingerprinting, iris scanning, or signature recognition. The system employs a blend of methodologies across two primary domains: face detection and recognition. Face detection is executed on real-time images without a specific application context in mind. Processes involved in the system encompass white balance correction, segmentation of skin-like regions, extraction of facial features, and the extraction of face images from a face candidate. The integration of a face classification method utilizing a Feedforward Neural Network is a key component of the system. The system\'s performance is evaluated using a database containing 10 individuals with 20 to 30 photos of each person. The system demonstrates acceptable performance within the specified parameters, successfully recognizing faces and capable of detecting and recognizing multiple faces within live image captures. The primary focus of this study revolves around the implementation of the FaceNet Neural Network using a database of 10 individuals. The objective is to test the network\'s capacity within a specific application where multiple individuals are simultaneously recognized across different input streams. Additionally, the study explores additional features to track and identify the person of interest within the recognized group.

Introduction

I. INTRODUCTION

A facial recognition system is a technology designed to identify or verify a person using a digital image or a video frame from a video source. There exist various methods employed by facial recognition systems, but generally, they function by comparing specific facial features from a provided image with faces stored within a database. It is often defined as a Biometric Artificial Intelligence application capable of uniquely identifying an individual through the analysis of patterns derived from the person's facial textures and shape.

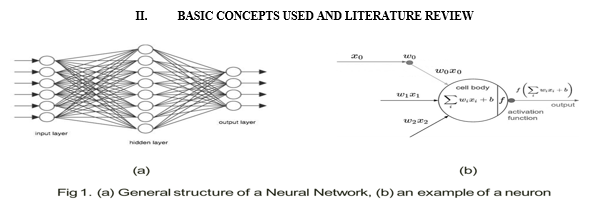

In this network, the initial column of perceptrons, termed the first layer, is responsible for making three straightforward decisions by evaluating the input evidence. However, the subsequent layer of perceptrons, referred to as the second layer, makes decisions based on the outcomes derived from the first layer. Consequently, these second-layer perceptrons are capable of making decisions at a more intricate and abstract level compared to the perceptrons in the first layer. Similarly, more complex decisions can be tackled by the perceptrons in the third layer. Consequently, a multi-layer network of perceptrons can engage in sophisticated decision-making processes.

Although I initially defined perceptrons as having a single output, it may appear in the network diagram that the perceptrons possess multiple outputs. However, each perceptron still outputs a single result. The illustration of multiple output arrows serves as a convenient way to signify that the output from a perceptron is being utilized as the input for several other perceptrons. This representation is more practical than drawing a single output line that subsequently branches off.

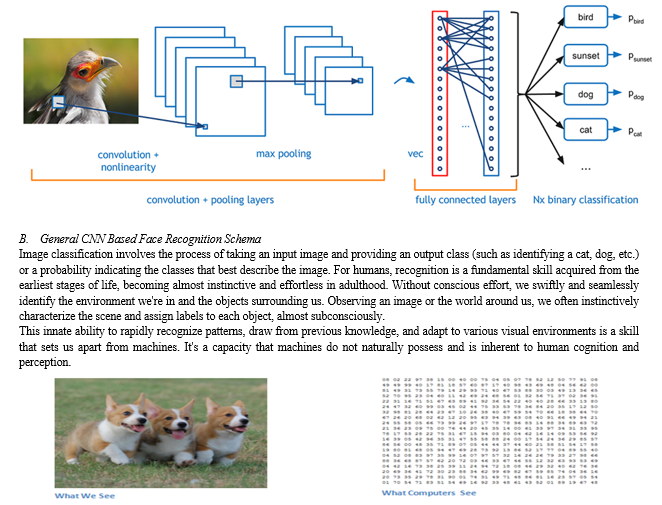

A. Convolutional Neural Networks

 Convolutional neural networks, often appearing as a fusion of biology and mathematics, enriched with a sprinkle of computer science, have emerged as a significant innovation in the realm of computer vision. The year 2012 marked a pivotal moment when neural networks gained significant recognition, notably through Alex Krizhevsky's triumph in that year's ImageNet competition. This competition is essentially the pinnacle event in the domain of computer vision. Krizhevsky's application of neural nets substantially reduced the classification error rate from 26% to 15%, a remarkable and groundbreaking improvement at that time.

Since this milestone, numerous companies have integrated deep learning as a fundamental component of their services. Major tech entities such as Facebook utilize neural networks for their automatic tagging algorithms, Google employs them for photo searches, Amazon incorporates them into their product recommendation systems, Pinterest utilizes them for personalized home feed curation, and Instagram relies on these networks for their search infrastructure. These applications showcase the widespread adoption of convolutional neural networks in various aspects of modern technology and services.

III. PROBLEM STATEMENT AND REQUIREMENT SPECIFICATIONS

A. Problem Statement

The challenge of face recognition can be framed as follows:

Face recognition involves identifying and extracting human facial characteristics, such as the mouth, nose, and eyes, from a frontal face image. To accomplish this, we will employ a multi-step approach. Initially, we will utilize a skin-color segmentation technique to detect the face region. Subsequently, morphological methods will be employed to address any gaps or irregularities that may arise during the segmentation process. The next step involves skeletonization, which yields a skeletal representation of the face, enabling the extraction of facial landmark points. These facial features are typically located within the interior of the face contour. To evaluate the effectiveness of our method, we will employ various differential images.

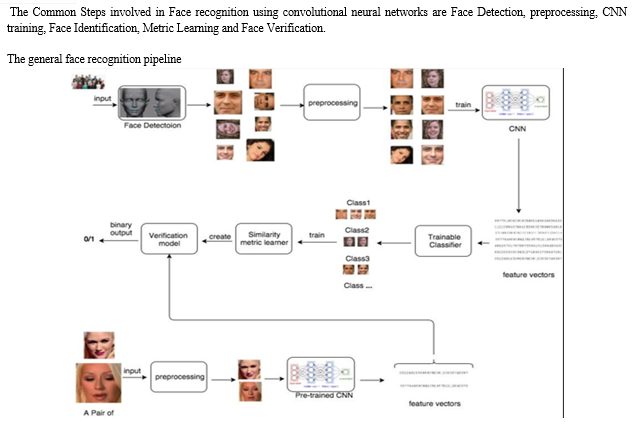

B. System Design

1. Data Abstraction and Preprocessing
   • Face Detection: Use face detection algorithms to abstract faces from the training data.
   • Data Labeling: Preprocess the detected faces and label the data for training purposes.
2. Model Training and Feature Extraction
   • Model Training: Utilize the preprocessed data to train a model for face recognition.
   • Feature Extraction: Extract features from the trained model to identify individuals in images.

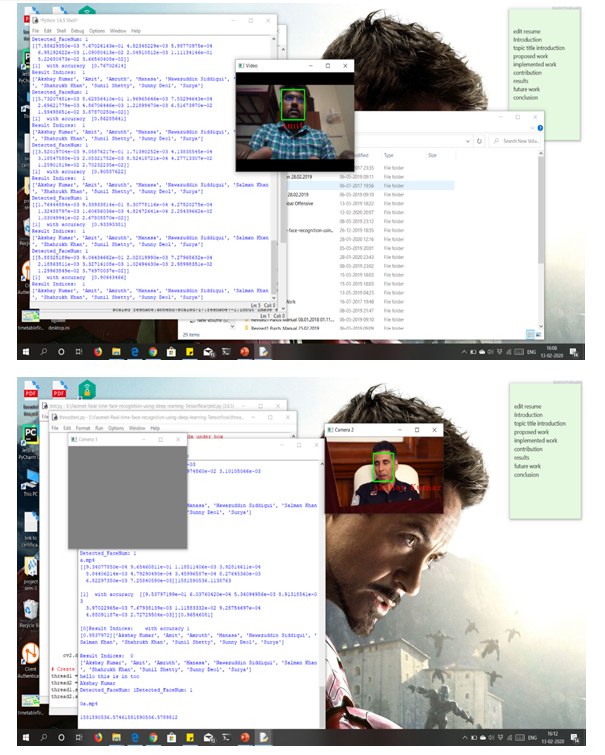

3. Real-time Video Processing
   • Webcam Image Acquisition: Capture images from the webcam at 30 frames per second.
   • Image Classification: Classify and recognize individuals in the captured images.
4. Multi-stream Face Recognition
   • Multithreading: Implement multithreading to enable recognition from multiple video streams simultaneously.
5. Real-life Scenario Implementation
   • Search Feature: Develop a feature to search for a specific person across multiple video streams.
   • Functionality: When a person's name is provided, the system will locate them in different streams.
   • Output: Provide timestamp, camera ID, and the person's location within the different streams.

C. Components

1. Face Detection Module: Utilizes algorithms for face detection and extraction from images or videos.
2. Data Processing and Training: Preprocesses data, labels faces, and trains the model for feature extraction.
3. Real-time Video Capture and Processing: Captures webcam images and performs real-time face recognition.
4. Multi-stream Recognition Engine: Uses multithreading to process and recognize faces from multiple video streams simultaneously.
5. Search and Retrieval System: Accepts a person's name as input and returns their location across various streams with timestamps and camera IDs.

D. Technologies

1. Face Detection: OpenCV, Dlib, MTCNN
2. Model Training: Deep learning frameworks like TensorFlow or PyTorch
3. Real-time Video Processing: OpenCV, FFmpeg
4. Multithreading: Python's threading or multiprocessing libraries
5. Data Storage: Database to store labeled data and recognition results

E. Workflow:

1. Data Collection and Preprocessing
   • Collect and label face data for training.
   • Preprocess and train the model.
2. Real-time Face Recognition
   • Capture and classify images from the webcam.
   • Implement multithreading for processing multiple video streams simultaneously.
3. Search and Retrieval
   • Enable the system to locate and display a specific person's location across streams with timestamps and camera IDs.

This design will serve as the foundation for a system capable of recognizing and locating individuals across multiple video streams in real-time.

IV. IMPLEMENTATION

A. FaceNet Neural Network

FaceNet is a system designed to create a condensed representation of facial images in a way that distances within this representation signify the similarity between faces. It accomplishes this by training a deep convolutional neural network (CNN) to generate embeddings, which directly relate to facial characteristics. Rather than relying on intermediate bottleneck layers, FaceNet optimizes the embedding space directly.

The training process involves using triplets of images: one as the reference, another of the same individual , and a third of a different person . The advantage lies in the efficient representation of faces, enabling tasks like recognition, verification, and clustering using these embeddings as features. Notably, FaceNet achieves exceptional performance, reaching a record accuracy of 99.63% on LFW and 95.12% on Youtube Faces DB while requiring only 128 bytes per face.

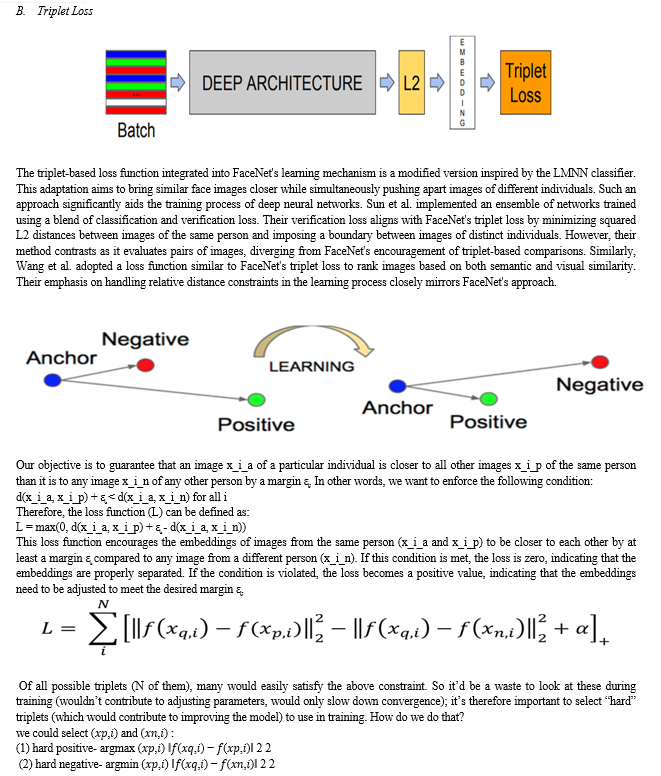

C. Triple Selection

The original concept suggests selecting the "hardest" positive and negative images concerning an anchor image within a dataset to form triplets. The hardest positive and the hardest negative (closest in the dataset) are chosen. However, due to computational infeasibility in identifying these images across the entire dataset and potential training issues due to mislabeled or poorly imaged faces dominating these selections, an alternative method is proposed.

To tackle this challenge, the generation of triplets dynamically takes place within the training mini-batches, not across the complete dataset. In this methodology, rather than considering the entire dataset for each anchor image to identify the "hardest" positive, the approach involves using the pool of positive images present within the batch. Unlike selecting a single hardest positive for an anchor, this method utilizes all anchor-positive pairs within the batch. Meanwhile, it still selects hard negatives, ensuring one hard negative is picked corresponding to each anchor image.

The batch structure is designed to include approximately 40 images per identity for each mini-batch, ensuring a meaningful representation of the anchor-positive distances. For negative faces, they are randomly sampled for each mini-batch.This strategy of dynamically generating triplets within mini-batches, using all anchor-positive pairs in a batch while selecting hard negatives, has been found to yield a more stable and faster-converging solution compared to exclusively choosing the hardest positive for each anchor. This adaptation mitigates the challenges posed by mislabeled or poorly imaged faces dominating the selection of hard positives and negatives, contributing to more effective training.

D. Overview

FaceNet, treating the CNN architecture as a Blackbox, emphasizes the crucial aspect of end-to-end learning in its system. It focuses on generating an embedding, f(x), which maps face images to a feature space ?d. Within this space, the objective is to minimize the squared L2 distance between face images of the same individual, even when captured under different imaging conditions, resulting in their embeddings being closely positioned. Simultaneously, FaceNet aims to maximize the distance between pairs of face images from different individuals, ensuring distinct separation.

Traditional loss functions typically aggregate all images of the same identity into a single point in ?d. However, FaceNet goes beyond this approach. The triplet loss utilized by FaceNet not only brings together faces of the same person (anchor and positive) but also enforces a margin between each pair of faces from one individual and those of all other identities. This margin significantly separates the embeddings, enhancing the model's ability to discern between different individuals.

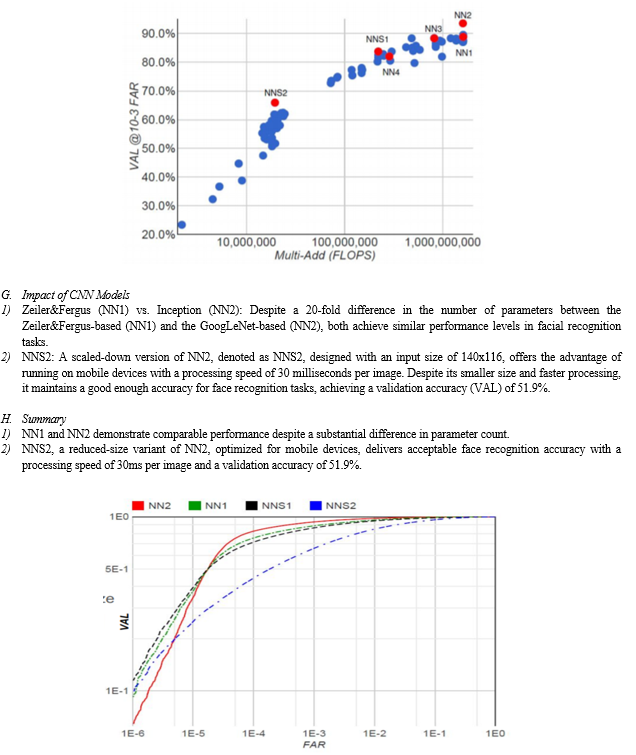

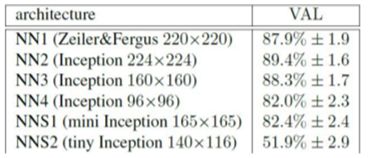

E.  Experiments- Computation vs Accuracy Tradeoffs

1. Dataset: Comprised 100-200 million face thumbnails from 8 million unique identities.
2. Pre-processing: Detected faces, generated bounding boxes, and resized images to varying dimensions (96x96 to 224x224) for network inputs.

F. Trade-offs Observed

1. Accuracy vs. FLOPS: Strong correlation noted; higher computational demands (FLOPS) tend to correspond with improved accuracy in facial recognition tasks.
2. Accuracy vs. Number of Parameters: No significant correlation found; the number of model parameters did not consistently determine performance.

VI. STANDARDS ADOPTED

The system design for face recognition and multi-stream video processing adheres to various industry standards and best practices to ensure robustness, security, and compliance. The design's approach towards face detection and recognition aligns with ISO/IEC 19794-5 and ISO/IEC 30107-3, providing standardization for biometric data interchange formats and performance testing in face recognition systems. Data labeling and preprocessing follow ISO/IEC 25000 series guidelines for software quality, complemented by GDPR compliance to ensure data privacy and protection. Model training and feature extraction methodologies are based on best practices from TensorFlow or PyTorch, emphasizing model evaluation through metrics such as precision, recall, and F1-score. Real-time video processing adheres to standards like MPEG-4 or H.264 for video compression and ITU-R BT.500 for video quality assessment. Concurrency standards and system integration practices support multi-stream recognition, while security measures follow ISO/IEC 27001 guidelines.

The system's workflow complies with ISO/IEC 12207 for software lifecycle processes and ISO 9001 standards for quality management, ensuring a comprehensive and standardized approach throughout development. Legal and ethical compliance, such as adherence to GDPR and other regional laws, is incorporated, ensuring the system's alignment with privacy and data handling regulations. Overall, these standards collectively form a robust foundation for the system's functionality, reliability, and ethical operation in recognizing and locating individuals across multiple video streams in real-time.

Conclusion

A. Conclusion Over the past two decades, face recognition technology has made significant advancements. Presently, machines possess the capability to automatically authenticate identity details for secure transactions, surveillance, security measures, and building access control, among other applications. These applications typically function in controlled settings, leveraging environmental constraints to achieve high accuracy in recognition algorithms. However, the next phase of face recognition systems is expected to expand into smart environments, wherein computers and machines operate as more supportive aides. For this to become a reality, computers must proficiently identify individuals nearby in a manner that seamlessly integrates into typical human interactions without necessitating special prompts. They should align with human expectations about when recognition is probable, indicating the need for future smart environments to utilize the same modalities as humans and have similar limitations. Although these objectives seem attainable, considerable research is still necessary to ensure the reliability of person recognition technology across vastly different conditions using information from single or multiple modalities. The focus lies on making face recognition technology work consistently in a variety of situations to fulfill the potential of future smart environments. B. Future Scope Today, facial recognition technology is significantly utilized in the realm of security. It serves as an effective tool for law enforcement agencies to identify criminals, while software companies leverage this technology for user access. There\'s extensive potential for further development, enabling its utilization in various other areas such as ATMs, accessing confidential files, or other sensitive materials. This could potentially render conventional security measures like passwords and keys obsolete. Innovators are exploring the integration of facial recognition in public transportation, particularly within subways and similar outlets. The objective is to use faces as a form of credit card for paying transportation fees. Rather than purchasing tickets at a booth, facial recognition technology would capture the individual\'s face, process it through a system, and debit the predetermined account. This innovation has the potential to significantly streamline processes and optimize traffic flow, offering a glimpse into a futuristic approach. The amalgamation of personal data has granted marketers and advertisers an unprecedented opportunity to refine their approaches to target markets. Facial recognition could similarly allow companies to discern specific demographics. For instance, upon recognition of a male aged between 12 and 21, a display screen might present an advertisement for the latest FIFA game. Major retailer Tesco plans to implement Optimizes screens at 450 petrol stations in the UK, tailoring targeted ads to customers. According to company CEO Simon Sugar, this technology could revolutionize British retail. However, the accuracy of these systems in identifying customers is paramount, as being misclassified in terms of age or gender could lead to significant misunderstandings, comparable to the frustration of having one\'s name misspelled on a Starbucks cup.

References

[1] Z. Zhu, P. Luo, X. Wang, and X. Tang. Recover canonical- view faces in the wild with deep neural networks. CoRR, abs/1404.3543, 2014. 2 [2] Y. Taigman, M. Yang, M. Ranzato, and L. Wolf. Deepface: Closing the gap to human-level performance in face verification. In IEEE Conf. on CVPR, 2014. 1, 2, 5, 8 [3] M. D. Zeiler and R. Fergus. Visualizing and understanding convolutional networks. CoRR, abs/1311.2901, 2013. 2, 4, 6 [4] C. Szegedy, W. Liu, Y. Jia, P. Sermanet, S. Reed, D. Anguelov, D. Erhan, V. Vanhoucke, and A. Rabinovich. Going deeper with convolutions. CoRR, abs/1409.4842, 2014.2,4,5,6,9 [5] K.Q. Weinberger, J.Blitzer,and L.K.Saul. Distance metric learning for large margin nearest neighbor classification. In NIPS. MIT Press, 2006. 2, 3 [6] Y. Sun, X. Wang, and X. Tang. Deeply learned face representations are sparse, selective, and robust. CoRR, abs/1412.1265, 2014. 1, 2, 5, 8 [7] J. Wang, Y. Song, T. Leung, C. Rosenberg, J. Wang, J. Philbin, B. Chen, and Y. Wu. Learning fine-grained image similarity with deep ranking. CoRR, abs/1404.4661, 2014. 2
