Various types of Voltage Stability Control Techniques of DC Microgrid: A Comparative Analysis

Abstract

This article presents a survey of control systems, steadiness, and adjustment procedures for DC microgrids (MG). A DC microgrid is getting huge consideration all over the planet because of the improvement of different DC loads, expanded efficiency, and progressions in power electronics devices. Developing worldwide worry over a dangerous atmospheric deviation and non-renewable energy sources (NRES) decrease and raised the requirement for perfect and green renewable energy sources (RES) for power generation through the Micro-Grid impression. DC Micro-Grid can be associated with the fundamental power framework or can turn in disconnection. Thus, in this manner a proficient framework for remote and country regions, available from little structures to enormous plants. As the control technique assumes a significant part in guaranteeing microgrid’s power superiority and effectiveness, a far-reaching survey of the state of art control methods in DC microgrid sets is important. DC MG are portrayed by alluring elements, for example, high framework efficiency, high power quality, lower cost, less complexity control and dependable answer for charge in regions. The various levelled control procedure is separated into three coatings in main, secondary and tertiary in view of their usefulness.

Introduction

I. INTRODUCTION

A MG is a gathering of interrelated loads and circulated power assets through plainly characterized electric limits that go about as a solitary controllable substance concerning the matrix. It can work in network associated mode [1]. Despite fact that DC microgrid (DC MG) is a moderately new idea for AC microgrids, it incorporates higher reliability, improved efficiency, versatility, and a characteristic natural interface with environmentally friendly power systems or frameworks and electric loads [2]. The lesser skin impact [3], the most powerful switching capacity [4], synchronization is not a problem [5], more secure for the humanoid [6], and regular connection point of the battery [7] and of the ultracapacitor with the group make DC the microarray has a distinctive inclination [8].

Distributed resources assets like wind and sun-based power (solar power), energy capacity units, alternating current and direct current loads, and other bidirectional governable loads make up the direct current circulation framework. The electrical energy in DC created by microgrid which is based on DC can be straightforwardly used to work devices or loads which are also depends on the DC. In any case, a couple of studies have inspected the use of central control (CC) microgrids with electric vehicles (EV). At the point once, the electric vehicle is completely charged over the alternating current framework, the AC supply is transformed to DC through AC to DC rectifier.

Hence, electrical vehicle can be observed as a basic load for DC microgrids [9]. Over the extended haul, a DC design might set aside power. Accordingly, charging EV via microgrid based on DC frameworks disposes of conversion losses and further develops in general framework performance [10].

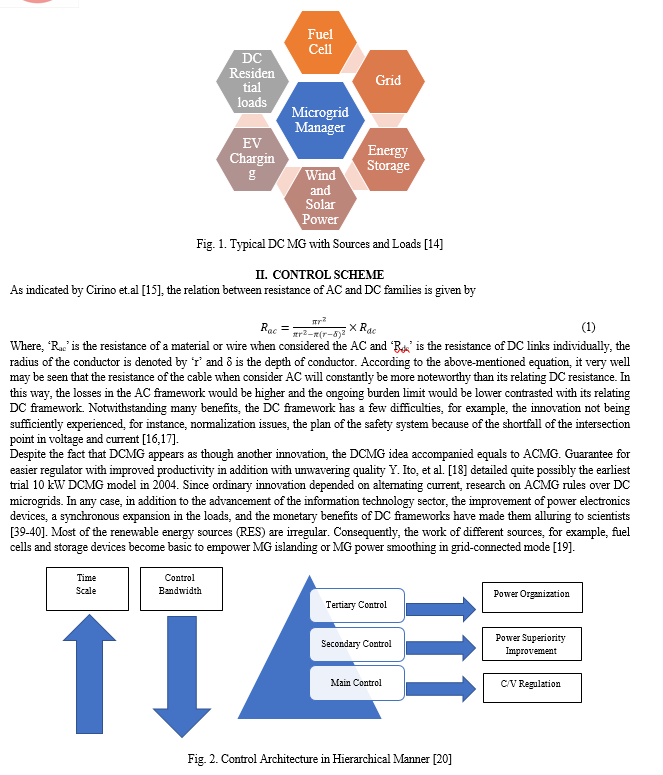

The DCMG through its different portions is exhibited in Fig. 1. An effective, vigorous, and wise control system for steady and dependable activity is an irreplaceable requirement for a MG. The essential objective of executing smart and strong control in DCMG is effective, safe, and solid power stream from font to back. The control planning of a DCMG requirements to accomplish different control activities, for example, regulation of the voltage (VR), current distribution, energy capacity, minimization of working expenses, and so on.

These different control activities oversee the preparation, plan, and performance of an explicit control scheme in a microgrid for economic activity [11-13].

A hierarchical control engineering comprising of main, secondary and tertiary control is displayed in Fig. 2. The main control faces the starter control of the energy dispersion and the current and voltage regulations [21]. Secondary control, a more elevated level than main, manages voltage compensation and shared execution improvement [22]. As the most elevated level of hierarchical design, tertiary control performs power the executives [23], energy management [24], and economic dispatch [25]. Hierarchical control is accomplished through the synchronous utilization of a nearby converter and facilitated control in view of computerized correspondence links, for example, the new cloud-based communication platforms [26] which are isolated by basically a significant degree in the control data transmission. The control transmission capacity diminishes as the time scale increments when we talk about the main control level to the tertiary control level.

Nonetheless, in a DC microgrid framework, there are different voltage levels and various setups that are successfully applied relying upon the framework necessities. The absence of comprehensiveness in guidelines and normalization is a huge hindrance for the execution of the DC microgrid framework. Thusly, while DC microgrid offers huge benefits as far as adaptability and survivability, the execution of DC microgrid is compromised because of the unavoidable moves that emerge because of security. The absence of accessibility of suitable security ways of thinking is a significant hindrance to the far-reaching reception of DC innovation. Subsequently, this examination has extensively explored all the assurance procedures carried out for DC microgrids.

III. CONTROL SCHEMES OF DCMG

As per the Fig. 2, PE converters like AC to DC and DC to DC converters are fundamental parts in DCMG to give manageable connection point among loads and sources. According to the regulator point of view in power convertors, main control embraces of internal loops and sag control (power sharing of the starter). This segment displays the ailment state of art main control approaches on three-stage AC to DC converters and DC to DC converters [20]. Fig. 3 shows the controlling schemes of the DCMGs.

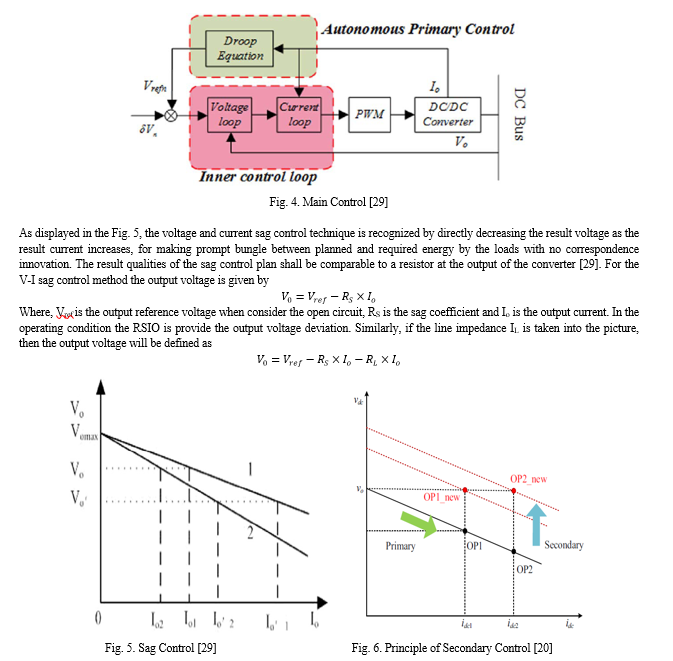

As recently referenced, the main control level basically cantered around time scale control issues, like momentary voltage control and current control, power sharing of various devices. For the prerequisite of an exceptionally rapid control reaction period, the main control level is coordinated with the voltage control and current control and situated at neighbourhood converters. As displayed in Fig. 4, the sag focused main control changes the voltage gave to the internal control logics, to keep up with independent control for equal activity control of converters. For various working conditions, different circulation independent control strategies are utilized for main control, for example, sag control [27], frequency distribution method [27], and bus voltage strategy for DC [28].

Table 1 demonstrates about the summary of all-control schemes related to the DCMG. Similarly, Table 2 shows the comparison between centralised, decentralised and distributed control system.

Table 1. Comparison of Various Types of Control Schemes

Table 2. Comparison between Centralised, Decentralised and Distributed system

Fig. 6 demonstrate the standard of the backup control in DCMGs. As may be obvious, when the main control is carried out, framework working value will change from Vo (initial voltage) to 1 at load condition and from Vo to 2 load condition. In the wake of actuating the secondary control, the working value will move from 1 to 1’ and 2 to 2’, and it shows that the framework generally works at ostensible voltage level.

Conclusion

The construction, parts, uses, control and benefits of DCMG over ACMG are described in this paper. The fundamental thought of this audit is to provide a reflective conversation on the DC microgrid progressive control structure and three level control system. The survey makes sense of benefits and inconveniences of centralized, decentralized, distributed as well as the hierarchical control procedures. Fuzzy logic regulator, DC Bus Signaling, and sag control are contrasted as far as their capacity to manage voltage and current circulation at the main level of control. At the secondary level of the control, the three strategies, to be specific concentrated, decentralized, and distributed, are analysed concerning uses, benefits, and impediments. In the ongoing energy situation, future energy patterns, dependable and robust control techniques, for example, hierarchical control empower the DCMGs to convey energy in a cost-upgraded and proficient way to the majority. Sag control has been two control procedures for the most part regarding transformation to nearby factors, no communication requirements, altogether better guideline of voltage and current as well as simple execution. At the secondary level of control, circulated control is favoured on the grounds that it gives sufficient error rectification term at the main level in a dispersed way and is natural by the restrictions of unified control conspire, like multifaceted statement.
