Vertical Axis Wind Turbine with Inverter

Abstract

On the expanding cost of non-inexhaustible assets, sustainable assets are increasingly sought after.In this system, we make utilization of Vertical Axis Wind Turbine for creating energy, for the inverter.A Vertical Axis Wind Turbine is a kind of wind turbine where the principle rotor shaft is set transverse to the breeze while the fundamental parts are situated at the base of the turbine. it comprises of a vertical axis windmill, DC motor, 12V battery, DC inverter and transformer. VAWTS do not need to be pointed into the wind, which removes the need for wind sensing and orientation mechanisms.

Introduction

I. INTRODUCTION

The demand for electrical energy is increasing exponentially  and relaying on fossil fuel resources will pose a threat to the human-kind  as  the  availability  of  these  resources  are  getting  limited. Hence the focus should be on the renewable energy sources such as  solar,  wind,  tidal  etc .  These  sources  have  been  coined renewable due to  their continuous  replenishment and  availability for use over and over again. The popularity of  renewable energy has experienced  a significant upsurge  in recent times  due to the exhaustion  of  conventional  power  generation  methods  and increasing  realization  of its  adverse effects  on the  environment. This popularity  has been bolstered  by cutting edge  research and ground breaking technology that has been introduced so far to aid in  the  effective  tapping  of  these  natural  resources  and  it  is estimated  that renewable  sources might  contribute about  20% – 50% to energy consumption in the latter part of the 21st century. Facts from the World Wind Energy Association estimates that by 2010, 160GW of wind power capacity is expected to be installed worldwide which implies an  anticipated net  growth rate  of more than 21% per year. The main advantage considering the renew-able energy source as a main stream source for energy generation is  that they  are clean,  non-polluting  to the  environment  and its abundance. Although wind has been harnessed for centuries, it has only emerged as a major part of our energy solution quite recently. Before the 21st century, wind was primarily used  to pump water from wells and to  grind grain, but  over the last  twenty years the cost of wind energy has dropped by more than 80 percent, turning it into the most affordable form of clean energy.The Vertical Axis Windmill converts the energy of wind into kinetic energy by means of blades, and charges the 12V battery. As the battery is switched on, the inverter changes over DC into AC and the step-up transformer expands the voltage, required to run the device.

II. WORKING METHODOLOGY

In this we have used a 12v-34v DC generator with a maximum speed of 2400 RPM. The generator converts mechanical energy into electrical energy produced by the wind power. As wind strikes on the blades the rotor rotates and simultaneously the generator also rotates. Then the output of generator is given to charge controller A charge controller, charge regulator or battery regulator limits the rate at which electric current is added to or drawn from electric batteries to protect against electrical overload, overcharging, and may protect against overvoltage.This prevents conditions that reduce battery performance or lifespan and may pose a safety risk. It may also prevent completely draining ("deep discharging") a battery, or perform controlled discharges, depending on the battery technology, to protect battery life. The terms "charge controller" or "charge regulator" may refer to either a stand-alone device, or to control circuitry integrated within a battery pack, battery-powered device, or battery charger. With the help of Charge controller battery gets charged. We are using a rechargeable battery to store the energy passed through the charge controller circuit.

III. BLOCK DIAGRAM

In this project we have used some known & popular hardware such as Generators,12v DC Battery, Step-up Transformer, jumper wires, 3-9V DC motor, 100pf capacitor, 12V DV Adaptor. Below fig shows the block diagram in which all the components are connected

IV. DESCRIPTION OF HARDWARE

A. Generator

Mitsumi DC 12V to 34V ,2400 RPM generator.The generator converts mechanical energy into electrical energy produced by the

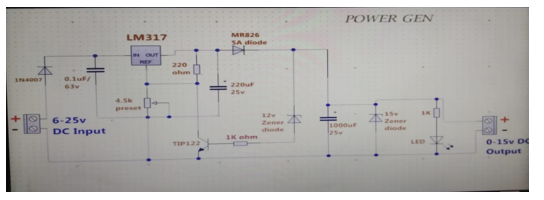

B. Charge Controller

Charge regulator or battery regulator limits the rate at which electric current is added to or drawn from electric batteries to protect against electrical overload, overcharging, and may protect against overvoltage.This prevents conditions that reduce battery performance or lifespan and may pose a safety risk. It may also prevent completely draining ("deep discharging") a battery, or perform controlled discharges, depending on the battery technology, to protect battery life. The terms "charge controller" or "charge regulator" may refer to either a stand-alone device, or to control circuitry integrated within a battery pack, battery-powered device, or battery charger

C. Rechargeable Battery

In this project we are using 12v 1.7AH DC Rechargeable Battery to store the energy supplied from charge controller circuit

D. Inverter

Invertor is a power electronic device or circuitry that changes direct current to alternating current (AC). The resulting AC frequency obtained depends on the particular device employed. Inverters do the opposite of "converters" which were originally large electromechanical devices converting AC to DC.In this project we have designed a 12v dc to 12 ac Inverter

E. Step-up Transformer

In this we will be using a step up transformer to step up the voltage upto the required value to run the load.Transformer will step up the AC voltage converted by using the DC Inverter Circuit. The rating of the transformer used is 12-0-12 Volt. The step up transformer will step up the output given by inverter which is 12v AC into 230v Ac

V. RESULT & OUTPUT

According to the proposed plan the final outcome of this paper leads to the development of a Vertical axis wind turbine with inverter. Through this project, an power generation system has been created so that we wind pressure created in Highway or tunnels can be used and power can be easily generatedr. One of the objectives of this project is to design low cost Power generation. . By varying the slider or setting the speed in SCADA desired speed is obtained and the change in speed can be observed in SCADA software.

Conclusion

The vertical axis wind turbine is successfully developed and gives constant supply. It\\\'s cost effecient the main purpose & application of this model is to use the vaccum and pressure created by high speed vehicles passing through a tunnel to rotate the turbines and as above fig.7 shows we have successfully created our VAWT

References

[1] U.S. Department of Energy. “Wind and Hydrop ower TechnologiesProgram” Retrieved fromhttp://eereweb.ee. wind_how.html in November, 2005. [2] Chang, Professor L. 2005. “Advanced Topics in Environmental Engineering -Wind Power,” Ch 4. University of New Retrieved from http://www.ece.unb.ca/index.html in October, 2005 [3] Pawsey, N.C.K., 2002. “Development and evaluation of passiveVariable-Pitch Vertical Axis Wind Turbines”, School of Mechanical and Manufacturing Engineering, The University of South Wales, Australia [4] P N Shankar “Development of vertical axis turbine\\\'\\\' proc. Indian acad.Sci,, Vol.C2,Pi.i ,March 1998,pp. 49-66 National aeronautical Laboratory, Bangalore 560 017 [5] https://www.electronicsforu.com/electronics-projects/hardware-diy/sine-wave-inverter-circuit
