Web Personalized Recommendation Model Using Temporal Fuzzy Association Rule Mining

Abstract

A web access log file contains timely sequenced log entries which include essential fields to indicate user activities. Analysis of these patterns provides valuable information for web designer to quickly respond to their individual needs. Many industries are struggling to retain regular interested customers for the improvement of customer relationship. Retrieval of relevant information automatically from these log files for interested group of users is a difficult process, since acquiring interested user profiles which evolves continuously with respect to time are not so easy. The paper presents a novel Web Personalized Recommendation Model (WPRM) using temporal fuzzy association rule mining technique. Temporal Fuzzy Association Rule Mining (FTARM) technique is proposed and applied on a focused set of interested users to provide intelligent recommendations. The proposed model results in less execution time and reduced memory utilization with high accuracy.

Introduction

I. INTRODUCTION

The explosive growth of data available on the net has made the analysis and discovery of useful information more difficult. When browsing the web, without proper guidance, users often wander aimlessly without visiting the web pages of their interests and then leave the web site soon after losing their interests (Jaideep, Prasanna & Vipin, 2002 ; Tsuyoshi & Kota, 2006). Thus, the web systems need to guess varied interests of different users. To satisfy different users, the web system should be able to distinguish between different users or groups of users and their needs to be able to predict the user’s needs. Web personalization is necessary in order to solve the above problems. The currently available techniques for web personalization are not sufficient to extract relevant information for web users since the cookies and other mechanisms used by current search engines are not providing accurate algorithms for mining web user profiles. Hence the paper presents a new model WPRM, which proposes an algorithm called Fuzzy-Temporal Association Rule Mining Algorithm (FTARM) to classify the interested web user profiles dataset periodically to know the users behaviors and interests based on temporal pattern analysis.  The proposed model consists of two phases. In first phase, the web server log data is preprocessed and is classified into focused set of interested users using enhanced version of Decision tree C4.5 algorithm (Robert, Mobasher & Srivastava, 1997; Suneetha & Krishnamoorti, 2010a; Suneetha & Krishnamoorti, 2010b)

In the second phase Fuzzy Association Rule Mining (FARM) technique is proposed to provide intelligent recommendations.

Association Rule Mining (ARM) is an important and well established data mining technique used to identify patterns expressed in the form of association rules from transactional data sets ( Bodon,  2003; Coenen,  Leng, & Goulbourne  2004; Agrawal, Imielinski & Swami,  1993). The attributes in ARM data sets are usually binary valued but ARM also can be applied to quantitative and categorical (non-binary) data (Gyenesei, 2001; Srikant & Agrawal, 1996; Ye & Keane 1997). With the latter, values can be split into linguistically labeled ranges (for example “low”, “medium”, “high” etc) such that each range represents a binary valued attribute. Values can be assigned to these range attributes using crisp or fuzzy boundaries. The application of ARM using the latter is referred to as Fuzzy Association Rule Mining (FARM) (Kuok, Fu & Wong, 1998). FARM has been shown to produce more expressive association rules than the “crisp” methods. Fuzzy logic deals with approximate rather than precise modes of reasoning and proposes three different types of qualifications named as (i) Truth qualification, for example “ not quite true” ,(ii) probability-qualification, something is “unlikely” (iii) Possibility-qualification, might be expressed by “almost impossible”.  Fuzzy association rules is an implication of the form: if A, X then B, Y, where A and B is disjoint itemsets and X and Y are fuzzy sets. Fuzzy sets are generalized sets which allow for a graded membership of their elements.

The paper provides suitable experimental analysis for the proposed fuzzy logic based temporal association rule mining approach in which fuzzy logic is used for intelligent classification. This reduces the search space of the web user profiles dataset. These rules play an important role in prediction of users’ next access more precisely. In this algorithm, the temporal constraints are used because the different  users  group  accessing  the  internet  are  in  different  time  periods.

Therefore, the users temporal data is stored classified, analyzed and the relevant rules are extracted. To access relevant web pages, relevancy factor is computed using the term frequency. For this purpose, the query words given by the user while searching are  compared with each string present in the document and the words which have high matches based on a threshold value are considered for the retrieval of top ten pages. Then these pages are shown to the user to get his relevance feedback. Once user is satisfied with the pages, ontology is created with semantic to improve the performance of the semantic analysis process.

The rest of the paper is organized as follows. Section 2 briefs the related work. The proposed approach and its details are presented in section 3. Section 4 provides Fuzzy Temporal Association Rule Mining algorithm. Section 5 discusses the results and finally, conclusions are drawn in section 6.

II. RELATED WORK

In recent years abundant work has been carried out in the area of web mining, specifically on analysis of web log data. There are many works carried out on web usage mining (Olfa, Maha,Esin,Antonio & Richard, 2008; Yuefeng & Ning, 2006) which deal with various data mining or machine learning techniques to model and understand web user activity. The clustering technique proposed in (Hofgesang, 2009; Yan, Jacobsen,Garcia & Dayal,1996), is used to segment user sessions into clusters or profiles that can later form the basis for personalization. The notion of an adaptive web site was proposed in (Perkowitz & Etzioni,1997); where the user’s access pattern is used to automatically synthesize index pages. Based on association rule mining discovery of web user activity model is proposed in  (Srivastava, Cooley, Deshpande & Tan, 2000); whereas the approach proposed in (Ma, Pant & Sheng, 2007) uses probabilistic grammars to model web navigation patterns for the purpose of prediction. Web utilization miner presented in (Spiliopoulou  & Faulstich, 1998)   discovers navigation patterns with user-specified characteristics over an aggregated materialized view of the web log. New fuzzy relational clustering techniques are used in (Dimitrios, & Georgios 2010; Mangesh, Dr. Bharat & Ramprasad, 2008) to discover user profiles that are resistant to noise that are present in click stream data. A robust density-based evolutionary clustering technique was proposed in (Castellano, Fanelli  & Torsello, 2008)  to discover an optimal number of multi resolution and robust user profiles. Most researchers (Desikan & Srivastava, 2004; Nasraoui, Rojas & Cardona, 2006; Mofreh, Miroslav  & Pawan 2003)  in the data mining community have focused their efforts on finding efficient algorithms for analyzing huge amounts of data. Temporal usage mining involves application of data mining techniques on web usage data to discover temporal patterns which describe the temporal behavior of web users.

A number of research work have been concentrated on applying data mining techniques on to preprocessed web access log data to identify behavior of frequent users  (Suneetha  & Krishnamoorti, 2009c). But the proposed WPRM model tries to form well focused data of interested users using decision trees (Zidrina & Pabarskait, 2003; Zuhoor, Swamy, Muna & Haider 2005)and then fuzzy temporal frequent pattern mining algorithm is applied on this group, which inturn improves the performance. However, determining useful and interesting patterns is still an open problem. Comparing with all the works present in the literature, the work presented in this paper is different in many ways. First, it uses fuzzy logic for efficient decision making. Second, it uses temporal constraints for validating frequent relevant document. Third, it uses web data for effective classification. Finally, it provides recommendations for site re-organization through interested /popular page pattern identification.

III. PROPOSED WPRM MODEL

Fuzzy Logic is a problem-solving control system methodology that lends itself to implementation in systems ranging from simple, small, embedded micro-controllers to large, networked, workstation-based data acquisition and control systems. Fuzzy logic provides a simple way to arrive at a definite conclusion based upon vague, ambiguous, noisy, or missing input information.

Fuzzy C-Means clustering algorithm is used to create fuzzy partitions in, (Ashish  & Vikram  2009)  compared to this logic, the FTARM algorithm proposed in this work classifies the web user profiles dataset periodically.  The temporal data stored in the database follows interval stamping of tuples where the start-time and end-time for the temporal attributes are provided as two separate attributes. Moreover, the data set used in this work follows transaction time since there is no difference between the transaction time and valid time in this web log data. Each tuples in  the  database  is  uniquely  identified  by  a  composite  key  in  which  the temporal start-time is one of the attributes. Moreover, this work provides suitable experimental analysis for the proposed fuzzy logic based temporal association rule mining approach in which  relevancy  is  increased  by  enhancing  semantics  in  addition  to  the relevancy measures provided by the conventional syntax based approaches.

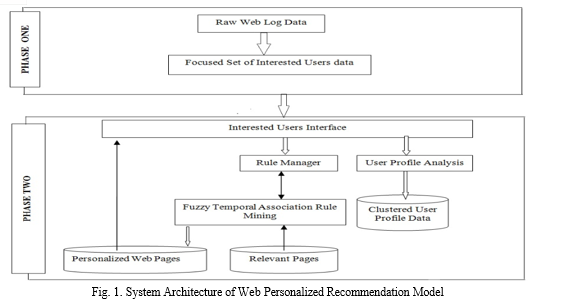

The architecture of the proposed WPRM model in which FTARM used for intelligent classification is shown in Fig. 1. It has two phases.

Phase 1, collects raw web server log file and process the log data to avoid erroneous data. The preprocessed data is classified to identify interested users (Suneetha & Krishnamoorti, 2010a; Suneetha & Krishnamoorti, 2010b) . In Phase 2, FTARM algorithm is proposed and applied on this classified set to provide recommendations. The  mined  patterns  are expressed  in the form of fuzzy  temporal  association  rules  which  satisfy  the  temporal requirements  specified  by  the  user. These rules are used to provide recommendations for site re-organization through interested /popular page pattern identification. In our previous work (Suneetha  & Krishnamoorti, 2011d) the pages are identified as popular pages in the sequence of frequent patterns using set of attributes.  Comparing with the previous work the present proposed system works faster in identification of interested/ popular pages by use of two attributes time-spent and count. The pages just used for navigational purpose may be eliminated by creating direct link between these pages which yields popular page patterns.

 IV. PROPOSED FUZZY TEMPORAL ASSOCIATION RULE MINING ALGORITHM

The proposed algorithm uses a partition-approach to generate fuzzy temporal association rules. The dataset is logically divided into p disjoint horizontal partitions P1, P2,......, Pn. Each partition is as large as can fit in available main memory. For ease of exposition, it is assumed that the partitions are equal- sized, though each partition could be of any arbitrary size as well.

The following notations are used in this work

• E = Focused fuzzy dataset
• Set of partitions P = {P1, P2,…, Pn}
• tid (it) = tidlist of item set (it),
• t1, t2   Start timing and End timing of events
• µ = fuzzy membership of item set, with reference to time spent.
• time-spent (it)  = total time spent by an item set (it)  in the current transaction T
• count (it)  = number of occurrences of  the item set (it) in the current transaction T
• d= number of partitions

The byte-vector-like data structure is used in which each cell of the byte-vector stores μ of the jth item set of ith transaction corresponding to the cell index of the tid to which the μ pertains. Thus, the jth cell of the byte-vector contains the μ for the jth tid in ith transaction. If a particular transaction does not contain the item set under consideration, the cell corresponding to that transaction is assigned a value of 0. When the byte-vector is initialized, each cell by default has value 0.

A. Proposed Algorithm

In stage1, each transaction in the current partition of the data set is scanned and a list is created for each singleton item found (tidlist). The count of each itemset (it) is maintained in count (it), total time spent by an item set (it) is maintained in time-spent (it), in the current transaction T  and by checking the support count value of singletons which are not frequent are dropped. To generate larger itemsets, Breadth-First Search (BFS) technique is used which is similar to the one used in Apriori. At the kth level, each k-item set (itk) is combined with another k-item set (itk') to generate a (k+1)-item set (itk+1); if the two k-itemsets differ by just one singleton. The (tidlist) td(itk+1) for each (k+1)-item set (itk+1) is generated by intersecting the tidlists of its parent k-itemsets, td(itk) and td (itk'). If (itk+1) is not frequent, then td (itk+1) is discarded. Additionally, the count of each (k+1)-item set (itk+1) is maintained in count (itk+1). Then the next partition is traversed in a similar manner, till all partitions have been processed.

The main advantage of computing count is that, with the generation of association rules we are able to predict users’ next action. By observing count and time spent on particular page or item set in the sequence of rule, one can able to decide whether the pages are really user interested one or used just for navigational purpose. This information is beneficial for the service provider to create direct link between interested pages which results in less time consumption to reach destination pages.

The steps of the algorithm includes two stages as stage1 and stage 2 are explained below with pseudo codes.

Algorithm: FTARM Algorithm

Input: set of disjoint partitions p1,p2,…pn.

Output:  Fuzzy Temporal Association Rules.

V. EXPERIMENTAL RESULTS

In this section, the performance of proposed algorithm with respect to fuzzy Apriori is presented with implementation details. The main data sources used for experimental purpose are of type server access log files. In this work raw web log data is collected from the various resources. One such standard source is from NASA (Kennedy space center NASA) server over the months of July 1995 (195 MB) and August 1995 (160 MB).

The second data set is from the educational web site www.enggresources.com of month August 2010 (41MB). This web site focuses on engineering education and provides information related to engineering subjects, syllabus, courses, teaching guide lines, question banks, etc. Various experiments are conducted with the proposed framework to predict, to analyze interested user behavior and to provide recommendations. We have implemented the system components -in JAVA SDK 6.0 and simulated on NVIDIA GFORCE GT 630 + i3 processor with 4GB of physical RAM and 465GB of free disk space with Windows 7 operating system. Time taken for data cleaning is 1 minute 24 seconds, for user identification 19 seconds and session identification 35 seconds. Overall time consumption for preprocessing is 2 minutes 16 seconds.  Summarized information of data preprocessing is given in Table 2.

Table 2 Summarized details of server log file

Generation of focused set of interested users using decision rules reflects in the database size reduction for further analysis. The database size is reduced by 40% after classification. The main attributes used to identify users interest are, total time a user stays at the site, total number of accessed pages, access methods used (GET, POST). The main aim is to avoid the transactions which includes set of pages just scanned through, which reduces the number of partitions as much as possible during further step. Less number of partitions means faster processing and less consumption of resources like main memory and processor.

A. FTARM Analysis

We have used transaction time attribute present in the dataset to form partitions and then generated the fuzzy version of the dataset (using a threshold for membership function μ as 0.1). Using various values of support ranging from 0.1 to 0.9, it is clearly observed that FTARM performs 10-15 times faster than fuzzy Apriori, depending on the support used. Fig. 2 shows comparison on execution time variation for FARM   and FTARM. For any dataset there is a particular support value for which optimal number of itemsets is generated and for supports less than this value, we get too many itemsets which are of no practical use. From the experimental analysis it has been observed that the proposed algorithm performs most efficiently.

In this proposed work, interested pages are identified by use of time-spent and count attributes in the sequence of generated association rules obtained from set of partitions.

B. Recommendations and Analysis

Recommendations assist the web site designers to improve the performance by giving preference to the interested regular users’ patterns to improve customer loyalty. Recall indicates what proportion of all the relevant documents has been retrieved from the collection. Precision indicates what proportion of the retrieved documents is relevant. Since the collection of documents is from the web, the total number of relevant documents in the collection is usually unknown. Precision is calculated from the retrieved set of documents and hence, only the precision measure is considered. Relevance-based measure of recall and precision are most widely used to test the performance of an information retrieval system. Using this, the relevant webpage’s are retrieved after matching the pages with user’s interest even though the user’s accessing time varies. The recall and precision are defined in the following equations.

The metrics precision, coverage and F-measure is used to evaluate the recommendaton system. Precision and coverage are defned   in Equ.7 and Equ. 8 as follows:

In Fig. 6, the relevancy of the proposed algorithm is analyzed by comparing it with the existing algorithm. From this graph, it can be seen that the proposed algorithm improves the relevancy by 10%  when  it  is compared  with  existing   algorithm.   This helps to retrieve relevant and personalized web pages to the user. Further works in this direction could be the inclusion of semantics for effective relevant information retrieved. In our previous work (Suneetha & Krishnamoorti, 2011d) the pages are identified as popular pages in the sequence of frequent patterns using set of attributes.  Comparing with the previous work the present proposed system works faster in identification of interested/ popular pages by use of two attributes time-spent and count. The pages just used for navigational purpose may be eliminated by creating direct link between these pages which yields popular page patterns. Popular page patterns are condensed in size compared to frequent patterns as the navigation pages are eliminated.

Using popular page patterns, the user reaches the destination with less number of hops and also in reduced time. This imposes less burden on computation. Recommendations are drawn from this well focused set to assist service provider for restructuring web site and web personalization. This satisfies the demanding requirements of today’s applications such as web personalization, site modifications and business intelligence for the success of e-commerce.

Conclusion

A number of research work concentrated on applying data mining techniques on to preprocessed web log data to identify frequent patterns. But the proposed WPRM model tries to form well focused data of interested users in Phase 1 and then FTARM algorithm is applied on this focused group in Phase 2. The advantage here is instead of considering overall entries which include patterns of interested as well as uninterested, importance is given to a focused set of interested users / customers in order to retain regular interested customers. This in turn improves the performance by reducing the size of the database, execution time, memory usage and the algorithm FTARM helps to retrieve relevant and personalized web pages to the user. Interested pages are identified in the sequence of association rules using time-spent and count attributes. Trying to remove the pages that are used just for navigational purpose by forming direct link in the sequence of path will yields popular page pattern and also with a smaller number of hops the user will be able to reach the destination. This retains the regular customers and also attracts new customers in support for extraction of relevant pages within minimum time.
