Wireless Blackbox for Cars Using Sensors and GPS Module

Abstract

The main purpose of this wireless black box project is to develop a vehicle black box system that can be installed into any vehicle all over the world. This paradigm is often designed with minimum range of circuits. Wireless black box is basically a device that will indicate all the parameters of a vehicle crash and will also store and display its parameters such as temperature, location, vibration, alcohol limit etc. At the time of accident, the message will be sent from the system built inside the car to the registered mobile numbers such as emergency numbers of police stations, hospitals, family members, owner etc. We have used various types of sensors like temperature sensor, which is used to measure temperature. Vibration sensor measures vibrations felt by the car during accident. Alcohol sensor is located on the steering wheel which will indicate whether the driver is drunk. Micro-electromechanical system sensor is used to indicate tilt during the accident. GSM module, GPS module are some of the devices used in this project which helps in accomplishing the output.

Introduction

I. INTRODUCTION

A. Aim of The Project

In our contemporary world, the relentless surge in population is paralleled by a corresponding increase in the number of vehicles navigating our roads and highways. This exponential growth, however, brings with it a dire consequence — a rise in road accidents that not only engender traffic gridlocks but also impede the swift arrival of assistance. Road accidents, globally, account for a significant portion of fatalities, exacting a toll on both property and human lives due to the absence of immediate safety infrastructure. While preventing accidents entirely may be an unattainable goal, mitigating their repercussions is within our reach. In densely populated countries such as India, the daily loss of lives underscores a stark reality — inadequate emergency facilities contribute to tragic outcomes. Lives could be spared if medical aid were accessible in a timely manner. Unfortunately, in numerous instances, family members, ambulances, and law enforcement are not promptly notified, resulting in critical delays in reaching accident victims. Addressing this issue mandates a comprehensive approach, beginning with the utilization of location tracking technology to precisely pinpoint accident locations. Subsequently, alert messages can be expeditiously dispatched to relevant parties, including emergency services. The crux of providing timely treatment to the injured lies in closing the gap between accident occurrence and the deployment of swift assistance, a goal achievable through the integration of advanced communication technologies with emergency services

B. Literature Survey

The concept of the BlackBox finds its origin in the aviation industry, where a flight recorder, commonly referred to as a black box (although it is now colored orange for easy retrieval), serves as a crucial electronic recording device in aircraft. This device plays a pivotal role in the investigation of aviation accidents and incidents by capturing essential data. Drawing inspiration from this aviation technology, a similar concept has been adapted for the automotive industry. 2 The current system in automobiles involves the installation of a device designed to record vehicle crashes or accidents. Unlike the comprehensive capabilities of aviation black boxes, these automotive devices are triggered by electronically sensed problems in the engine or a sudden change in wheel speed. However, it is essential to note that the existing system falls short in terms of tracking the overall movement of the vehicle and capturing the driver's actions. The limitations of the current system become apparent as it only records specific types of critical data in the moments leading up to a collision. This restricted timeframe is primarily due to the system's focus on monitoring the activation of airbags. Consequently, the existing system provides valuable insights into the immediate events surrounding a crash but lacks the depth of information required for a more comprehensive analysis of the entire sequence of events leading up to an accident. To enhance the effectiveness of accident investigation and prevention, there is a need for a more advanced system that goes beyond the limited scope of the current black box concept. An ideal system would not only record crucial data related to the crash itself but also incorporate features for continuous tracking of vehicle movement and monitoring of driver actions.

This evolution in technology would provide a more holistic understanding of the factors contributing to accidents, enabling more effective safety measures and accident prevention strategies in the automotive industry.

C. Motivation

A wireless Blackbox for cars, equipped with sensors and a GPS module, serves as a valuable tool for several reasons: Accident Reconstruction: In the event of a collision, the Blackbox can provide crucial data, including speed, location, and impact force, aiding in accurate accident reconstruction. Insurance Claims: It can offer objective information for insurance claims, reducing disputesby providing detailed insights into driving behavior, speed, and location at the time of an incident. 3 Driver Behavior Monitoring: The Blackbox enables monitoring of driving habits, promoting safer practices by recording data on acceleration, braking, and speed. This data can be used for feedback and improvement. Stolen Vehicle Recovery: With GPS tracking, the Blackbox enhances the chances of recovering stolen vehicles by providing real-time location information to authorities. Fleet Management: For businesses with vehicle fleets, the Blackbox assists in optimizing routes, monitoring fuel efficiency, and ensuring compliance with safety regulations. Maintenance Alerts: Sensors can detect issues with the vehicle's components, providing early warnings for maintenance needs and potentially preventing breakdowns. Teenage or Inexperienced Driver Monitoring: Parents and guardians can use the Blackbox to monitor the driving behavior of inexperienced drivers, promoting responsible habits. Emergency Response: In case of emergencies, the Blackbox can transmit critical information, such as location and severity of impact, to emergency services for a quicker and more accurate response. Data Analysis for Manufacturers: Car manufacturers can use aggregated data from these Blackbox’s to analyze and improve vehicle design, safety features, and overall performance. Regulatory Compliance: Some regions may mandate the use of such systems for compliance with safety and reporting regulations, making the Blackbox a necessity for vehicle owners. In essence, a wireless Blackbox for cars enhances safety, facilitates efficient management, and provides valuable data for various stakeholders in the automotive ecosystem.

D. Problem Statement

Develop a wireless Blackbox system for cars that integrates advanced sensors and a GPS module to enhance vehicle safety and monitoring. The system should collect real-time data on key parameters such as speed, acceleration, braking, and location. The goal is to provide comprehensive insights into driver behavior, vehicle performance, and location tracking. The Blackbox should facilitate accident reconstruction, driver behavior analysis, andefficient fleet management through wireless communication capabilities. Ensure datasecurity and user-friendly interfaces for both drivers and fleet managers

II. DESIGN OF SYSTEM

A. Introduction

The designed system comprises a set of four primary sensors—temperature sensor LM35, vibration sensor, gas sensor MQ3, and accelerometer ADXL345—each serving as crucial inputs for monitoring and detecting potential issues. These sensors collectively contribute to assessing the environment and condition of the vehicle. On the output side, the system features an LCD display, GPS module (GPS6MV2), GSM module (SIM800L), and a motor to indicate the motion of the car. Upon powering on the device, the LCD display prompts the user with the message "Wireless Blackbox," indicating the initiation of the system. At this stage, the system awaits user input to surpass the predefined threshold detection levels of the sensors. As the user provides the input or triggers an event that exceeds the preset thresholds, the system responds by activating specific functionalities. In the event of an accident or an alarming situation, the system is programmed to send an SMS to a pre-registered mobile number. This SMS includes crucial information such as the location of the accident place, obtained through the integrated GPS module.

B. Hardware Used

1. Arduino
2. Alcohol sensor MQ-3
3. Accelerometer ADXL345
4. GPS Module NEO-6MV2
5. GSM Module
6. MEMS Senso

C. Block Diagram

To overcome these problems faced due to accidents, the black box came into existence. The main objective of the car black box using sensors and GPS is to develop a hardware system that will monitor image and video, motion detection, humidity & temperature in real-time continuously on an SD card. The recorded vehicle data is stored in the SD card that is externally connected to the GSM. The information is collected by ARDUINO UNO processors using a camera module and other sensors which are connected to the Arduino nano which is an operating system that will give all the collected data information to the monitoring system.

The monitoring system will display the data in real?time which helps the investigation to find out the scenario of the accident that occurred.

III. WORKING

A. Methodology

The proposal and “expansions of this project are separated into two key parts which are hardware architecture and software details”. “In the hardware architecture, the design of the circuit was constructed and the prototype of the project was built. While in software development, the whole complete prototype was operated via programming codes”.

B. Hardware Architecture

In the hardware architecture phase, the emphasis is on the physical construction of the circuit and the development of a functional prototype. This involves the meticulous design of the electronic circuit that forms the foundation of the project. The hardware components, including sensors such as the LM35 temperature sensor, vibration sensor, gas sensor MQ3, and accelerometer ADXL345, are strategically integrated into the circuit. The purpose of each component is considered in the overall design to ensure a comprehensive monitoring system for potential hazards and accidents. The prototype, embodying the envisioned hardware architecture, is then assembled to validate the feasibility and practicality of the design. This phase involves the careful selection and arrangement of components on a circuit board, considering factors such as power supply, connectivity, and the seamless interaction of the sensors. The hardware architecture forms the physical backbone of the project, setting the stage for the integration of software elements.

C. Software Development

The software development phase involves the programming aspect of the project, where the complete prototype is brought to life through lines of code.

The software is responsible for orchestrating the functionality of the sensors, processing their input, and initiating appropriate responses based on predefined conditions. This phase requires a deep understanding of the hardware architecture and the intended behavior of the system

Programming codes are crafted to operate the entire prototype seamlessly. This includes setting up thresholds for sensor values, defining response mechanisms, and ensuring the correct interaction between hardware components. The software development phase is crucial for the intelligence and autonomy of the system. For instance, the software would be programmed to display the "Wireless Blackbox" message upon startup and prompt user input to surpass predefined sensor thresholds. The synergy between the hardware and software components is paramount in ensuring the effectiveness of the overall system. Through programming, the software not only interprets the data from the sensors but also triggers specific actions, such as sending SMS alerts with location information in the case of an accident. Iterative testing and refinement are common in this phase to address any inconsistencies or unexpected behavior in the system. In summary, the project's success hinges on the seamless integration of a well- designed hardware architecture with a robust and intelligently programmed software system. This dual-faceted approach ensures the reliability, efficiency, and functionality of the Wireless Blackbox prototype.

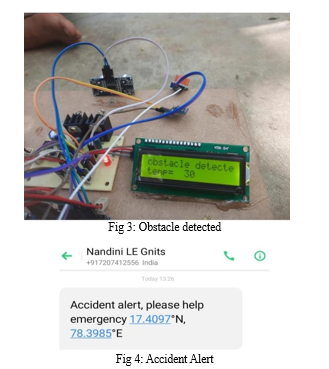

D. Output

The wireless black box consists of various components working together to record and store data related to the vehicle's functioning. GPS Module: The GPS module receives signals from satellites and provides information on the location and speed of the vehicle. Accelerometer: The accelerometer measures the vehicle's acceleration, braking, and other factors related to motion. Microcontroller: The microcontroller processes the data received from the GPS module and accelerometer and controls the operation of the wireless module and data storage Wireless Module. The wireless module is responsible for transmitting the data collected from the GPS module and accelerometer to a remote location, such as a cloud-based platform or a web?based interface. Data Storage: The data storage component stores the data collected from the GPS module and accelerometer. This data can be accessed remotely for analysis or used for insurance claims. Power Management: The power management component manages the power supply to the various components and ensures that the device operates efficiently.

IV. HARDWARE DESCRIPTION

A. Arduino

The foundation of the proposed project lies in the utilization of Arduino as the keyboard, with the ATmega328 microcontroller serving as the main controller. This combination forms the core of the project's hardware architecture, providing the intelligence and processing power required to manage the various components of the circuit.

1. Arduino as the Key Board

Arduino is a widely recognized and versatile open-source platform that serves as the key board in this project. The Arduino platform is renowned for its ease of use, flexibility, and extensive community support. It allows developers to create interactive digital devices using a simple and accessible programming environment. The central feature of Arduino is its ability to interface with a diverse range of sensors, actuators, and other electronic components, making it an ideal choice for projects with varied requirements.

2. ATmega328 Microcontroller

The ATmega328 microcontroller is embedded within the Arduino board and functions as the main controller for managing the entire circuit. This microcontroller is a part of the AVR family and is well-known for its reliability and efficiency. It plays a pivotalrole in processing input from sensors, making decisions based on predefined conditions, and orchestrating the output responses. The ATmega328 microcontroller is the brain of the system, executing the programmed instructions and ensuring the seamless operation of the prototype.

3. Versatility of Arduino for Hardware Interaction

The Arduino platform, coupled with the ATmega328 microcontroller, offers a wide array of features for interacting with various hardware components. In the context of this project, the system is designed to interface with LEDs, an LCD display, switches, GSM (SIM800L), flame sensor, buzzer, and more. This versatility allows for the creation of a sophisticated and interconnected system that can sense environmental conditions, process data, and provide meaningful output responses.

4. Capabilities of Arduino in Project Components

a. LEDs: Arduino can efficiently control and manipulate LEDs for visual indicators or status displays.

b. LCD Display: The Arduino platform facilitates communication with an LCD display, enabling the presentation of information to the user.

c. Switches: Input from switches can be seamlessly integrated into the Arduino's decision-making process.

d. GSM (SIM800L): Arduino can communicate with the GSM module to send SMS alerts, providing a crucial communication link in case of emergencies.

e. Flame Sensor: The Arduino platform allows for the integration of flame sensors, enhancing the project's ability to detect potential hazards.

f. Buzzer: Arduino can control a buzzer to provide audible alerts or signals based on programmed conditions.

ThecombinationofArduinoandtheATmega328microcontrollerforms a powerful and adaptable foundation for the proposed project. Their collective capabilities empower the system to interact with a diverse range of hardware components, creating a comprehensive and intelligent solution for monitoring and responding to potential accidents or hazardous situations.

B. Alcohol sensor MQ-3

The Alcohol Sensor MQ-3 is a gas sensor specifically designed to detect the presence of alcohol vapor in the surrounding environment. Its functionality relies on the principle that the electrical resistance of the sensor changes in the presence of alcohol. Here's a detailed explanation of the key features and operating principles oftheMQ-3AlcoholSensor:

1. Detection Range: The MQ-3 Alcohol Sensor is calibrated to detect alcohol gas concentrations within a specific range. In this case, it can effectively sense concentrations ranging from 0.04 mg/L to 4 mg/L. This sensitivity allows it to identify the presence of alcohol in various environments.
2. Analog Resistive Output: The sensor operates by providing an analog resistive output that correlates with the concentration of alcohol in the air. As the concentration of alcohol increases, the electrical resistance of the sensor changes proportionally.
3. Operating Principle: The MQ-3 Alcohol Sensor employs a semiconductor-based alcohol-sensitive material. When exposed to alcohol vapor, the conductivity of this material changes. This alteration in conductivity leads to a change in the electrical resistance of the sensor. The sensor is equipped with a heating element that maintains a constant temperature, ensuring the stability of the sensor's baseline resistance. When alcohol molecules come into contact with the sensor surface, they cause a change in the resistance of the sensing material.
4. Analog Output Signal: The sensor generates an analog signal that varies based on the concentration of alcohol detected. This analog signal can be further processed and interpreted by a microcontroller or other interfacing devices. Typically, the higher the alcohol concentration, the lower the resistance of the sensor, resulting in a higher analog output voltage.
5. Calibration and Sensitivity: The MQ-3 Alcohol Sensor may require calibration to ensure accurate readings. Calibration involves exposing the sensor to a known concentration of alcohol to establish a baseline for interpretation. The sensitivity of the sensor can be adjusted or fine-tuned based on the application requirements or environmental conditions.
6. Applications: Due to its ability to detect alcohol vapor, the MQ-3 Alcohol Sensor is commonly used in various applications, including breathalyzer systems, safety devices, and alcohol detection systems in automotive environments.

In summary, the MQ-3 Alcohol Sensor is a versatile component designed for the detection of alcohol concentrations in the air. Its analog resistive output makes it compatible with microcontrollers and other electronic devices, allowing for the integration of alcohol detection capabilities into diverse systems and applications

C. Accelerometer ADXL345

The ADXL345 is a small, thin, and ultralow power 3-axis accelerometer developed by Analog Devices. This accelerometer is widely used in various applications due to its high resolution and capabilities for measuring static acceleration, particularly in tilt-sensing applications. Let's delve into the key features and functionalities of the ADXL345:

1. Compact Design: The ADXL345 is designed with compactness in mind, making it suitable for applications where space is limited. Its small form factor enables it to be integrated seamlessly into electronic devices and systems without adding significant bulk.
2. Ultralow Power Consumption: One of the notable characteristics of the ADXL345 is its ultralow power consumption. This feature is particularly beneficial in applications where power efficiency is crucial, such as in battery-operated devices or applications where energy conservation is a priority.
3. 3-Axis Acceleration Sensing: The accelerometer is equipped to measure acceleration along three orthogonal axes: X, Y, and Z. This triaxial sensing capability allows for a comprehensive understanding of the device's movement and orientation in three-dimensional space.
4. High Resolution: The ADXL345 boasts high resolution, featuring a 13-bit resolution for accurate and detailed acceleration measurements. This high precision is valuable in applications where subtle changes in acceleration need to be captured and analyzed.
5. Static Acceleration Measurement: The primary focus of the ADXL345 is on measuring static acceleration, particularly the acceleration due to gravity. This makes it well-suited for tilt-sensing applications, where detecting changes in the orientation of an object concerning the gravitational field is essential.
6. Digital Output: The accelerometer provides digital output, facilitating easy integration with digital systems and microcontrollers. The digital output stream can be processed by external devices to derive meaningful information about the acceleration profile of the object.
7. Tilt Sensing Applications: The ADXL345 is commonly used in tilt-sensing applications where the orientation or tilt of an object needs to be determined accurately. This can include applications like tilt- compensated compasses, smart devices that adjust screen orientation based on device positioning, and various motion-controlled systems.
8. Flexible Communication Interface: The accelerometer supports various communication interfaces such as I2C and SPI, enhancing its versatility and compatibility with different microcontrollers and communication protocols.
9. Applications: The ADXL345 finds applications in a diverse range of fields, including consumer electronics (e.g., smartphones, tablets), industrial equipment, robotics, gaming devices, and any application where precise tilt or motion sensing is critical. In summary, the ADXL345 accelerometer's combination of small size, ultralow power consumption, 3-axis sensing, high resolution, and suitability for tilt-sensing applications makes it a valuable component in a wide array of electronic devices and systems requiringaccurate acceleration measurements

D. GPS Module NEO-6MV2

The NEO-6MV2 GPS module is a compact and versatile navigation device widely used invarious applications. Its primary function is to determine its location on Earth and provideaccurate output data in the form of longitude and latitude coordinates. The module is equipped with the u-box 6 positioning engine, known for its high performance. Here are some key features and details about the NEO-6MV2 GPS module:

1. Stand-alone GPS Receiver: The module operates as a stand-alone GPS receiver, meaning it doesn't rely on external sources for location data. It independently determines its position using signals from GPS satellites.
2. u-box 6 Positioning Engine: The module is powered by the u-blox 6 positioning engine, which is renowned for its efficiency and accuracy. This engine contributes to the overall high performance of the GPS module.
3. Connectivity Options: The NEO-6MV2 offers numerous connectivity options, making it adaptable to various systems and devices. Its flexibility in terms of connectivity makes it suitable for integration into a widerange of applications.
4. Compact Design: The module has a compact form factor with dimensions of 16 x12.2 x 2.4 mm. This small size makes it ideal for applications with strict space constraints, such as in battery-operated mobile devices
5. Power and Memory Optimization: The module is designed with power and memory optimization in mind. This feature is particularly beneficial for battery?operated devices where power efficiency is crucial.
6. Ideal for Mobile Devices: The NEO-6MV2 is well-suited for battery-operated mobile devices due to its compact architecture and power-efficient design. It meets the demands of devices with strict cost and space constraints, making it apreferred choice for applications with limited resources.
7. Innovative Design for Navigation Performance: The innovative design of the NEO-6MV2 contributes to its excellent navigation performance even inchallenging environments. It can reliably provide accurate location data, making it suitable for applications where precise navigation is essential.

In summary, the NEO-6MV2 GPS module is a reliable and cost-effective solution for applications requiring accurate navigation in a compact and power-efficient form factor. Its u-box 6 positioning engine, coupled with its flexible connectivity options, makes it a popular choice in the world of GPS receivers.

E. GSM Module

The GSM (Global System for Mobile Communications) module, specifically the SIM800Ctype, plays a crucial role in the communication aspect of electronic projects. Let's delve into the details of the SIM800C module and its features:

1. SIM800C Overview: The SIM800C is a quad-band GSM/GPRS (Global System for Mobile Communications/General Packet Radio Service) module, meaning it can operate on different frequency bands. Specifically, it works on GSM850MHz, EGSM900MHz, DCS1800MHz, and PCS1900MHz frequencies.
2. Quad-Band Capability: Quad-band capability ensures that the module can be used globally, as it supports different frequency bands used in various regions.
3. Industrial-Grade Interface: The SIM800C module is designed with an industrial?grade interface, making it robust and suitable for use in a variety of electronic projects. Industrial-grade components often imply durability and reliability, crucial forapplications where performance is paramount.
4. Embedded TCP/IP Protocol: The module supports embedded TCP/IP (Transmission Control Protocol/Internet Protocol) protocol. TCP/IP is a fundamental suite of protocols for internet communication. The inclusion of this protocol makes the SIM800C versatile and compatible withmodern communication networks.
5. Presentation and Suitability: The SIM800C is recognized for its presentation, which implies that it is well- regarded for its performance and capabilities. The module is suitable for electronics projects, indicating that it can seamlessly integrate into a wide range of applications, such as IoT (Internet of Things) devices,tracking systems, and other projects requiring communication capabilities.
6. Low Power Consumption: One notable advantage of the SIM800C is its low power consumption during operation. This feature is crucial, especially in battery-powered applications where minimizing power usage is essential for prolonged device operation.
7. Compatibility with Microcontrollers: The SIM800C is designed to be compatible with low-power consumption microcontroller interfaces. This compatibility is significant for seamless integration into projects where a microcontroller is the central processing unit.
8. Communication Capabilities: The module's primary function is to facilitate communication by enabling devices to send and receive data over GSM/GPRS networks.

It can be used for tasks such as sending SMS (Short Message Service) messages,making voice calls, and establishing data connections.

V. ADVANTAGES, DISADVANTAGES AND APPLICATIONS

A. Advantages

A wireless Blackbox for cars using sensors and GPS offers several advantages, enhancing both driver safety and vehicle performance. Here are some of the key benefits:

1. Accident Data Recording: Real-time data capture: The wireless Blackbox continuously records data, including vehicle speed, acceleration, deceleration, and location using GPS. This data can be crucial in reconstructing accidents and determining fault.
2. Accident Prevention: Collision detection and alerts: The Blackbox can incorporate sensors to detect imminent collisions and provide warnings to the driver, potentially preventing accidents.
3. Insurance Premium Reduction: Safe driving incentives: Some insurance companies offer discounts to drivers who have a wireless Blackbox installed in their vehicles, as it promotes safe driving behavior and helps in settling claims more accurately.
4. Stolen Vehicle Recovery: Vehicle tracking: In case of theft, the GPS tracking feature can help authorities locate and recover the stolen vehicle quickly, increasing the chances of successful recovery.
5. Fleet Management: Monitoring and optimization: For commercial vehicles, a wireless Blackbox can help fleet managers monitor vehicle performance, optimize routes, and track driver behavior to improve efficiency and reduce operating costs.
6. Evidence in Legal Disputes: Accurate records: The Blackbox can serve as an unbiased source of data in legal disputes, providing evidence of events leading up to accidents and assisting in determining liability.
7. Driver Behavior Analysis: Driver feedback: By analyzing data collected by the Blackbox, drivers can receive feedback on their driving habits, encouraging safer practices and reducing fuel consumption
8. Maintenance Alerts: Predictive maintenance: The Blackbox can monitor the vehicle's health and send alerts when it detects issues, allowing for proactive maintenance and reducing downtime.
9. Emergency Response: Automatic alerts: In the event of a severe accident, the Blackbox can automatically send distress signals to emergency services, enabling a faster response time.
10. Fuel consumption analysis: By tracking vehicle speed and acceleration patterns, the Blackbox can help drivers adopt fuel-efficient driving habits, leading to cost savings and reduced emissions.
11. Data for Research and Development: Valuable data collection: Car manufacturers and researchers can use the data gathered from these black boxes to improve vehicle design, safety features, and overall performance.

B. Disadvantages

1. Privacy Concerns: Wireless black boxes collect a wide range of data, including location, speed, and driving behavior. Concerns about who has access to this data and how it is used can raise significant privacy issues.
2. Data Security: Transmitting sensitive data wirelessly makes it vulnerable to hacking and data breaches. Unauthorized access to this data could lead to identity theft, stalking, or other malicious activities.
3. Maintenance and Reliability: These systems require regular maintenance to ensure they function correctly. Sensors can degrade or fail over time, leading to inaccurate data or system malfunctions.
4. Data Overload: Collecting large amounts of data from sensors and GPS can overwhelm data storage and analysis systems. Efficient data management and analysis are crucial to making the most of the collected information.
5. Privacy Regulations: Depending on the region, there may be stringent regulations governing the collection, storage, and use of personal data. Compliance with these regulations can be complex and costly.
6. Battery Life: Wireless black boxes often rely on the vehicle's power source. Continuous operation can drain the car's battery, potentially leading to starting issues or the need for frequent recharging.
7. Ethical Concerns: There are ethical dilemmas regarding how data collected by these systems are used. For example, insurance companies may use this data to adjust premiums, which could result in unequal treatment based on driving behavior.

C. Applications

A wireless Blackbox for cars using sensors and GPS can have a wide range of applications in improving vehicle safety, tracking, and data analysis. Here are some key applications:

1. Accident Investigation and Reconstruction: The Blackbox can record data before, during, and after an accident, including vehicle speed, acceleration, breaking, and GPS location. This data can be invaluable for accident investigation and reconstruction, helping to determine the cause of the accident and liability.
2. Insurance Telematics: Insurance companies can use the data collected by the Blackbox to assess driver behavior and offer personalized insurance rates. Safe drivers may receive discounts, while risky behaviors such as speeding and hard braking can result in higher premiums.
3. Fleet Management: Businesses with vehicle fleets can use the Blackbox to monitor the location and performance of their vehicles in real-time. This helps optimize routes, reduce fuel consumption, and track maintenance needs.
4. Stolen Vehicle Recovery: In the event of vehicle theft, the Blackbox can provide real?time tracking data to assist law enforcement in locating and recovering the stolen vehicle.
5. Driver Behavior Analysis: The Blackbox can record data on driver behavior, such as aggressive driving, sudden lane changes, and excessive. Speeding. This information can be used to provide feedback to drivers or as part of driver training programs.

Conclusion

More than 50% deaths in India occur due to road accidents. A considerable part of these incidents is due to lack of immediate medical assistance for the accident victim. The proposed system Wireless Black Box using MEMS accelerometer and GPS tracking for accidental monitoring of vehicles mainly aims at providing immediate assistance for accident victims even in remote areas where human help and medical services cannot be expected. In conclusion, an innovative wireless black box using MEMS accelerometer and GPS tracking system has been developed for motorcycle accidental monitoring. The system can detect the accident from an accelerometer signal using a threshold algorithm and locate the vehicle through a GPS module. After an accident is detected, short alarm massage data (alarm massage and position of accident) will be sent via GSM network. The system has been tested in real world applications and the test results are reliable without any false alarm. The implementation of a wireless Blackbox for cars, equipped with sensors and a GPS module, offers a comprehensive solution for real-time monitoring and data collection. This advanced system enhances vehicle safety by providing critical insights into driving behavior, environmental conditions, and location tracking. The seamless integration of sensors and GPS technology not only ensures accurate data capture but also opens avenues for proactive maintenance, insurance optimizations, and improved overall road safety. The wireless Blackbox represents a significant stride towards a smarter and safer automotive ecosystem.
