Wireless Charging System for E-Vehicles

Abstract

Solar based Wireless Power Transfer[WPT] using the magnetic induction technology which could avoid human from the hazardous accident caused due to the using of cables. By the using of MOSFET switches in the inverter, it creates the output with high frequency improves the efficiency of power transfer between the coils. Due to this creation of output with higher frequency the charging of battery will be very fast and efficient. By connecting the solar panel to the supply battery, it will be charged continuously using this panel. This will helps the users for the non-stop driving. These advances make the WPT very attractive to the electric vehicle charging application in both stationary and dynamic charging. By introducing WPT in electric vehicle, the obstacles of charging time, range, and cost can be easily managed. WPT technology is developing rapidly in recent years. The proposed system is designed specially to give protection to the battery system of the vehicle by auto-cutting off the power to the battery during overload, overcharge and thermal conditions. This will increase the life time of the electrical vehicles.

Introduction

I. INTRODUCTION

Now-a-days the world is facing the most serious problem which is the energy demand. Instead of this we had various techniques for the generation of energy which should be hazardous to our environment. So we step into the Non-renewable energy which will be ecofriendly to our environment. Our main demand will be the fuels used in automobiles and it causes the major impact to our environment, so we introduce the hybrid version of Non-renewable energy in the vehicle as electric vehicle which acts eco-friendly to our environment. We use both the combination of wireless power transfer and the solar energy which helps the user for nonstop driving. In an electric vehicle the battery is too tough to design due to its high energy density and power density.

There are many types of batteries used in the instruments but the lithium-ion batteries gives the most suitable solution for the electric vehicles. Recently the Wireless Power Transmission has been a most effective topic in the transportation system. This paper starts with a basic concept of Wireless Power Transfer and it gives a brief overview of Wireless Power Transfer system and it includes the Magnetic induction principles, Existing and Proposed system, High frequency power output, Solar panel and some other issues like safety considerations. By introducing the latest achievements in Wireless Power Transfer, we hope that this will achieve in all over the world. The term ‘wireless’ becomes the most advanced and innovative research field. This will help the people to free from annoying wires and to avoid them from exposing to hazardous accidents which occur due to the using of cables. It will help us the user for using the electronic devices without any interpretation and limitations. It will be hybrid with the solar energy and implemented in the automobiles will made the vehicle ecofriendly to the surrounding. This wireless power transfer also has the advances of both stationary and dynamic charging of the batteries.

Global warming becomes a most dangerous problem in now a day. This increases the heat in the earth surface and makes the ice peaks to melt down this increases the sea level will be dangerous to the entire world mainly because of the pollution. The main polluting factor is the automobiles which emit the carbon monoxide had a very harmful impact to the environment. So we had introducing the electric vehicle with the combination of ‘wireless’ power transfer made the EV high efficient and it will create the pollution free environment. It also protects the people from inhaling of hazardous carbon monoxide and leads a people to live in a healthy environment.

II. RELATED WORK

C. Cheng, Z. Zhou, W. Li, C. Zhu, Z. Deng and C. C. Mi (2021), proposes a novel wireless power transfer (WPT) system with repeater coils for multiple loads. In order to obtain independent power control of all the loads, the series-parallel-series (SPS) compensation method is adopted for each repeater unit. With a proper resonant condition proposed, the constant load current can be obtained for all the loads when neglecting the coils’ parasitic resistances.

Z. Zhang, H. Pang, A. Georgiadis, C. Cecati (2020), is Focusing on WPT systems, this paper elaborates on current major research topics and discusses about future development trends. This novel energy transmission mechanism shows significant meanings on the pervasive application of renewable energies in our daily life.

M. Fu, H. Yin, M. Liu, Y. Wang, C. Ma (2018), proposed multiple-receiver wireless power transfer system driven by a Class E power amplifier. It shows that different constant output voltages, 5, 9, and 12 V can be achieved independently for different receivers. When the load resistance, real coupling, and number of receivers change, the voltage can be quickly regulated, and the overall optimum system efficiency is 66.6%.

T. Kan, F. Lu, T. D. Nguyen, P. P. Mercier and C. C. Mi (2019), the double-sided LCC topology provides a highly efficient compensation method for electric vehicle (EV) wireless charging systems. However, the two compensated coils occupy a large volume. In order to address the volume increase as well as to be compatible with unipolar coil structures, which are widely applied in EV wireless charging systems, an integration method is introduced.

P. Eekshita, N. S. V. Narayana and R. Jayaraman (2020), proposed method of the design of coils, driving converters and creating resonance are used for transfer the power without any conducting wire. Design of the HFWPT system is to be operated at resonance frequency of 50 kHz. It can be expected that the high frequency resonance coupling will improve the efficiency of transmission allowing one to transmit at lesser frequency which is nearly in a range of few kHz range. The performance of HFWPT is observed satisfactory to maintain the output voltage as required by changing the coupling coefficient.

III. EXISTING SYSTEM

In the conventional wireless power transfer (WPT) system, the energy is usually transferred from the source to only one load. Recently the WPT system with multiple receivers has attracted more and more attentions where multiple loads can be powered simultaneously. A WPT system with multiple receivers was proposed for the battery cell voltage equalization. The multiple receiving coils are placed in the same plane and receive power from a big transmitting coil.
However, the cross-coupling between different receiving coils is neglected. Multiple receiving coils with different resonant frequencies are used to receive power from the same transmitting coil. By changing the operational frequency of the source, the receiving coil with the same resonant frequency can receive power. However, only one receiver works at a certain moment. In a multi-load WPT system, the control of the load power is challenging because of the various coupling effects between different coils. the buck converter is used at each receiving circuit to control the load power. Repeater coils are used and each repeater coil is connected to a load. It is derived that the load resistance should meet a certain condition to realize equal power distribution among all the loads. It means that the load power is coupled with each other, which makes it difficult to control the load power in practical applications.

In this, a novel multi-load WPT system is proposed. The repeater unit containing two repeater coils is designed and a suitable magnetic decoupling can be achieved. The series- parallel-series (SPS) compensation method is used for each repeater unit. The constant load current can be obtained for the proposed system, which facilitates the power control of all the loads. The proposed WPT system can be used to power multiple loads such as the driver circuits of the power electronics switches in a multilevel converter. These switches are connected in series to withstand the high voltage. Since the reference potential of these IGBTs are different, multiple isolated power supplies are needed for the IGBTs’ driver circuits. Thus, the proposed multi-load WPT system provides an ideal solution for these driver circuits

This design includes two sections

1. Sending end
2. Receiving end

Initially from the side of sending end ac power is given to the first full wave rectifier which converts two directional ac into a single directional dc. This dc supply is given as input to the inverter which converts dc to ac. The frequency of the output ac from the inverter is increased by changing the switching frequency of the inverter gate pulses. The time intervals of switching intervals are calculated based on the frequency as it is required. Hence frequency is inversely proportional to the time period would decreases i.e., for increasing the frequency of the output ac switching time interval is reduced and for decreasing the frequency of the output the switch in time interval is increased.

In a multi-load WPT system, the control of the load power is challenging because of the various coupling effects between different coils. The buck converter is used at each receiving circuit to control the load power. Repeater coils are used and each repeater coil is connected to a load. It is derived that the load resistance should meet a certain condition to realize equal power distribution among all the loads. It means that the load power is coupled with each other, which makes it difficult to control the load power in practical applications.

In our project, block diagram consist of two types  namely,

a. Primary Side: The photo voltaic (or) Solar panel will be used in the initialization process of the circuit which generates the power for the whole operation. It absorbs energy from the solar radiation and this heat energy will be converted into electrical energy, this will be supplied throughout the circuit. Inverters will be used for converting the DC to AC, power generated by the solar panel will be the DC, these DC power will convert into AC power which it is given to the coil. The inverters consist of four n-channel MOSFET switches these switches needs the triggering pulses for the ON and OFF process, these triggering pulses will be generated using the PIC controller. This PIC controller will generate a triggering pulse of 5v DC. But the MOSFET switches needs a minimum of 10 – 12v DC for operating the voltages. For the amplification process the driver board will be used. Output of the PIC controller will be given to the driver board, it starts amplifying the triggering pulse that the output of the driver board will be given to the inverter. This driver board output will be connected to the gate terminal of the MOSFET switches. After the conversion of power it will be transferred to the coil through the compensation network.

b. Secondary Side: The coil from the primary side gets energize and it creates the magnetic field around the coil. Due to the using of high frequency output, the creation of magnetic flux will be very strong. The flux from the primary coil links the secondary coil. Hence the power will be transferred between the coils through the magnetic field. Next the power from the secondary coil given to the rectifier. After the rectifier the LED which indicate the power transfer to the coil. By using the rectifier AC supply will be converted into DC supply and then it is given to the booster circuit responsible for the steady output. After that it will be filtered by using the compensation network and finally connected to the DC shunt motor (Toy car motor). The solar panel power supply will be given to the motor. Due to the continuous generation of power via solar panel, it helps for non-stop driving.

IV. PROPOSED SYSTEM

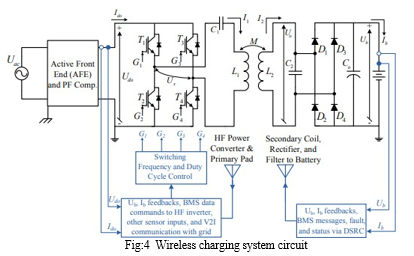

V. CIRCUIT DIAGRAM

The photovoltaic panel (PV) will be used as the power source for the whole operation of the circuit. DC power will be generated by the solar panel will not suitable for transferring in the coil. Hence the DC power will be given to the inverter. The inverter will consist of MOSFET switches activate using the trigger pulse and convert DC to AC power. It will give the high frequency output to be filtered using the compensation network and then the energy will be transferred to the primary coil. Primary coil get energize which creates the flux in the coil these flux which links the

Secondary coil and current will be transferred between the coils. Then it will be filtered and after given to the rectifier which converts the AC power to DC power. Power transferred will be indicated by the LED and moves to the booster circuit which gives out the steady output conducted by the diode and compensating network. Finally the desired output will be given to the DC motor (Toy car motor).

VI. RESULTS

The fig.3 shows the whole experimental setup which includes the solar panels, controller boards and the various hardware parameters of the hardware setup. After the completion of the hardware we moved to the further testing process for checking the efficiency of the hardware.

It gives nearly good results compared to the existing system. We use the solar energy as the input source for getting a quick result solar panel will exposed to the solar radiation for a certain time. The panel gets heated up and the power collected from the panel will be transferred to the inverter block. The inverter consists of MOSFET switches which includes in the power conversion. When the MOSFET switches activated using the triggering pulse generated from the PIC controller and the power will be transferred from DC to AC. The AC supply will be given to the primary coil gets energize creates the

1. Coupler in Stationary Charging: In a stationary charging the coupler is designed in pad form. The very early couplers are just like      a simple split core transformer. Usually this kind of design could only transfer power through a very small gap. According to magnetic flux distribution area the coupler could be classified as the double side and single side type. For the double sided type the flux goes to both sides of the coupler. When the shielding is added, the quality factor of a flux pipe coupler reduce from 260 to 86. Double sided coupler having half of the main flux at the back. By the magnetic resonance technology the power will be transferred due to the magnetic vibration for the required distance.
2. Coupler in Dynamic Charging: The dynamic charging also called OLEVs or road way powered electric vehicles. It is two way to charge the EV while driving. Dynamic charging also solves the EVs range anxiety. In dynamic charging system the magnetic component are composed of a primary side of the coupler. Which is usually buried under the road and secondary side pickup coil? When EV with a pickup coil is running along with the track and it can able to transfer the power continues. The track can be simple as just two wires and adoption of ferrite with U or W type to increase the coupling and power transfer distance.

3. Wireless Power Transfer: WFT or Electromagnetic power transfer is the transmission of electrical energy without using the wires. Wherever the interconnecting wires are inconvenient in such places Wireless power transfer is more compactable. This wireless power transfer system which gives the advantages of using cables and that could avoid the short circuits, flux leakage and fire accidents. Wireless Power System consists of two sides, transmitter and receiver. Mainly the Resonant coils are used in the power transfer. The two coils are tuned to the same resonant frequency and the power is given to the transmitter side, resonant coils get energized and create the magnetic flux or field that links magnetic field or flux in the primary side. Flux created in the primary side links the secondary coil and the EMF will be transferred wirelessly between the coils. Transferred power in the secondary coil will be indicated by using the LED after it will be moved to the rectifier circuit AC converted to DC will be injected to the booster circuit and the various harmonics will be neglected by the compensation networks and finally the power will be given to the Electrical Vehicle [EV] motor. Hence the major objective of the project power is transmitted wirelessly is achieved.

The proposed system is tested for various abnormal conditions such as

a. Overcharging: Here, the potentiometer V1 is adjusted for adjusting voltage value. The reference voltage for the potentiometer V1 is set as 10v. So, if the voltage level crosses 10v means, it means the battery is charged completely. Hence, the relay connected with the load circuit will cut off the load from the Battery Management System (BMS). This will disconnect the charging process. So, our vehicle or system can be protected from the damage.

b. Overheating: Here, a temperature sensor is connected with the battery management system. Which protects the system from heat damage or from external or internal heating so, that the battery of the vehicle cannot be affected. So, the reference temperature is set as 500C, if the temperature sensor reads the temperature more than this temperature will disconnect the circuit from the charging by opening up the circuit. Once the system return backs to the normal temperature means that is less than 500C the system continues charging. So, clearly system will protect our vehicles from huge damage.

c. Overload: This scenario is similar to that the overcharging. If the load connected to the system consumes more Amps of power than the specified value means this will create a overload condition will damage the battery of the vehicle and creates more stress to BMS. So, here it can be demonstrated with the help of a potentiometer. So, the reference voltage is set as 10v to V2. If, the consumable voltage is more than 10v means, the relay connected with the BMS will open up the circuit and disconnect the battery from charging.

VII. FUTURE SCOPE

Wireless Charging is the Future of EV Charging. Apart from wired EV Charging, Wireless Charging for EVs is also gaining attraction as wireless charging technology allows getting rid of plugs and cables. In DC Fast Charging more power and faster charging system, the AC from the grid is converted to DC before it enters the car, which is within a charging station. It operates at powers ranging from 25 kilowatts to more than 350 kilowatts. DC Fast Chargers can offer a range of 60 to 100 miles in just 20 minutes of charging. They are generally used only in commercial and industrial applications as they require highly specialized, high- powered equipment to install and maintain. DC Fast Chargers are not applicable in all vehicles as most plug-in hybrid EVs do not have this charging compatibility which could be developed. An EV gets charged when driven over transmitter coils embedded under the road's surface in this charging infrastructure. Qualcomm and Elect Road have successfully tested dynamically powering vehicles while they are in motion. These are expected to appear primarily on buses or transport trucks running on fixed routes.

Conclusion

This work, presents the various technologies related to Wireless Power Transfer system, which is used to avoid the flux leakage and short circuits occurred due to the cables. A prototype wireless charging system was designed and developed.The compact hardware development and practical considerations are presented in the details. This will be helpful for those who are doing research in the area of wireless power transmission. The wireless Power Transmission is used to operate the cars with high efficiency and improve the quality parameters. This project is in the progress of generating power source through renewal energy.
